Nameplates

Nameplates are often missing or damaged on TMC gear.  This page provides information that you may be able to use to reproduce and replace theses tags.

Refer to the NP Drawings for TMC's original drawings of equipment nametags.  Unfortunately, many of these drawings are missing, but the nametags only came in a few standard sizes.

Nameplate Scans and Artwork

There are three ways for you to obtain a reproduction equipment tag:

1. Check the "for sale" page of TMCHistory.org.  If I have the tag you need, just let me know and we'll exchange $$  for tag!
2. Persuade me to make a tag for you.  If your equipment is an item that is in many collections, that may not be too difficult.. :)  Email me at .
3. Make your own tag.. keep reading!

There are a couple of ways to reproduce TMC equipment ID tags that have been tried.

1. Find an existing tag and have it copied
2. Create new artwork for a tag

If you happen to have a very clean copy of an original tag, method 1. works reasonably well.   Bruce Berman, for example, borrowed an RTC tag from me and shipped the original tag to Aluma Photoplate (see below) to have it copied.  The copies look pretty decent, but on close inspection, they're a little 'noisy'.  They're not bad at all, however, good enough to satisfy Bruce, who's a pretty demanding restorer.  If you need an RTC tag, get in touch with Bruce!

This led me to explore option 2.  I'm currently (6/27/2015) in the process of having Aluma Photoplate make a complete set of tags for the PAL-1K.  I'll update this page with the results in about a month, when Aluma ships me the new tags.  I've made 'way more than I need!  The surplus will be for sale shortly, probably priced around $10 or so per tag.  See this space for details.  I'm also planning to have some RTM (GPT-750 AM Modulator) tags fabricated, and those will also be available for purchase.

You can see the progress of the artwork design by clicking on Tag Design Database Page.

How to Make a TMC Nameplate

This section describes a process you could use to create your own replacement TMC equipment tag.

1. Nameplate Dimensions

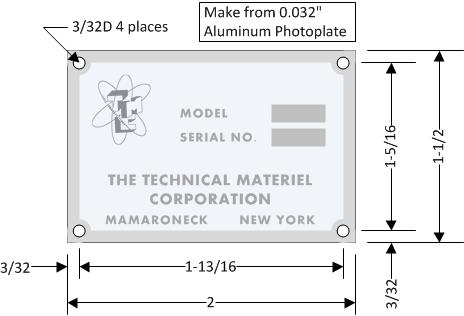

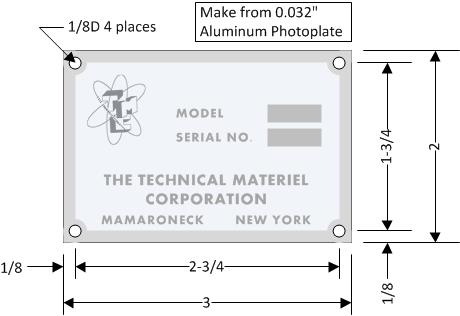

The first step is to figure out the exact size and mounting-hole placement for the tag you want to reproduce.  Below are a couple of drawings for two fairly typical tag sizes:  1.5" x 2" and 2" x 3".

1-1/2" x 2" Nameplates	2" x 3" Nameplates

If the plate you're trying to reproduce is a different size and shape from these, then your first step will be to create a drawing, like these, that specifies the overall dimensions, the hole locations and sizes, tag thickness, and any other salient features, such as corner radiuses.  You may be able to find the drawing for the tag you're trying to make in the NP Drawing repository, though many of the earlier tag drawings are missing.

2. Creating the Artwork

The next step is creating the digital artwork for the tag.  In addition to the geometric features (borders, radiuses around holes, blank areas for serial no. stamps, and so forth), you'll need to items that are more difficult to find.  Fortunately, I've already done most of the work!

Logos

Below are scans of the company logos (good for cups, t-shirts, and such.. :), as well as nametag artwork.  For TMC's early equipment, the "Fat", cleaned-up, and photoreversed logo at the top right of the table is mostly what you'll need.  For later equipment, the "late" logo will be needed, and the left-most item, 2nd row, would be a good starting point.

Early Logo	Early Logo, from drawing NP-117	"Fat" and cleaned-up version of NP-117 for nameplates	"Fat", cleaned-up, photoreversed version of NP-117 for nameplates
Late Logo	Late Logo (grayscale)	Early Logo (Blue)

The "old" logo was scanned at high resolution from the original drawing, NP-117, which is referenced in various other NP tag designs.  I used the excellent free photo processing tool "Gimp" to do the cleaning and photo-reversal.  Gimp is an excellent example of Poulton's Rule for Design Tools: "The value of a design tool is inversely proportional to its price!"  You can dowload gimp from

http://www.gimp.org/downloads/

Fonts

If you are going to be doing your artwork on a PC, and just want to get on with it, down-load the font "Perspective Sans" from the website:

http://www.1001fonts.com

This is an "OTF" font; to use it with Visio on a PC, you'll need to covert it to "TrueType" (TTF), which you can do for free at:

https://everythingfonts.com/otf-to-ttf

Then skip to the next section.

If you want to read about the nitty-gritty of finding a suitable font, or you're not completely happy with the choice of Perspective Sans, read on!

The first order of business is to find a digital font that approximates the lettering TMC used on its early tags.  If you have a later production unit, you may find that TMC used a more standard-looking sans-serif font, and that may be much easier to match with commonly available existing digital fonts.

Below is a scan of a typical early TMC equipment tag

:

(As usual, this is a thumbnail--click on the image to get the full-resolution scan).  The font that's used on this and almost all TMC tags is a very plain sans-serif font.  It has some unusual characteristics, however, and these made it hard to find a digital font that's a good match.

• The "M" is the most telling character.  Note that the sides of the character slope rather steeply, and the center of the M descends all the way to the baseline.  Note that on later TMC production tags, you'll find the "M" has straight sides, so you'll have to find a more typical sans-serif font for your artwork.  One of the 'standards', like Arial, might work well.
• "R"  Note the just-plain, nothing-fancy rounded upper part, and the feature that the diagonal meets the vertical line right at the junction with the rounded part; also the diagonal's bottom end sticks out the same distance to the right as the rounded part.
• "C"  The C's open ends curve up slightly (some fonts bring the open ends of the C straight out).
• "K"  Like the R, the two diagonals meet exactly at the same point, on the vertical line
• "E"  The center horizontal line extends to the right the same distance as the top/bottom ones, and is ever-so-slightly above the center line.
• "W"  Like the "M", the center point extends right up to the top line of the character

If you go searching for sans-serif fonts on-line, you'll discover that there are literally thousands of them!  There are a couple of ways you can search:  first, you can take the image of the tag above (or any other TMC tag that you've scanned in) and find a match graphically.  There are a number of websites that will examine an image of a font example, and come up with a close match.  I found that indeed the match is pretty good, but.. there's a downside!  These sites mainly want you to spend money on commercial fonts.. a LOT of money.  A typical production quality font will run you around $75 or so, once you've download all the bells and whistles.

I found a number of fonts that are (a) free, and (b) a pretty decent match to the early TMC font.  These include

• Perspective Sans, mentioned above.  It's a decent match to the tags on the PAL-1K, which are printed somewhat "thin".  Some earlier equipment had "fatter" (bolder) lettering, so you may prefer another of the fonts listed here.
• Aharoni is a handsome font, I believe originally intended for Hebrew text, but its capital letters look very close to the original TMC font, though it is somewhat "fat" for some tags.  It is only available in Bold form--there're no other variation.  The numbers are also odd--they are printed much smaller than text, but you can compensate by simply upping the point size for those individual characters.
• Universalis ADF Std is another "thin" font, though its Bold variant may be useful as well.
• FuturaRener, yet another very "thin" font.  The "M" in this font has slanted sides, but not quite enough for the picky.

Some places to look for free fonts:

http://www.1001fonts.com

http://www.fontsquirrel.com

Limit your search by specifying "sans-serif fonts" and use your chosen website's facility for typing in the text "MAMARONECK NY", which has most of the critical letters in it.  I made the mistake of avoiding all fonts that weren't available in TrueType format, not realizing how easy it is to convert OTF and other formats into TTF.  For your search, just find a good font,then worry about the conversion, which is easy!

Generating Digital Artwork for your Tag

I used Visio on a PC running Windows 7 to create the artwork for various tags.  A Macintosh might have been a better choice of platform, perhaps using Omnigraffle as your graphics editor (I dearly wish MacDraw were still around!!)..  And, Mac's seem to handle fonts more gracefully.. In any case, I'm using a PC for various obscure reasons, because I have to, in order to run the tools to maintain the TMCHistory website.  There are various other PC tools you could use.  It might be possible, though a bit clumsy, to use Gimp for artwork construction--it's really more of an image editing tool, but could probably be made to work for this purpose.  You could even try PowerPoint, I guess...  Visio isn't cheap, unfortunately.

The first order of business is to scan an example of the tag you want to reproduce.  Scan either in B/W or color..probably doesn't matter which, at least at 300 dpi, and save the results somewhere.  Assuming you've already downloaded a suitable font, and the white-on-black version of the TMC logo, you're ready to start.

If you're making a 1.5 x 2 or 2 x 3 tag, you can short-circuit many of the following steps by just downloading the Visio design files I made for my tags from the Tag Design Database Page.  If you're starting from scratch:

1. Drag and drop the scan you made of your tag onto a blank Visio document.
2. Next draw an outline of the tag, on-size.  (As you'll see below, Aluma Photoplate preferrs 1:1 artwork.
3. Create the border around the edge of the tag.  You'll see from the dimensioned drawing that you downloaded from this website, that the border is typically exactly the same width as the distance from tag-edge to screw-hole center.  For a 2x3 tag, for example, it's 1/8" (0.125").  You can do this step either by pasting four white, borderless rectangles on top of a black rectangle, drawn at the overall tag size, or.. draw a white rectangle at tag size, then drop in a black rectangle that's smaller by twice the border width, centered.
4. Next drop four white circles, with diameters twice the border width, aligned at the four corners.
5. Drag and drop the artwork (JPG) for the white-on-black logo onto your drawing.  Size the logo by grabbing the corner control point (NOT an edge--you want to preserve the aspect ratio!).  By dragging the logo over the image of your tag scan, you can get the size of the logo very close to exactly the same.  Then place the logo onto your artwork, and fiddle with the position until it looks just like the scanned tag.
6. Now for the text.  Start with the "THE TECHNICAL MATERIEL CORPORATION" and "MAMARONECK   NEW YORK" at the bottom of the tag.  First type them in as text, then find the font that seems to match your scanned tag the best, then finally set the point-size appropriately.  In Visio, remember that you don't have to stick with the sizes in the menu--you can type in-between sizes, and the text will adjust accordingly!  Also note the little arrow at the lower-right corner of the text entry box in Visio.. this brings up the detailed Text control box.  In that menu, you can select "Character", which allows you to "kern" or add spacing between letters, proportionately.  Between that function, and adding the "space" character as needed, you can spread the letters out to match the text on your tag.
7. For the TMC type and Serial Number portions of the tag, you'll note that TMC wasn't very consistent about left- or right-justification.. just jiggle your lettering around until it looks like the scanned tag.  Ditto for the blank rectangles, which will eventually be punched (or not) with the type-extension and serial number.
8. Finish with the tag title at the top.
9. Save the Visio design file (.vsd); then "Save As" and specify ".jpg" to generate the final artwork to be sent to Aluma.  When you do this step,  one of the JPEG menues allows you to set the output resolution.  You will need to set this to 300 x 300 pixels per inch, at least.
10. Examine the .JPG file carefully with a photo viewer, and make sure you've done everything you intended.

3. Getting your Tag Manufactured

There are probably dozens of companies in the US that will make a photo-etched aluminum tag for you.  I'm recommending Aluma Photoplate because we've already 'scrubbed the pipe' with good results, they produce excellent work, and they're really nice to deal with.  The company's website is:

http://www.alumaphoto-plateco.com/

The process you'll be using is called "Metalphot" and is a photo-anodized aluminum printing process.  Tags are printed onto an 8" x 10" sheet, with as many copies of your artwork as will fit.  So, for example, for a 2x3 tag, you get a minimum of 10 tags from the process.  An 8x10 sheet costs $78, and there is a setup charge of $38.  (These prices as of June 2015, so may be higher by the time you read this).  Thus, tags are going to cost you about $10 each, and you pretty much have to buy 10 of them!

Aluma's webpage has a way to submit a job and get a quote.  I would suggest, however, that you just communicate with Ken Wickman at the company directly.  Ken is incredibly helpful, and very patient with endless questions.

You can reach him at    or by phone at 1-866-579-9096.  You'll need to mail him a description of what you want, something like this:

Aluminum photo-etched tag 0.032" thick photo-anodized aluminum, white(clear) graphics on black background, satin finish, overall size: xx X yy inches.  Mounting holes per attached drawing.  Graphics per attached artwork JPEG.  Quantity zz.

Email this and a request for a quote to Ken's address, and attach the artwork and your tag mechanical drawing.  Turnaround is apparently about 3-4 weeks typically.  You'll need to phone Ken at some point and give him a credit card number to charge the work to.
