Among the many documents in the TMC document stash were two 3-ring binders
containing what appears to be a complete and comprehensive list of products
built by TMC, many on pages titled "Model File". The list contains the TMC commercial type, a brief
description, reference to a Technical or Sales/Service Bulletin (where there is
one), and the Military designation for the equipment, where appropriate.
The table below is a transcription of this list. I've added a column for
date of introduction, where I was able to figure it out.
More recently, I've added lots of additional equipment types not included in
the notebooks, and have begun linking the many equipment photos I have, and
making links to TB's and SSB's.
| A |
| Model |
Photo/Gallery |
Description |
TB or SSB No. |
Mil Nomenclature |
| A-1279 |
|
Adapter Drawer, SBE |
|
MT-1855/URT-17 |
| A-1397 |
|
Power Supply, SBE-1,2,3 |
|
PP-1769/URA-23 |
| A-1504 |
|
Battery Supply, 12 volts |
|
|
| A-1516 |
|
Exciter Unit, SBE-2 |
|
P-503A/URA-23 |
| A-1524 |
|
RAK-4, Cabinet for MSR & GPR |
|
CY-2416/U |
| A-1532 |
|
Passive Volume Compressor |
|
|
| A-1555 |
|
Cabinet for MSR |
|
CY-2435/U |
| ACC-1 |
 |
Audio Control Console-Project 15 |
|
|
| ACU |
|
Antenna Tuning Unit |
SSB-224 |
|
| ACU-1 |
Gallery |
Antenna Coupler |
|
TN-367/UR |
| ACU-2 |
|
Antenna Combining Unit |
SSB-224 |
|
| ACU-3 |
|
Antenna Combining Unit-Project 15 |
|
|
| ADC-1-(-) |
|
Analog Data Control System
- To remote control a device either mechanically or
electronically
- To read information either electronically or
mechanically from a remote point
|
TB-
9009 |
|
| ADC-2 |
|
Consisting of the following:
|
|
S. O. 31-0560-120 (TMC AG) |

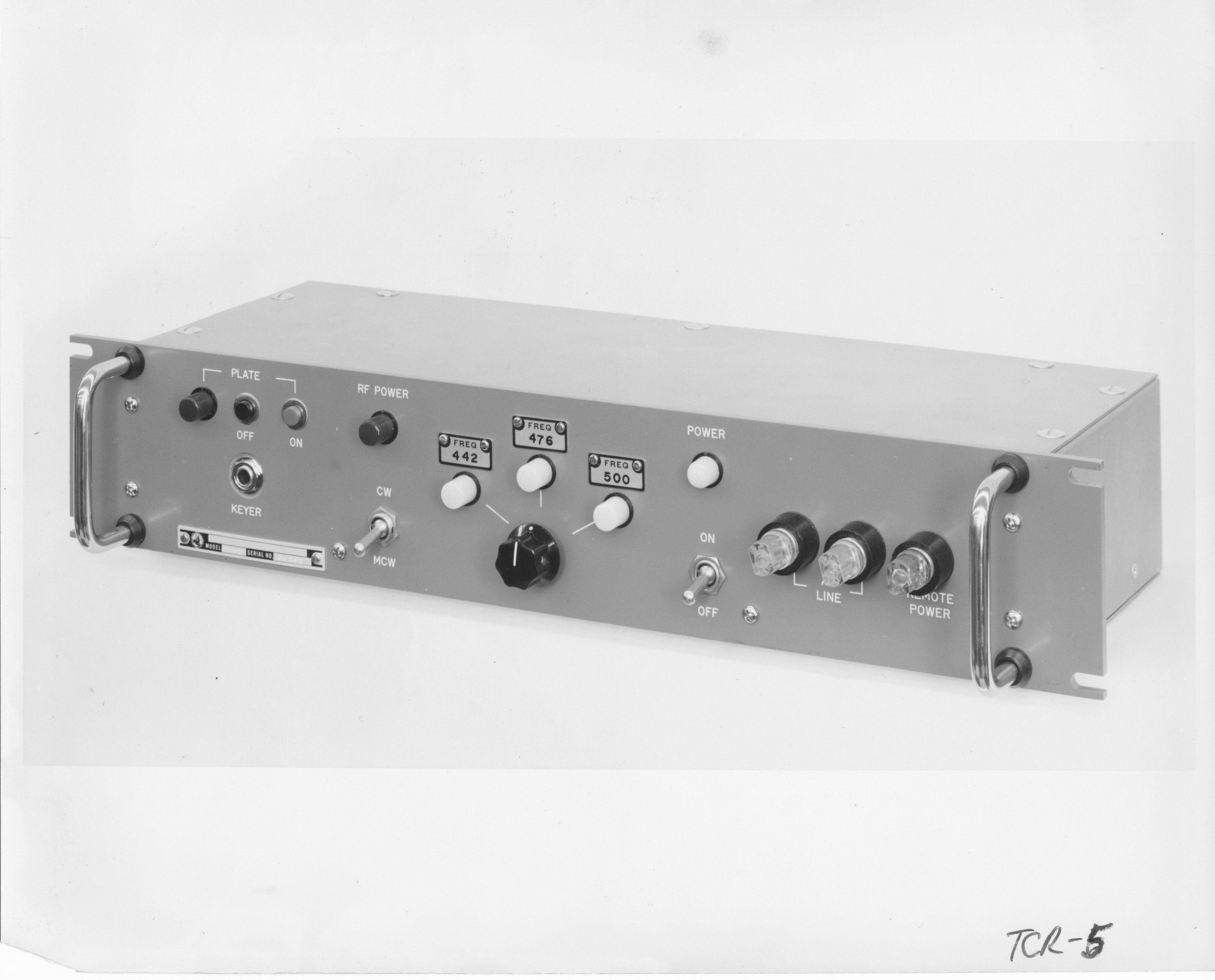

| ADC-3,-3T
ADC-4,-5 |
|

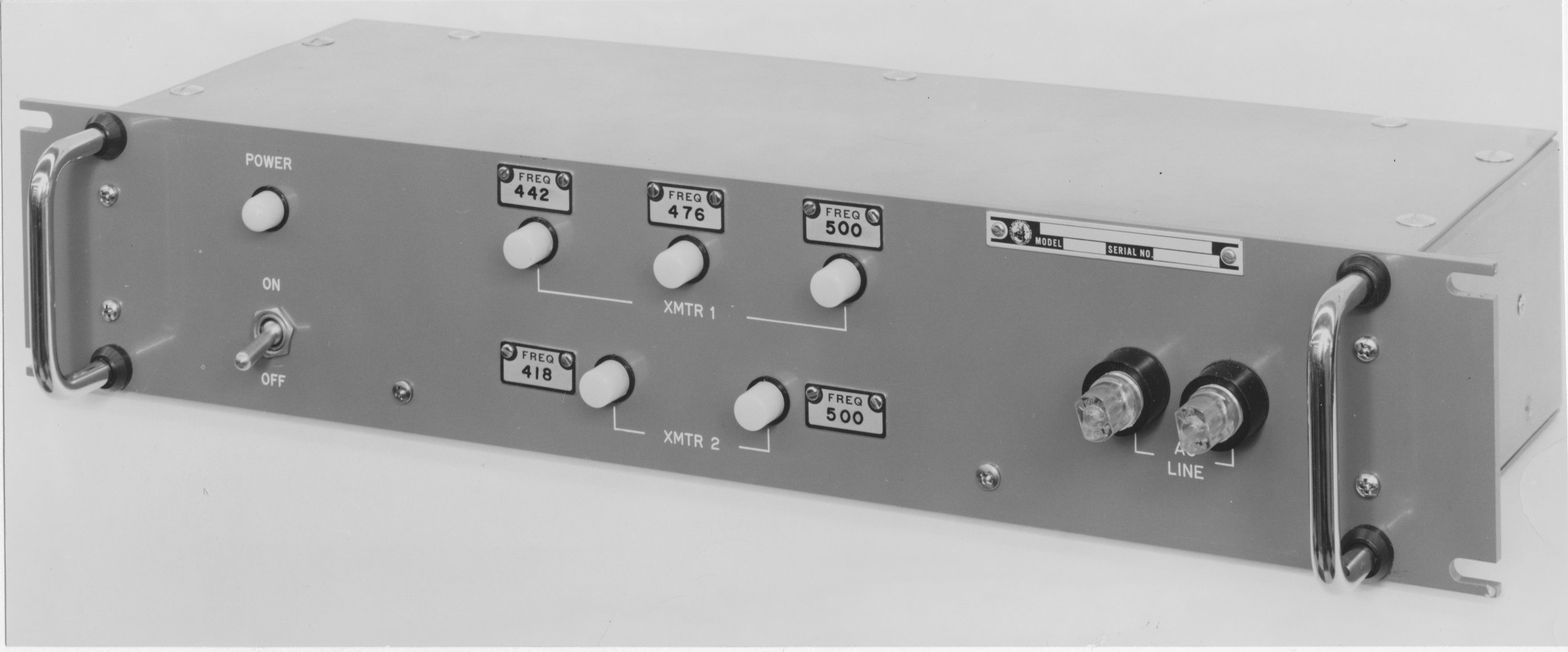

Transmitter, Analog Digital
Control - RTPR-1YC & RDCR-1YC
Receiver, Analog Digital Control |
|
|
| ADK-5 |
|
Autohead, Driver and Keyer |
SSB-152 |
|
| ADU-1 |
|
Automatic Decoder Unit, p/o
ARCA-1 system |
|
|
| AFC-1,1A,1B |
|
Automatic Frequency Control Unit |
|
|
| AFC-2 |
Gallery |
Automatic Frequency Control Unit
(455) |
TB 4003 |
C-4071/UR |
| AFC-2A |
Gallery |
Automatic Frequency Control Unit
(455) |
TB 4003 |
C-4071A/UR |
| AFC-3 |
Gallery |
Automatic Frequency Control Unit
(1750 Kc version of AFC-1) |
TB 4003 |
C-4099/FRR-60(V) |
| AFC-4 |
|
Automatic Frequency Control Unit,
replaces AFC-2A, 455 Kc narrow carrier filter. (EJO 3134 - cancelled
2/16/67) |
|
|
| AFC-5 |
|
Automatic Frequency Control Unit,
1.75 Mc narrow carrier filter. |
|
|
| AFC-5 |
|
Automatic Frequency Control Unit,
same as AFC-4, but for 100 Kc IF operation, narrow band carrier filter. |
|
|
| AFC-7 |
|
Automatic Frequency Control
Unit,this is AFC-2A modified to 500 Kc input. First used in SBC-7. |
|
|
| AFC-8 |
|
Automatic Frequency Control Unit,
same as AFC-2A, but for 100 Kc IF input. |
|
|
| AFC-14 |
|
Autmoatic Frequency Control Unit,
p/o DDR-10K (panel height - 3-1/2") |
|
|
| AFCR-3 |
|
Automatic Frequency Control Unit,
remote controls, tuning kcs (with readback line), reset button, carrier
suppression pad eliminates needs to operate senstitivity control, fade
alarm indicator provided. |
|
|
| AFS-1 |
|
Automatic Frequency Control
System, (1) AFC-1, (1) MSR-6. |
SSB-246A |
|
| AGS-1 |
|
Automatic Gain and Anti-Sync |
|
|
| AHD |
|
Autohead and Drive, 1 HED
Autohead, 1 variable speed drive |
SSB-150 |
|
| AK-100 |
|
Isolation Keyer (ISK) |
TB 9003 |
KY-429/FRT |
| AK-101,102,102A |
|
Technimatic Keyers |
|
|
|
AMC Photo Gallery |
| AMC-6 |
|
Antenna Multicoupler, 75 ohm
unbalanced |
SSB-155D |
CU-5013/SRR, Antenna Multicoupler |
| AMC-6A |
|
Antenna Multicoupler, 200 ohm
balanced |
|
|

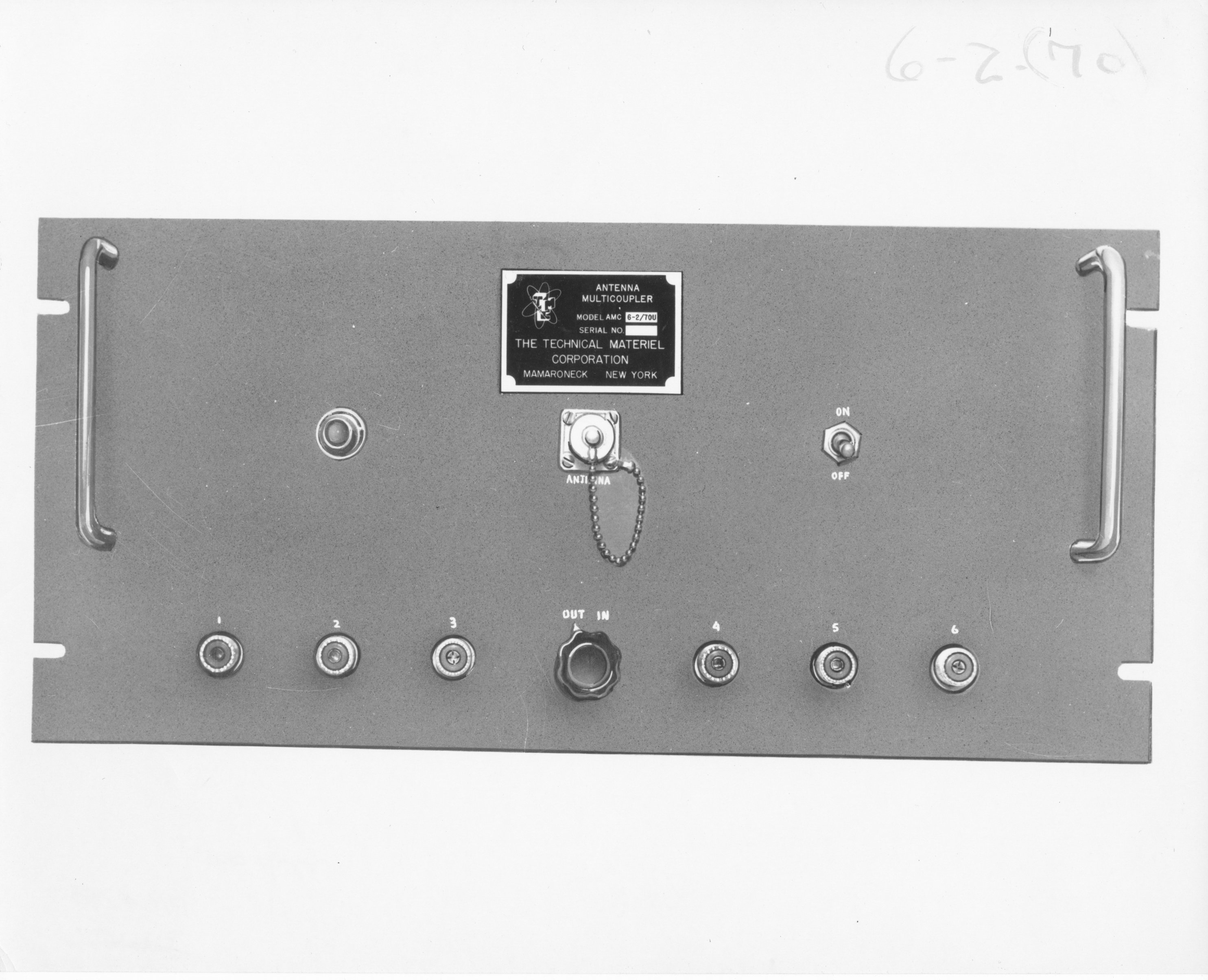

| AMC-6-2 |
 |
Antenna Multicoupler, six UHF
connectors |
TB 8001 |
CU-5013/SRR, Antenna Multicoupler |
| AMC-6-3 |
 |
Antenna Multicoupler, six
optional QDS connectors (SA-106) |
TB- 8001 |
CU-5013/SRR, Antenna Multicoupler |
| AMC-6-3/70U |
|
Antenna Multicoupler, six UHF
connectors |
TB- 8001 |
cu-992( )/FRR, Antenna
Multicoupler |
| AMC-6-3/70U/N |
TR063 type "N"
connector, 50 ohms unbalanced to 75 ohms unbalanced output. |
|
|

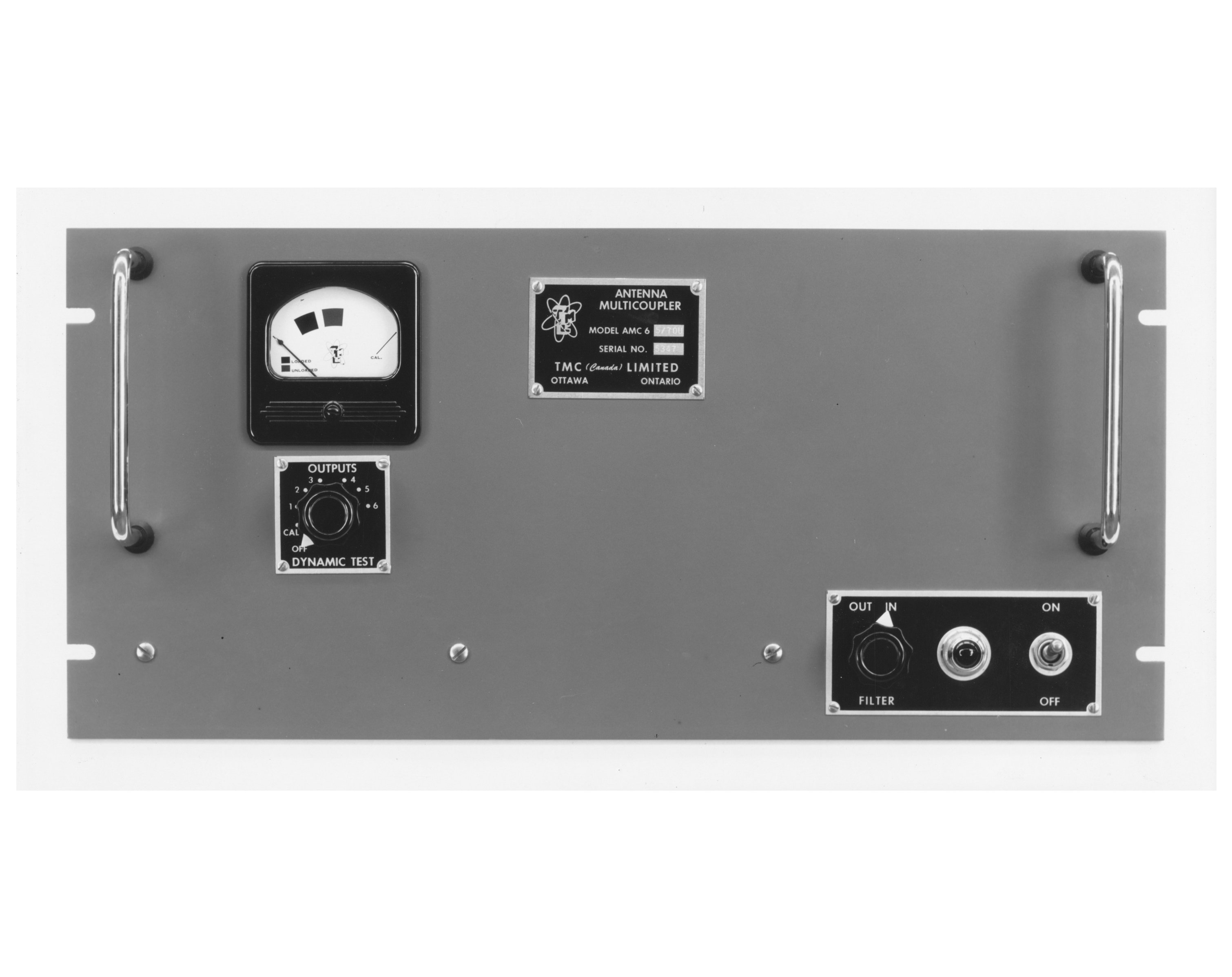

| AMC-6-5/50U |
 |
Antenna Multicoupler |
TB- 8001 |
|
| AMC-6-5/70U |
Antenna Multicoupler, six UHF
connectors |
TB- 8001 |
CU-5032/SRR, Antenna Multicoupler |
| AMC-10 |
|
Antenna Multicoupler, choice of
one of 5 antennas, 10 receiver outputs |
SSB-155 |
|

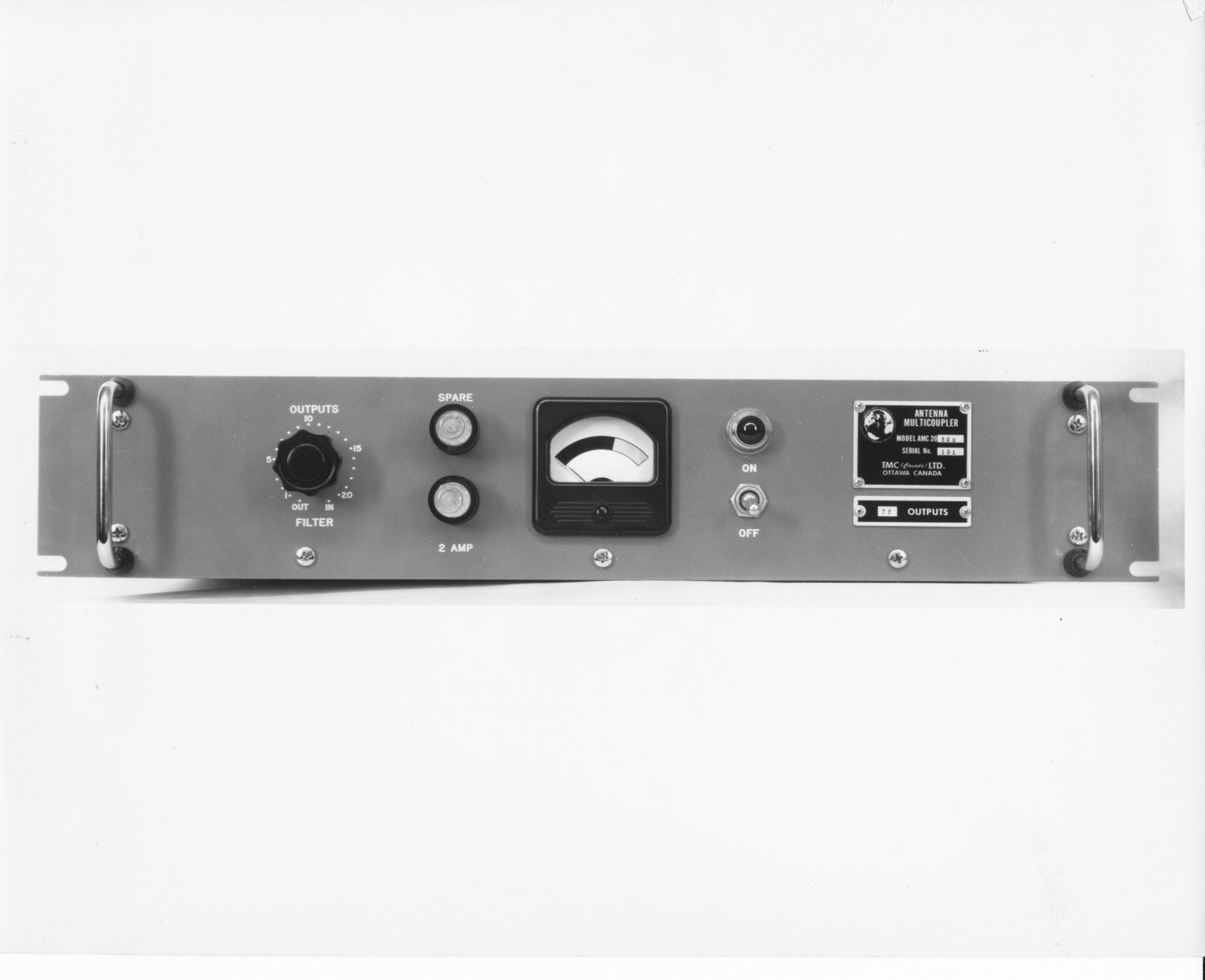

| AMC-20 |
 |
Antenna Multicoupler, choice of
two of 10 antennas, 20 receiver outputs |
SSB-155 |
|
| AMC-20-(_) |
Solid state antenna multicoupler
up to 24 outputs |
TB-8019A,
TB-8019B |
|
| AMC-30 |
|
Antenna Multicoupler, choice of
three of 20 antennas, 30 receivers |
SSB-155 |
|
| AMC-60 |
|
Antenna Multicoupler, choice of 6
antennas of 20 antennas to 60 receivers |
SSB-155 |
|
| AMC-101 |
 |
Solid state antenna multicoupler,
6 outputs |
TB-8022 |
|

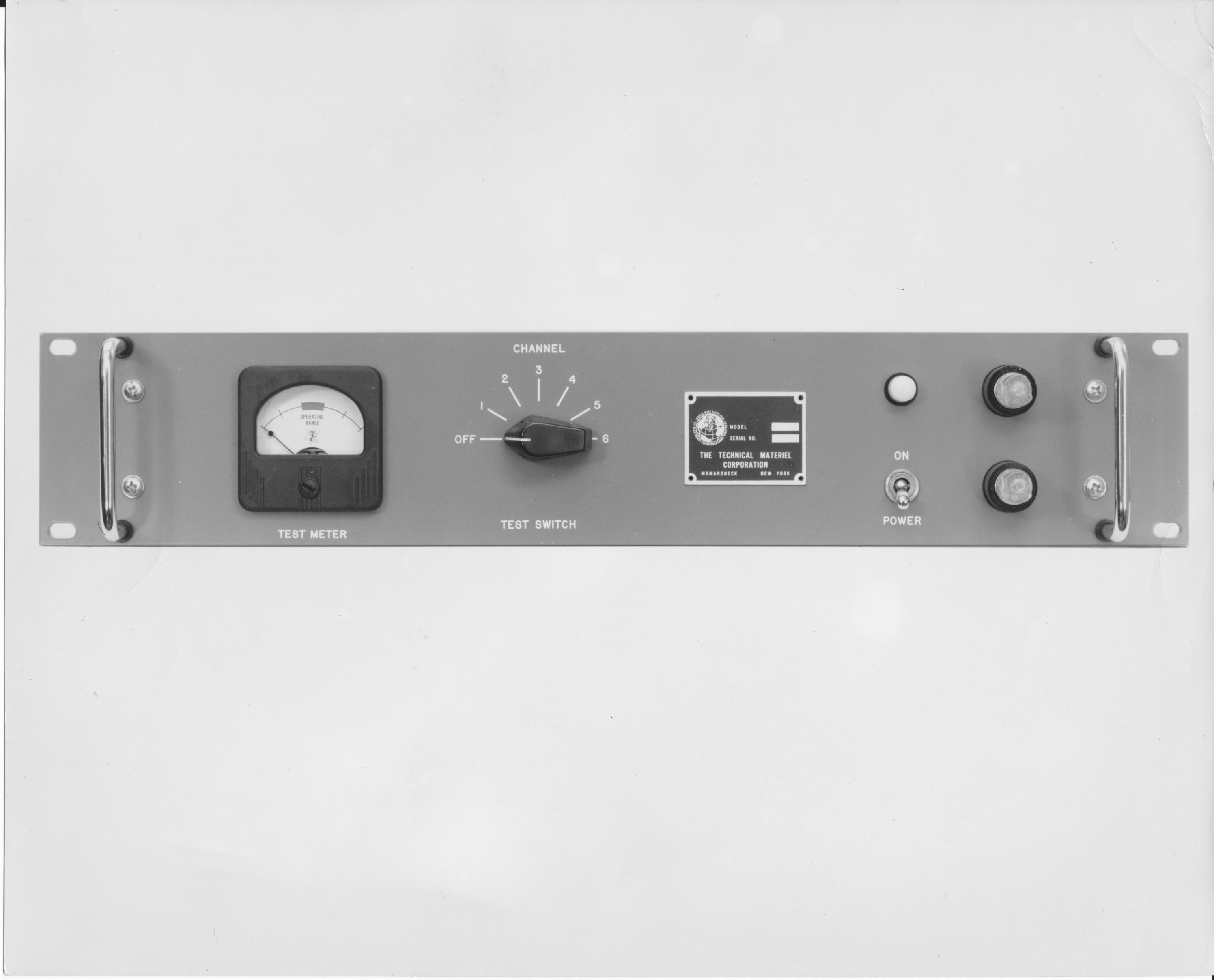

| AMC-102 |
 |
Solid state antenna multicoupler,
MIL version of AMC-101 |
TB-8022 |
|
| AMC-103 (8-11-66) |
|
Antenna Multicoupler, AMC-102
with 8 outputs |
|
|
| AMT-1 |
|
Antenna Multicoupler |
|
|
| AO-100/101
Gallery
|
 |
Exciter for VOX, PMO, etc. |
|
O-672A/URA-28, Oscillator, Radio
Frequency |
| AP-104 |
|
Power Supply |
|
PP-3364/FRT-54A, Power Supply |
| AP-105 |
|
Power Supply |
|
PP-3365/FRT-54A |
| APP-1 |
|
Auxiliary Power Panel, See APP-9 |
|
SB-1574/FRT, Panel, Power
Distribution |
| APP-2 |
|
Auxiliary Power Panel (For
SBT-1K,not shipped) |
|
SB-1114/UR, Panel, Power
Distribution |
| APP-3 |
 |
Auxiliary Power Panel, See APP-8 |
|
SB-1125/UR, Panel, Power
Distribution |
| APP-4 |
|
Auxiliary Power Panel |
|
SB-1577/FRT, Panel, Power
Distribution |
| APP-4A (11-2-66) |
|
Modified APP-4 to accept
(unreadable) for 115V version KMCO-( ) |
|
|
| APP-5 |
|
Auxiliary Power Panel |
|
|
| APP-5A |
|
Auxiliary Power Panel, for use
with SME-6 |
|
|
| APP-6 |
|
Auxiliary Power Panel (GPT-350,
may not be used) |
|
|
| APP-7 |
|
Auxiliary Power Panel (GPT-1K may
not be used) |
|
|
| APP-8 |
|
Auxiliary Power Panel, replaces
APP-3 |
|
SB-2392/UR, Panel, Power
Distribution |
| APP-9 |
|
Auxiliary Power Panel, replaces
APP-1 |
|
|
| APP-10 |
|
Auxiliary Power Panel: two 15-amp
outlets, two 20-amp circuit breakers, one dual audio jack, monitor jack,
monitor switch. |
|
|
| APP-10A |
|
Same as APP-10 but with breakers
for (unreadable) output |
|
|

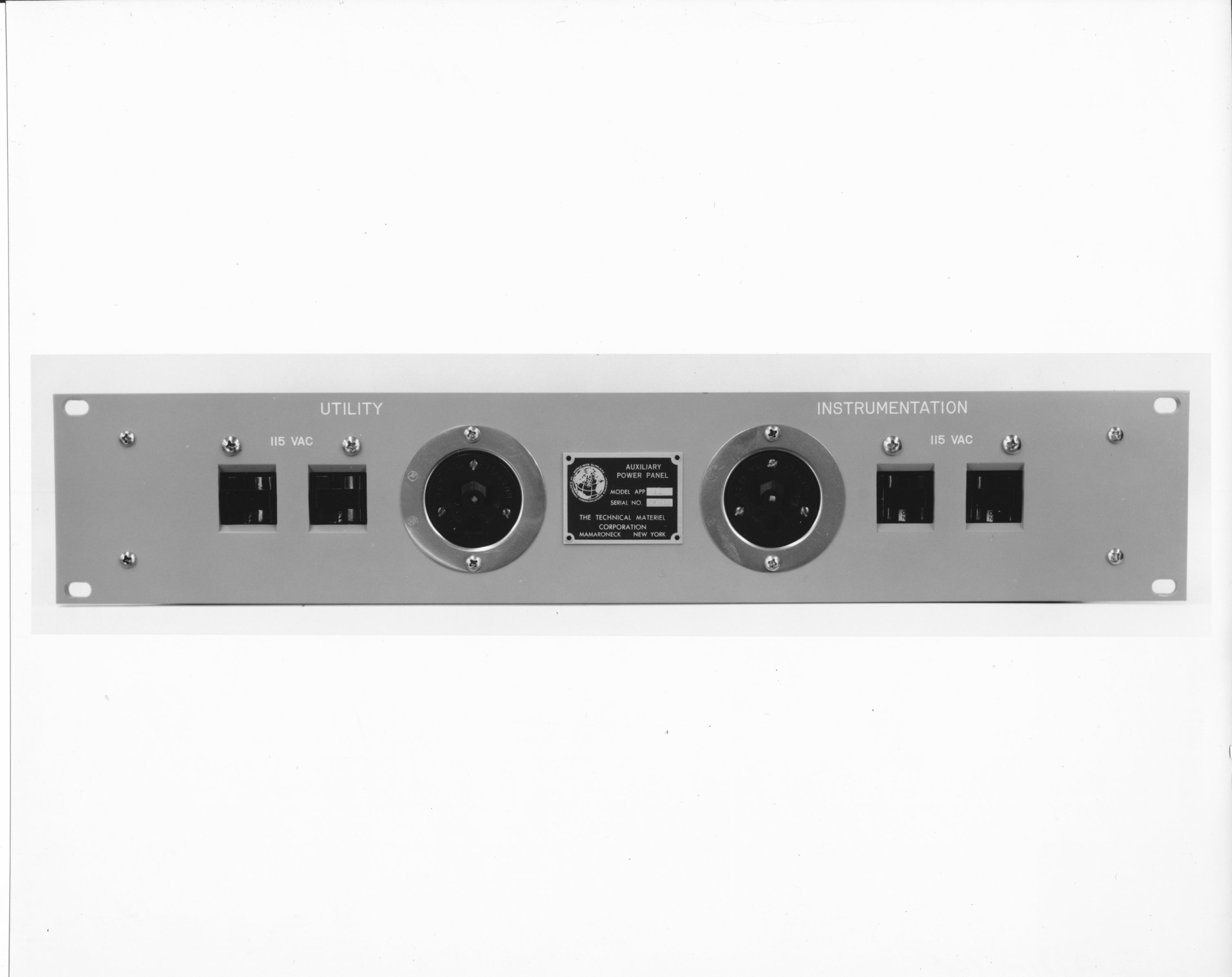

| APP-11 |
 |
Auxiliary Power Panel, 2 15-amp
AC outlets, 4 15-amp circuit breakers |
|
|
| APP-12 (11/16/65) |
|
Auxiliary Power Panel for
TSTE-2.5K (info after engineering) |
|
|
| APP-13 (3/31/66) |
|
Auxiliary Power Panel for Ckt
Breaker for 20 amp aux power, Ckt Breaker for primary power for
exciter. Indicator lights for "standby" and
"operate" 3-1/2" panel on tilt slides. |
|
|
| APP-14 (4/22/66) |
|
Auxiliary Power Panel,
1-3/4" x 19". Has 2 115 VAC ultility outlets fused and two
terminals for 48 VDC. Used in COR-( ) systems. |
|
|
| APP-15 (10/5/66) |
|
Auxiliar Power Panel for
GPT-10KLF-1 |
|
|
| APP-16 |
|
Auxiliary Power Panel, Project 15 |
|
|
| APP-17 (5/9/69) |
|
Auxiliary Power Panel, part of
SBGR-4YA |
|
|
| APP-18 (6/5/70) |
|
Power Panel, HFLM-1K |
|
|
| ARCA-1 |
|
Automatic Receiver Remote Control
System, Tape, RTPA-1, 2 RTIA-1 |
|
|
| ARCB-1 |
|
Automatic Receiver Remote Control
System, Card Reader |
|
|
| ARCC-1 |
|
Automatic Receiver Remote Control
System, Memory Storage |
|
|
| ARCD-1 |
|
Technimatic Tuning System:
1 RTKY-1
1 RTTA-1
1 RTPE-1
1 RTRS-1B
1 RTIE-1
1 UTD-3
1 HPP-1
1 RAK-21-C
1 PO-312
Tape Reel Assembly
|
|
|
| ASA-1 |
|
Automatic Frequency Control and
Sideband Adapter. For use with LRRA-1 |
|
|
| ASI-1/-2 |
 |
Speech Inverters |
TB-2035 |
|
| ASIB-1 |
|
Split-Band Speech Privary Unit,
single voice channel minimum 233 transmit/receive scrambling combinations
2 wire/4 wire hybrid converter compatible with existing 4 band
systems. Compatible with voice-gated or tone-controlled telephone
terminals |
|
|
| ASTA-1 |
|
Speech Terminal. Two to four
wire. VOGAD/VODAS and rinddown facilities. |
|
|
| ASMA-1 |
|
Antenna Distributing Matrix--
Proj 15 |
|
|
| ATA-1 |
|
Antenna Terminating Assembly
(Special for WECO) DWG. 02-286 |
|
|
| ATA-2/-3/-4/-5 |
|
Antenna Terminating Assembly |
|
|
| ATC-3 |
|
Air Transportable Communication
System; 3 SBT-1K's in 9 TOC cases with remote keying feature |
|
|
| ATL-2.5K (3/23/66) |
|
Linear Power Amplifier, and Power
Supply Assembly. Consists of:
|
|
|
| ATL-10K (3/17/66) |
|
Linear Power Amplifier 2-30 Mc,
5000 watts average, 10,000 PEP output, 100 mW drive |
|
|
| ATL-40K (3/23/66) |
|
Linear Power Amplifier, 10kW
driver, power output 20kW average in A1/F1 (CS/FSK) modes 20 sec. tuning
time. |
|
|
| ALT-200K (3/23/66) |
|
Linear Amplifier, to be driven by
10 kW transmitter. Power output 100 kW average in A1/F1 (CW/FSK)
mode 30 sec. tuning time |
|
|
| ATLA-1K (3/7/67) |
|
407L Automatic Linear Amplifier
consisting of TLAA-1K and PS-9 power supply and exciter servo tuning
control units. |
|
|

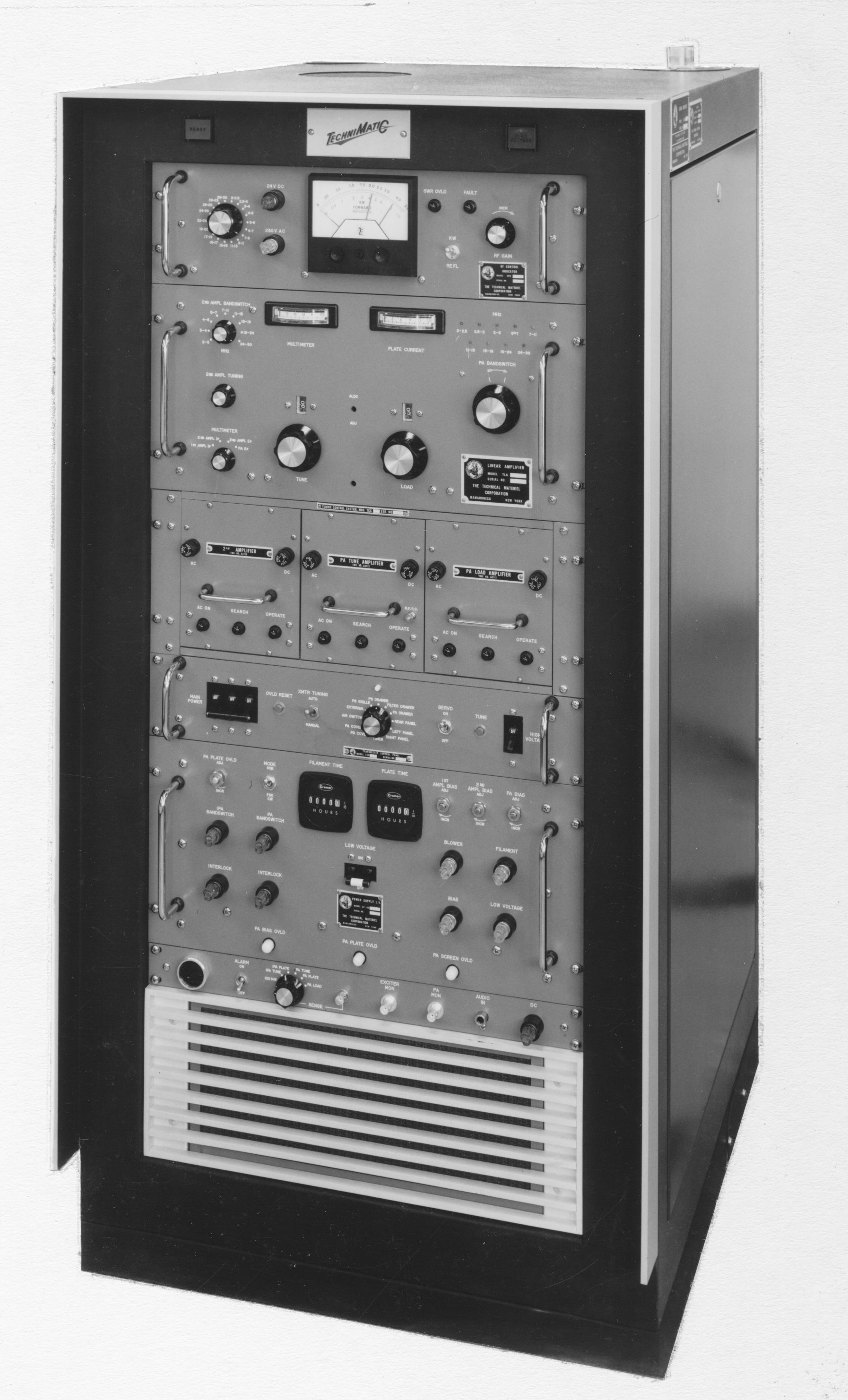

| ATLA-2.5K (11/29/66) |
|
Linear Amplifier consisting of:
Transmitter Amplifier in a rack of apprxoimately
52-1/2" overall height. BNC input connector for drive power, LC
output connector suitable for transmitter output at 2.5KW average and PEP
power, including slides. Both manual and technimatic operation. |
|
|
| ATLA-10K |
|
Linear Amplifier 10kW PEP |
|
|
| ATLB-2.5K (2/28/67) |
|
Same as ATLA but with SWCB-3K,
TLAB-2.5K, and does not have TCSA-1 and AX-633 |
|
|
| ATLD-2.5K (3/7/67) |
|
407L - consisting of TLAA-2.5K,
TCSH-1, TCP-1, TFP-2.5K, PS-10 |
|
|
| ATMC-1 |
|
Antenna Multicoupler--Navy Proj
15, 10kc - 3Mc |
|
|
| ATR-1 |
|
Antenna Trans Regulator, Project
15 |
|
|
|

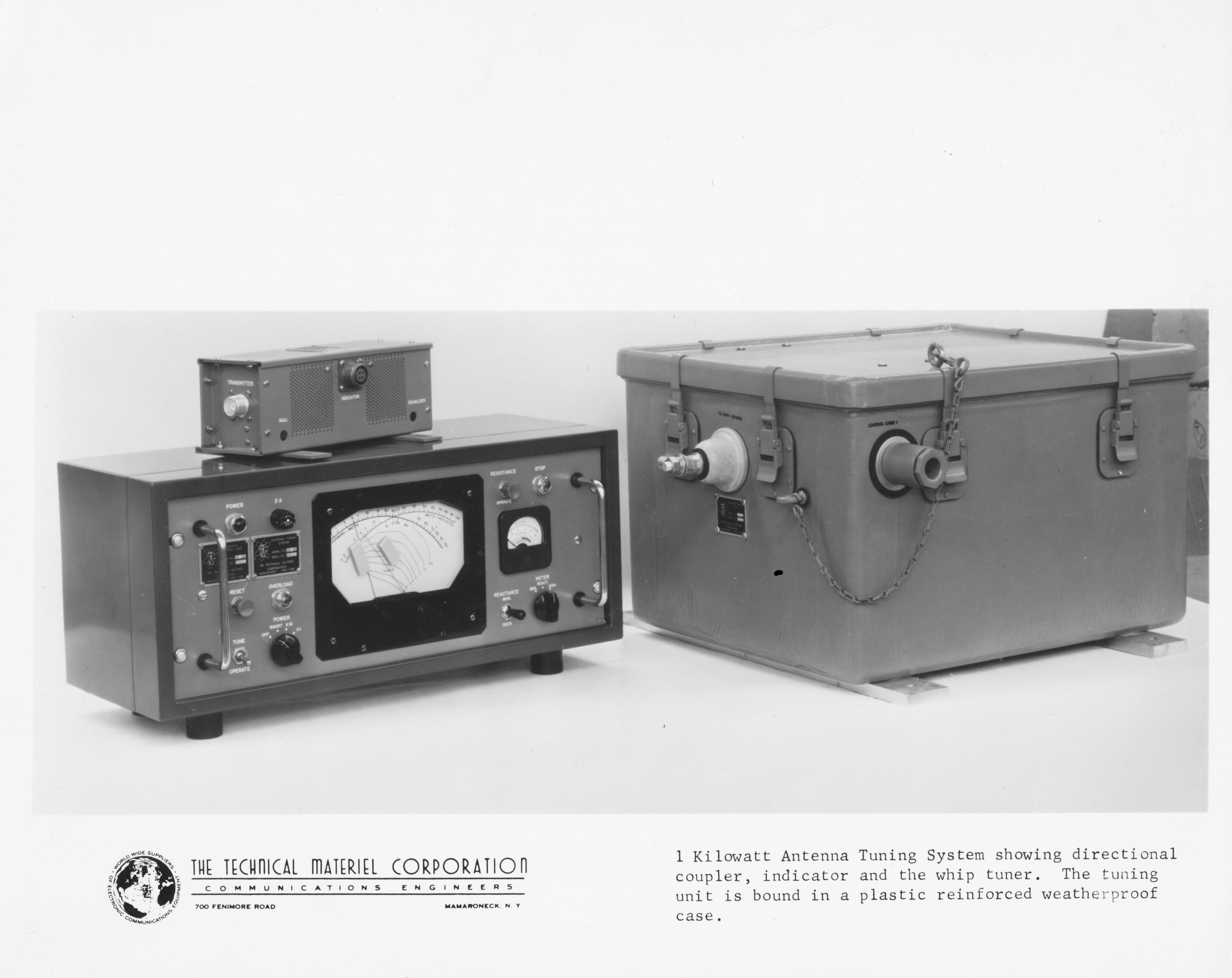

ATS Photo Gallery |
| ATS-1 |
|
Antenna Tuning System, early
viersion of ATS-2
|
|
|
| ATS-2A (11/3/65)
Photo Gallery
|
|
Antenna Tuning System, Standard
ATS-2 with Kit 275 added to:
- Improve 2Mc performance
- Include dynamic braking resistance control motoer
- Realign gear train mechanism (Engineering Job Order
E-3217 applies).
- Adds AN-347 to MCU-2
|
|
|
| ATS-3 |
|
Antenna Tuner for TST( )-2.5K |
|
|
| ATS-4 |
|
Antenna Tuning System |
|
|
| ATS-50-2 |
 |
Antenna Tuning System |
TB-2001 |
AN/URA-27, Antenna Coupler Group |
| ATS-70-2 |
Antenna Tuning System, consisting
of ATS-MCU-2, ATS-CU-2, ATS-TU-2 |
TB-2001 |
AN/URA-34, Antenna Coupler Group |
| ATSA-3 (6/7/71) |
|
Automatic Antenna Tuner,
ITT/Mackay Marine |
|
|
| ATSA-3 (12/21/70) |
|
Antenna Tuning System, Automatic,
Random Frequency for fully automated tuning of HFTA-1KJ into 35-foot whip
antenna (Shakespeare Model 229). Tuning time to be within FCC specs
(ITT Mackay Marine) S.O. 518459-421 |
|
|
| ATU-350 (6/7/71) |
 |
Channelized Antenna Tuner 12V
Ledex or 115V Ledex |
|
|

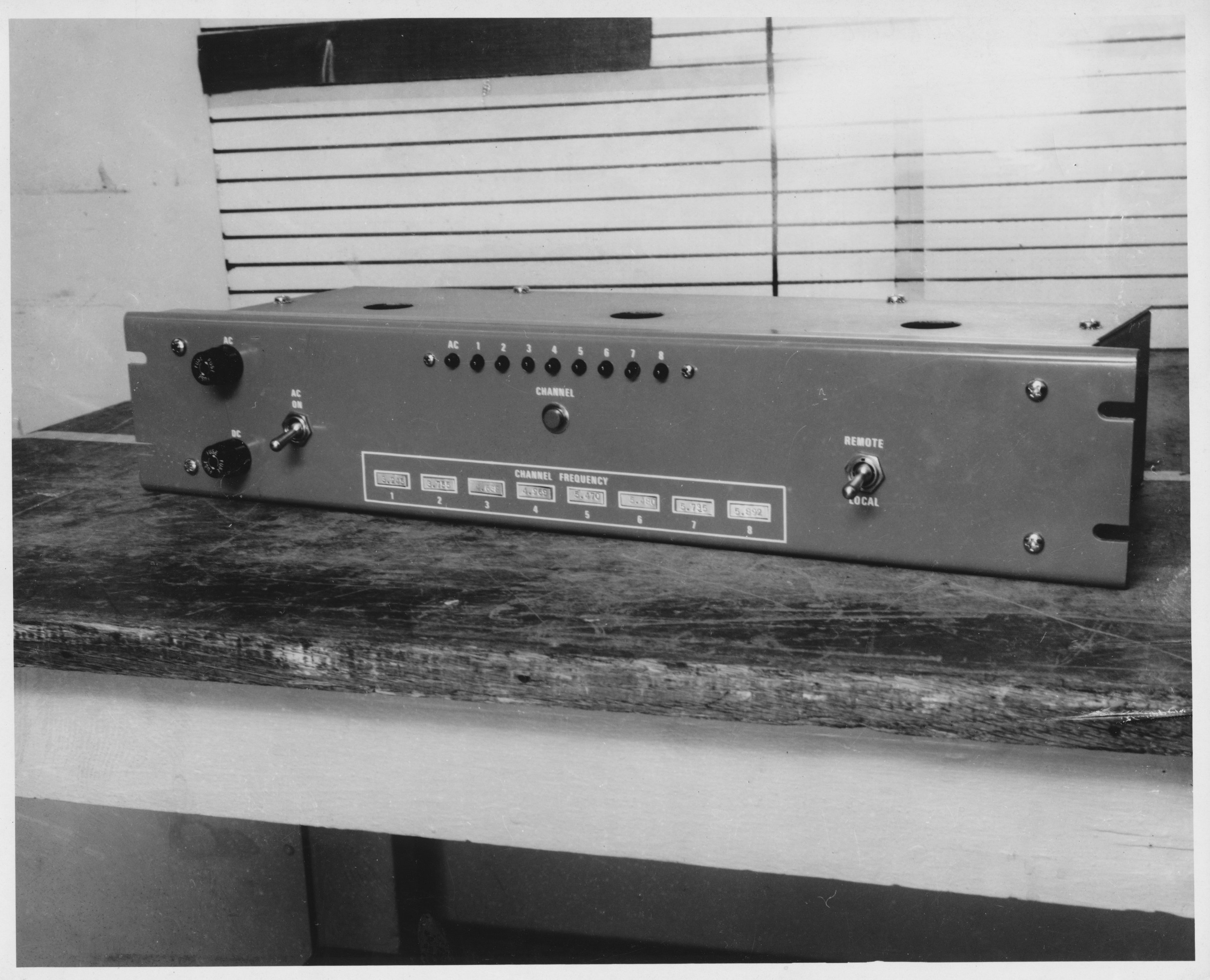

| ATU-1K (6/7/71) |
 |
Channelized Antenna Tuner |
|
|
| ATW-1 |
|
Antenna, Trailing Wire--Project
15 |
|
|
| AVATW-1 |
|
|
|
|
| AVATW-2 (11/15/66) |
|
1300' Transmitting Antenna
Trailing Wire. Consisting of SWR meter, counter, RF 8c transmitter,
HT indicators, AC pwr on/off switch, local/remote switch, forward/reverse
manual switch. Drawing MA-17985-8 |
|
|
| AVBC-1
(11/15/66) |
|
500W Broadcast Transmitter, 1
rack bay--aluminum (21"W x 22-1/2"D x 63-1/4" H)
Drawing MA-17985-7 |
|
|
| AVC-1 (11/15/66) |
|
|
|
|
| AVCMC-1
(11/15/66) |
|
Consists of RCA type PK-302
Transistorized Camera/Processor, 23" TV monitor in cabinet.
Drawing MA-17986 |
|
|
| AVCM-2 |
|
|
|
|
| AVCMCC-1 |
|
3-Rack Master Control Console
(size 66"W x 22-1/2"D x 63-1/4"H) (with 9" angle for
controls and 11" writing surface) consisting of:
- Video Tape Recorder
- Video Camera Remote Control
- Camera Processor
- Channel Amplifier
- Stab Amplifier
- Sync Pulse Generator
- Panel w/ 3 picture and 1 waveform monitors
- Remote Control Panel
- TTR-10 Transceiver
- Cartridge Recorders
- Cartridge Player
- CONRAC Receiver
- Audio Jack Field
- TV Filter
- Drawing MA-17985-9
|
|
|
| AVPC-1 (11/15/66) |
|
Modified RCA TP-66 16mm TV Film
Projector + added TK-22 Camera, all transistor Vidicon film. Drawing
MA-17985-5 |
|
|
| AVPC-2 |
|
|
|
|
| AVSP-1 (11/15/66) |
|
Slide Projector |
|
|
| AVTR-1 (11/15/66) |
|
Modified RCA Type TR-4 TV Tape
Recorder. Drawing M-17986. |
|
|
| AVTR-2 |
|
|
|
|
| AVTT-2 (11/15/66) |
|
Modified RCA 2kW VHF TV
Transmitter Type TT-2 in TMC aluminum racks, 5 bays (each 21"W x
22-1/2"D x 63-1/4"W). Drawing MA-17985-4 |
|
|
| AVTTHB-12 |
|
Modifie RCA 12kW VHF TV
Transmitter Type TTHB-12 in TMC aluminum racks, 7 bays (each 21"W x
22-1/2"D x 72"H). Drawing M-17986 |
|
|
| AX-103 |
|
Power Supply. Used in
GPT-10K, 40K, 200K |
|
PP-3363/FRT, Power Supply |
| AX-104 |
|
Power Supply for RFC |
|
PP-3362/FRT Power Supply |
| AX-616 |
|
Remote Control Panel for
TSTE-2.5K, uses scanning type data transmitter with serial transmission
from control position. Includes control of Mc switch, 100Kc switch,
10Kc switch, 1Kc switch. |
|
|
| B |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |

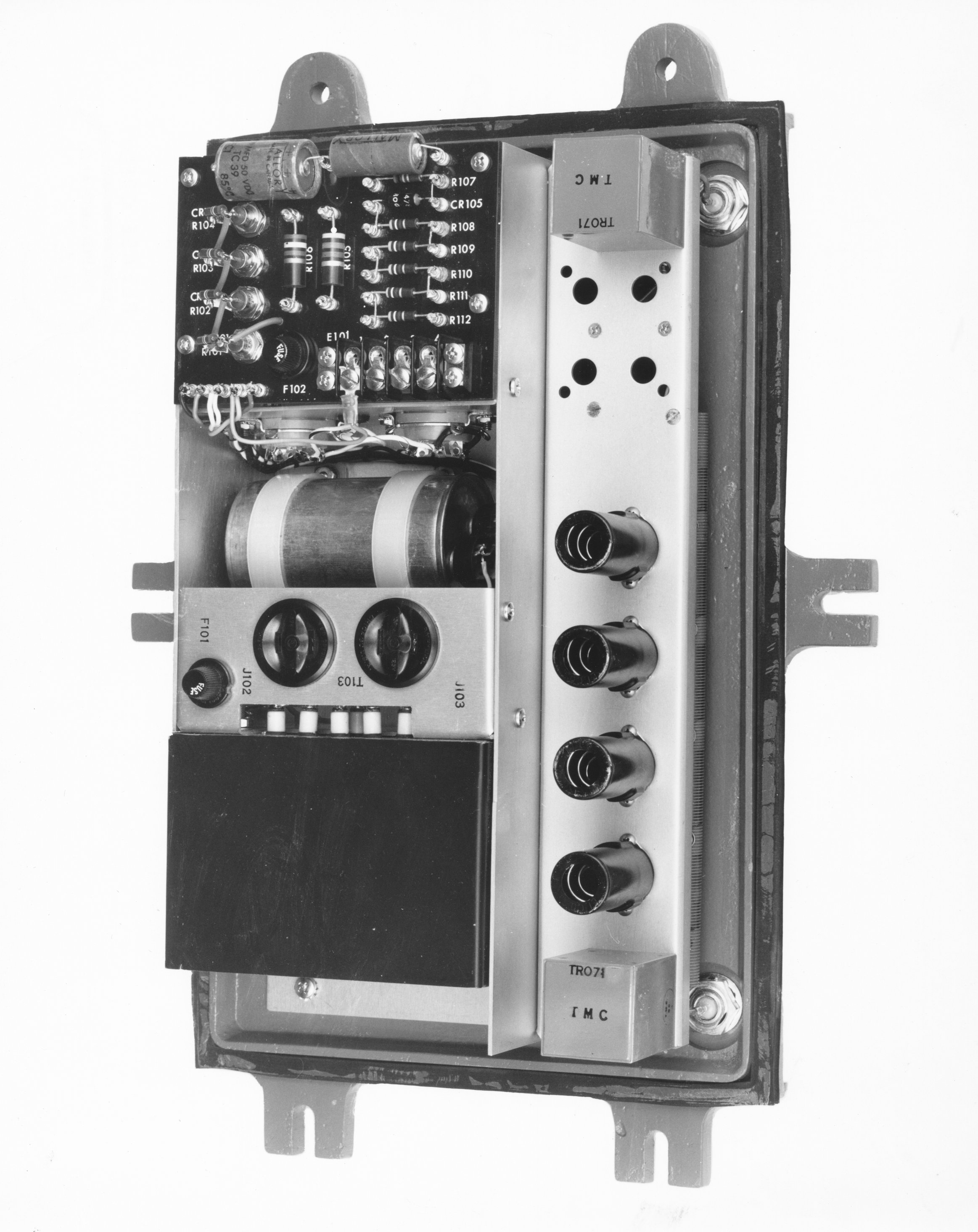

| BAA-1 |
 |
Broadband Antenna Amplifier,
2-30Mc, 25W |
TB-8010 |
|
| BAA-2 |
BAA-1, modified as follows:
Rack mount 8-3/4" panel, BNC input and output, 50 ohms input and
output, 0-70C tuning range |
|
|
| BAA-3 (12/14/65) |
 |
Broadband Antenna Amplifier, like
BAA-1, 2-32Mc, usable to 500Kc |
TB-8021 |
|
| BAA-4 |
|
Broadband Antenna Amplifier
(Canada Design) |
|
|
| BAC-1 |
|
Beverage Wave Antenna Coupler |
TB-8011 |
|
| BAC-1-S-20 |
|
Beverage Wave Antenna Coupler |
TB-8011 |
|
| BAC-2 |
|
Beverage Wave Antenna Coupler |
TB-8011 |
|
| BAC-2-S-20 |
|
Beverage Wave Antenna Reflection
Unit |
TB-8011 |
|
| BAC-3-S-20 |
|
Beverage Wave Antenna Coupler |
TB-8011 |
|
| BAC-3-S-100 |
|
Beverage Wave Antenna Coupler |
TB-8011 |
|
| BAC-4-S-20 |
|
Termination Unit, Beverage Wave
Antenna |
TB-8011 |
|
| BAC-4-S-100 |
|
Termination Unit, Beverage Wave
Antenna Coupler |
TB-8011 |
|
| BCT-10KA |
|
Broadcast Transmitter, 500Kc -
3Mc--Project 15 |
|
|
| BFP |
|
Filter, Bandpass. 1700 -
3500 cps |
|
|
| BJP-1 |
|
Bridging Jack Panel; 11 triple
sections, each QDS female to UHF female |
SSB-223 |
|
| BJP-2 |
|
Bridging Jack Panel; 11 each dual
sections QDS female to UHF female |
SSB-223 |
|
| BJP-3 |
|
Bridging Jack Panel; 11 each dual
sections QDS female to UHF female |
SSB-223 |
|
| BJP-4 |
|
Bridging Jack Panel; 11 each
quadruple sections QDS female to UHF female |
SSB-223 |
|
| BJP-5 |
|
Bridging Jack Panel; 2 each
quadruple sections QDS female to UHF female, 1 each triple section |
SSB-223 |
|

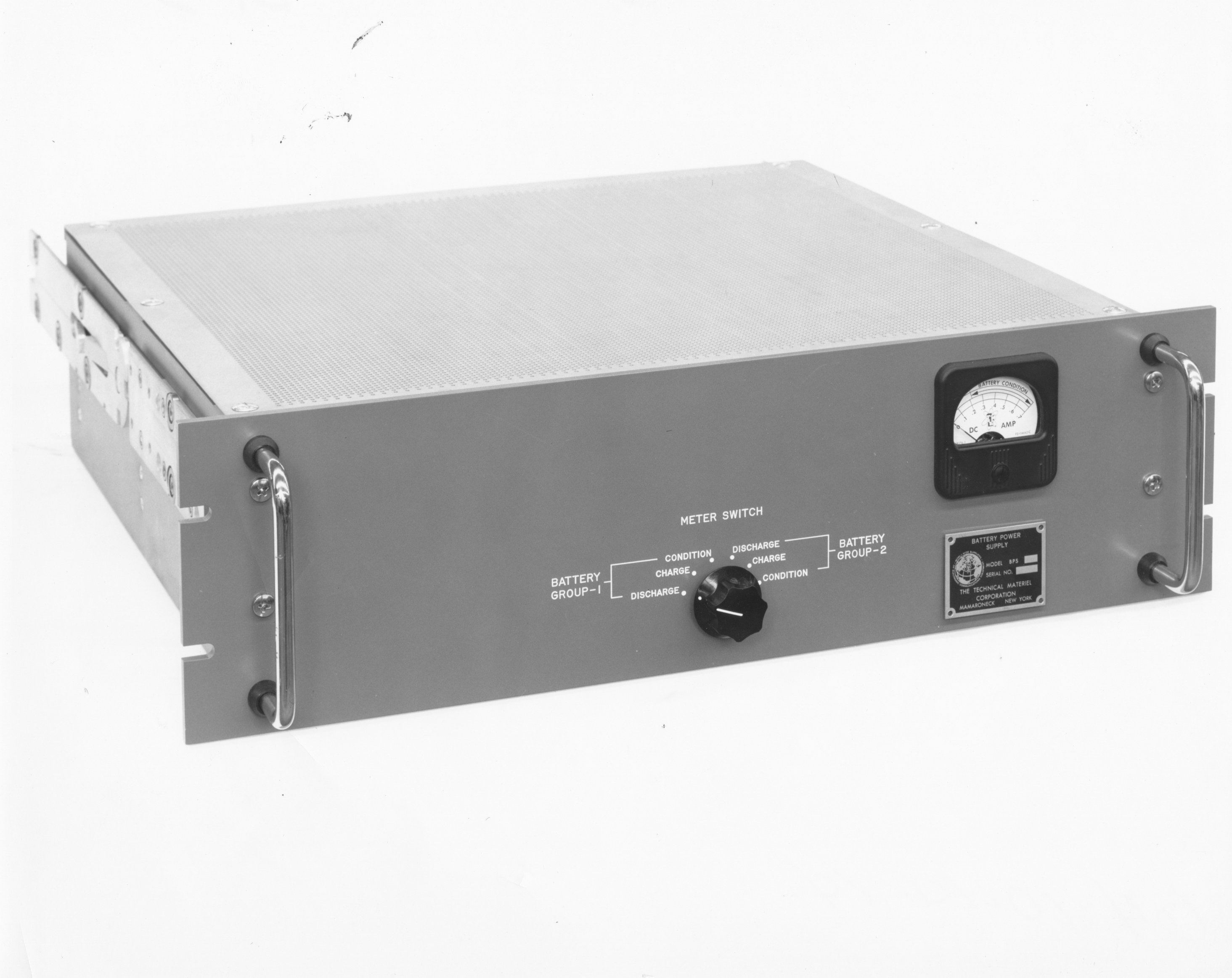

| BPS |
 |
Battery Power Supply |
|
|
| BPSA-1 |
|
Battery Power Supply |
|
|
| BPSB-1 |
|
Battery Supply, p/o VLFC |
TB-6003 |
|
| BPSC-1 |
|
|
|
|
| BPSD--1 |
|
Battery Supply, p/o LRRA-1 |
TB-3011 |
|
| BPSX-1 |
|
Battery Supply Drawer BPS( )-1 no
batteries |
|
|
| BR-1 |
|
RF Bridge, used with signal
generator, will provide approximation of what the antenna looks like to
the transmitter |
|
|
| BSP-1 |
|
Loudspeaker Panel. 1
4" speaker, one bridging amplifier |
TB-9008 |
|
| BSP-1A |
Loudspeaker Panel. 1
4" speaker, one bridging amplifier |
TB-9008 |
|

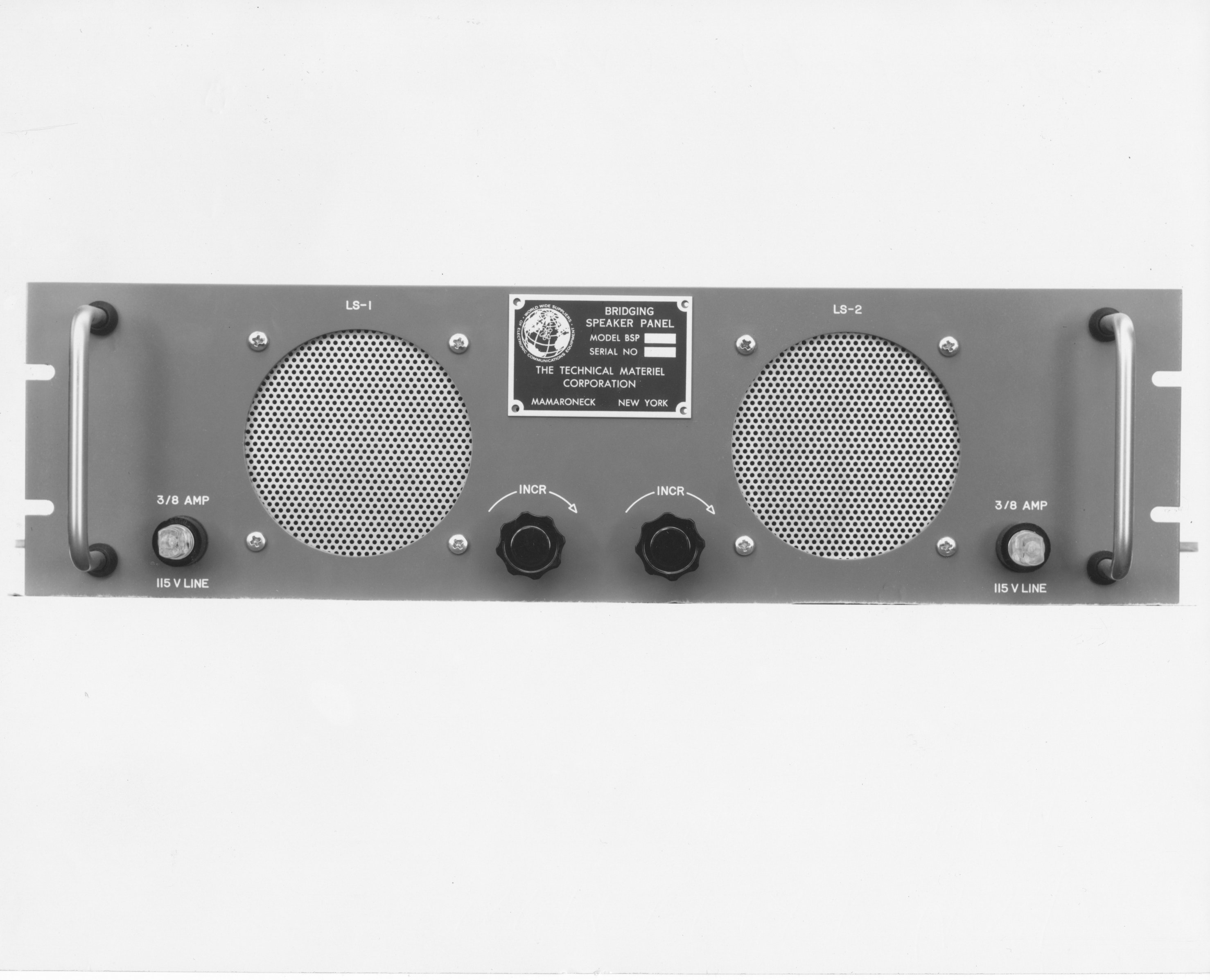

| BSP-2 |
 |
Bridging Speaker Panel |
TB-9008 |
|
| BSP-2A |
Bridging Speaker Panel; 2
speakers, 2 bridging amplifier |
TB-9008 |
|
| BSP-2X |
|
This unit is a BSP with 4 channel
selector switches |
|
|
| BSP-3 |
|
Loudspeaker Panel |
TB-9008 |
|
| BSP-3A |
|
Loudspeaker Panel, 3 speakers, 3
bridging amplifiers |
TB-9008 |
|
| BSP-4 |
|
Loudspeaker Panel: single speaker
3"x5" overall, on 3-1/2" panel, amplifiers are TMC AZ-102 |
|
|
| BSP-5 |
|
Loudspeaker Panel, 2 speakers, 2
amplifiers (TMC AZ-102) |
|
|
| BSP-6 |
|
Bridging Speaker Panel with
Amplifier A modified BSP-2A with 2 four pole switches for use with MSG
system in DDR0552 |
|
LS-521/FRR-2, Loudspeaker
Assembly |
| BSP-6B (10/18/65) |
|
Same as BSP-6A, for use with
DDRR-5M |
|
|
|
C |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| CAB-1 |
|
Cabinet, table top, 7" panel
space with mounting set |
|
|
| CAB-2 |
|
Cabinet, table top, 8-7/8"
panels space |
|
|
| CAB-3 |
|
Cabinet, 10-19/32" x
19-1/8" panel space |
|
CY-2844/U Cabinet, Electrical
Equipment |
| CAB-4 |
|
Cabinet, 5-11/32" x
19-1/8" panel space |
Field Engineering Bulletin
#2 |
CY-2416/U, Cabinet, Electrical
Equipment |
| CAB-5 |
|
Cabinet, Speaker, 8-7/8"H x
10-7/8" W panel space, 15" D |
|
|
| CAB-6 |
|
Cabinet, 8-7/8"H x
10-7/8"W panel, 8" D |
|
|
| CAB-7 |
|

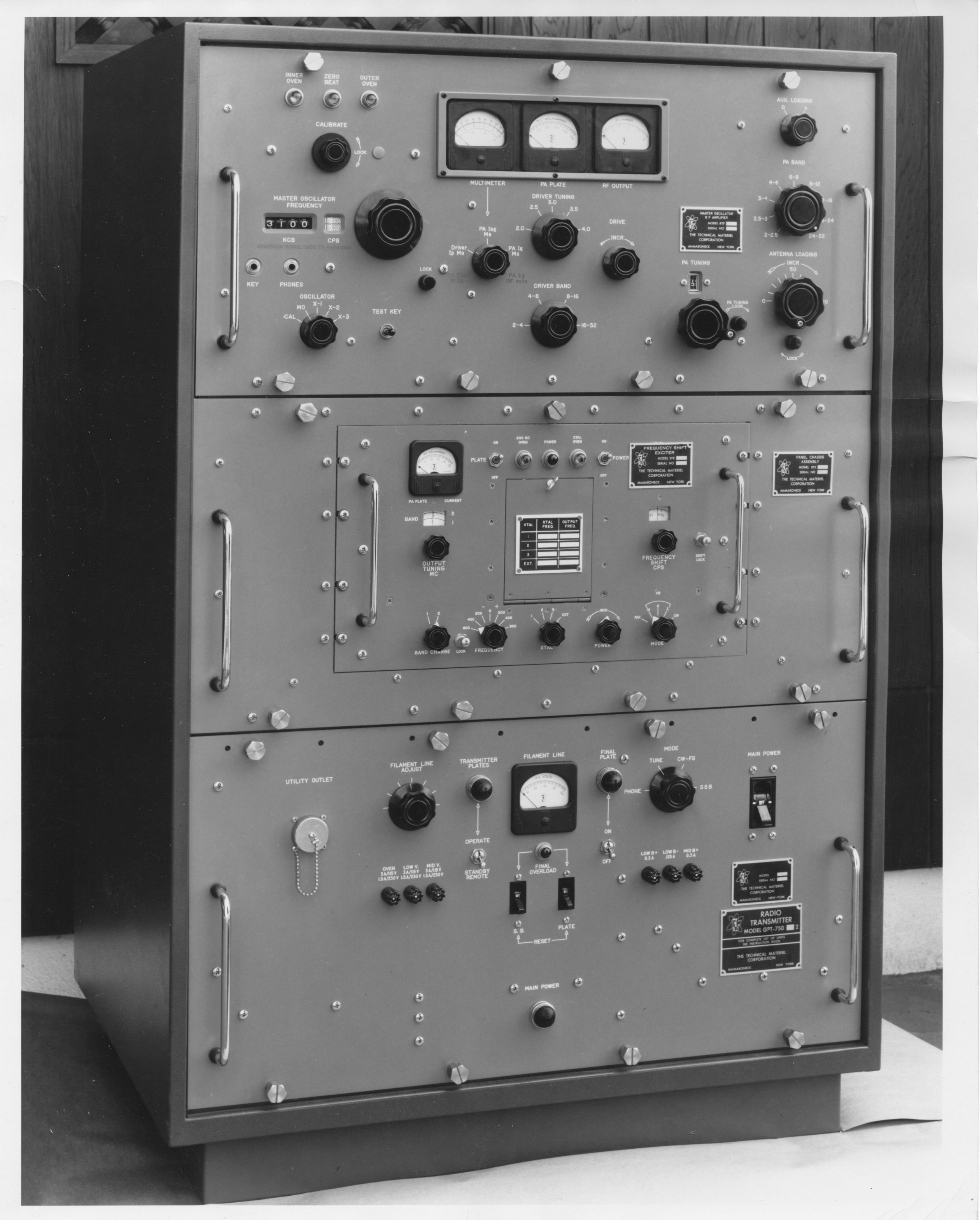

Cabinet, Radio Transmitter, 3
panel spaces (GPT-750-2):
Top: 12-1/4"H x 31-1/4"W
Center: 11-3/4"H x 31-1/4"W
Bottom:13-5/8"H x 31-1/4"W
|
|
CY-2660/URT-17A Cabinet,
Electrical Equipment |
| CAB-8 |
|
Cabinet for DDR-5B, special
ship/shore console for DDRR-5B(Navy) |
|
|
| CAB-9 |
|
Equipment rack for TTR-10 |
|
|
| CAB-10 |
|
Cabinet Enclosure: desk top for
SME-1/SMR-1 |
|
|

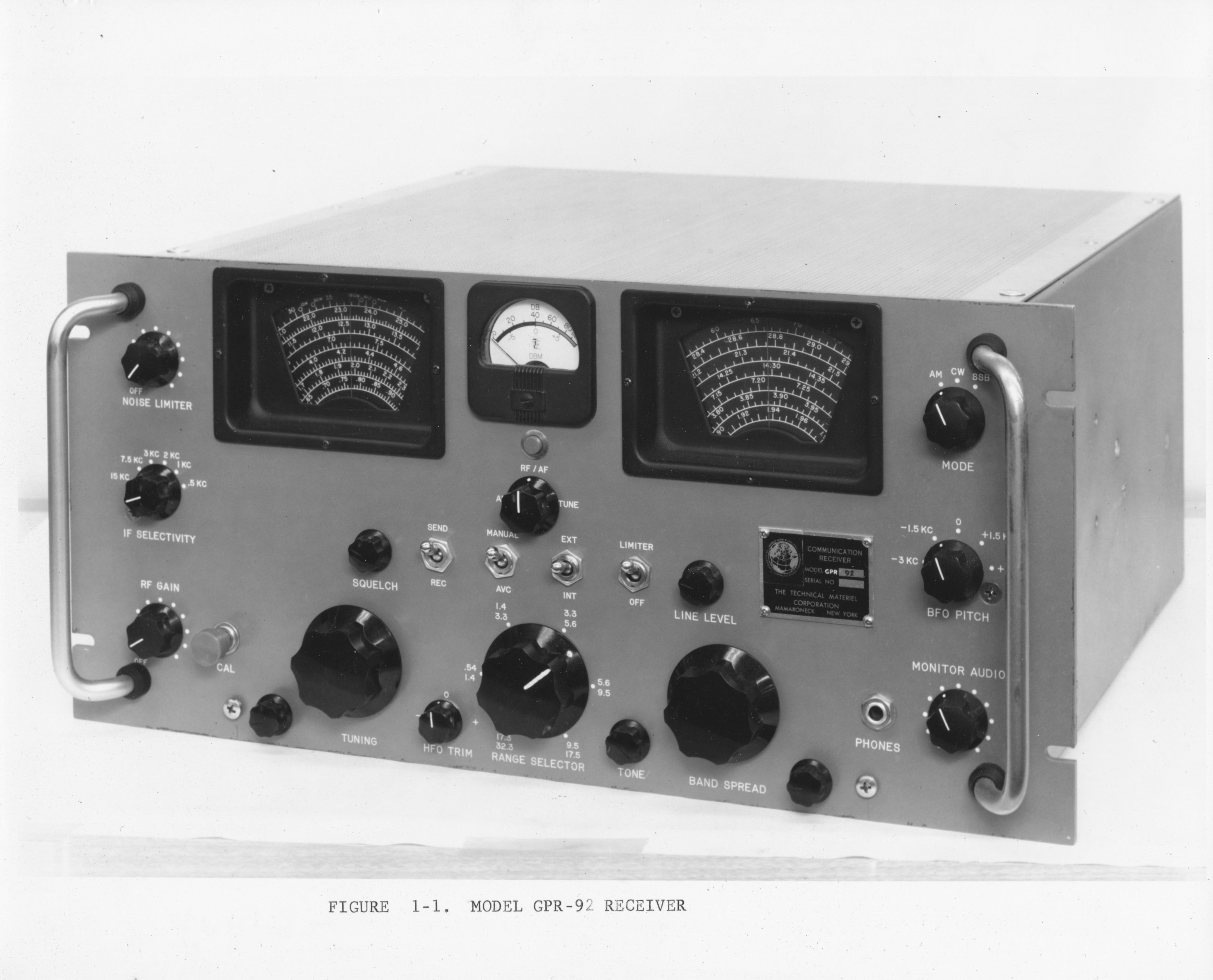

| CAB-11 |
|
Equipment Cabinet for GPR-92 |
|
|
| CAB-12 |
|
Equipment Cabinet for LRRB-1
(aluminum) (M.T. has details) |
|
|
| CAB-20A |
|
Dual Cabinet (table top)
41"W x 26"D x 14"H with 12-1/4" panel space for use
with RCWA-1 |
|
|
| CAB-22 |
|
Cabinet for GPR-110, drawing
MS-6594 |
|
|
| CAN-1A |
|
FFRD xtal modification kit (TMC
Canada design) provides oven control for FFRD drawer. Disables
REMOTE feature |
|
|
| CBE-1 |
|
Sideband Exciter |
|
O-714/UR, Oscillator, Radio
Frequency |
| CBE-2 |
|
Sideband Exciter |
|
|
| CCP-1 |
|
Central Control Position--Project
15 |
|
|
| CCT-xOy |
|
Television Camera Cable Tester
- x = # connecter (1 or 2)
- y = 1(Norelco), 2(RCA), 3(GE)
|
|
|

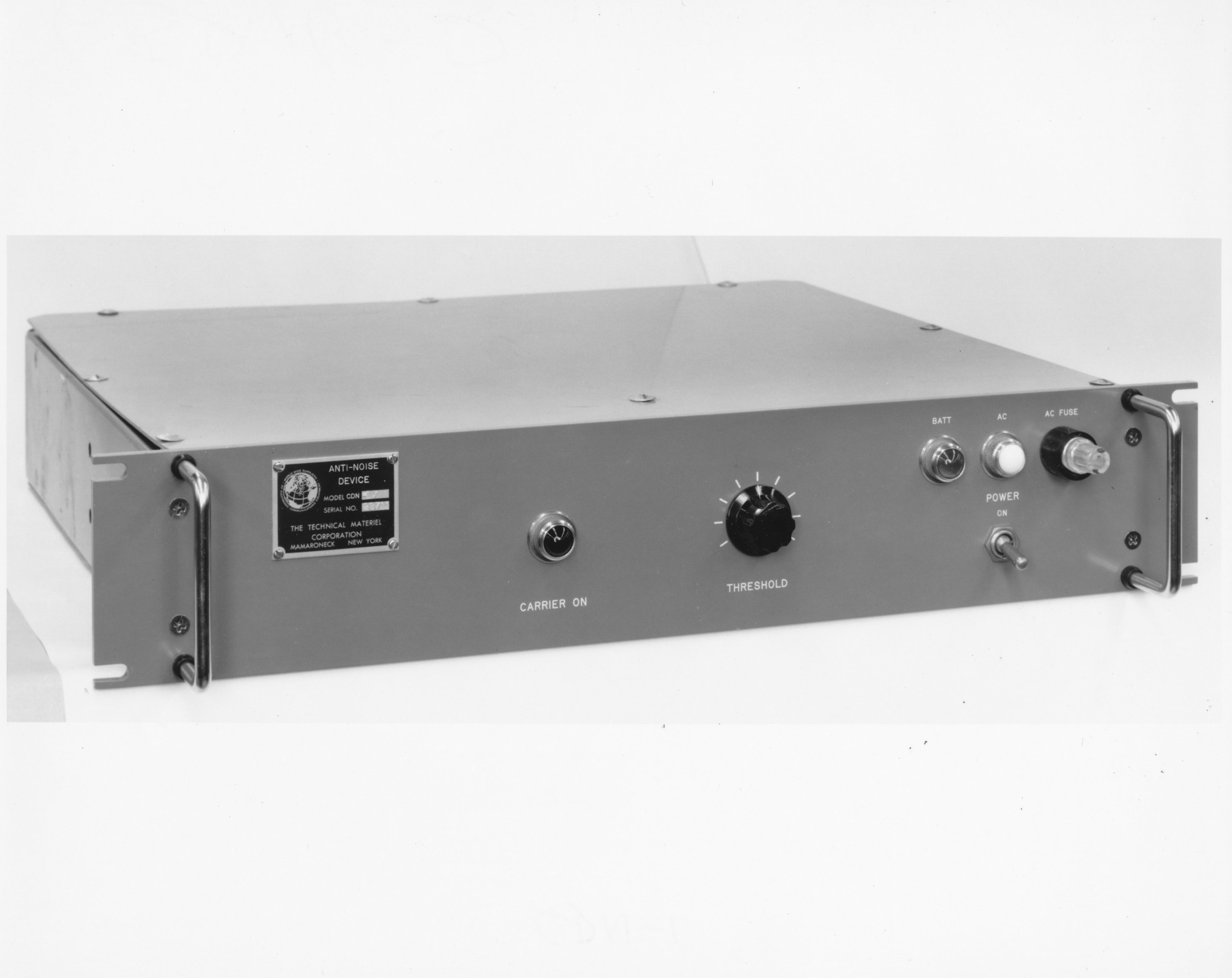

| CDN-1 |
 |
Carrier Operated Device,
Anti-Noise |
TB-4013 |
|
| CDN-2 |
|
Carrier Operated Device,
Anti-Noise |
|
|
| CDN-3 |
|
Carrier Operated Device,
Anti-Noise, Electrically identical to CDN-2 with minor mechanical
modifications. This is a production unit: Modification: Metal
work to improve ventilation and ease of manufacture |
|
|
| CFA-1 |
|
Frequency Shift Converter |
TB-4009 |
CV-763/URR Converter, Frequench
Shift |
| CFA-1L |
|
Frequency Shift Converter |
TB-4008 |
|
| CFA-1LB |
|
Frequency Shift Converter |
TB-4008 |
|
| CFA-2 |
 |
Frequency Shift Converter |
|
|
| CFE |
|
Frequency Shift Converter.
Diversity combiner used to convert the output of two receivers into one
teletype mark/space signal |
SSB-119 |
|
| CFX |
|
Facsimile Converter |
SSB-113 |
|
| CHG-1 |
|
Frequency Amplifier |
|
AM-2502/URA-31, Amplifier, Radio
Frequency |
| CHG-2 |
 |
Frequency Amplifier |
|
AM-2502A/URA-31, Amplifier, Radio
Frequency |
| CHG-2A |
|
Frequency Amplifier |
|
AM-2502B/URA-31, Amplifier, Radio
Frequency |
| CHG-2B |
|
Frequency Amplifier |
|
|
| CHG-3 |
|
RF Translator, p/o SBGR-3 |
|
|
| CHG-4/-5/-6 |
|
Derived from MMX-1 (Cancelled) |
|
|
| CHGR-3 |
 |
RF Translator p/o SBGR-3 (See R.
Hay before using 10/7/65) |
|
|
| CHGR-3A |
|
RF Translator, same as CHGR-3,
but has over and proportional oven control added. (See R. Hay before
using) |
|
|

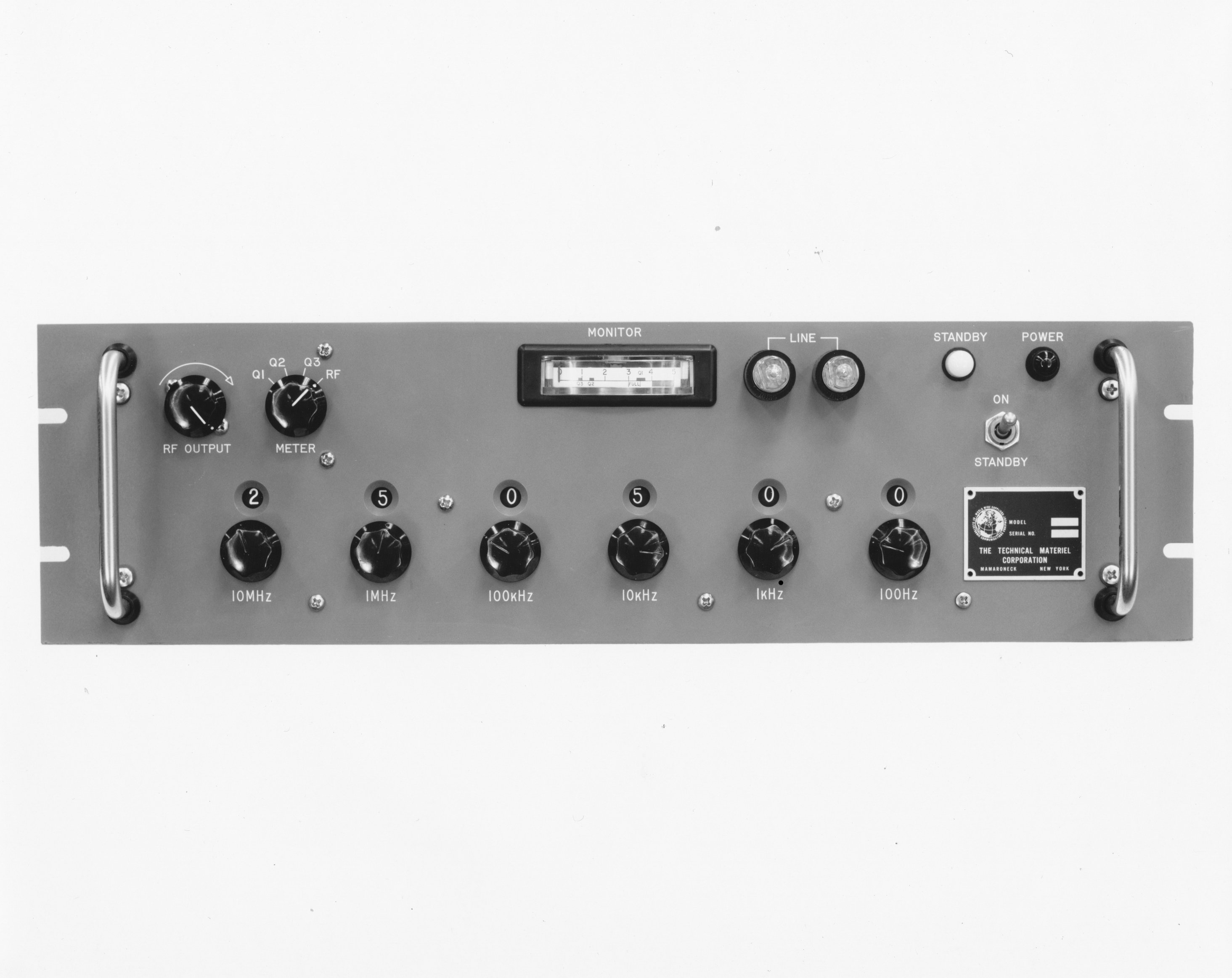

| CHGR-4 (3/7/67) |
 |
407L Proposal. Part of
SBGR-3. Has built-in synthesizer and RF translator |
|
|

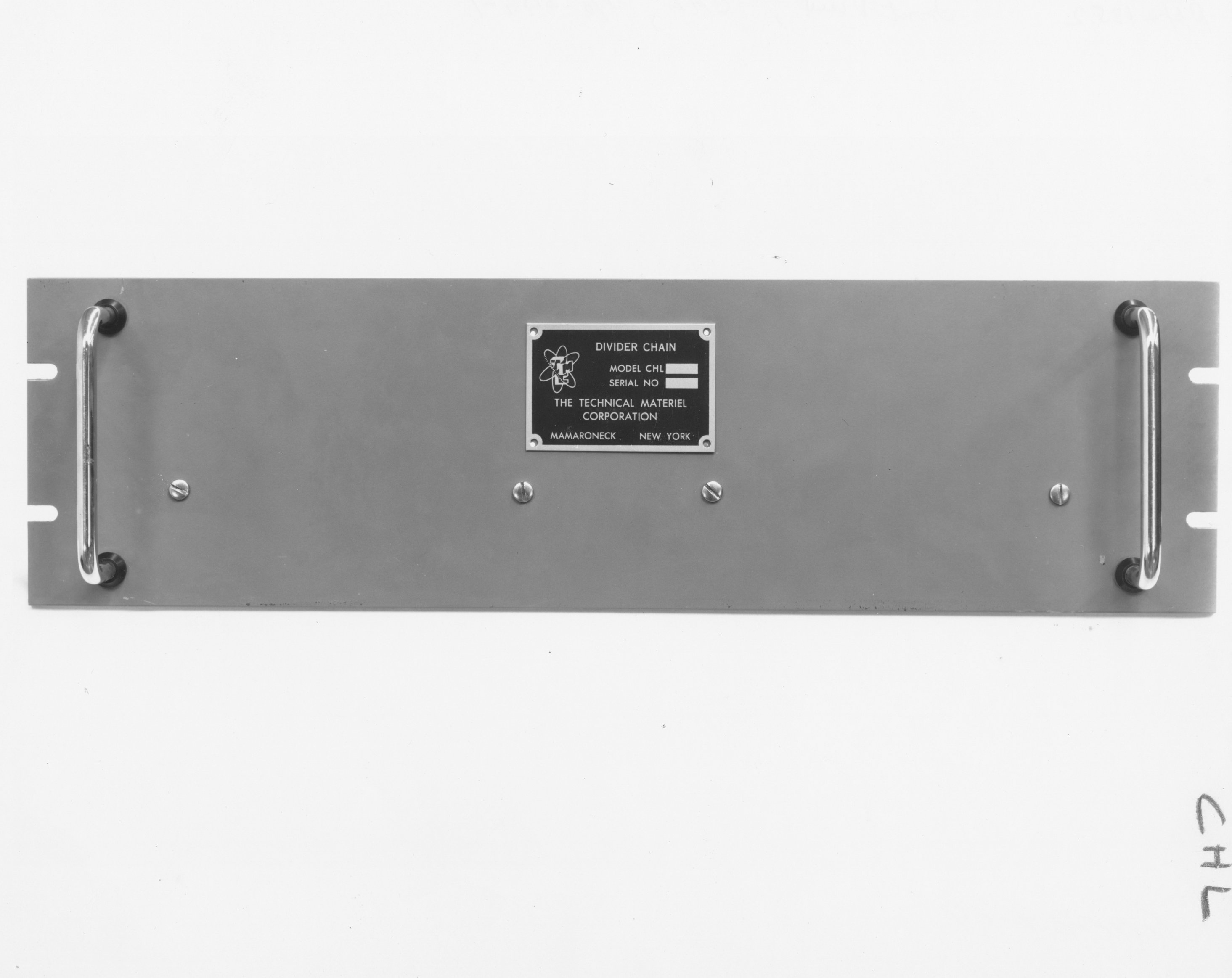

| CHL-1 |
 |
Divider Chain |
|
CV-928/URA-31, Frequency Divider |
| CK-2 |
|
Takeup Reel Assembly 60 CPS |
TB-9006 |
RL-213/U Puller, Tape |
| CK-2A |
|
Takeup Reel Assembly 50/60 CPS |
|
|
| CLL-1 |
 |
Controlled Oscillator (Low
Frequency Loop, p/o CPO-1) |
|
O-717/URA-31, Oscillator, Audio
Frequency |
| CLO-1 |
|
Frequency Divider Provides 10 CPS
tuning for SBG-1 |
|
|
| CMR-1 |
|
Multiple Channel Sideband
Generator. Same as CMRA-1 but without remote control features.
This is a reassignment of Model # for CMRA-1A |
|
|
| CMR-1I (12/13/66) |
|
Multi-channel Sideband
Generator. Similar to CMRA-1 except with conversion carrier for
outboard channels 6.25Kc in place of 6.29Kc. Will require
synthesized 6.25Kc carrier, 1756.25Kc filter, 1743.75Kc filter and new
channel A2 and B2 filters. Modele numbers required for both remote
and non-remote versions to meet CCIR Specs. |
|
|
| CMRA-1 |
 |
Sideband Exciter.
Remote-controlled. Used in TSTE-10K, five channels |
|
|
| CMRA-1A (11/10/66) |
|
Multiple Channel Sideband
Generator. Same as CMRA-1 but without remote control features.
Current manual with 1 page Addendum, OK. |
|
|
| CMRB-1(3/15/66) |
|
Multichannel Sideband
Modulator. Cancelled 2/16/67, R.R. Hay |
|
|
| CMG(_)-R |
|
Modulator. p/o SBGR-3
system, replaces CMGR-1 |
|
|
| CMO-1 |
 |
Controlled Master Oscillator |
|
O-716/URA-31 |
| CMRC-1 (3/1/67) |
|
407L Proposal. Has 4 ISB
channels CW capability and symmetrical capability. Part of SBGR-3. |
|
|
| CMR-2 |
|
Same as CMR-1 except 250-3,040
CPS channels |
|
|
| CMSA-1 |
|
Control/Monitor System.
Consists of one TPC-51, one SMCA-1, one SMCC-1. |
|
|
| CON-1 |
|
Operating Console (Single Unit) |
TB-9001 |
|
| CON-2 |
|
Operating Console (Two Units) |
TB-9001 |
|

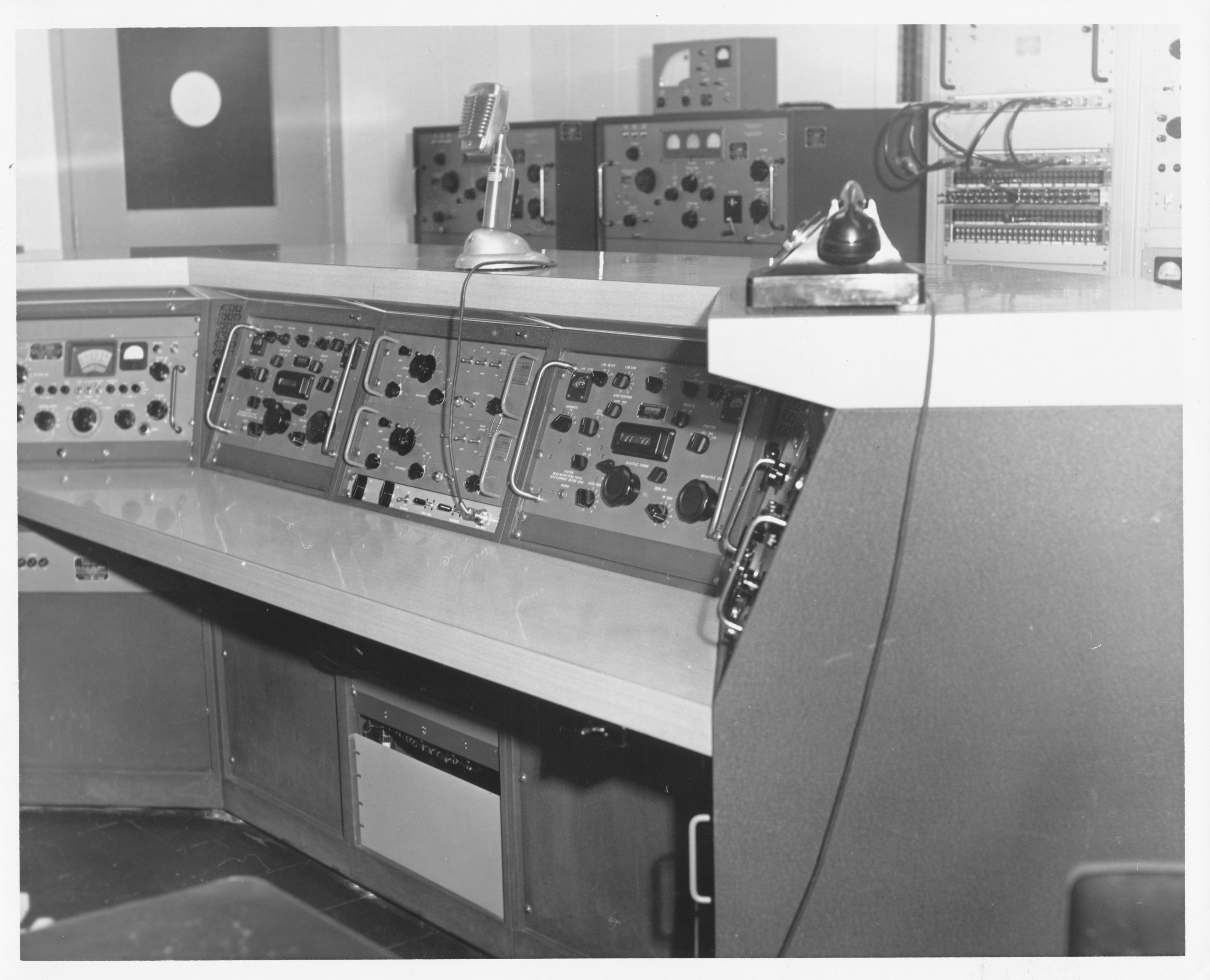

| CON-3 |
 |
Operating Console (Three Units) |
TB-9001 |
|
| CON-4 |
|
Operating Console (Four Units) |
TB-9001 |
|
| CON-5 |
 |
Operating Console (Five Units) |
TB-9001 |
|

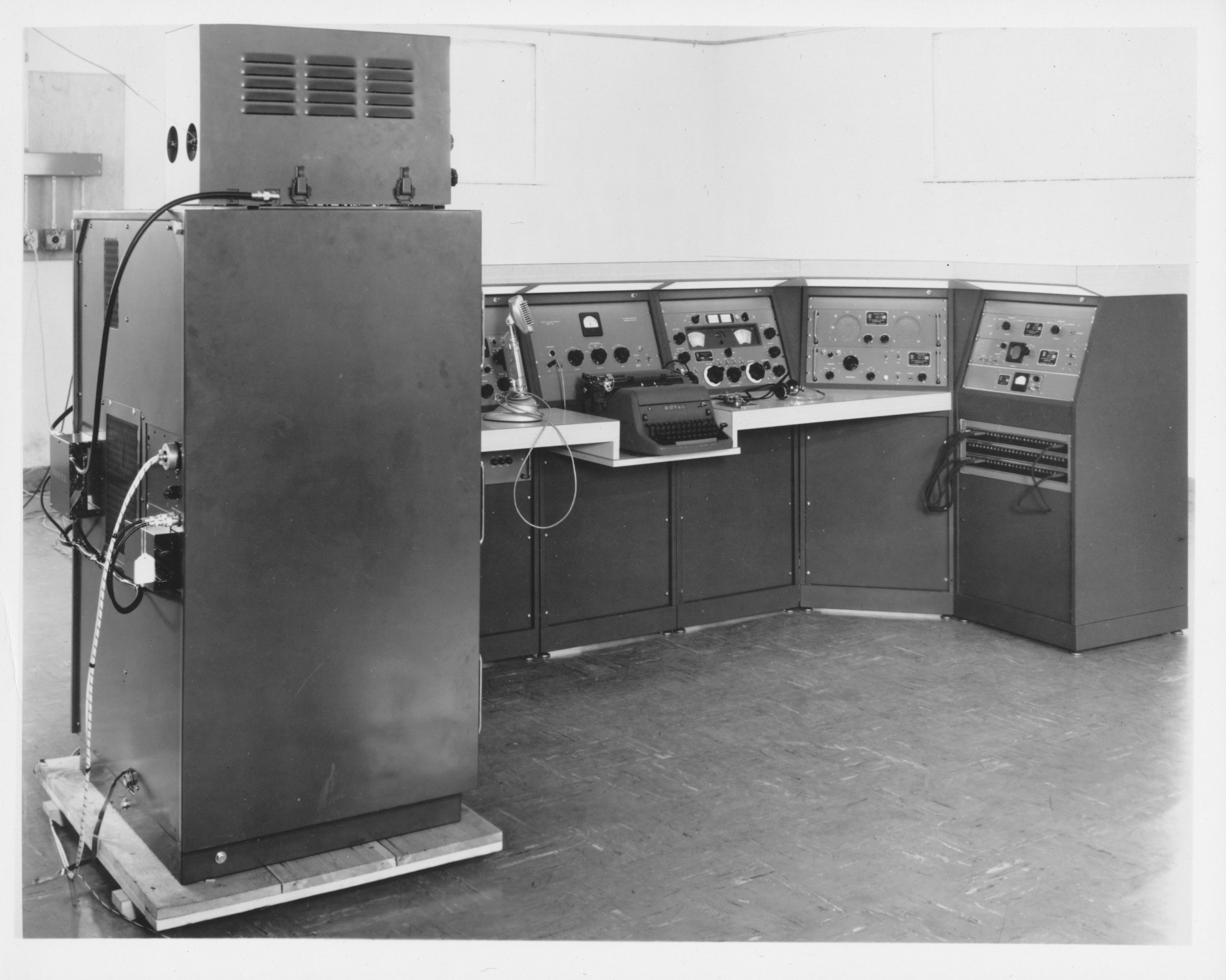

| CON-6 |
 |
Operating Console |
|
|
| COPA-2 |
|
Console Operating Position. First
of two cabinet drawers for ARCA-1. Remote control system. |
|
CY-4596/FRR-72 Cabinet, Eletrical
Equipment |
| COR-1 |
|
2 Channel Receiving
System. (CODAN operated receiving system). Consists of:
- 2 STR-2C
- 2 CDN-1
- 1 HFD-1S
- 1 RTO-1

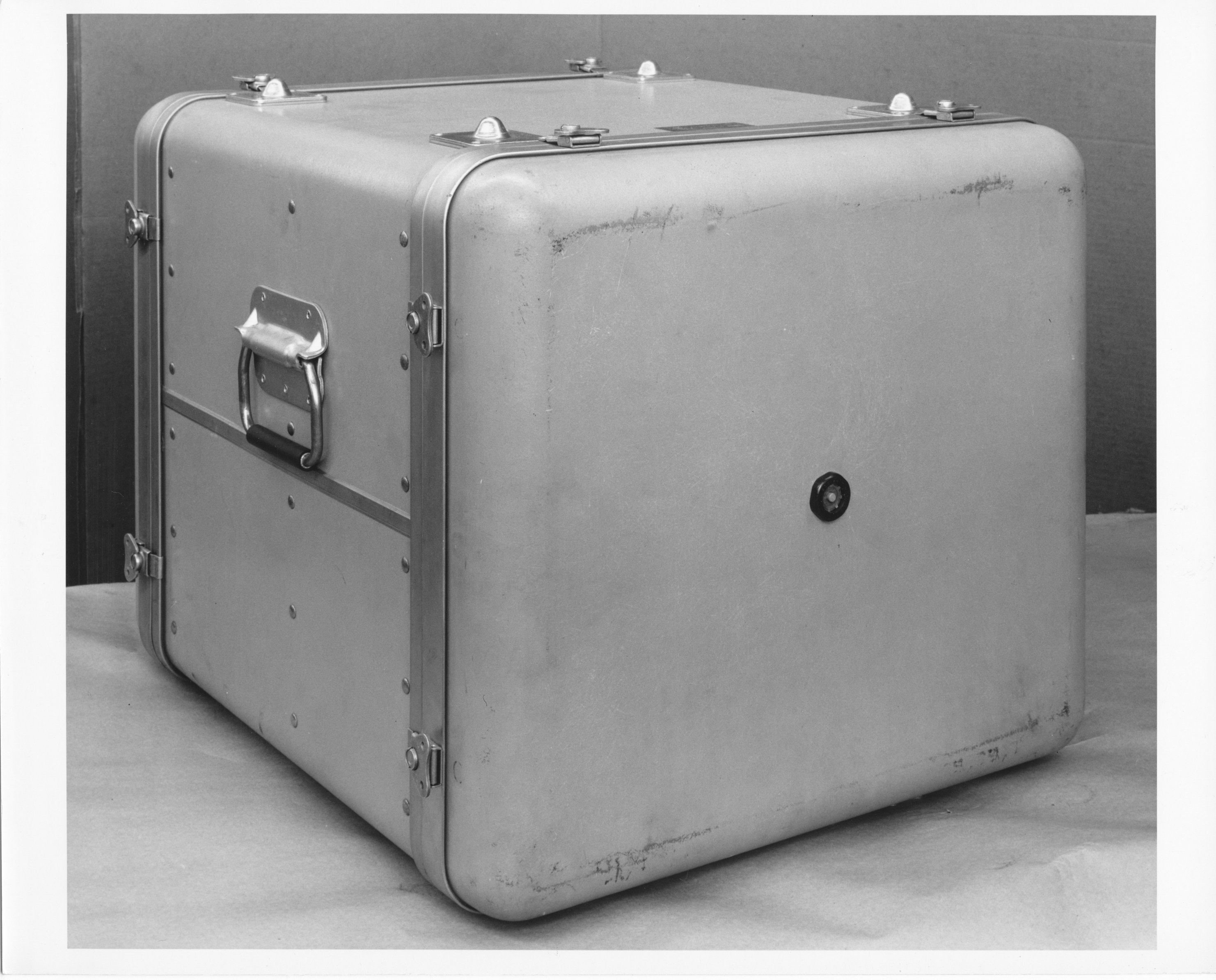

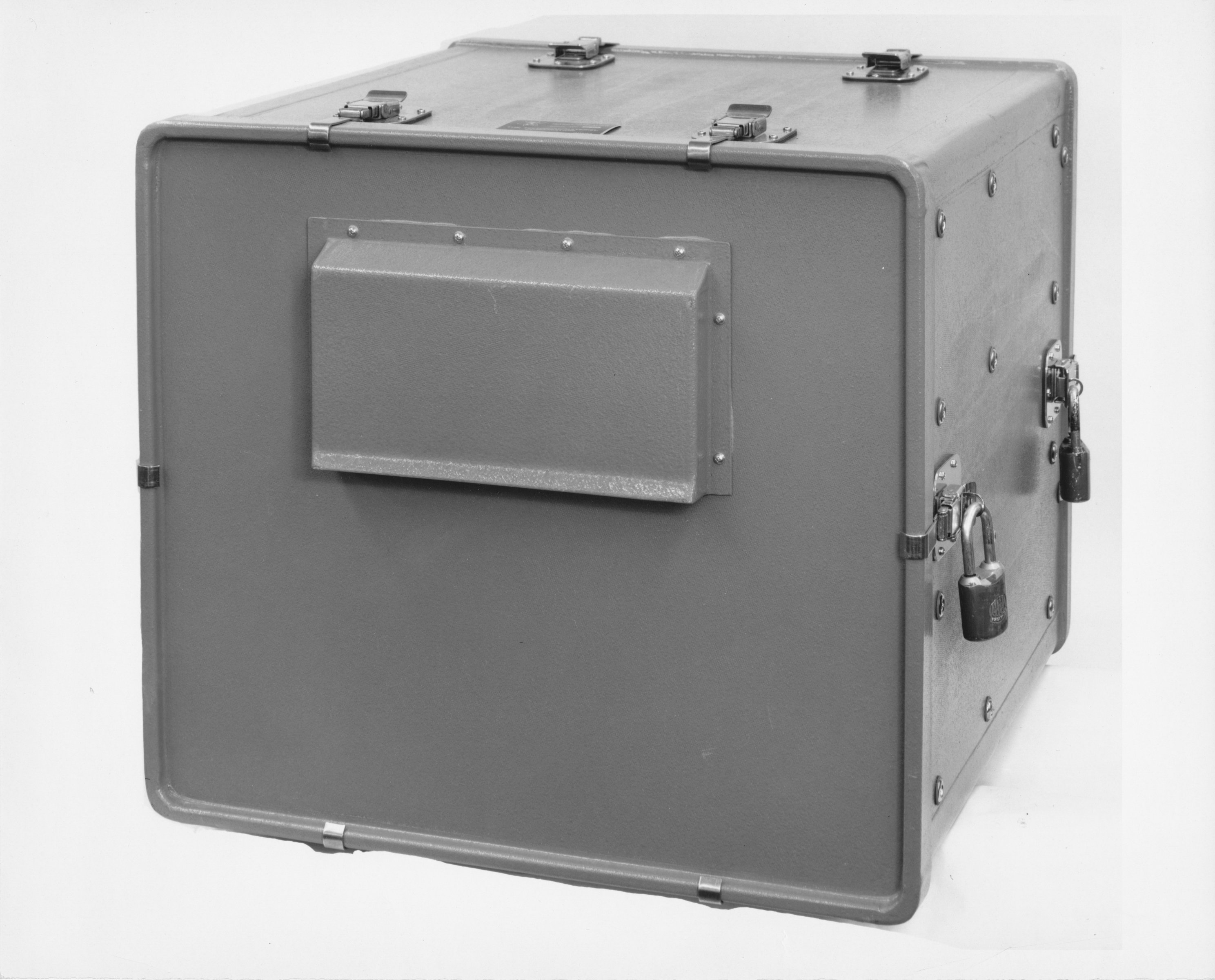

- Mounted in modified TOC case used by Southern Bell
Telephone
|
|
|
| COR-2 (10/22/65) |
|
2 Channel Receiving
System. (CODAN operated receiving system). Consists of:
- 2 STR-2C
- 2 CDN-2
- 1 HFD-1S
- 1 RTO-1
- 1 TOC-5
|
|
|
| COR-3 (10/21/65) |
|
2 Channel Receiving
System. (CODAN operated receiving system). Consists of:
- 2 STR-2C
- 2 CDN-3
- 1 HFD-1S
- 1 RTO-1
- 1 TOC-5
- Battery case TOC-6 to hold 4 Western Electric KS5361
batteries for 85 hour operation
|
|
|
| COR-3A |
|
1/2 COR-3 System |
|
|
| COR-4 |
|
2 Channel Receiving
System. (CODAN operated receiving system). Consists of:
- 2 STRA-5
- 2 CDN-3
- 1 HFD-1S
- 1 RTO-1A
|
|
|
| COR-4A |
|
1/2 COR-4 System |
|
|
| COR-4B-(_) |
 |
Multi-channel, Fixed Frequency
Receiving System (CODAN) operated from AM signals with squelched USB:
specs same as COR-4A except STR-5A/U used and squelch modification.
See specification S-1281. |
|
|
| CPE |
|
Code Practice Equipment |
SSB-160 |
|
| CPI-1CA/-2CA |
|
Crash Position Indicator |
SSB-127 |
|
| CPMO |
|
Fiberglass Case for model PMO |
TB-2007 |
|
| CPO-1 |
|
Controlled Precision Oscillator |
TB-2005 |
AN/URA-31, Oscillator-Power
Supply Group |
| CPO-1A |
|
Controlled Precision Oscillator |
TB-2005 |
AN/URA-31A, Oscillator-Power
Supply Group |
| CPO-1B |
|
Controlled Precision Oscillator |
TB-2005 |
AN/URA-31B, Oscillator-Power
Supply Group |
| CPO-1C |
|
Controlled Precision Oscillator |
|
AN/URA-31C, Oscillator-Power
Supply Group |
| CPP-1 |
 |
Power Supply |
|
PP-2561/URA-31, Power Supply |

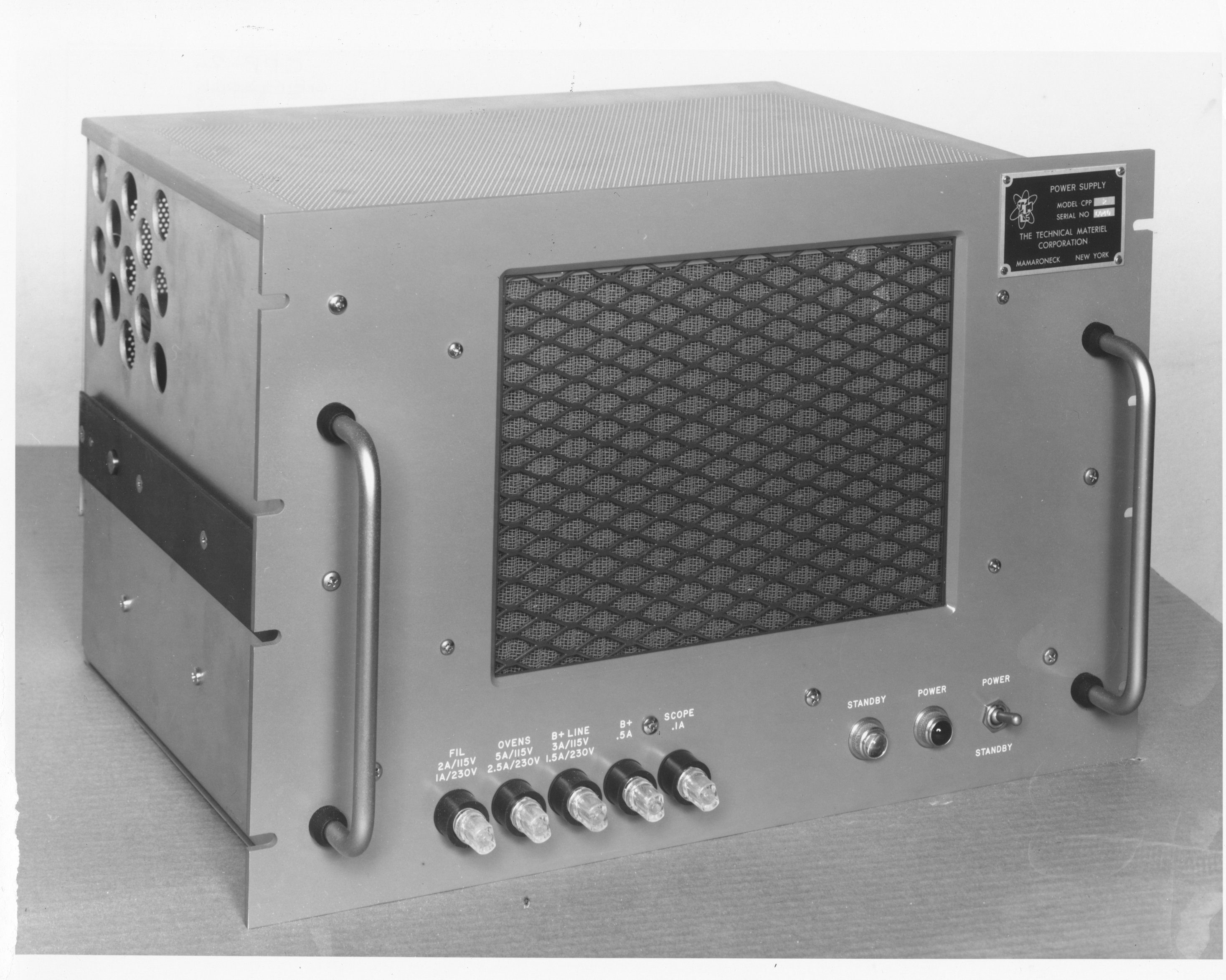

| CPP-2 |
 |
Power Supply |
|
PP-2561A/URA-31, Power Supply |
| CPP-4 |
|
Audio and DC Patch Panel |
|
|

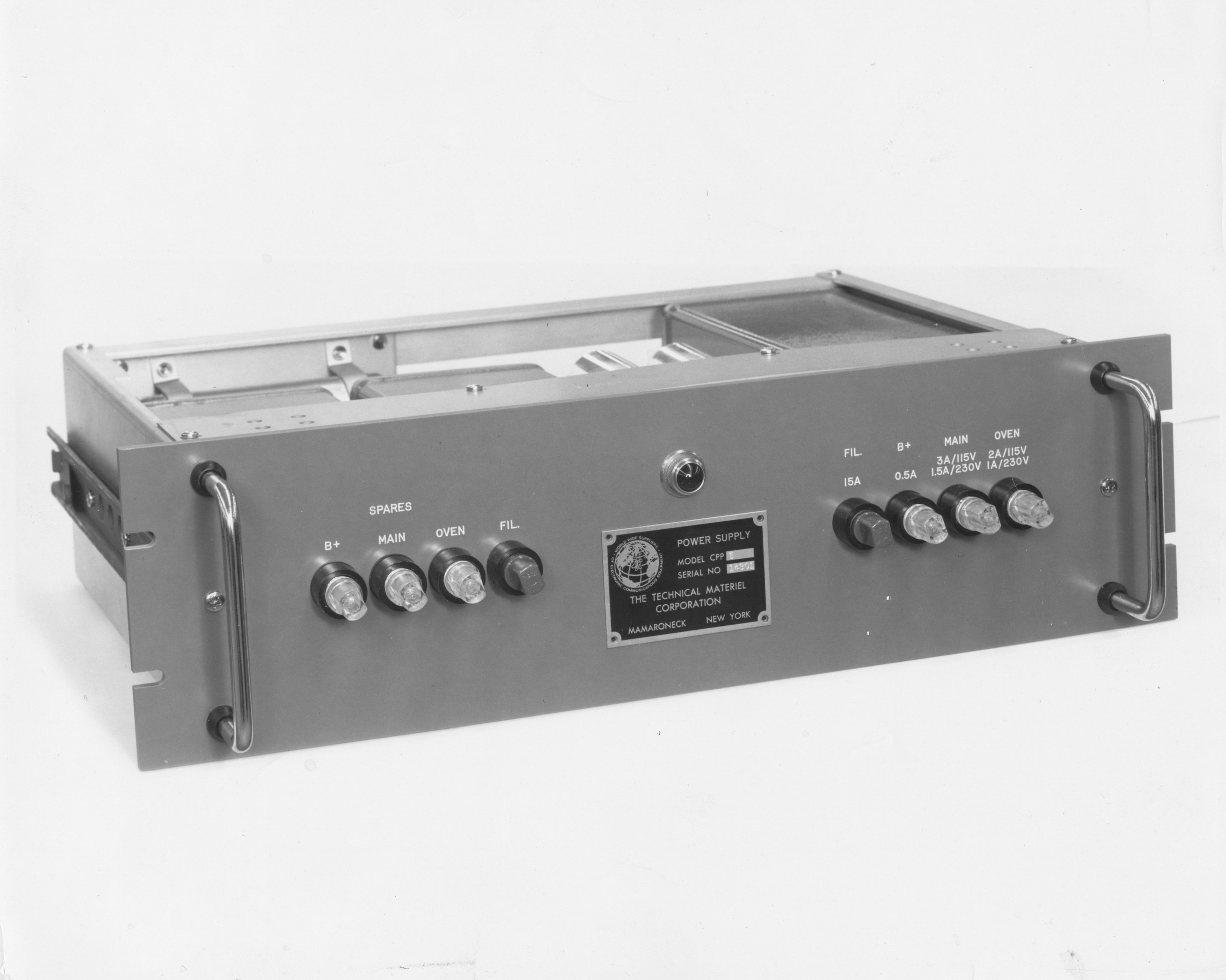

| CPP-5 |
 |
Power Supply |
|
PP-2562/URA-31, Power Supply |
| CPP-6 |
|
Power Supply, supercedes CPP-2 |
|
|
| CPS-1 |
|
Controlled Precision Oscillator |
TB-2006 |
|
| CRP |
|
Patch Cord Retainer Panel
(special for RCA) |
|
|
| CSS-1 |
 |
Frequency Standard |
|
O-715/URA-31, Oscillator, Radio
Frequency |
| CSS-1A |
 |
Frequency Standard |
TB-2013 |
O-715A/URA-31, Oscillator, Radio
Frequency |
| CSS-1B |
|
Frequency Standard (1 part in
10^8) |
|
O-715B/URA-31, Oscillator, Radio
Frequency |
| CSS-1C |
|
Frequency Standard CSS-1B + kit
215 provides automatic changeover to internal standard if static standard
fails |
|
|
| CSS-2 |
|
Frequency Standard (1 part in
10^9) |
TB-6005 |
|
| CSS-2A |
|
Frequency Standard (1 part in
10^9) Same as CSS-2, but with built-in phase lock |
TB-6005 |
|
| CSS-3 (10/18/65) |
 |
CSS-1B Standard operates on
internal 1Mc XTAL w/ auto switch to external 1Mc source on failure of
internal 1Mc source. CSS-3 similar to CSS-1B except: J601,
J602, J604 changed from UG625 to switching type BNC JJ325. These
connectors are self-terminated in 470-ohm resistors when not in use.
Lettering of 1Mc connections changed to the following:
- J601 "1mc in STD mon"..front panel
- J604 "1mc ext STD mon"..front panel
- J602 "1mc int STD mon"..back panel
Also has alarm on front panel for visual and audio with
switch to local or remote. |
|
|
| CSS-3A |
|
CSS-3 Basic with Kit 215 |
|
|
| CSS-3B |
 |
CSS-3 Basic with Kit 270 |
|
|
| CSS-4 |
|
Frequency Standard -- 1Mc |
|
|
| CTAC |
|
Fiberglass Case for model TAC |
TB-2024 |
|
| CTP |
|
Tape Puller |
SSB-152 |
|

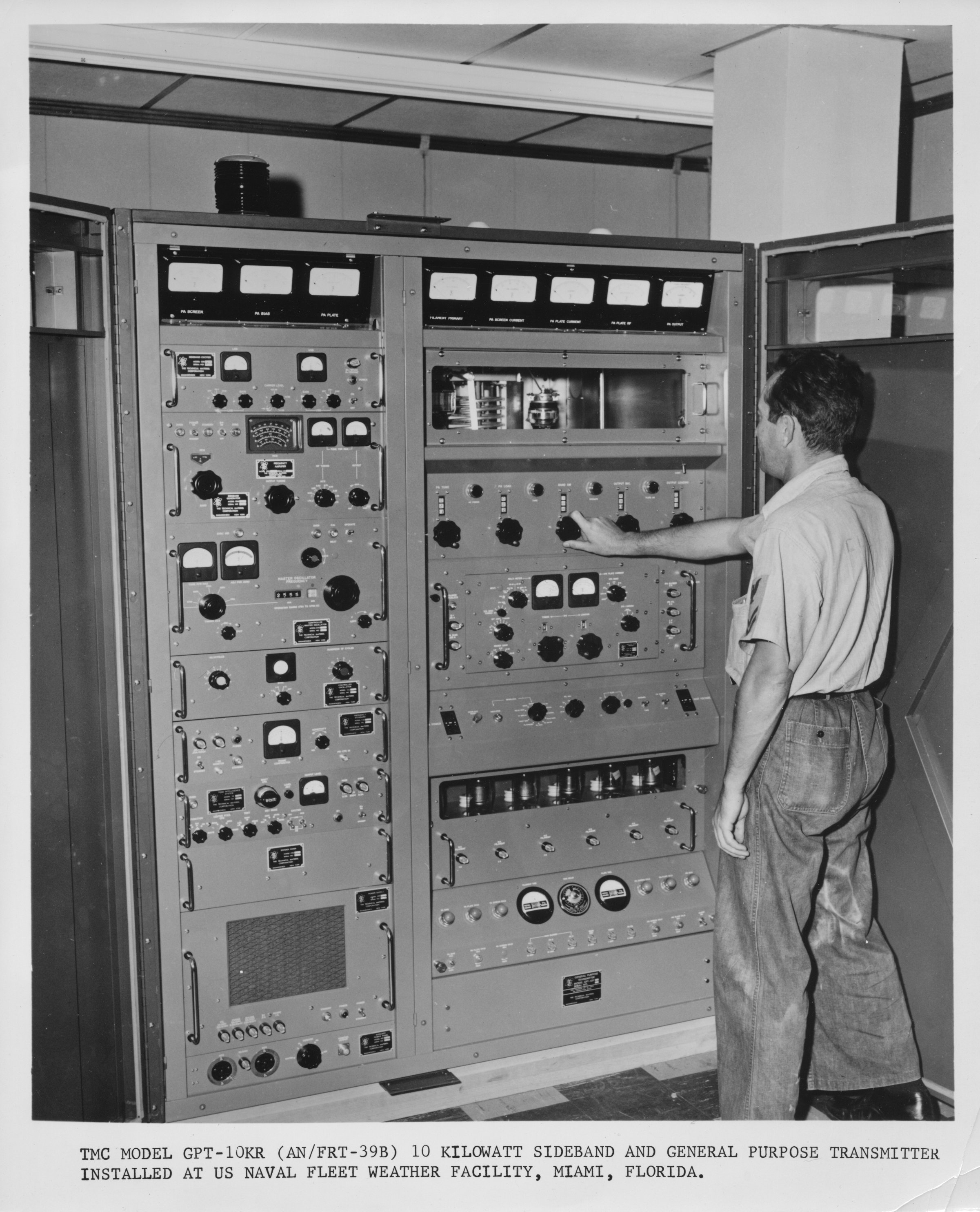

| CTCP-1 |
|
Tuning Programmer for Automated
GPT-10K |
|
|
|
D |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| DA-101 |
|
Distributive Amplifier (LMC-10) |
|
|
| DAC-1 |
|
Dipole Antenna Coupler, 72 ohms
balanced to 72 ohms unbalanced, type N connector |
TB-8013 |
|
| DAC-2 |
|
Dipole Antenna Coupler, 300 ohms
balanced to 72 ohms unbalanced, type N connector |
TB-8013 |
|
| DAC-3 |
|
Dipole Antenna Coupler, 200 ohms
balanced to 70 ohms unbalanced, type BNC connector |
TB-8013 |
|
| DAC-4 |
|
Dipole Antenna Coupler, 200 ohms
balanced to 72 ohms unbalanced, type BNC connector |
TB-8013 |
|
| DAC-5 |
|
Dipole Antenna Coupler, 72 ohms
balanced to 72 ohms unbalanced, type UHF connector |
TB-8013 |
|
| DAC-6 |
|
Dipole Antenna Coupler, 72 ohms
balanced to 52 ohms unbalanced, type N connector |
TB-8013 |
|
| DAC-8 |
|
Dipole Antenna Coupler, 72 ohms
balanced to 52 ohms unbalanced, type N connector (pole mounting plate and
hardware in place of connector rings) |
TB-8013 |
|
| DAC-9 |
|
Dipole Antenna Coupler, 475 ohms
balanced to 52 ohms unbalanced, type N connector |
TB-8013 |
|
| DAC-10 |
|
Dipole Antenna Coupler, less
transformer |
TB-8013 |
|
| DAC-11 |
|
Dipole Antenna Coupler, 72 ohms
balanced to 52 ohms unbalanced, 3 bolt suspension and stuffing tube |
TB-8013 |
|
| DAC-12 |
|
Antenna Termination |
TB-8013 |
|
| DAC-13 |
|
Dipole Antenna Coupler, 200 ohms
balanced to 50 ohms unbalanced, Special N connector for 7/8" foamflex
cable. |
TB-8013 |
|
| DAC-14 |
|
Dipole Antenna Coupler, 200 ohms
balanced to 50 ohms unbalanced |
TB-8013 |
|
| DAC-15 |
|
Dipole Antenna Coupler |
TB-8013 |
|
| DAC-16 |
|
Dipole Antenna Coupler, 200 ohms
balanced to 70 ohms unbalanced |
TB-8013 |
|
| DAC-17 |
|
Dipole Antenna Coupler, 600 ohms
balanced to 70 ohms unbalanced, 3-wire folded dipole for Canada |
|
|
| DAC-501 |
|
Dipole Antenna Coupler, 50 ohms
balanced to 50 ohms unbalanced |
|
|
| DAC-502 |
|
Dipole Antenna Coupler, 50 ohms
balanced to 200 ohms unbalanced |
|
|
| DCB |
|
Diversity Combiner |
SSB-143 |
|
| DCO |
|
Diversity Control Unit |
SSB-145 |
|
| DCP-1 |
 |
Power Control Unit |
|
|
| DCP-2 |
 |
Power Control Unit |
|
|
| DCU |
|
Diversity Combining Unit |
TB-4010 |
|
| DDAA |
|
Double Doublet Antenna Assembly
(ID 10109) |
|
|
| DDR-1 |
|
Dual Diversity Receiver, 2
SP-600-X receivers |
SSB-116 |
|
| DDR-2 |
|
Dual Diversity Receiver, SP-600-X
receivers |
SSB-117 |
|
| DDR-3 |
|
Dual Diversity Receiver, 2
GPR-90's, CFA, PSP-1, DVM, DCU |
SSB-190 |
|

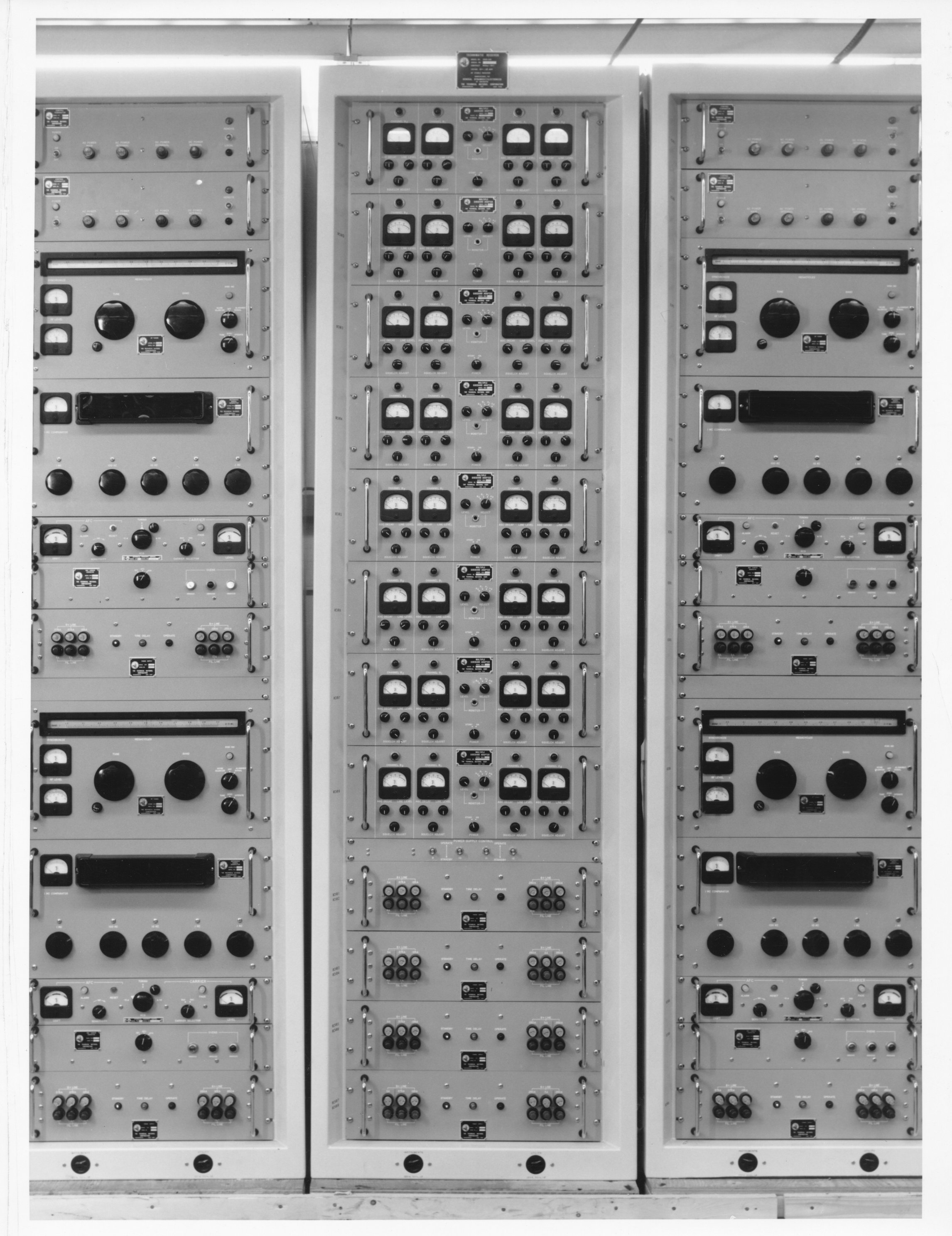

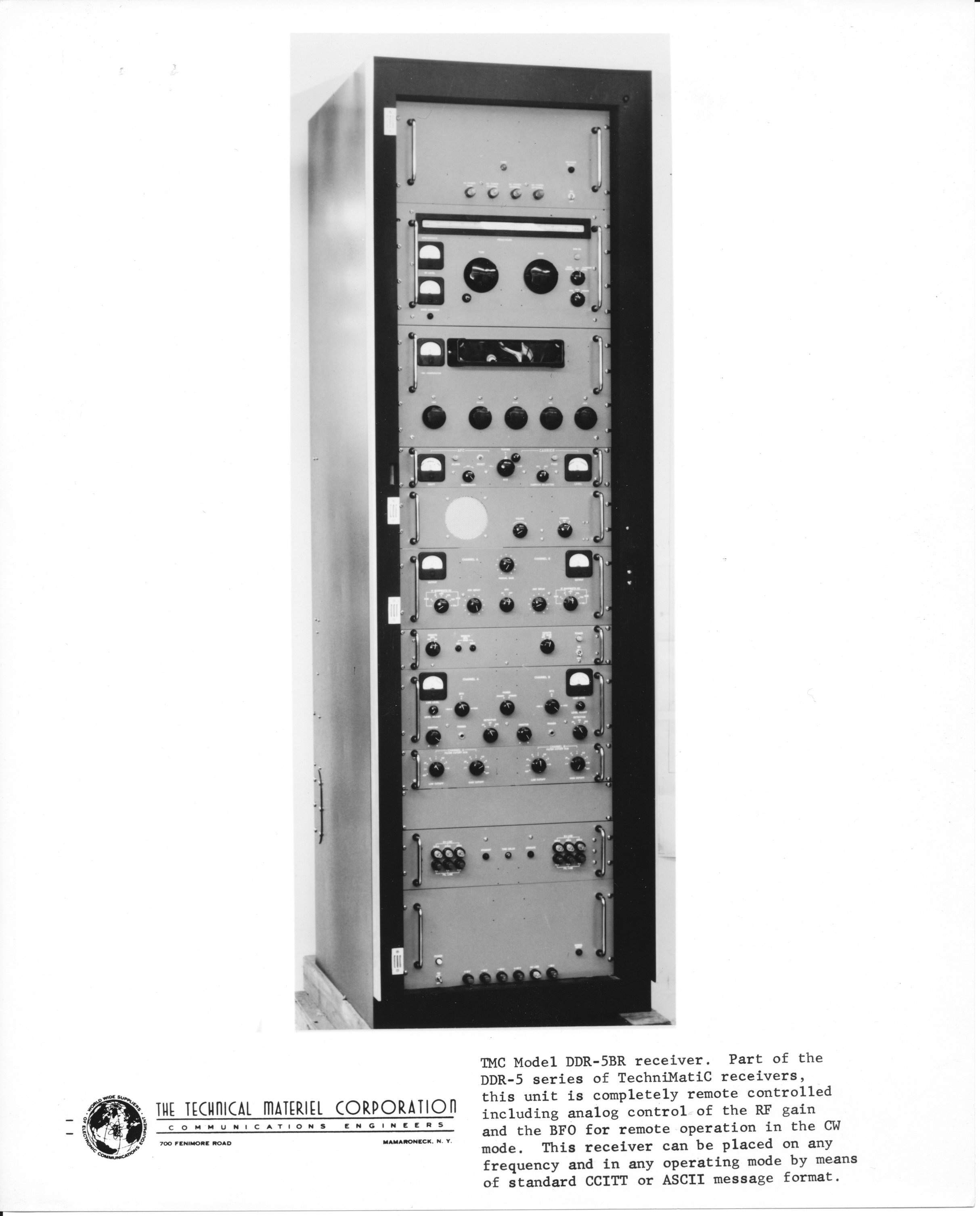

| DDR-5
Family Photo Gallery |
| DDR-5(X) |
 |
First family of Continuous Tuned
Diversity Receiver using HFR-1, HFS-1, HFI/HAF HFA, HNF, AFC, SBS, HSP,
HPP, LSP |
SSB-229 |
|
| DDR-5A1 |
|
General Purpose Diversity
Receiver
- 2 HFR-1
- 1 HFS-1
- 1 DVM-4
- 2 HFI-1
- 2 HFA-1
- 2 HFP-1
- 2 HAF-1
- 2 HNF-1
- 1 HSS-1
- 1 HSP-2
- 1 HPP-1
- 2 AFC-3
|
TB-3001 |
AN/FRR-60(V) |
| DDR-5A/-5D |
|
Receiving Set, Radio |
|
AN/FRR-60(Y)L |
| DDR-5B |
|
Consists of
- 1 RAK-21( )
- 1 HFR
- 1 HFS
- 1 AFC
- 1 HFI
- 1 AFC-3
- 1 HAF-1
- 1 HFA-1
- 1 HFF-1
- 1 HFP-1
- 1 Speaker
- 1 HPP-2
|
|
|
| DDR-5CA |
|
General Purpose Diversity
Receiver
- 2 HFR-2
- 2 HFS-1
- 2 HSP-2
- 2 HNF-1
- 2 HFI-1
- 2 HFA-1
- 2 HAF-1
- 2 HFP-1
- 1 HSS-1
- 1 HPP-1
|
|
|
| DDR-5A |
|
Same as DDR-5CA except (1) DVM
for (1) HFS |
|
|
| DDR-5B1 |
 |
Synthesized Communication
Receiver, 1 HFR-1, 1 HFS-1, 1 HFI-1, 1 HFA-1, 1 HNF-1, 1 HFP-1, 1 AFC-3, 1
HSS-1, 1 HPP-1, 1 HSP-2 |
TB-3001 |
AN/FRR-60(V) |
| DDR-5C |
|
Diversity Receiver. Same as
DDR-5A less DVM-4 and 1 HFS-1 |
TB-3001 |
AN/FRR-60(V) |
| DDR-5D |
|
Diversity Receiver |
TB-3001 |
AN/FRR-60(V) |
| DDR-5E |
|
Diversity Receiver |
TB-3001 |
AN/FRR-60(V) |
| DDR-5E |
|
Diversity Receiver, 2 HFR-1, 2
HFS-1, 2 SBS-2, 1 HSP-2, 1 DVC-1, 2 HFP-1, 1 HSS-2, 1 HPP-2, RAK-39 |
TB-3001 |
AN/FRR-60(V) |
| DDR-5G |
|
General Purpose Receiver, 2
HFR-1, 2 HFS-1, 2 MSA-1, 1 MCG-1, 2 HFP-1, 1 HSS-2, 1 HSP-2, 1 HPP-2,
RAK-40 |
TB-3001 |
AN/FRR-60(V) |
| DDR-5H |
 |
General Purpose Receiver, 2
HFR-2, 1 HFS, 2 MSA, 1 MCG, 1 HFP, 1 MHPA-1, RAK-42 |
TB-3001 |
AN/FRR-60(V) |
| DDR-5I |
|
Not to be assigned |
|
|
| DDR-5J |
|
General Purpose Receiver, 2
HFF-1, 1 HFS-1, 2 MSA-1, 1 MCG-1, 1 HFP-1, 1 HPP-1, 1 MFP-1, RAK-41 |
TB-3001 |
AN/FRR-60(V) |
| DDR-5K |
 |
General Purpose Receiver, HFR-2,
HFS-1, AFC-3, MSA-1, MCG-1, HFP-1, HSS-8, RAK-96-2, MFP-1, HPP-1. Sealed
meters, silicone spray all terminal boards & switches. Special
aluminum cabinet designed for barry shocks and stabilizers |
TB-3028A |
AN/FRR-74 |
| DDR-5KA |
 |
Like DDR-5K less HPP-1 and with
open RAK-115-1 |
|
|
| DDR-5KB (3/22/67) |
|
Likek DDR-5K except HFR-2B,
HFS-2, standard rack (RAK-75-4) (S.O. 0151-1) |
|
|
| DDR-5KS (11/8/66) |
|
Receiver System (Radio Receiver),
consisting of 1 RAK-63, 1 HFR-2B, 1 HFS-2, 1 MSA-1, 1 MCG-1, 1 HSS-8, 1
HFP-1, 1 MFP-1, 1 HPP-1. Similar to DDR-5K, 50 cps 220V operation |
|
|
| DDR-5KS1 (12/29/66) |
|
Receiver System, consisting
of: 1 RAK-75-2, 1 HFR-2B, 1 HFS-2, 1 MSA-1, 1 MCG-1, 1 HSS-8, 1
HFP-1, 1 MFP-1, 1 HPP-1, 50 cycle, 220V operation. |
|
|
| DDR-5KS2 (12/29/66) |
|
Same as DDR-5KS1 with RAK-75-3
and SPP-4004 in place of HSS-8 |
|
|
| DDR-5L |
 |
General Purpose Receiver. 2
HFR-1A, 1 HFS-1, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2 HFP-1, 1 HSS-4, 1 HPP-1, 1
BSP-6B (2 speakers and 24 ohm selection width on a 3-1/2" panel ),
RAK-55 (Base drawing MS-3081) |
|
|
| DDR-5LS |
|
Receiver System (Radio Receiver)
consisting of: 1 RAK-65( ), 2 HFR-2B, 1 HFS-2, 2 MSA-1, 2 MCG-1, 2
HFP-1, 1 BSP-6, 1 HPP-1. Similar to DDR-5L, 50 cps, 220V operation |
|
|
| DDR-5M |
|
General Purpose Receiver. 2
HFR-2, 2 HFS-1, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2 HFP-1, 2 HSS-6, RAK-65 (Basic
drawing MS-3081) |
|
|
| DDR-5N |
|
General Purpose Receiver. 2
HFR-2, 1 HFS-1, 2 MSA-1, 4 DVC-1, 1 MCG-1, 1 HSP-2, 2 BSP-2, 2 HFP-1, 1
RTMU-1, 1 RTTD-1, RAK-66 (unassigned, renewed for DDR-5N) |
|
|
| DDR-5O |
|
Unassigned due to confusion with
DDR-50 |
|
|
| DDR-5P |
|
General Purpose Receiver. 2
HFR-2, 2 HFS-1, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2 HFP-1, 1 HSS-4, RAK-67 (basic
dwg MS-3081) |
|
|
| DDR-5Q |
|
General Purpose Receiver. 1
HFR-2, 1 HFS-1, 1 HSS-5, 1 MSA-1, 1 HFP-1, RAK-68 (Basic dwg. MS-3080) |
|
|
| DDR-5R |
|
General Purpose Receiver. 1
HFR-2, 1 HFS-1, 1 MSA-1, 1 HSS-4, 1 CFA-1, 1 MCG-1, 1 HFP-1, RAK-69 (basic
dwg MS-3089) |
|
|
| DDR-5S |
|
General Purpose Receiver. 1
HFR-2, 1 HFS-1, 1 HFF, 1 HFA, 1 RMXI-2, 1 HFP-1, RAK-71 (Basic dwg
MS-3080) |
|
|
| DDR-5T |
|
General Purpose Receiver 1 HFR-2,
1 HFS-1, 1 HFF, 1 HFA, 1 RMXI-2, 1 HFP-1, RAK-71 (Basic swd MS-3080) |
|
|
| DDR-5U |
|
General Purpose Receiver. 1
HFR-1A, 1 HFS-1, 1 HFI-1, 1 HFA-1, 1 RMXI-2, 1 CFA-2, 1 HSS-, 1 HFP-1,
RAK-72 (Basic dwg MS-3080) |
|
|
| DDR-5V |
|
General Purpose Receiver. 1
HFR-1A, 1 HFS-1, 1 AFC-3, 1 MSA-1, 1 CFA-1, 1 MCG-1, 1 HFP-1, 8 MS-157, 1
HS-115 blank panels. |
|
|
| DDR-5Y |
|
General Purpose Receiver. 2
HFR-2, 1 HFS-1, 2 HFI-1, 2 HFA-1, 1 HFP-1, 2 BSP-4, 2 HPP-1, 2 special
filter panels, dual 29" cabinet. |
|
|
| DDR-6A |
|
|
|
|
| DDR-6B |
|
General Purpose Communications
Receiver, 2 GPR-90RX, 1 VOX-5, 1 CFA, 1 SFP, 1 LSP, 1 RAK-1 |
TB-3003 |
|
| DDR-6C |
|
DDR-6A and 2 MSR |
TB-3003 |
|
| DDR-6D |
 |
General Purpose Communication
Receiver, 2 GPR-90RXD, 2 MSR-4, 1 CFA, 1 VOX-5, 1 LSP-, 1 SFP-2, 1 DCP-1,
1 LPP-3, 1 RAK-12D |
TB-3003 |
|
| DDR-6DN |
 |
General Purpose Communication
Receiver |
|
|
| DDR-6E |
|
General Purpose Communication
Receiver, 2 GPR-90RXD, 2 AFC-1, 2 MSR-6, 1 VOX-3, 1 DCP-1, 1 LSP-7;
AMC-6-5, 1 LPP-4C, QDP-38A, HFD-6 as accessories. |
TB-3003 |
|
| DDR-6F |
 |
General Purpose Receiving
System. 2 GPR-91RXD, 1 VOX-5, 2 SBC-1A, 1 LSP-11, 1 DCP-2, RAK-33A. |
TB-3003 |
|

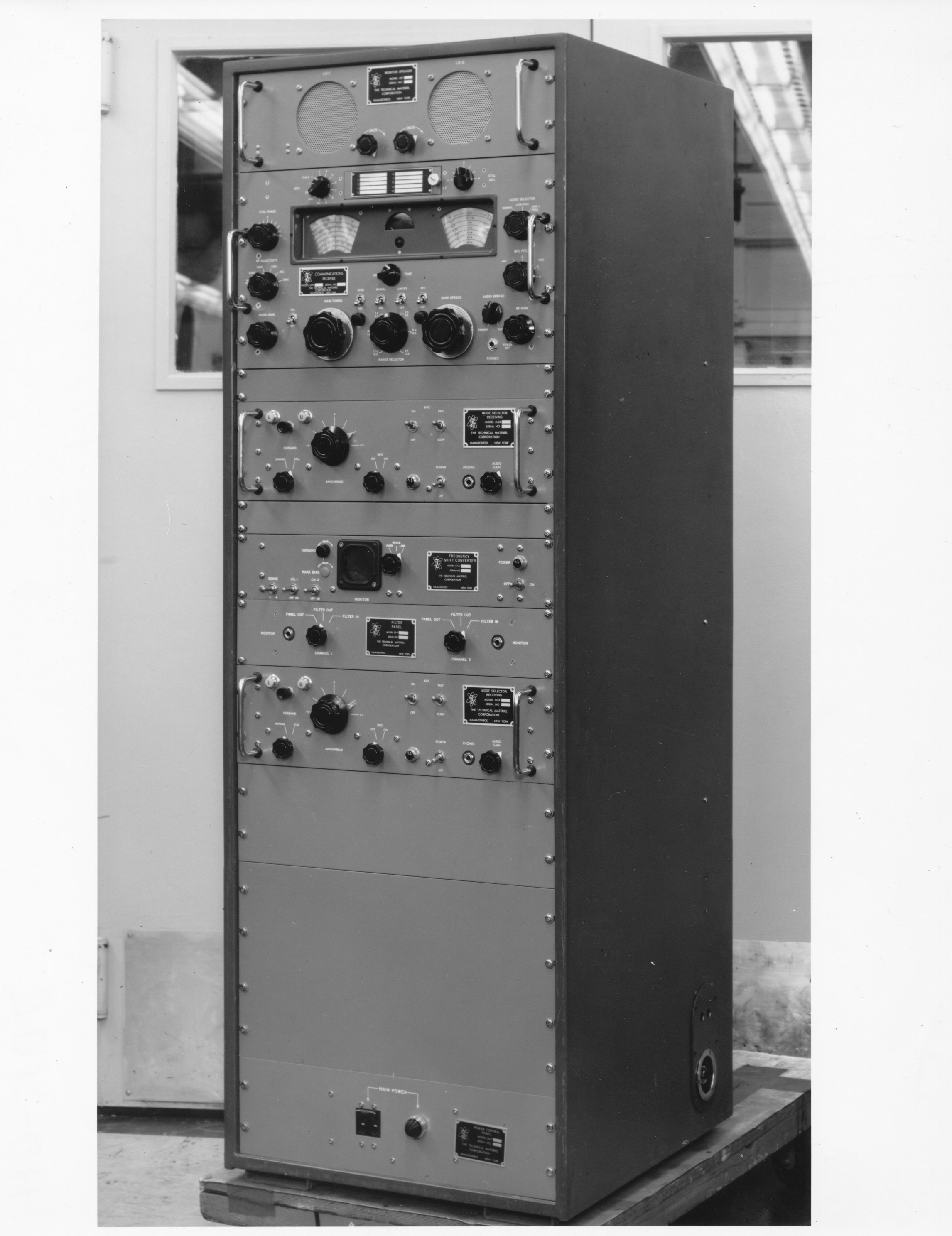

| DDR-6H |
 |
General Purpose Receiving
System. 2 GPR-90RXD, 2 MSR, 1 SFP-2, 1 CFA, 1 DCP-1, RAK-16C (with
slides). |
TB-3003 |
|
| DDR-6J |
|
General Purpose Receiver. 2
GPR-90RXD, 1 VOX-5, 2 SBC-1 |
|
|
| DDR-6K |
|
See QR 12655. 2 SBC-1A, 1
PSP-1, 1 CFA-1, 2 GPR-91RXD, RAK-13, VOX-5, LPP-( ), SFP-2, LSP-( ). |
|
|
| DDR-6L |
|
Dual Diversity Receiver. 2
GPR-90RXD, 4 MSR-4, 1 CFA-1, 1 VOX-5, 1 LPP-4, 1 LSP-15, 1 SFP-2, 1 PSP-1,
1 RAK-12F. |
|
|
| DDR-6M |
 |
Dual Diversity Receiver. 2
GPR-91RXD, 2 SBCI-1A (with CCIR6-KC filters), 1 VOX-5, 1 DCP-2, 1 DVM-3, 1
LSP-11, 1 RAK-12G. |
|
|

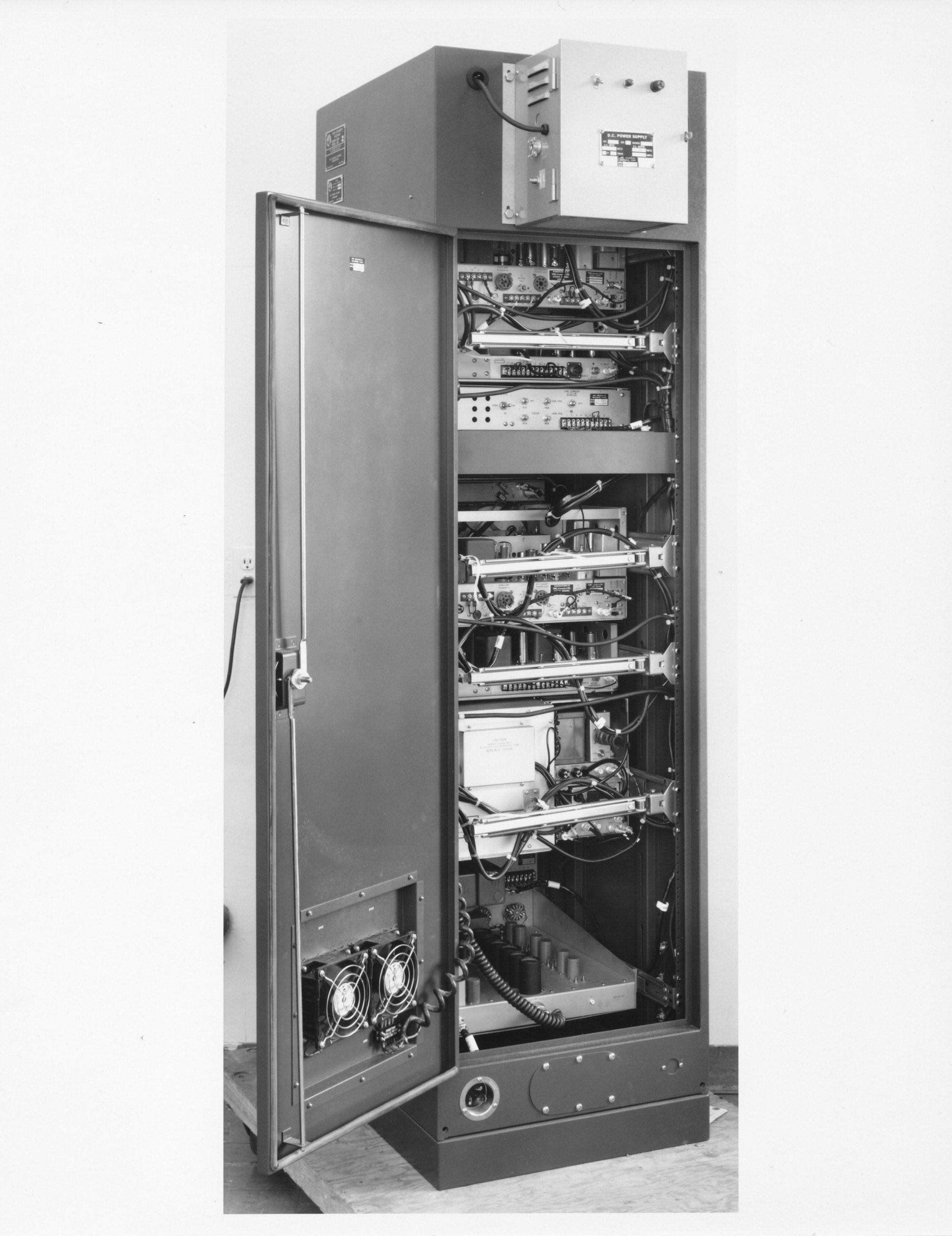

| DDR-6N |
 |
DDR-6D less LSP-7 and LPP-3,
RAK-12H, BSP-2D, DVC-1, and LPP-3-3. |
|
|
| DDR-6DN |
|
DDR-6N (Model # assigned for
sales purposes only 1-31-66). |
|
|
| DDR-6MS |
|
Receiver consisting of: 1
GPR-90RXD, 1 SBCI-9, 1 LSP-4, 1 DCP-2, RAK-12(J). |
|
|
| DDR-7 |
 |
Dual Diversity Receiver. 2
GPR-92, 2 SBC-1A, 1 VOX-5, 1 DVX, 1 LSP-9, 1 DCP-1, RAK-30-A. |
TB-3010 |
|
| DDR-7A |
 |
Dual General Purpose
Receiver. 1 SBC-1, 1 LSP-7, 2 TRX-1, 2 GPR-92, RAK-30A. |
TB-3010 |
|
| DDR-7B |
 |
Dual Diversity Independent
Sideband Receiver. BSP-2, HSP-1, GPR-92, AFC-2, SBA-1-1A, Northern
Radio type 173 Model 2, Northern Radio type 108 Model 2, Northern Radio
PS, DCP, RAK-47B |
TB-3010 |
|
| DDR-7C |
 |
Dual Diversity Independent
Sideband Receiver. BSP-2, HSP-1, GPR-92, AFC-2, SBS-1-1A, TRX-1, DCP,
RAK-47C. |
TB-3010 |
|
| DDR-7D |
|
GPR-91, SBC-1A (less 2IF strips),
LSP-7, DCP-2, LPP-4, RAK-11. |
|
|
| DDR-7E |
|
Export |
|
|
| DDR-7F (7/66) |
|
General Purpose Receiver. 1
GPR-90RXD, 1 SBCI-1A, 1 LSP-6, 1 RAK-30B, 1 CFA-1, 1 DCP-1, 1 WA-623/RC-77
(gaalt), SBS-1A (CCIR filters - 250-3Kc). MS-157-3, CFA-1. No
slides units made on angle brackets. |
|
|
| DDR-7G (2/64) |
|
General Purpose Receiver. 1
GPR-91RXD, 1 TRX-1, 1 AFC-2A, 1 SBSI-1, 1 RMXI-2 |
|
|
| DDR-7H (10/64) |
|
General Purpose Receiver. 1
GPR-90RXD, MSR-4, LSP-4, RAK-4. |
|
|
| DDR-7J |
 |
General Purpose Receiver.
GPR-90RXD, CFA-1, MSR-4, LPP-3-2, LSP-4, 3 blank panels. |
|
|
| DDR-7K |
 |
General Purpose Receiver. 1
HFD-1, 1 GPR-90RXD, 1 SBS-1/2, 1 AFC-2, 2 FFR-3, 1 DCP-1, 2 blank panels,
RAK-30C |
|
|
| DDR-7L (5/19/66) |
 |
General Purpose Receiver. 1
GPR-90RXD, 1 MSR-4, 1 LSP-4, Export I-05956 |
|
|
| DDR-7M (5/27/66) |
|
Radio Receiving System. 2
DDR-7( ). Single path continuously tunable 0.54 to 31.5 Mc receiver
for ISB, SSB, DSB, AM, AME operation. Consists of: 1
GPR-91RXD, 1 SBC-9, 1 LSP-6, 1 DCP-2. Single path continuously
tunable 0.54-31.5Mc receiver for FSK, (F1) duplex (F6) CW (AL)
operation. Consists of 1 GPR-91RXD, 1 Northern Radio Model 178-1
twinplex converter, 1 PSP-2 w/ polar interface relay, 2 sets slides. |
|
|
| DDR-7O |
|
not assigned |
|
|
| DDR-7P |
|
Radio Receiver. GPR-91RXD,
SBS-9 (less 2 IF's), LSP-7, Rack. |
|
|
| DDR-7Q |
|
not assigned |
|
|
| DDR-7R/-7S (8/22/67) |
|
TOP VIP |
|
|
| DDR-7T |
 |
unreadable |
|
|
| DDR-7W |
|
|
|
|
| DDR-7Z |
 |
Unknown, but looks a hell of a
lot like the DDR-72 |
|
|

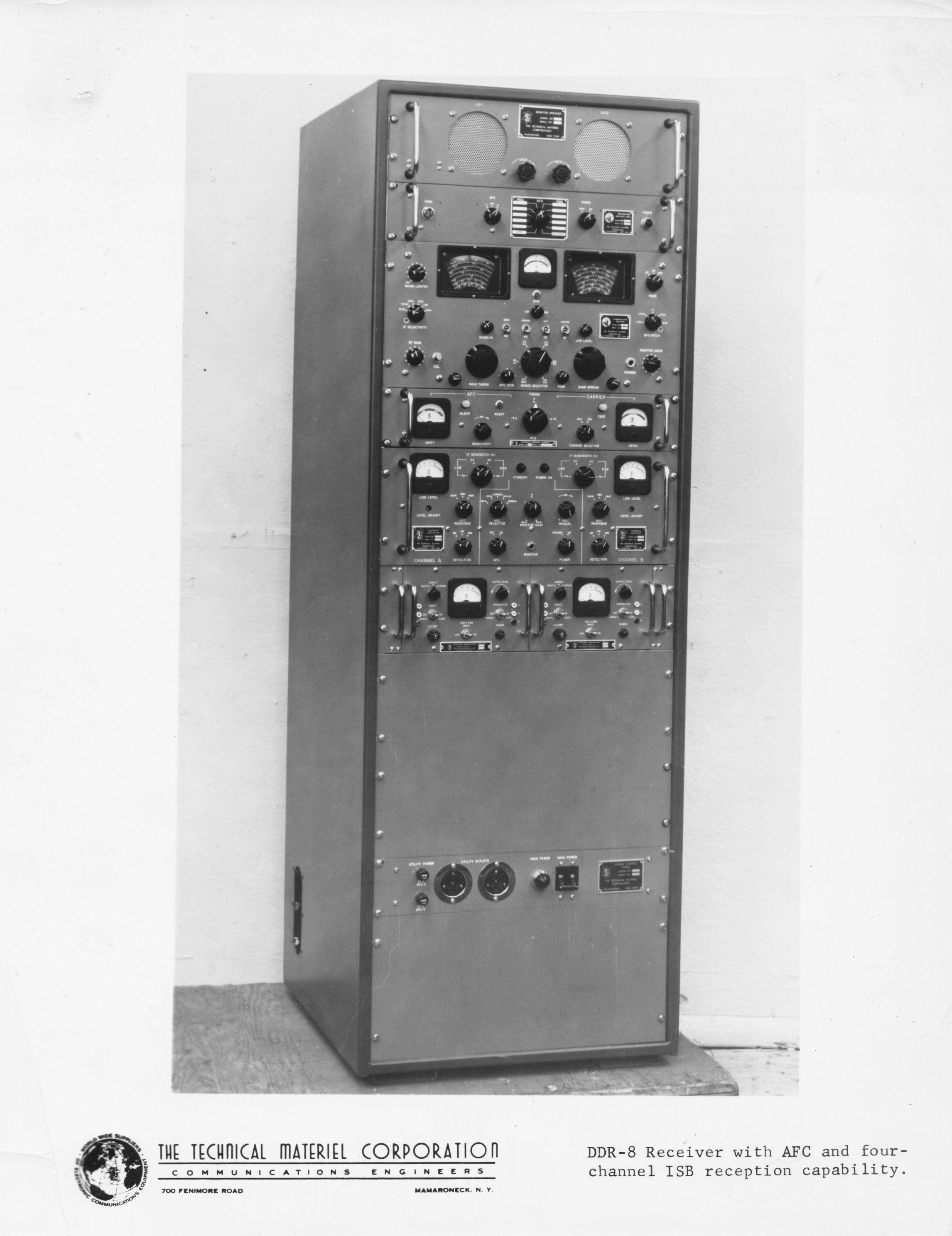

| DDR-8 |
 |
S.O. 618652 |
|
|
| DDR-8A |
|
General Purpose
Receiver. 2 GPR-92, 2 SBC-1A, 1 LSP-7, 2 TRX-1, 1 Control Panel,
RAK-31A |
TB-3007 |
|
| DDR-8AS1 |
|
General Purpose Receiver.
Replaced by DDR-7A |
|
|

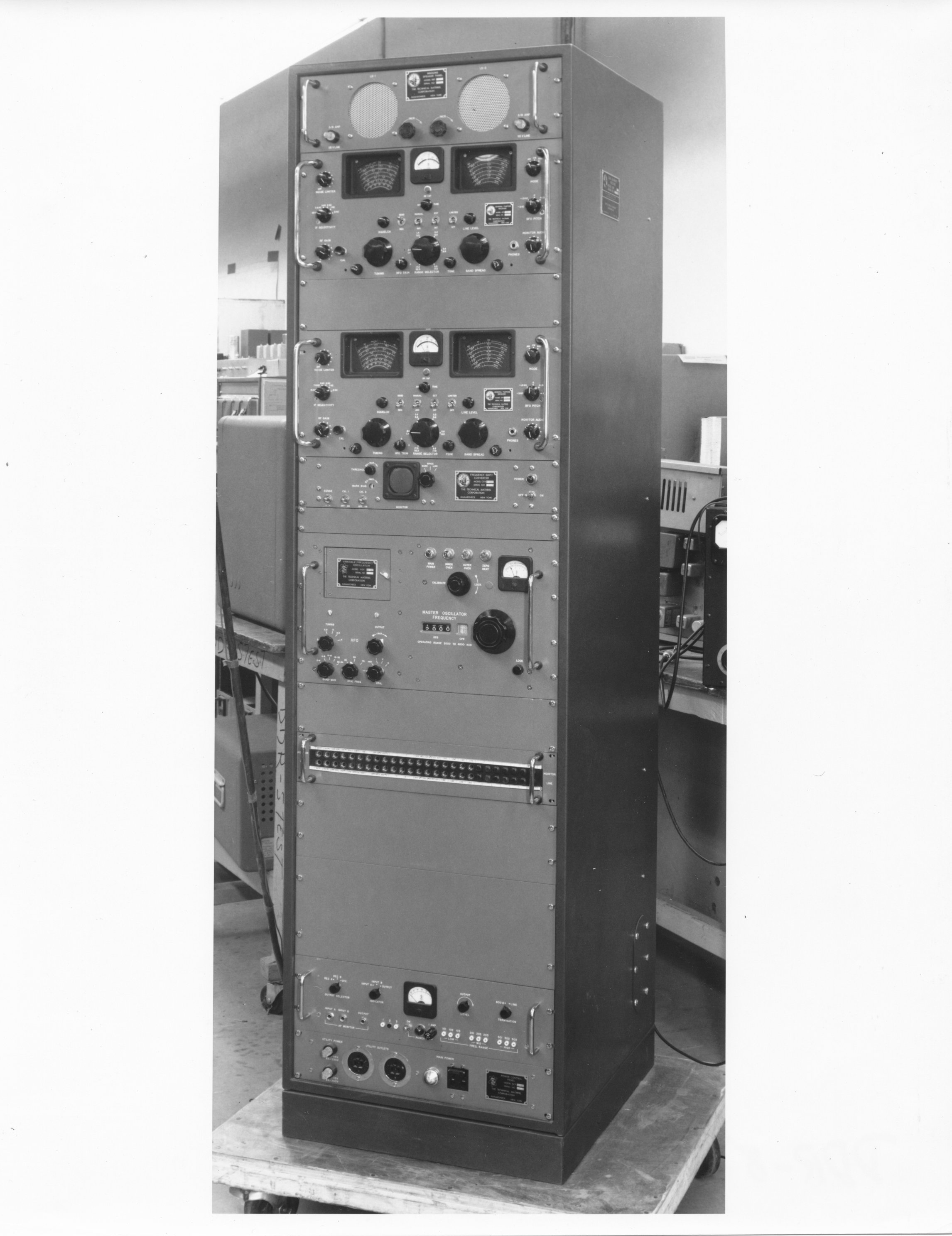

| DDR-8-3023 |
 |
General Purpose Receiver |
|
|
| DDR-8-3213 |
 |
General Purpose Receiver. 2
GPR-92, 1 VOX, 1 DVC-1, 2 SBC-1A, 1 LSP-9, RAK- |
|
|
| DDR-9 |
 |
Diversity Reciver |
|
|
| DDR-9A |
Diversity Receiver. 2
RMX-2, 2 R-390A, 2 SBC-1, 1 RAK-29A, 1 BSP-2, 1 SDP-1, 1 DCP-2 |
|
AN/FRR-66 |
|
|
Two Digits, Second Family, i.e.,
use of 4 AGC systems using HFR, HFS, MSA, etc., in dual or single rack |
|
|
| DDR-50 |
 |
Continuous Tuned Diversity
Receiver with 2 HFR-1, 1 HFS-1, 1 HSP-2, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2
HFP-1, 1 HSS-2, 1 HPP-2, RAK-100 |
|
|
| DDR-51 |
 |
Continuous Tuned Diversity
Receiver with 2 HFR-1, 1 HFS-1, 1 HSP-2, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2
HFP-1, 1 HSS-2, 1 HPP-2, RAK-101 |
|
|
| DDR-52 |
|
Continuous Tuned Receiver with
4-channel Independent AGC. HFR, HFS, AFC, MCG, HSP-2, MPS-1, HFP-1,
2 Loudspeakers HSS and HPP, RAK-53 |
|
|
| DDR-53 |
|
DDR-52's in dual rack-diversity |
|
|
| DDR-54 |
|
Continuous Tuned Diversity
Receiver with 4-Channel Independent AGC. Dual HFR, Dual
Cabinet. 2 HFS-1, 2 MSA-1, 2 AFC, 2 HSP, 2 MCG, 2 HFP, 2 BSP-2 |
|
|
| DDR-55 |
|
Continuous Tuned Diversity
Receiver with 4-Channel Independent AGC. 2 HFR-2, 1 HFS-1, 2 AFC-3,
1 HSS-4, 2 MSA-1, 2 MCG-1, 1 HFP-1, 1 MHPA-1, RAK-103. |
|
|
|
|
Three Digits grouping for those
receivers HFF, with four channel AGC and special systems. Three
digit series uses RAK-21/22. |
|
|
| DDR-72 |
 |
Receiver Package. Has 4
STR's , speaker panel. Otherwise unknnown. |
|
|
| DDR-501 |
 |
Fixed tuned General Receiver with
four-channel AGC. HFF, HFS, MSA, AFC, MCG, MPS, HSP, HSS-2, RAK-21 |
|
|
| DDR-502 |
|
Fixed Tuned General Purpose
Receiver with four-channel AGC. 2 HFF, 2 HFS, 2 MSG, 2 AFC, 2 MCG, 2 MPS,
2 HSP, 2 HSS, 1 HPP, RAK-52 |
|
|
| DDR-503 |
|
Same as DDR-5, HFF instead of HFR |
|
|
| DDR-504 |
|
HFRR, HFSR, HSS, HFIR, HFAR, HAFR,
HFP, CFA-1, PSP-1, RAK-102, with room for RTMU & RTTD later. |
|
|
| DDR-505 |
|
HFR-1A, HFS-1A, AFC-3, HNF-1,
RMX-2, BSP-2X (a BSP-2 with two 4 channel selector switches), HFI-1,
HFA-1, HAF-1, HFP-1, HPP-1, RAK-75( ) w/ model 539 drawer |
|
|
| DDR-506 |
 |
LRCC-1, HFRR-3, HFSR-1, MSAA-1,
FACA-1, MCGA-1, HFP-1, LRCB-1 |
|
|
| DDR-550 |
|
For special configuration |
|
|

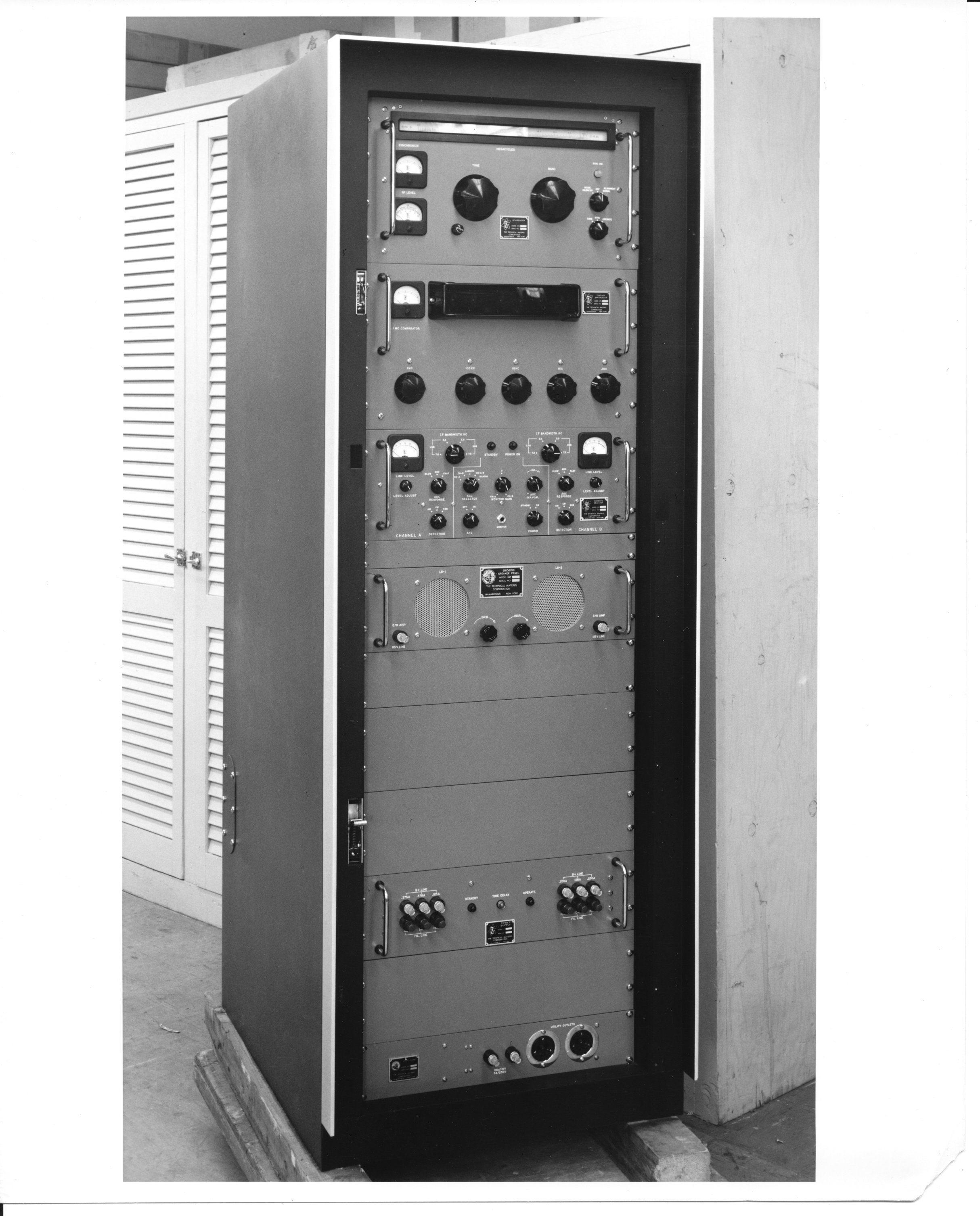

| DDR-551 |
 |
Continuous Tuned General Purpose
Receiver. HFR, HFS, SBS, HSS, HFP, HPP, RAK-51 |
|
|
| DDR-551A |
|
Updated DDR-551 w/ AFC (Top VIP)
R.A. Tucker 2/20/68 |
|
|
| DDR-552 |
|
Note: This is now the
DDRR-5B. Continuous Tuned General Purpose Receiver. HFRR-2,
HFSR-1, AFC-3, HFIR, HNF, HFAR, HFP, HAF, RTPP, RTMU-1, RTTK-1 |
|
|
| DDRR-5B |
 |
Remote Control Receiver.
Replaced DDR-552. RTTD-1, HFRR-2, HFSR-1, AFC-3, HSS-3, HFIR-1,
HNF-1, HFAR-1, HAF-1, HFP-1, RTMU-1. |
|
|
| DDRR-5C |
|
Remote Control Receiver.
Two DDRR-5B receivers used together in the DDRR-5C/MSGC-1/ARCA-1 system. |
|
|
| DDRR-5K |
|
Remote Control Receiver.
HFRR-2, HFSR-1, AFC-3, MSA-1, MCG-1, RTTD-1, HFP-1, RTMU-1, 1 speaker,
RAK-54 - Basic RAK-21 |
|
|
| DDRR-5L |
|
Remote Control Receiver. 2
HFRR-2, 1 HFSR-1, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2 HFP-1, 1 RTMU-1, 1 RTTD-1,
1 speaker, RSTA-1, RAK-55 (Basic RAK-22) |
|
|
| DDRR-5M |
|
Remote Control Receiver. 2
HFRR-2, 2 HFSR-1, 2 AFC-3, 2 MSA-1, 2 MCG-1, 2 RTTD-1, 2 HFP-1, 2
speakers, 2 AFC-1, 2 RTMU-2, 1 BSP-6B, RAK-56 (Basic RAK-22) |
|
|
| DDRR-5N |
|
Remote Control Receiver. 2
HFRR-2, 1 HFSR-1, 2 MSA-1, 4 DVC-1, 1 MCG-1, 1 HSP-2, 2 BSP-2, 2 HFP-1, 1
RTMU-1, 1 RTTD-1, RAK-57 ( Basic RAK-22) |
|
|
| DDRR-5O |
|
Unassigned, due to confusion with
DDR-50 |
|
|
| DDRR-5P |
|
Remote Control Receiver. 2
HFRR-2, 2 HFSR-1, 2AFC-3, 2 MSA-1, 2 MCG-1, 2 HFP-1, 1 RTMU-1, 1 RTDD-1, 1
speaker, RAK-58 (Basic RAK-22) |
|
|
| DDRR-5Q |
|
Remote Control Receiver.
HFRR-2, HFSR-1, HSSR-5, MSA-1, RTTD-1, HFP-1, RTMU-1, RAK-59 (Basic
RAK-21) |
|
|
| DDRR-5R |
|
Remote Control Receiver.
HFRR-2, HFSR-1, MSA-1, HSS-4, CFA-1, RTTD-1, MCGR-1, HFP-1, RTMU-1 |
|
|
| DDRR-5S |
|
Remote Control Receiver.
HFRR-2, HFSR-1, SBS, RMXI-2, CFA, HSS-4, HFP, RTTD-1, RTMU-1, RAK-61 |
|
|
| DDRR-5T |
|
Remote Control Receiver. HFRR-2,
HFSR-1, HFI-1, HFA-1, RMXI-2, HFP-1, RTTD-1, RTMU-1, RAK-62 |
|
|
| DDRR-5U/-5V |
|
|
|
|
| DDRR-5W |
|
General Purpose Receiver.
RTTD-3, HFRR-( ), HFSR-1, AFC-3, HFIR-2, HFA-1, HFP-1, RTMU-3, HPP-1 |
|
|
| DDRR-11K (3/7/67) |
|
407L--consists of HFRR-5 and
MSHR-5 |
|
|
| DDU |
|
Remote Controlled Diversity
Receiving System |
|
|
| DLA |
|
Diplex Limiting Amplifier |
|
|
| DNA |
|
Noise Generator |
SSB-225 |
|
| DNC |
|
Noise Generator |
|
|

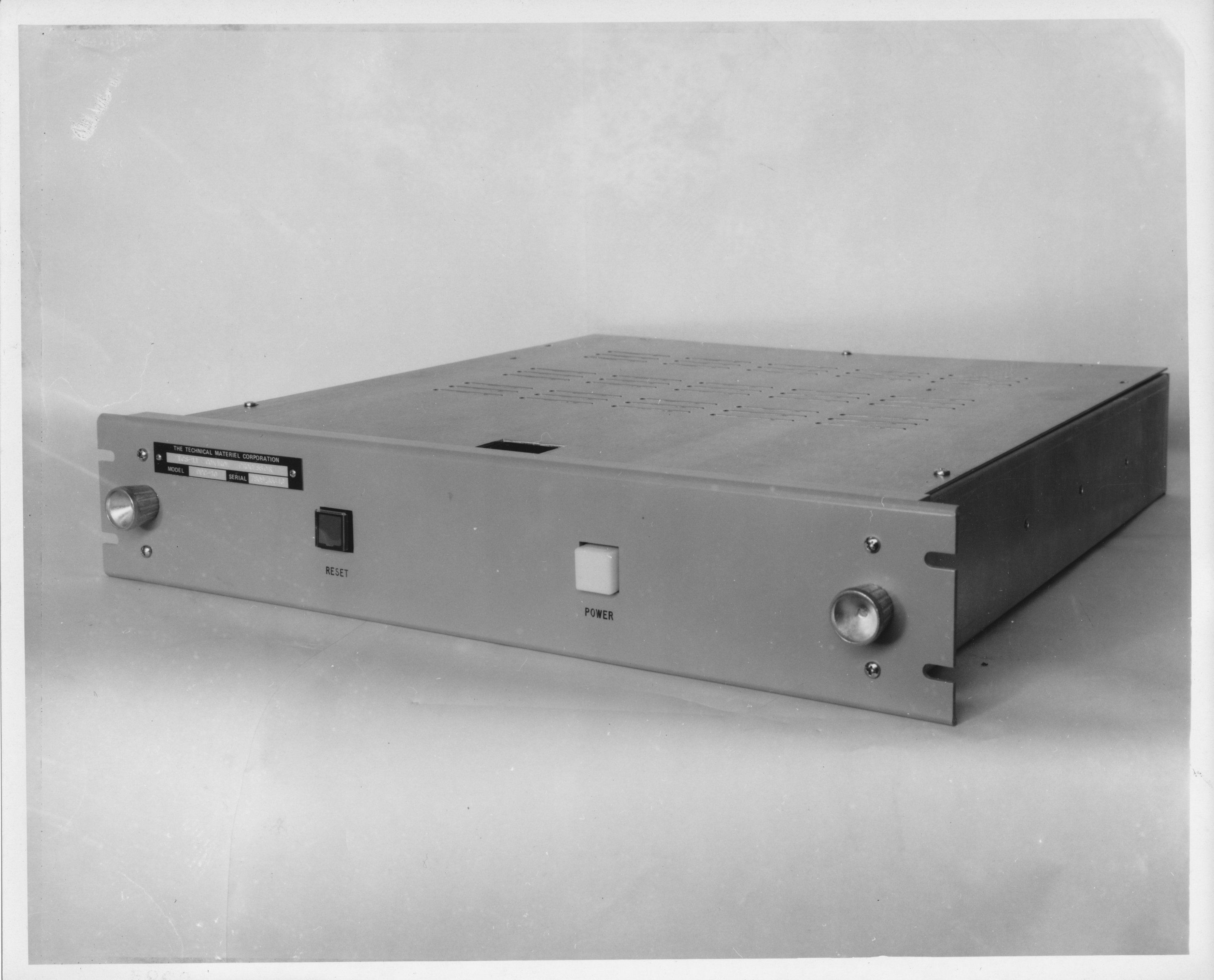

| DPC-10 |
 |
Unknown |
|
|
| DRM-1 |
|
Basic RAK-21 modified to contain
the following components: 2 HFR, 2 MSA-1, 1 HFS, 1 MCG-1, 1 HFP-1 |
|
|

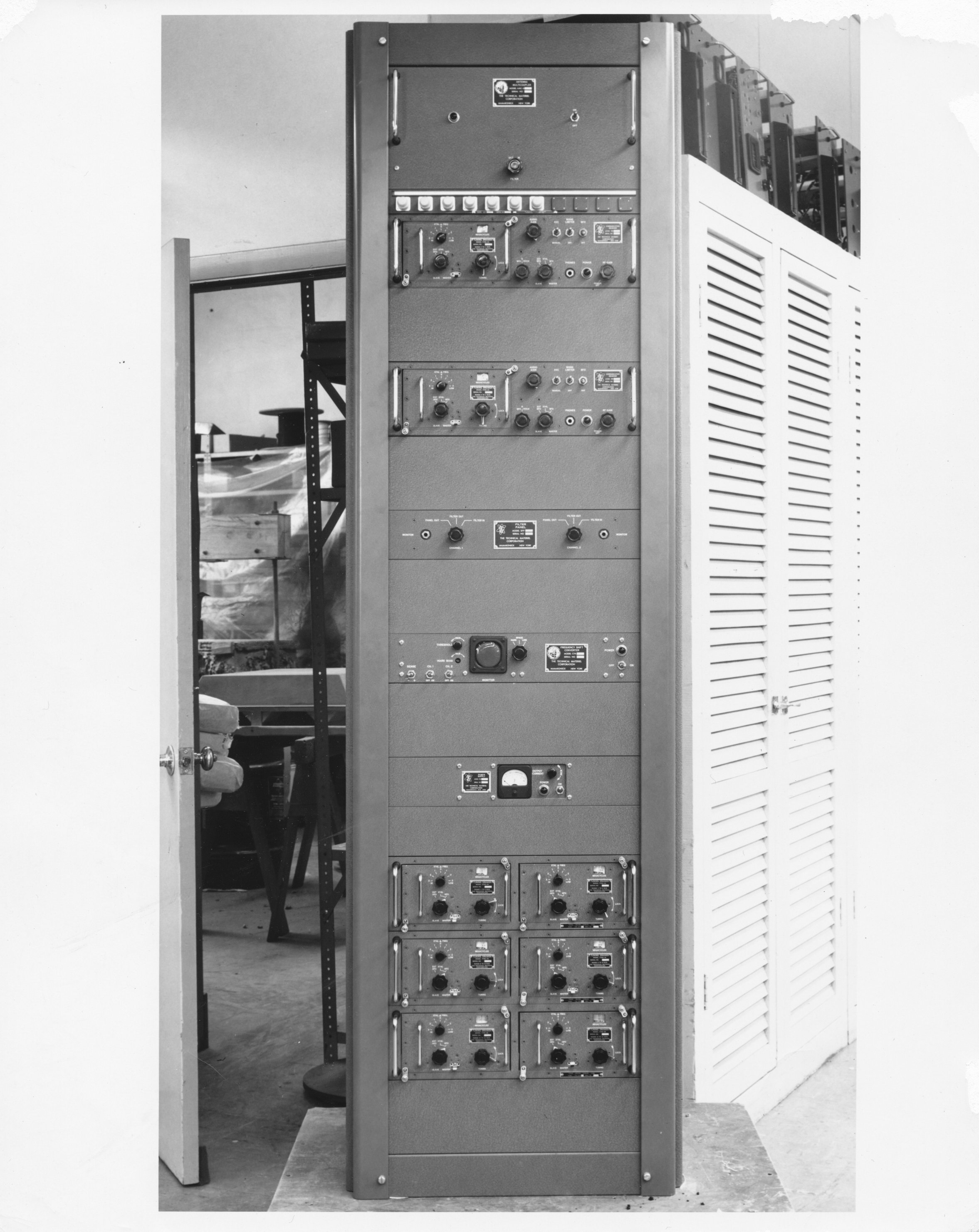

| DRP-1 |
 |
Diversity Receiving Package, 2
FFR, CFA, PSP-1, SFP-2, 3 FFR-DP |
TB-3002 |
|
| DRP-1A |
|
Diversity Receiving Package |
TB-3002 |
|
| DRP-1F |
|
Diversity Receiving Package, same
as DRP-1A, except lacks SFP but includes an additional DPH storage drawer |
|
|
| DRP-1G |
|
Diversity Receiving
Package. 1 DPH w/ 2 FFRD-6, 1 DPH w/ 2 FFRD-7, 2 FFR-3 w/
FFRD-5, 1 LSP-6, 1 SFD-2, 1 CFA-1, 1 PSP-1, 1 RAK-12E |
|
|
| DRP-2 |
|
Diversity Receiving
Package. 2 FFR w/ FFRD-8, 1 AMC-6-3, 1 QDP7A1X7, 1 CFA-1, 1 SFP-2, 1
PSP-1, 3 FFR-DPH, 2 FFRD-5, 2 FFRD-6, 2 FFRD-7, 1 RAK-1 |
TB-3002 |
|
| DRP-6G |
|
Diversity Receiving
Package. 1 LSP-6, 2 FFR-3, 1 SFP-2, 1 CFA-1, 1 PSP-1, 2 DPH.
RAK-13 wire for this configuration, blank panels |
|
|

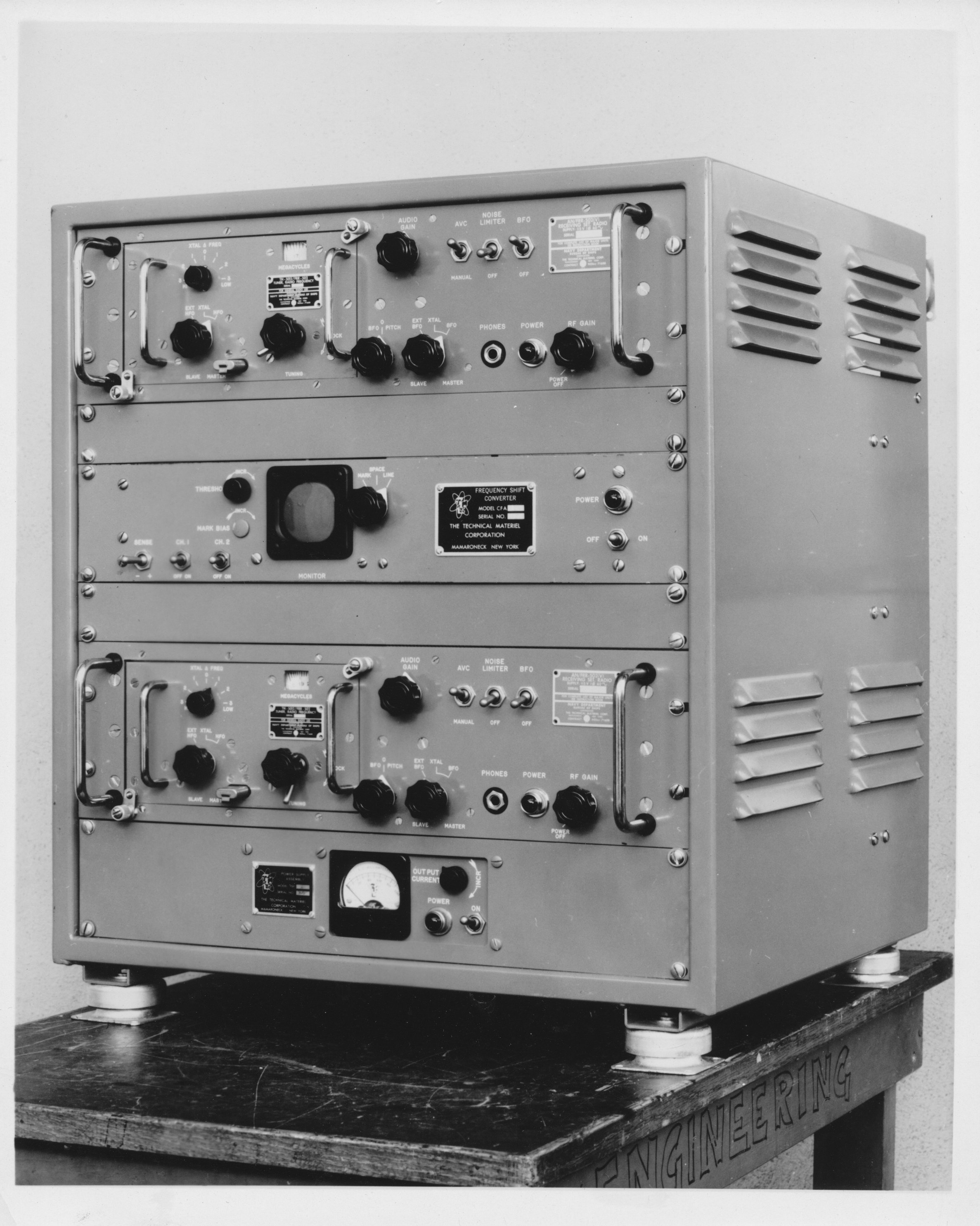

| DRP-Special |
 |
Diversity Receiver Package.
(2) FFR's, CFA, PSP-1 |
|
|
| DTS |
|
Diplex Telegraph System |
SSB-144 |
|

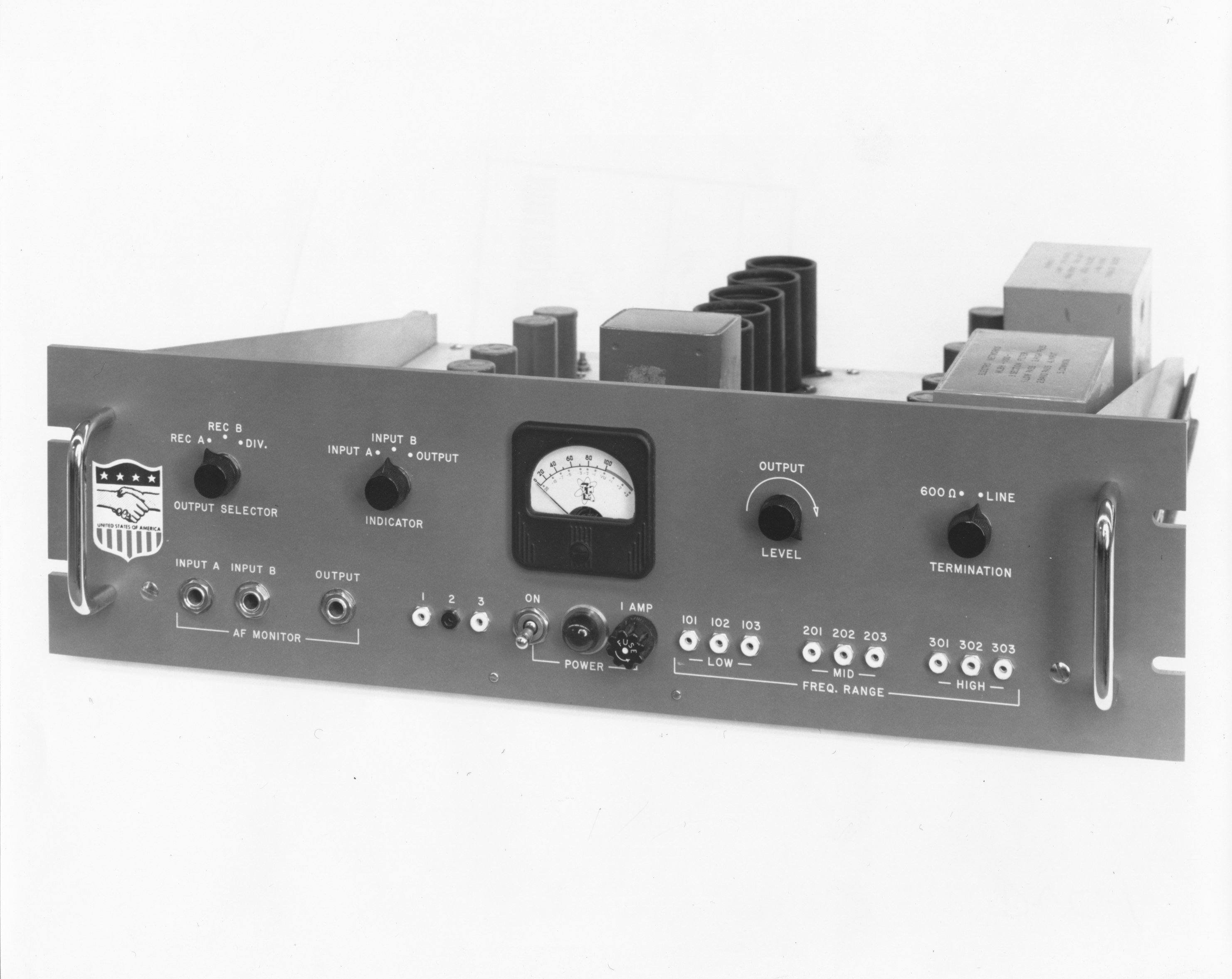

| DVC |
 |
Diversity Voice Combiner |
TB-4011 |
|
| DVM-1/-2/-3/-4 |
|
Diversity Visual Monitor |
TB-4007 |
|
|
E |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| ECPA-1 |
|

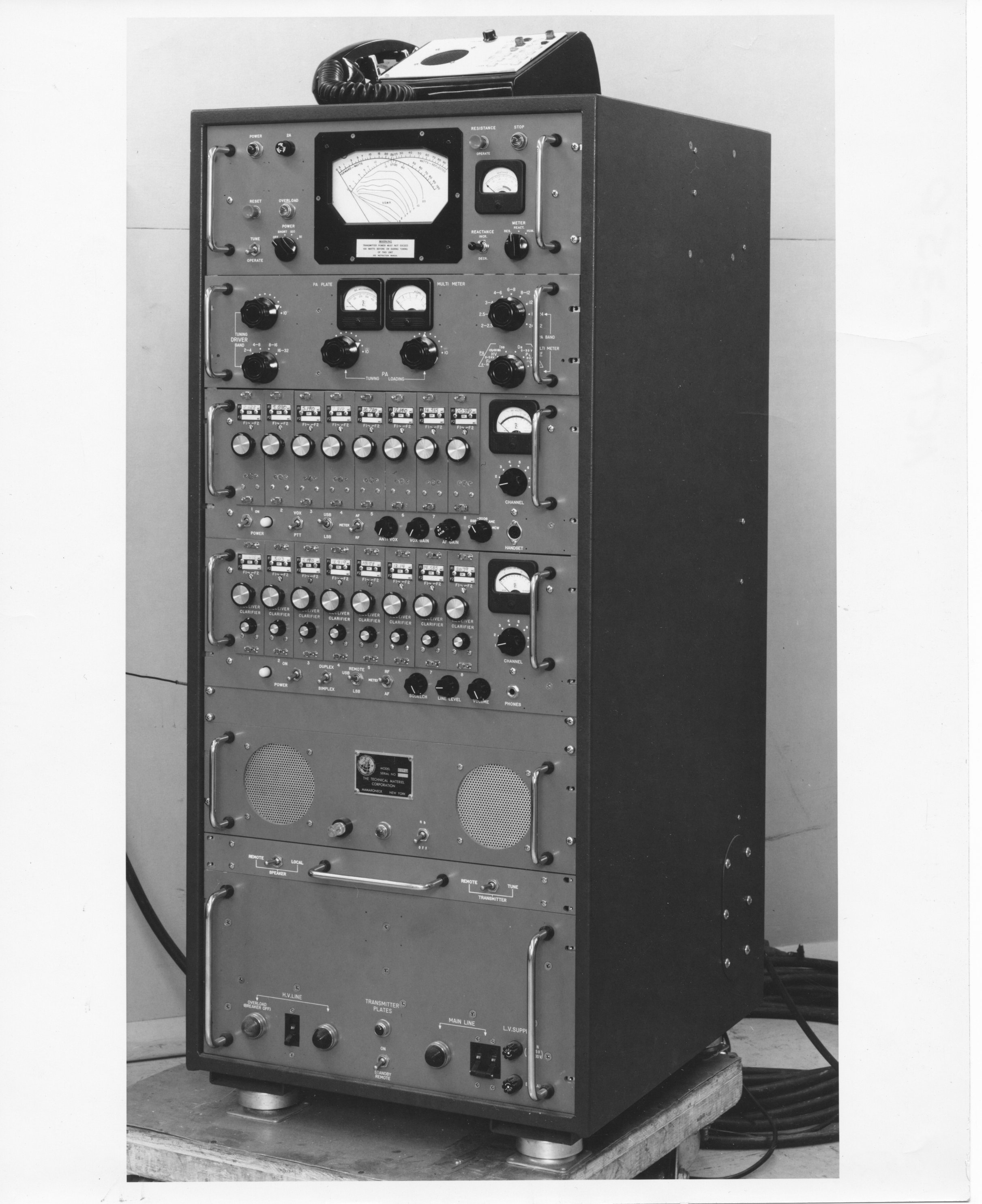

Equipment Connector Panel for
MCTR-350 |
|
|
| ECC |
|
Exalted Carrier Adapters |
SSB-143 |
|

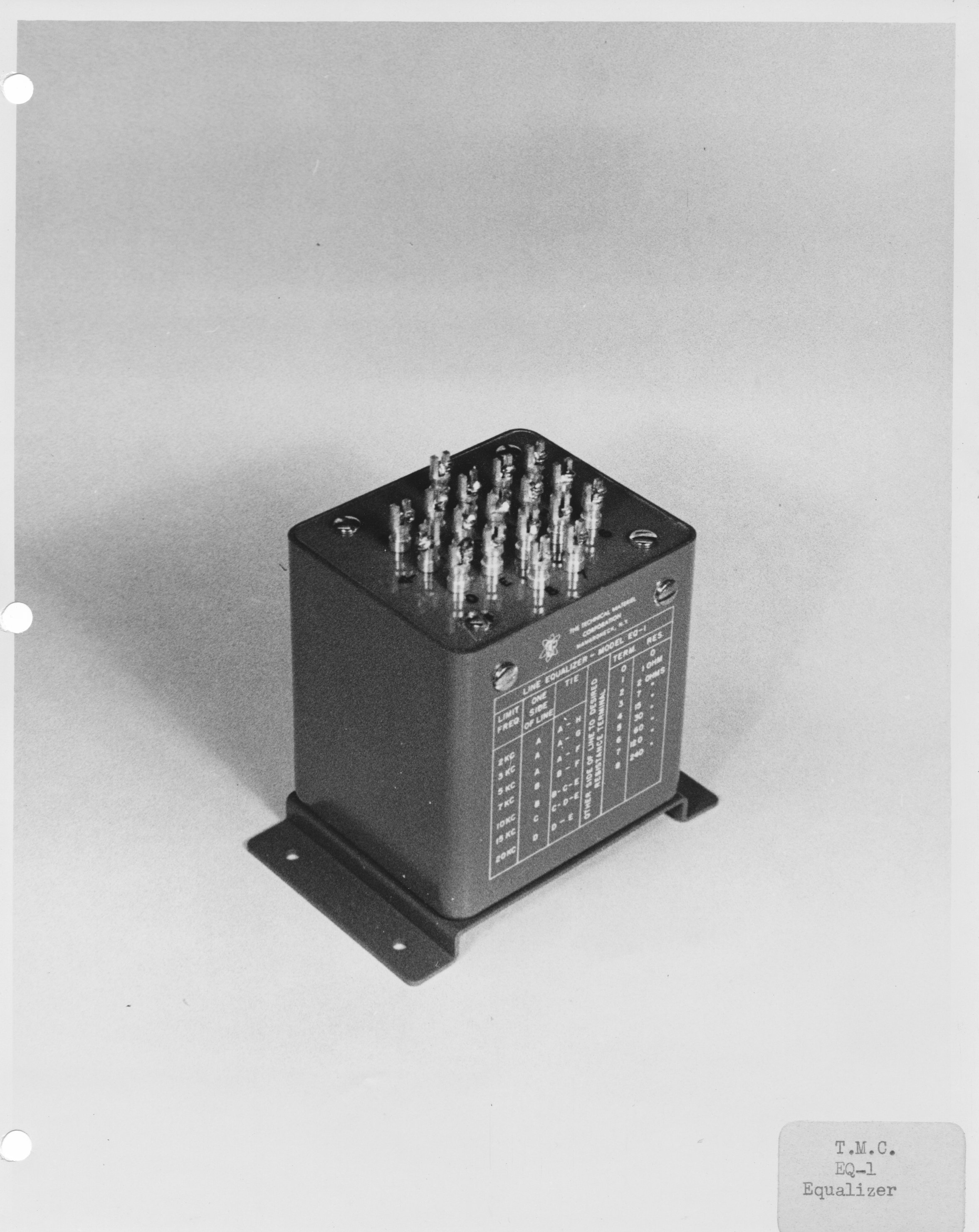

| EQ-1 |
 |
Semi-Fixed Equalizer |
SSB-129 |
|
| ES-85/U |
|
End Seal Assembly |
TB-7003 |
|
|
F |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| FCSA-1 |
|
Frequency Channel Selector (10
channel) 10 individual channel modules |
|
|
| FFR |
 |
Communication Receiver Control
Group |
TB-3004 |
AN/FRR-502 (basic)
AN/FRR-49(V) (Variations) |
| FFR-2/-3 |
|
Communication Receiver |
TB-3004 |
|
| FFR-3L |
|
Low Frequency Communication
Receiver |
TB-3004 |
|
| FFR-3S |
|
Communication Receiver with
Squelch |
TB-3004 |
|
| FFR-3SR |
|
Communication Receiver with
squelch relay to provide for meeting of audio and remote indication of
squelch operation by means of dry contacts |
|
|
| FFR-4/-5 |
|
Communication Receiver |
|
|
| FFR-DP |
|
Tuning Drawer Storage Panel |
TB-3004 |
CY-5045/FRR-502 |
| FFR-DPH |
 |
Tuning Drawer Storage Panel with
Filament warmup |
TB-3004 |
CY-5045A/FRR-502 |
| FFR-L |
|
Low Frequency Receiver |
SSB-166 |
|
| FFRD-1 |
|
Tuning Drawer, RF, 50-100 Kc |
TB-3004 |
TN-274/FRR-502 |
| FFRD-1A |
|
Tuning Drawer, RF, 50-100 Kc |
|
|
| FFRD-2 |
|
Tuning Drawer, RF, 100-200 Kc |
TB-3004 |
TN-275/FRR-502 |
| FFRD-3 |
|
Tuning Drawer, RF, 200-400 Kc |
TB-3004 |
TN-276/FRR-502 |
| FFRD-3M |
|
Tuning Drawer, RF, 500 Kc +/- 10
Kc |
TB-3004 |
TN-277/FRR-502 |

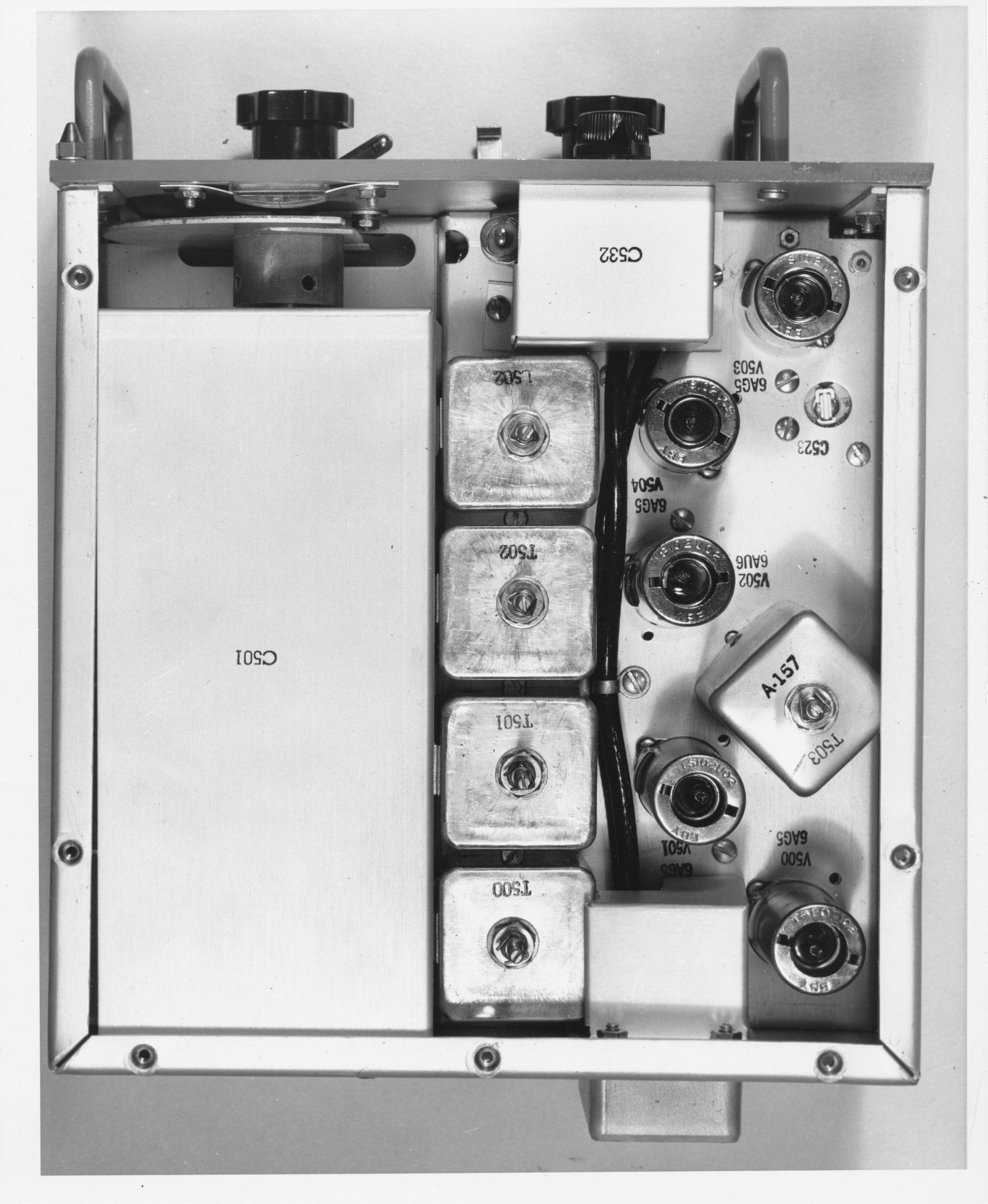

| FFRD-5 |
 |
Tuning Drawer, RF, 2-4 Mc |
TB-3004 |
TN-5010/FRR-502 |
| FFRD-6A |
|
Tuning Drawer, RF, 4-8 Mc |
TB-3004 |
TN-5011/FRR-502 |
| FFRD-7B |
|
Tuning Drawer, RF, 8-16 Mc |
TB-3004 |
TN-5012A/FRR-502 |
| FFRD-8B |
 |
Tuning Drawer, RF, 16-32 Mc |
TB-3004 |
TN-5014A/FRR-502 |
| FFT |
|
Fixed Frequency Transmitter |
SSB-130 |
|
| FFTM |
|
Fixed Frequency Transmitter
Modulator |
SSB-131 |
|
| FMP |
|
Frequency Measuring Panel, p/o
FMS |
SSB-159 |
|
| FMS |
|
Frequency Measuring System |
SSB-159 |
|
| FMS-2 |
|
|
|
|

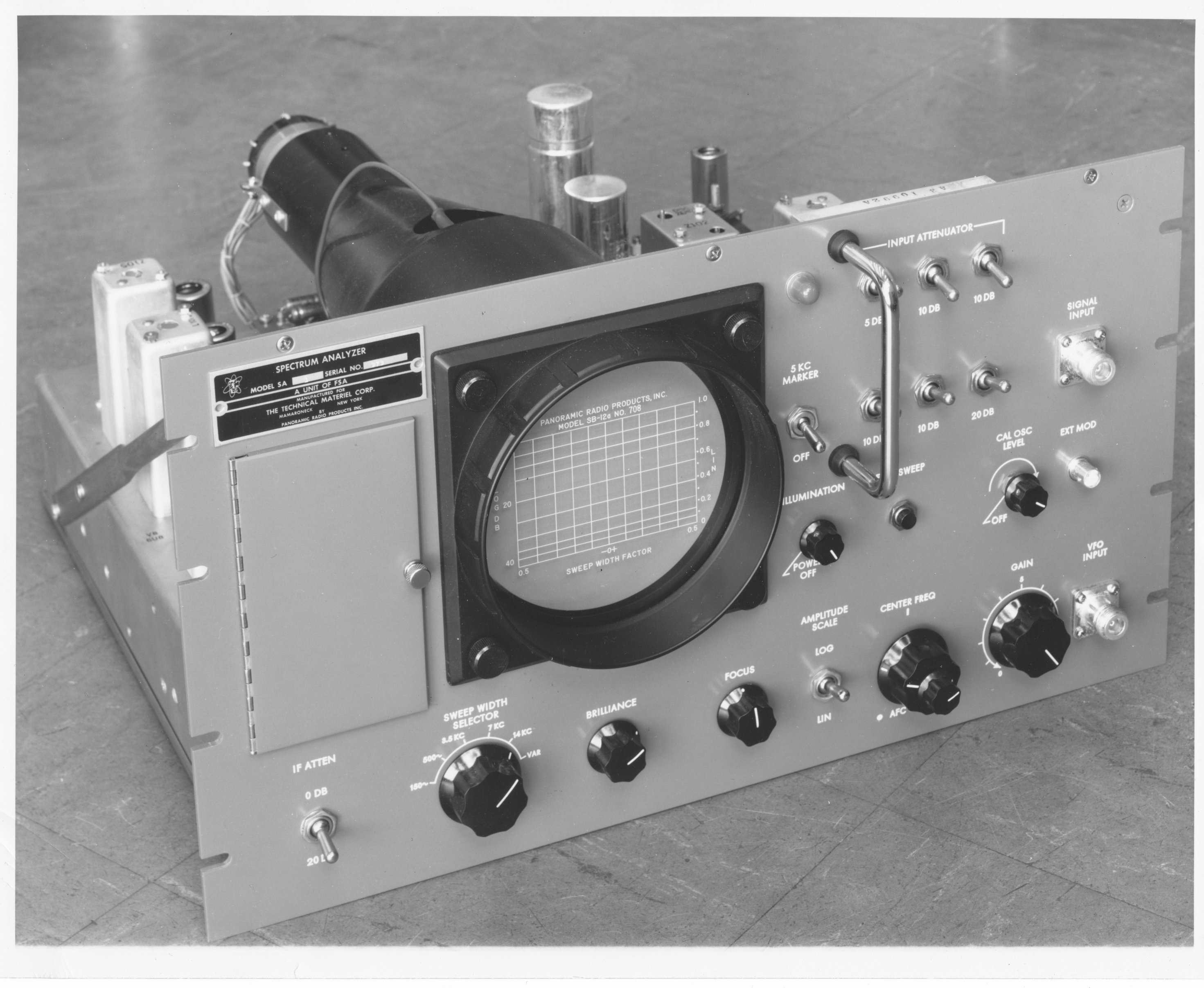

| FSA-2 |
 |
Spectrum Analyzer |
TB-6001 |
AN/URM-116A |
| FSA-3 |
 |
Spectrum Analyzer AP-123 power
supply, AX-503 spectrum analyzer |
|
|
| FSA-4 |
|
Spectrum Analyzer, Singer Metrics
SB-12BS |
|
|
| FSM |
|
Frequency Shift Monitor |
SSB-140 |
|
| FSS |
|
Frequency Shift Simulator |
SSB-171 |
|
| FXS |
|
Frequency Shift Exciter System |
TB-2027 |
AN/URA-33 |
|
G |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| GPC |
|
General Purpose Calibrator, 100
Kc oscillator |
SSB-192 |
|
| GPE-1 |
 |
General Purpose Exciter |
TB-2023 |
|
| GPE-1A |
General Purpose Exciter |
TB-2023 |
|

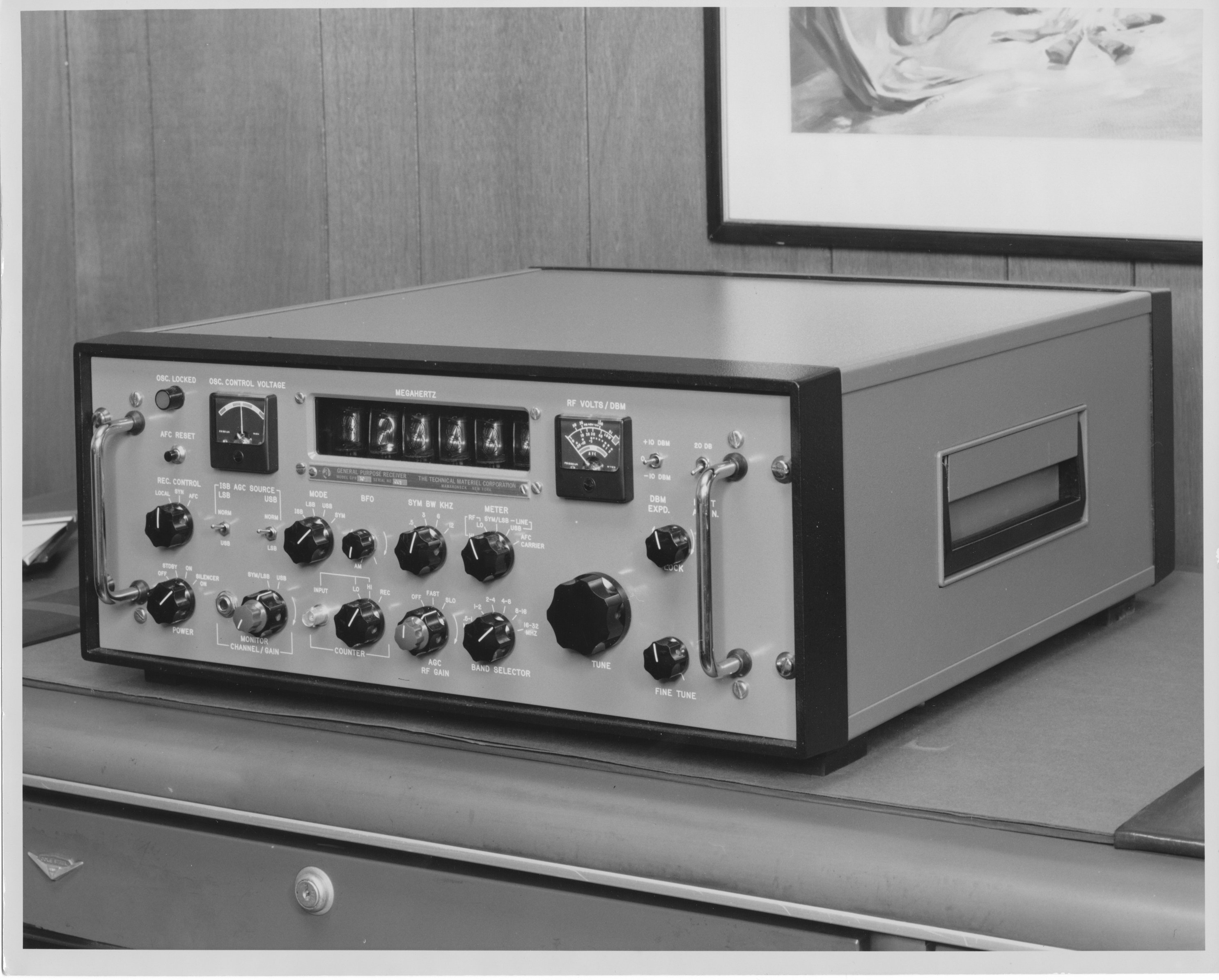

| GPR-10
Photo Gallery
|
 |
General Purpose Receiver (HFR-4 +
MSR-10) |
|
|
|
|
GPR-90 R X D S code:
- R = Rack mount
- X = Crystal controlled LO
- D = Diversity
- S = Single Sideband (product detector)
|
|
|
| GPR-90 |
 |
Communication Receiver |
SSB-179 |
|
| GPR-90R |
 |
Communication Receiver (basic) |
|
R-825/URR |

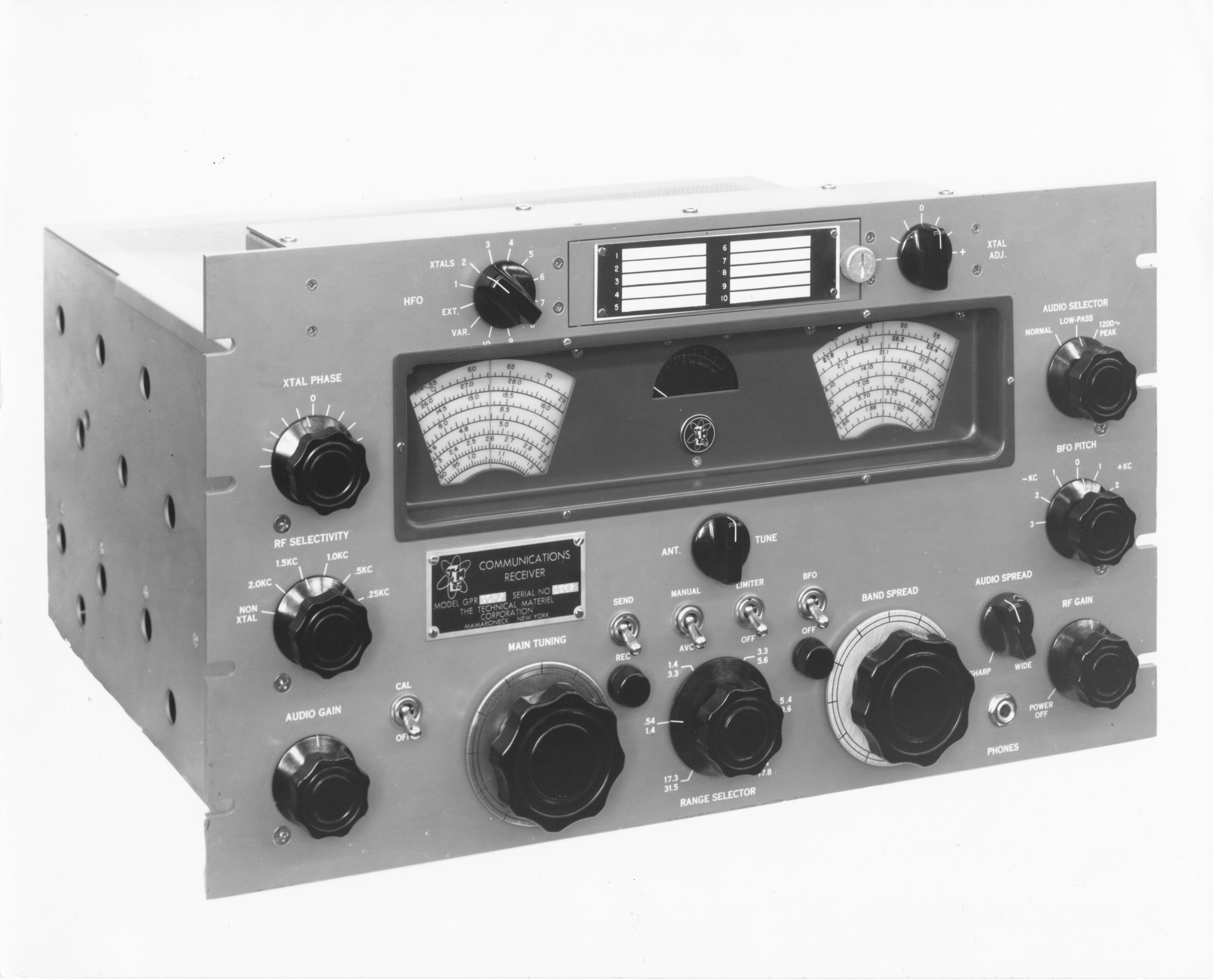

| GPR-90RX |
 |
Communication Receiver (xtal) |
TB-3005 |
R-840/URR |
| GPR-90RXD |
|
Communication Receiver
(diversity) |
TB-3005 |
|
| GPR-90RXDS (10/17/66) |
|
"S" added for sideband
(product detector) |
TB-3005 |
|
| GPR-91RXD |
|
Communication Receiver, 15 Kc
bandpass |
TB-3009 |
|
| GPR-91RXDS |
|
Derived from GPR-90RXDS, 15Kc
bandpass |
|
|
| GPR-92 |
 |
General Purpose Receiver |
TB-3006 |
|
| GPR-92A (12/7/65) |
 |
GPR-92 modified per kit 279 to
overcome deficiencies reported from the field |
|
|
| GPR-92C |
|
General Purpose Receiver:
basic GPR-92 with addtion of CAB-11 |
|
|
| GPR-92LA |
|
GPR-02 modified per S-1190 |
|
|
| GPR-92S |
|
General Purpose Receiver.
Basic GPR-92 with addtion of slide mounts |
|
|
| GPR-93 |
|
New Receiver (E-2300-001) |
|
|
| GPR-110 (6/5/71) |
 |
General Purpose Receiver.
400KHz to 30MHz usable to 100KHz. 12 VDC or 110/220 VAC. VFO
phase lock controlled and xtal controlled. May be channelized; may
be synthesized. |
|
|
| GPS-1 |
|
Loudspeaker, 8" deep |
TB-9008A |
|
| GPS-2 |
|
Loudspeaker, 15" deep |
TB-9008A |
|
| Letter designations
for GPT transmitters: GPT type power exciter
type =
- M (manual)
- A (automatic)
- R (remoted)
exciter =
- AA - DZ SBG Exciters
- EA-HZ SME Exciters
- JA-MZ MMX Exciters
- MA-TZ Open
- UA-XZ SBE Exciters
- YA-ZZ Special Configurations
|
| GPT-200 |
|
General Purpose
Transmitter. 200W transmitter, 2-20Mc |
SSB-176 |
|
| GPT-350A |
|
General Purpose Transmitter,
consisting of: PAL-350, SWR-1K, GPE-1 |
TB-1002 |
|
| GPT-350B |
|
General Purpose Transmitter,
consisting of: PAL-350, ATS-2, GPE-1 |
TB-1002 |
|
| GPT-350C |
|
General Purpose Transmitter,
consisting of: PAL-350, SWR-1K, GPE-1, VOX-5 |
TB-1002 |
|

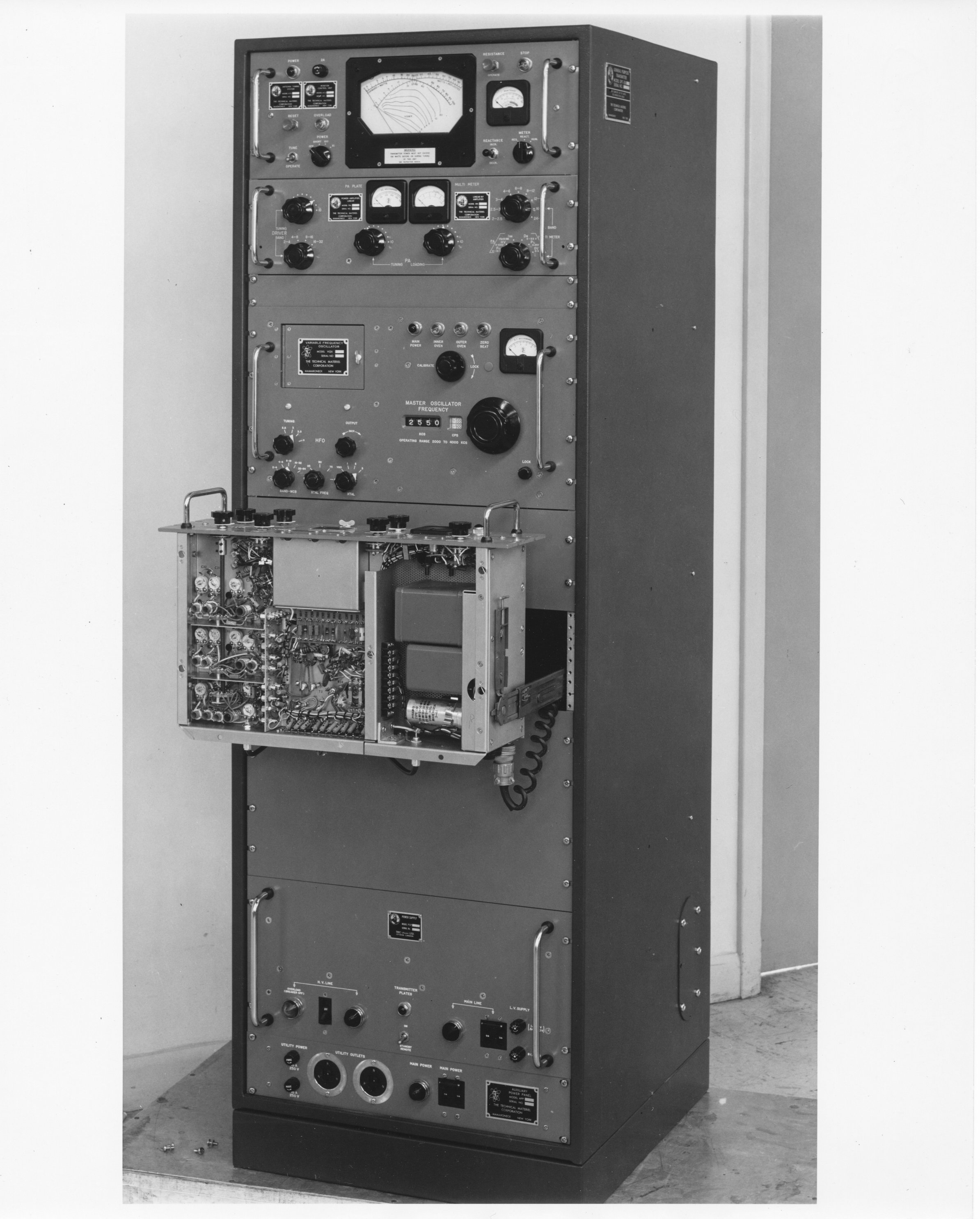

| GPT-350D |
 |
General Purpose Transmitter,
consisting of: PAL-350, ATS-2, GPE-1, VOX-5, RAK-19H |
TB-1002 |
|
| GPT-350E |
|
General Purpose Transmitter,
consisting of: PAL-350, SWR-1K, GPE-1, VOX-5, XFK |
TB-1002 |
|
| GPT-350F |
|
General Purpose Transmitter,
consisting of: PAL-350, ATS-2, GPE-1, VOX-5, XFK |
TB-1002 |
|
| GPT-350EA |
|
General Purpose Transmitter,
consisting of: PAL-350, SWR-1K, SME-6, TRL, AX-5040 |
|
|
| GPT-350JA |
|
General Purpose Transmitter,
consisting of: PAL-350, ATS-2, MMX-2, AX-5040 |
|
|
| GPT-500 |
 |
500W General Purpose Transmitter,
with PAL-500 and STE |
|
|
| GPT-500D |
|
500W General Purpose Transmitter |
TB-1008A-1 |
|
| GPT-500E |
 |
500W General Purpose Transmitter,
with PAL-500 and GPE-1 |
|
|
| GPT-500YA (11/29/66) |
|

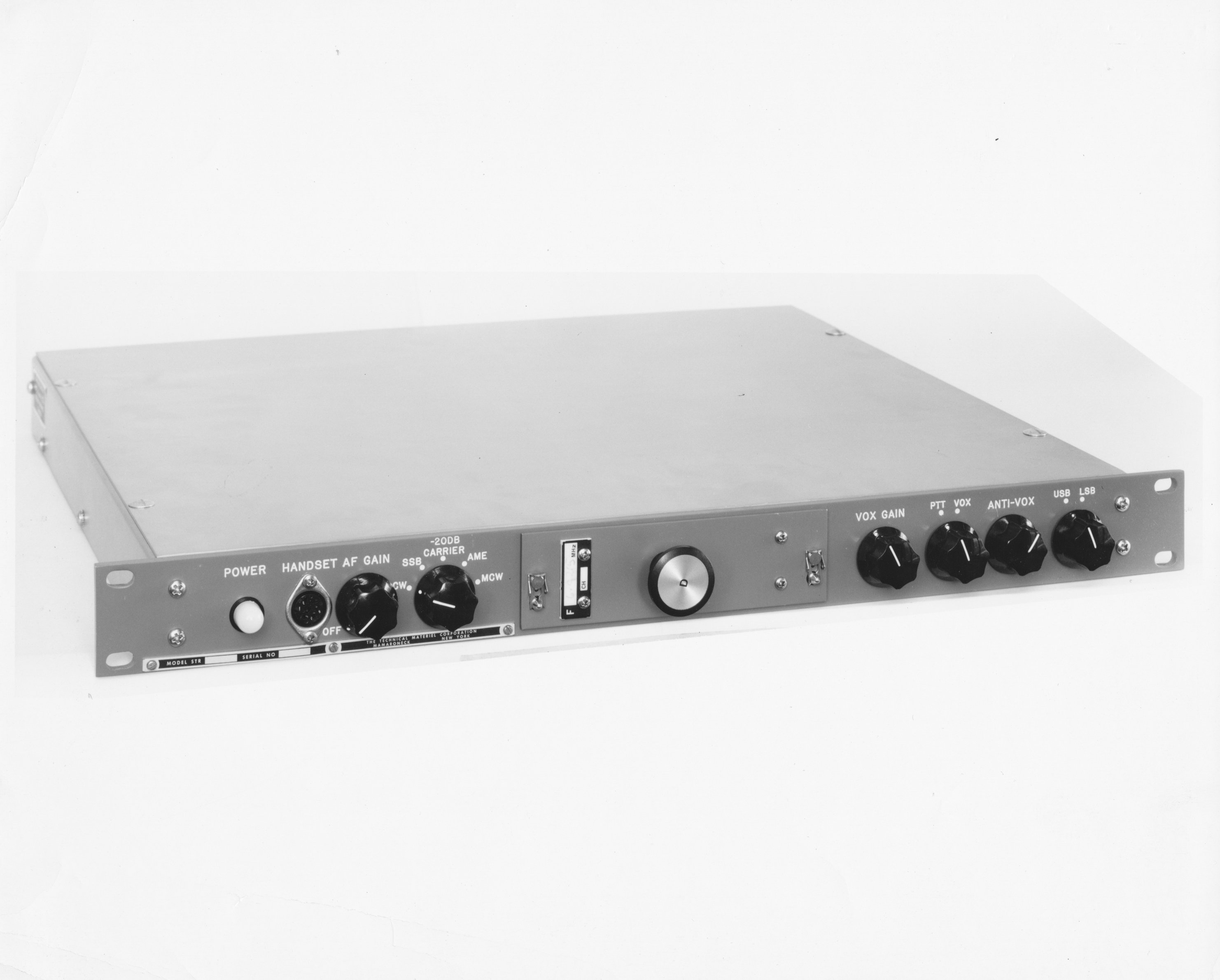

Fixed tuned. Consists of
STE-5 Exciter, PAL-500 Linear Amplifier. Assignment of mod. #
required for FCC acceptance writeup. PVC Passive Volume Control,
LPF-750 Series Filter, LPF-750 initially is 2-3MHz. Filters for
other operating frequencies will have to be cleared on an individual
basis. |
TB-1008A-1 |
|
| GPT-750( )-1 |
 |
Early version of GPT-750.
"B" version shown to left. |
|
|
| GPT-750A2 |
 |
General Purpose
Transmitter: CAB-7, RTF-2, RTY-2, RTP-2 |
TB-1007,
TB-1007A, TB-1007B-1 |
|
| GPT-750B2 |
 |
General Purpose
Transmitter: CAB-7, RTF-2, RTM-2, RTP-2 |
TB-1007,
TB-1007A |
|
| GPT-750C2 |
 |
General Purpose
Transmitter: CAB-7, RTF-2, RTX-2, XFK, RTP-2 |
TB-1007,
TB-1007A, TB-1007B-2 |
|
| GPT-750D2 |
 |
General Purpose
Transmitter: CAB-7, RTF-2, RTS-2, A-1516, RTP-2 |
TB-1007,
TB-1007A, |
AN/URT-17A |
| GPT-750E2 |
|
General Purpose
Transmitter: CAB-7, RTF-2, RTS-2, AO-101, RTP-2 |
TB-1007 |
AN/FRT-55 |
| GPT-750F2 |
|
General Purpose
Transmitter: CAB-7, RTF-2, RTS-2, SBE-8, RTP-2 |
TB-1007,
TB-1007B-3 |
|
| GPT-750G2 |
|
General Purpose
Transmitter: CAB-7, RTF-2, RTS-2, SBE-9, RTP-2 |
TB-1007 |
|
| GPT-750H2 |
|
General Purpose
Transmitter: CAB-7, RTF-2, RTS-2, SBE-10, RTP-2 |
TB-1007 |
|
| GPT-1K-A |
|
General Purpose
Transmitter: PAL-1K, SWR-1K, GPE-1 |
TB-1002 |
|
| GPT-1K-B |
|
General Purpose
Transmitter: PAL-1K, ATS-2, GPE-1 |
TB-1002 |
|
| GPT-1K-C |
|
General Purpose
Transmitter: PAL-1K, SWR-1K, GPE-1, VOX-5, RAK-17D |
TB-1002 |
|
| GPT-1K-C1 (2/6/67) |
|
Same as GPT-1K-C with Kits 320
and 261 added to PAL-1K |
|
|
| GPT-1K-D |
|
General Purpose
Transmitter: PAL-1K, ATS-2, GPE-1, VOX-5 |
TB-1002 |
|
| GPT-1K-E |
|
General Purpose
Transmitter: PAL-1K, SWR-1K, GPE-1, XFK |
TB-1002 |
|
| GPT-1K-F |
|
General Purpose
Transmitter: PAL-1K, ATS-2, GPE-1, XFK |
TB-1002 |
|

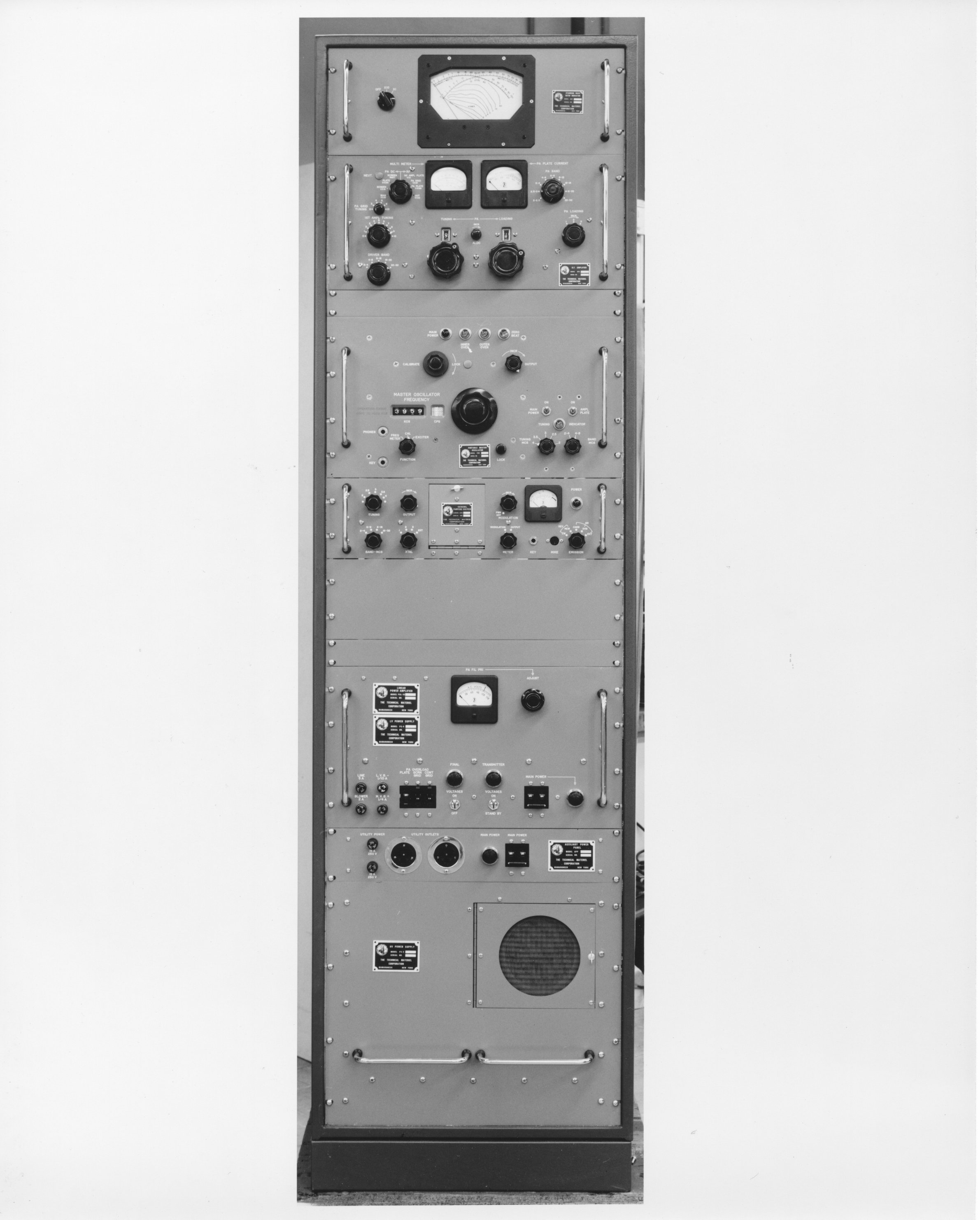

| GPT-1KG |
 |
1KW General Purpose Transmitter |
|
|

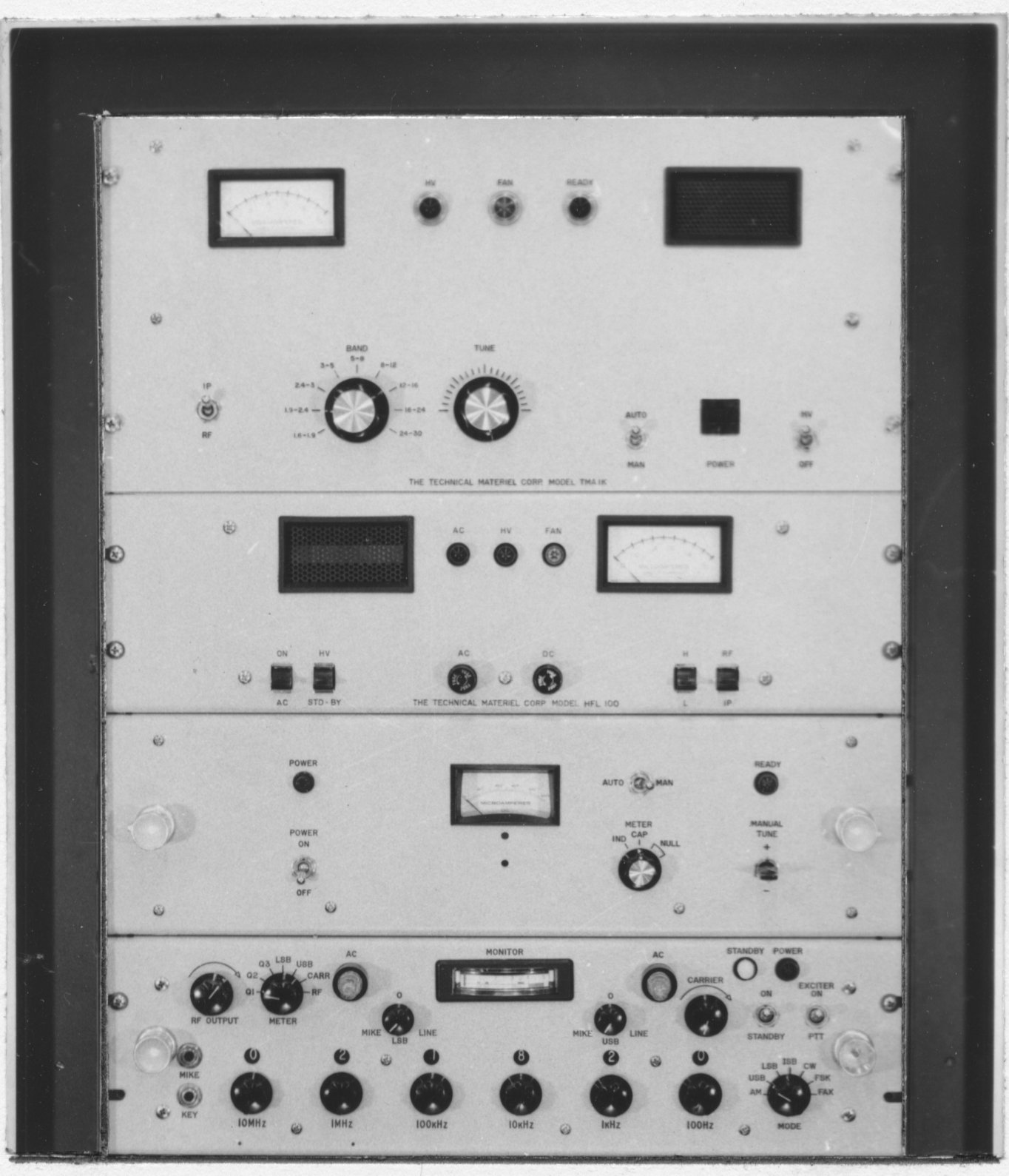

| GPT-1KJ3 |
 |
1KW General Purpose Transmitter |
|
|
| GPTR-1KC |
 |
Unknown |
|
|

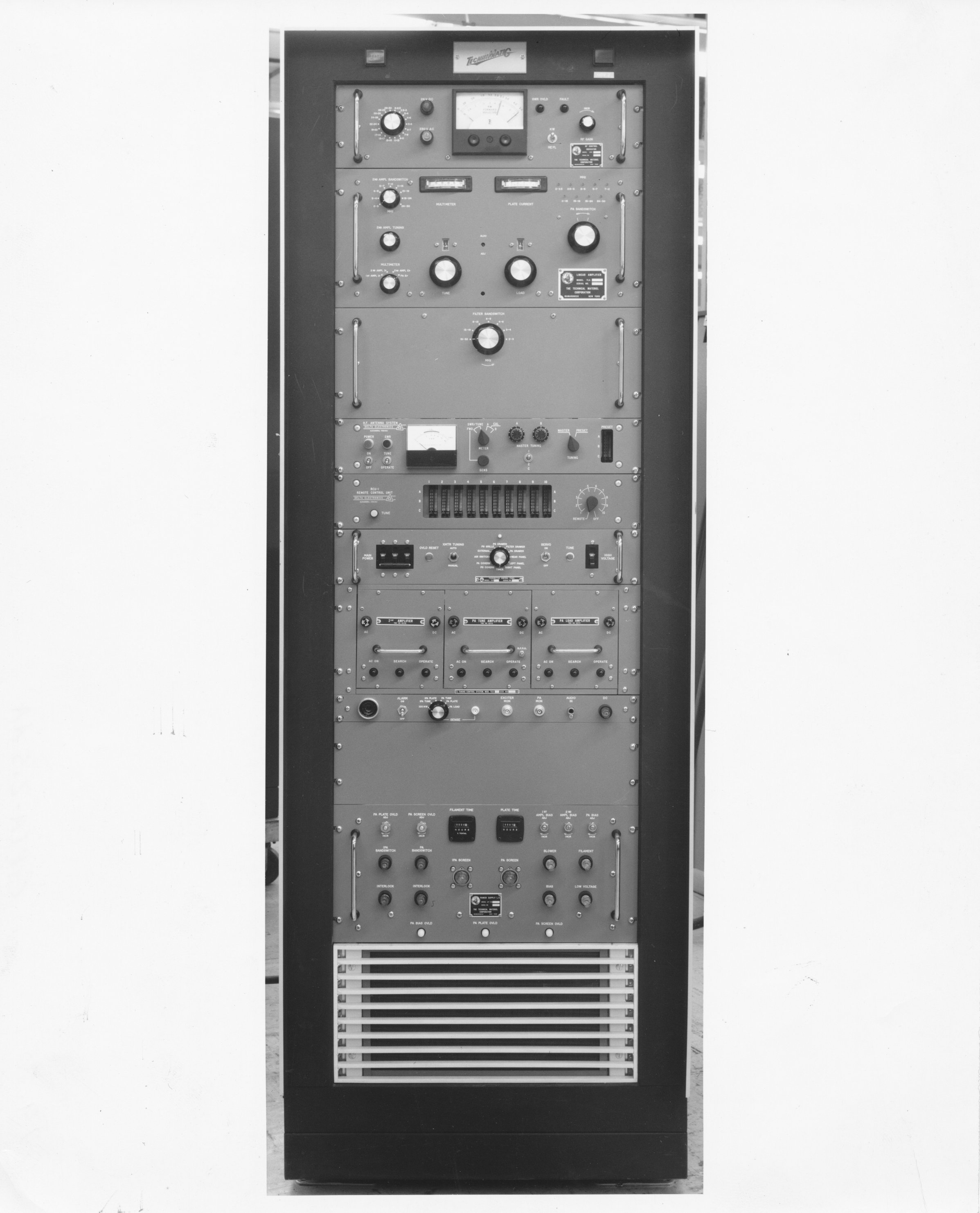

| GPTA-2.5AA |
 |
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
|
|
|
|
|
| GPTA-2.5EA (TSTA-2.5K) (11/29/66) |
|
Consists of: AP-128,
AP-129, TLAA-2.5K, SWCA-3K, AX-633, TCP-1, SMEA-1, TCSA-1, TFP-2.5K,
RAK-110-2A |
|
|
| GPTA-2.5EA/50 (TSTA-2.5K/50)
(11/29/66) |
|
Consists of: AP-128/50,
AP-129/50, TLAA-2.5K, SWCA-3K, AX-633, TCP-1, SMEA-1, TCSA-1, TFP-2.5K,
RAK-110-2A |
|
|
| GPTA-2.5EB (TSTA-2.5KA) (11/29/66) |
 |
Consists of: AP-128,
AP-129, TLAA-2.5K, SWCA-3K, AX-633, TCP-1, SMEE-1, TCSA-1,
RAK-110-2AA |
|
|
| GPTA-2.5EB/50 (TSTA-2.5KA/50)
(11/29/66) |
|
Consists of: AP-128/50,
AP-129/50, TLAA-2.5K, SWCA-3K, AX-633, TCP-1, SMEE-1, TCSA-1,
RAK-110-2AA |
|
|
| GPTA-2.5EE (TSTN-2.5K) (11/29/66) |
|
Consists of: AP-128,
AP-129, TLAA-2.5K, SWCA-3K, AX-633, TCP-1, SMEA-1, TCSA-1, TFP-2.5K,
TIS-3A, RAK-110-2N |
|
|
| GPTA-2.5EF (TSTN-2.5KA) (11/29/66) |
 |
Consists of: AP-128,
AP-129, TLAA-2.5K, SWCA-3K, AX-633, TCP-1, SMEE-1, TCSA-1, TIS-3A,
RAK-110-2NA |
|
|
| GPTA-2.5EF/50 (TSTN-2.5KA/50)
(2/23/67) |
|
Same as GPTA-2.5EB/50 except for
addition of TIS-3A. Includes RAK-110-2NA |
|
|
| GPTA-2.5JB |
 |
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
| GPTA-2.5JD |
|
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
| GPTA-2.5JE |
 |
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
| GPTA-2.5JF |
|
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
| GPTA-2.5JP |
|
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
| GPTA-2.5KJ |
 |
2.5KW General Purpose
Transmitter, automatic tuning |
|
|
| GPTA-2.5YA (TSTK-2.5K) (11/29/66) |
|
Consists of: AP-128, AP-129,
TLAA-2.5K, SWCA-3K, AX-633, TCP-1, TCSA-1, TFP-2.5K, RAK-110-2K |
|
|
| GPTM-2.5EK |
|
S.O. 35-3001-120 consisting of
SMEM-6, SWCB-3K, TLAC-2.5K, TCP-3A, AX-647, AP-128A, AP-129, RAK-110-2EK,
AF-107 |
|
|
| GPTM-2.5JA |
|
2.5KW General Purpose
Transmitter, manual tuning |
|
|
| GPTM-2.5JKER |
|
2.5KW General Purpose
Transmitter, manual tuning |
|
|

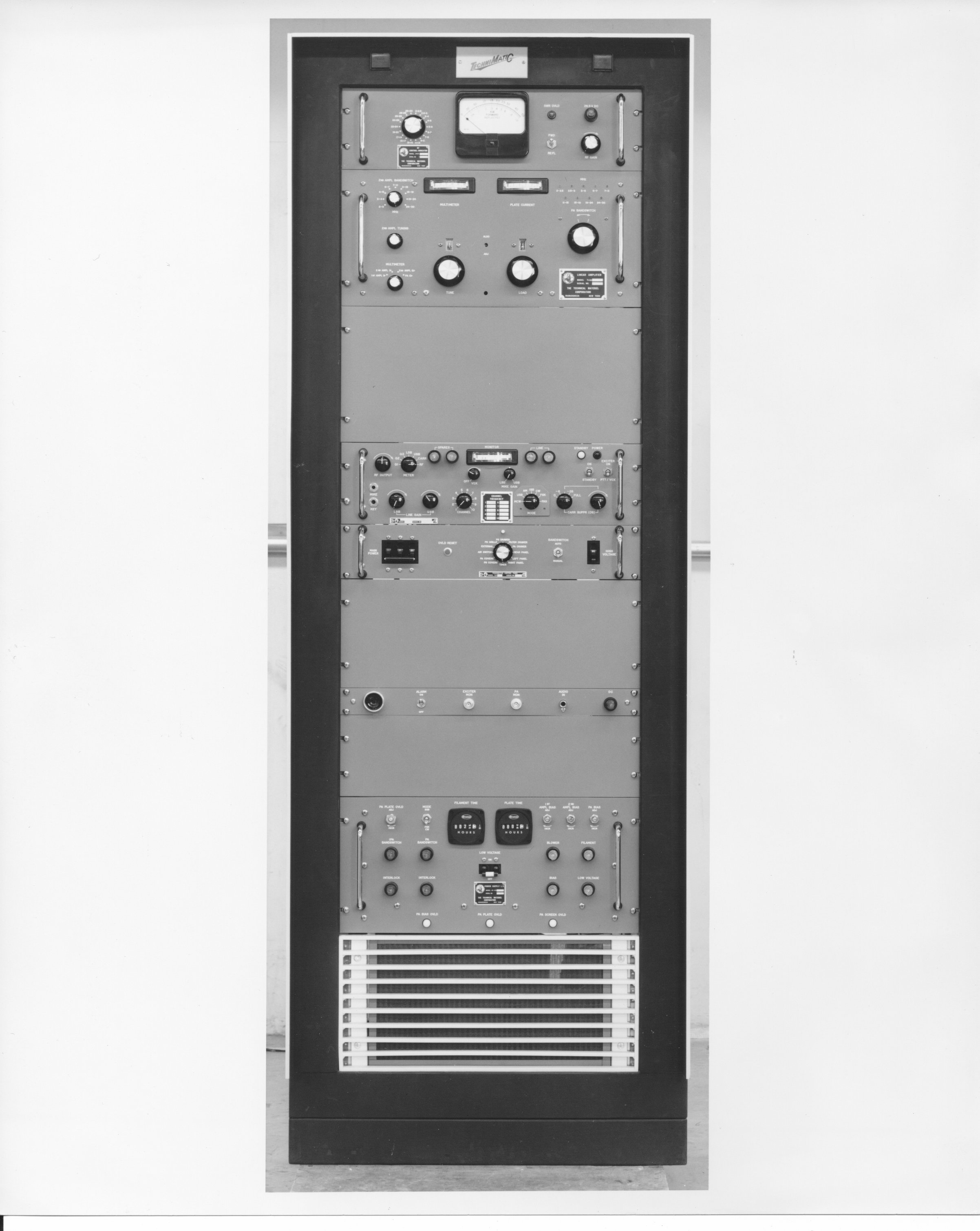

| GPTM-2.5KER |
 |
2.5KW General Purpose
Transmitter, manual tuning |
|
|
| GPTM-2.5KJ2 |
|
2.5KW General Purpose
Transmitter, manual tuning |
|
|
| GPTR-2.5EA (TSTG-2.5K) (11/29/66) |
|
Consists of: AP-128,
AP-129, TLKAA-2.5K, SWCA-3K, AX-646, TCP-2(?), SMEB-1, TCSA-1, TFP-2.5K,
RAK-110-2G, MPA-1, LSCA-1 |
|
|
| GPTR-2.5EB (TSTG-2.5KA) (11/29/66) |
|
Consists of: AP-128,
AP-129, TLKAA-2.5K, SWCA-3K, AX-646, TCP-1, SMEC-1, TCSA-1, TFP-2.5K,
LRCA-1, RAK-110-2GA, MPA-1, LSCA-1 |
|
|
| GPTR-2.5EB/50 (TSTG-2.5KA/50)
(11/29/66) |
|
Consists of: AP-128/50,
AP-129/50, TLKAA-2.5K, SWCA-3K, AX-646/50, TCP-1, SMEC-1, TCSA-1,
LRCA-1, RAK-110-2GA, TCGA-1 MPA-1, LSCA-1 |
|
|
| GPTR-2.5EC (TSTG-2.5KB) (11/29/66) |
|
Consists of: AP-128,
AP-129, TLKAA-2.5K, SWCA-3K, AX-646, TCP-1, SMEC-1, TCSA-1, LRCF-1,
RAK-110-2GB |
|
|

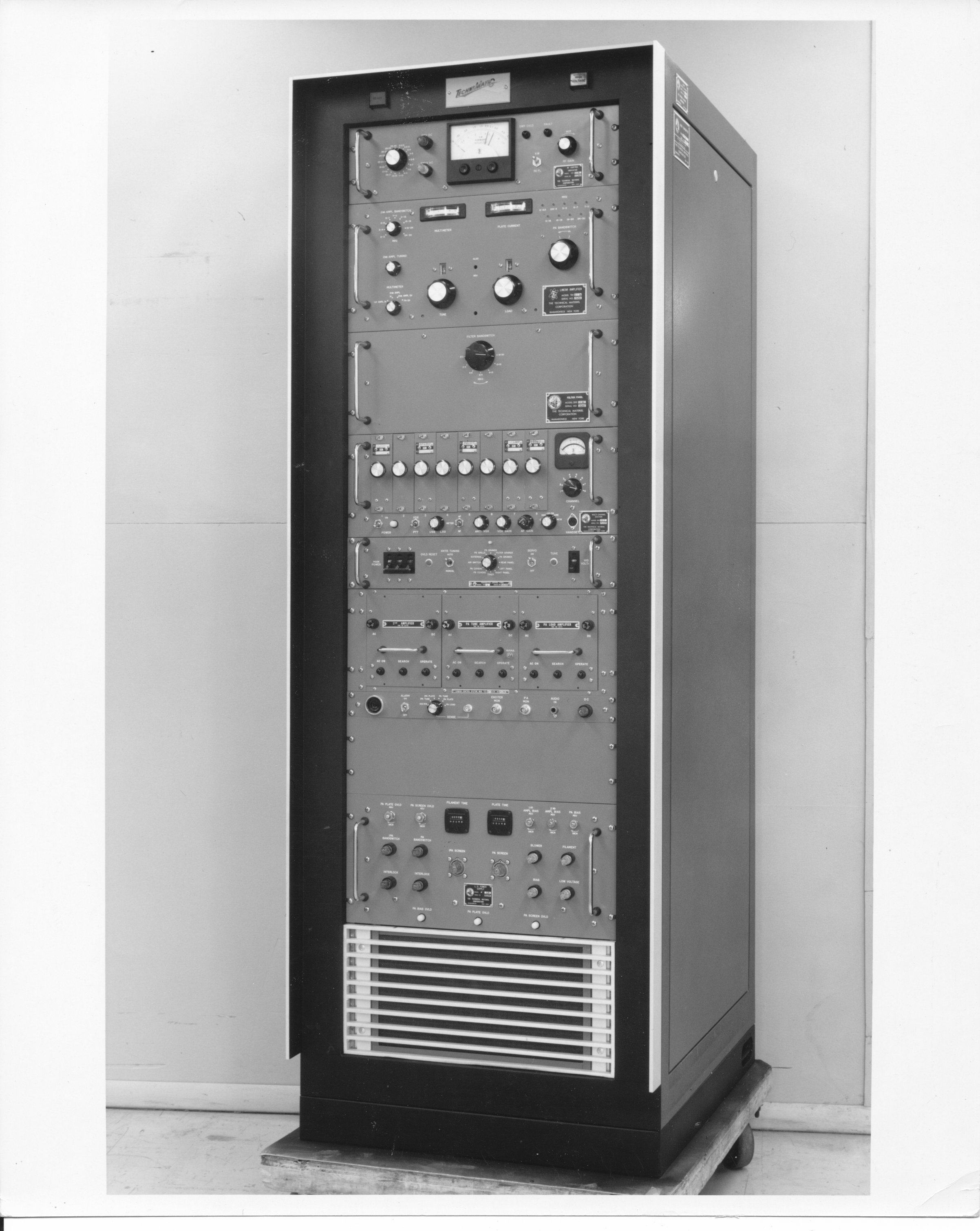

| GPTR-2.5ED (TSTG-2.5KB) (1/23/67) |
 |
Consists of: AP-128,
AP-129, TLKAA-2.5K, SWCA-3K, AX-646, TCP-1, SMEB-1, TCSA-1, LRCF-1,
TFP-2.5K, (subject to change) RAK-110-2GB |
|
|
| GPTR-2.5EE (3/1/67) |
|
Sames as GPTR-2.5EB except for
RAK-10KEE and the addition of TR Relay (RL-177) |
|
|

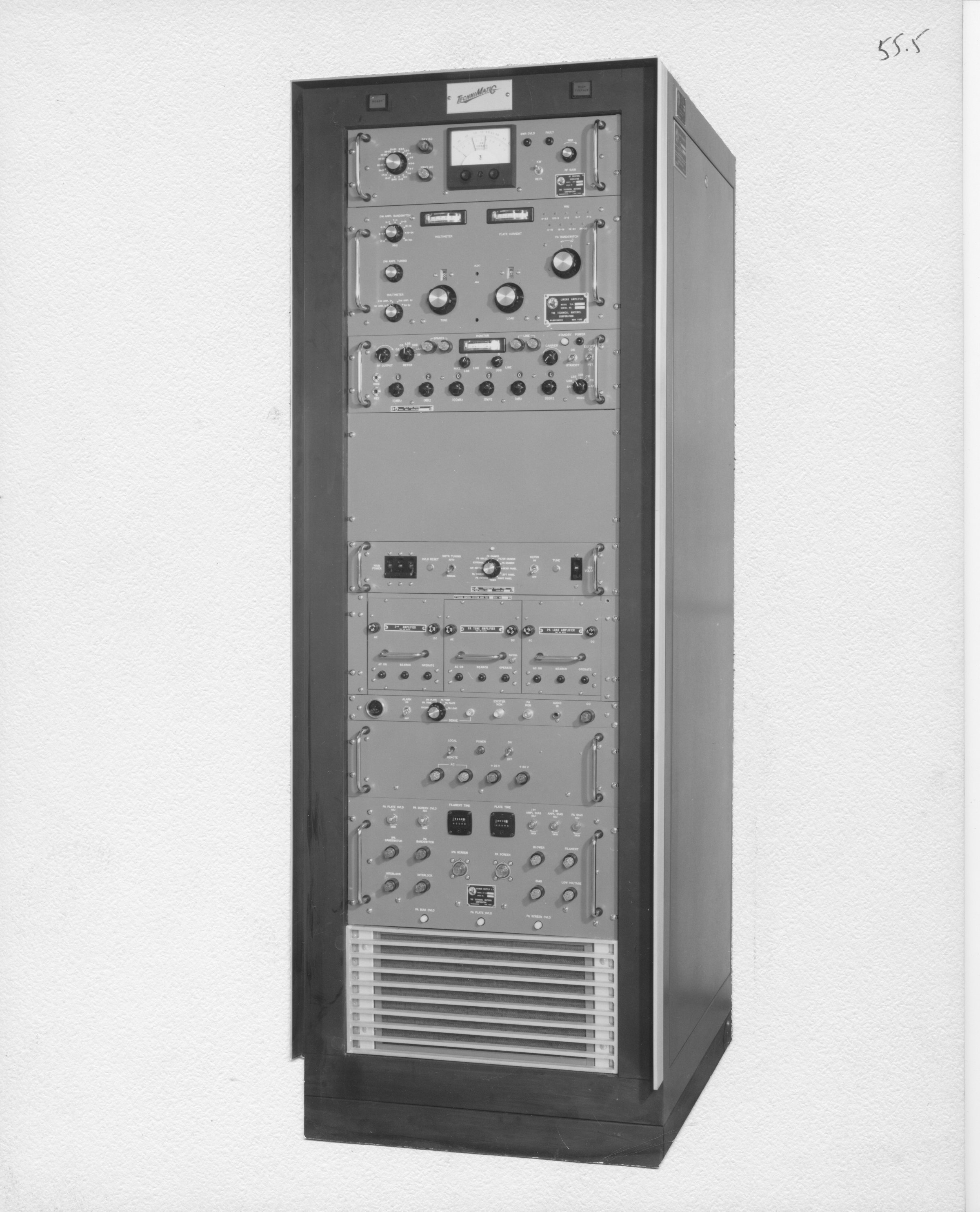

| GPTR-2.5JA (1/25/67) |
|
2.5KW Technimatic remote control
transmitter, consisting of: TMXI-2, MMX-1, RTTD-5, RTMU-3, AX-646,
AX-560, APP-11, SWCA-3K, TLAA-2.5K, TCP-2, TCSA-1, AP-128/50, AP-129/50 |
|
|
| GPTR-2.5JC |
 |
2.5KW General Purpose
Transmitter, remote tuning |
|
|
| GPTR-2.5KJ |
 |
2.5KW General Purpose
Transmitter, remote tuning |
|
|
| GPT-2.5WA (11/29/66) |
|
Consists of: A-1397,
AP-128, AP-129, TLAB-2.5K, SWCB-3K, AX-647, TCP-3, SBE-10, VOX-5,
RAK-110-2PA |
|
|
| GPT-5K (6/13/66) |
|
Similar to GPT-10K, Synthesized,

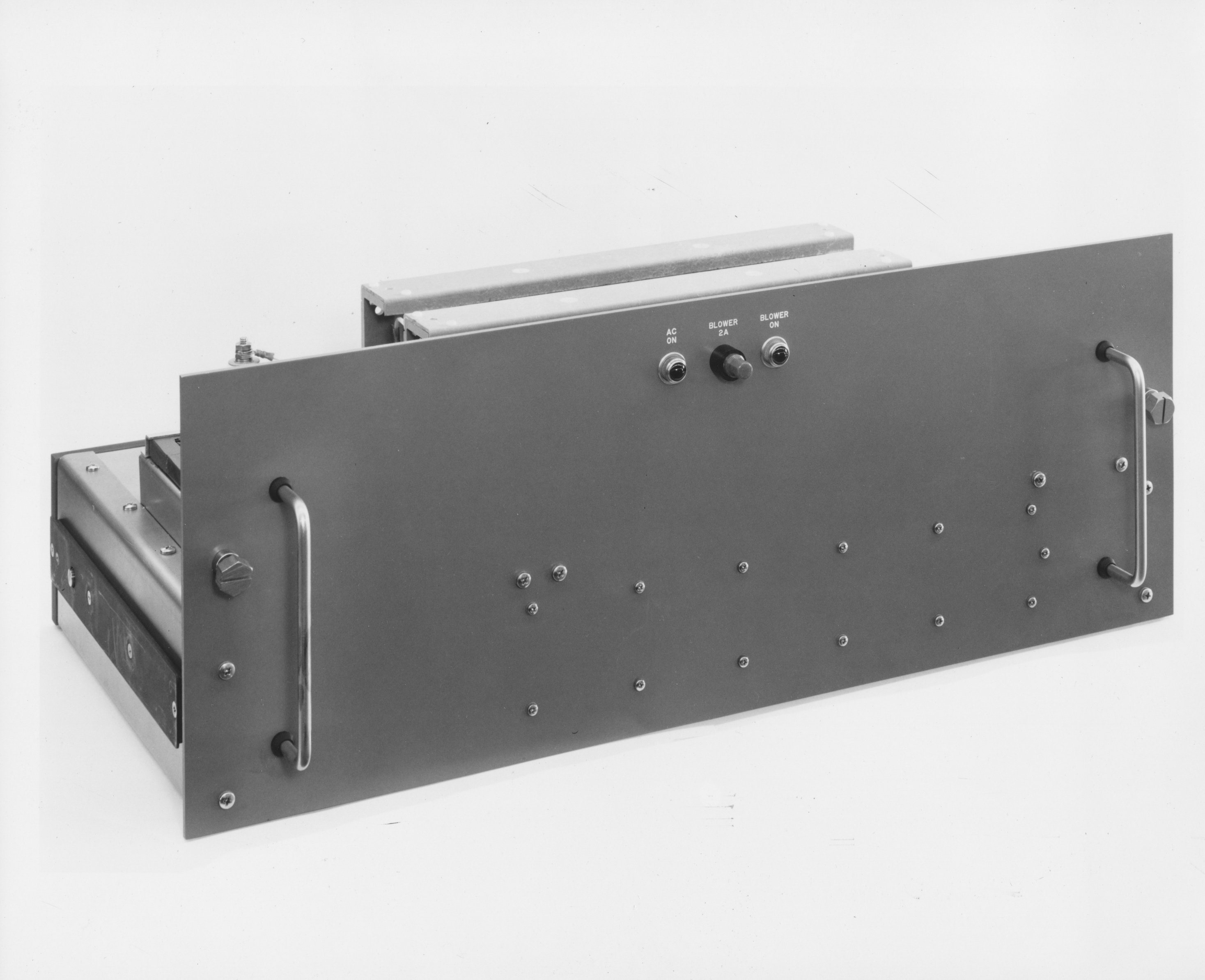

HVRC-2 power supply, 380 V 50 cps primary power. Power output 5Kw
average on CW, FSK; 5Kw PEP for SSB, ISB, AM, AME. Antenna connector
1-5/8" EIA flange on top of PA compartment. Output impedance 50
ohms to VSWR as high as 3:1. CBE to have 3 Kc filters. (FX-238 and
FX-241) 1Kw PEP available from driver on emergency. |
|
|
| GPT-10K-A |
 |
General Purpose

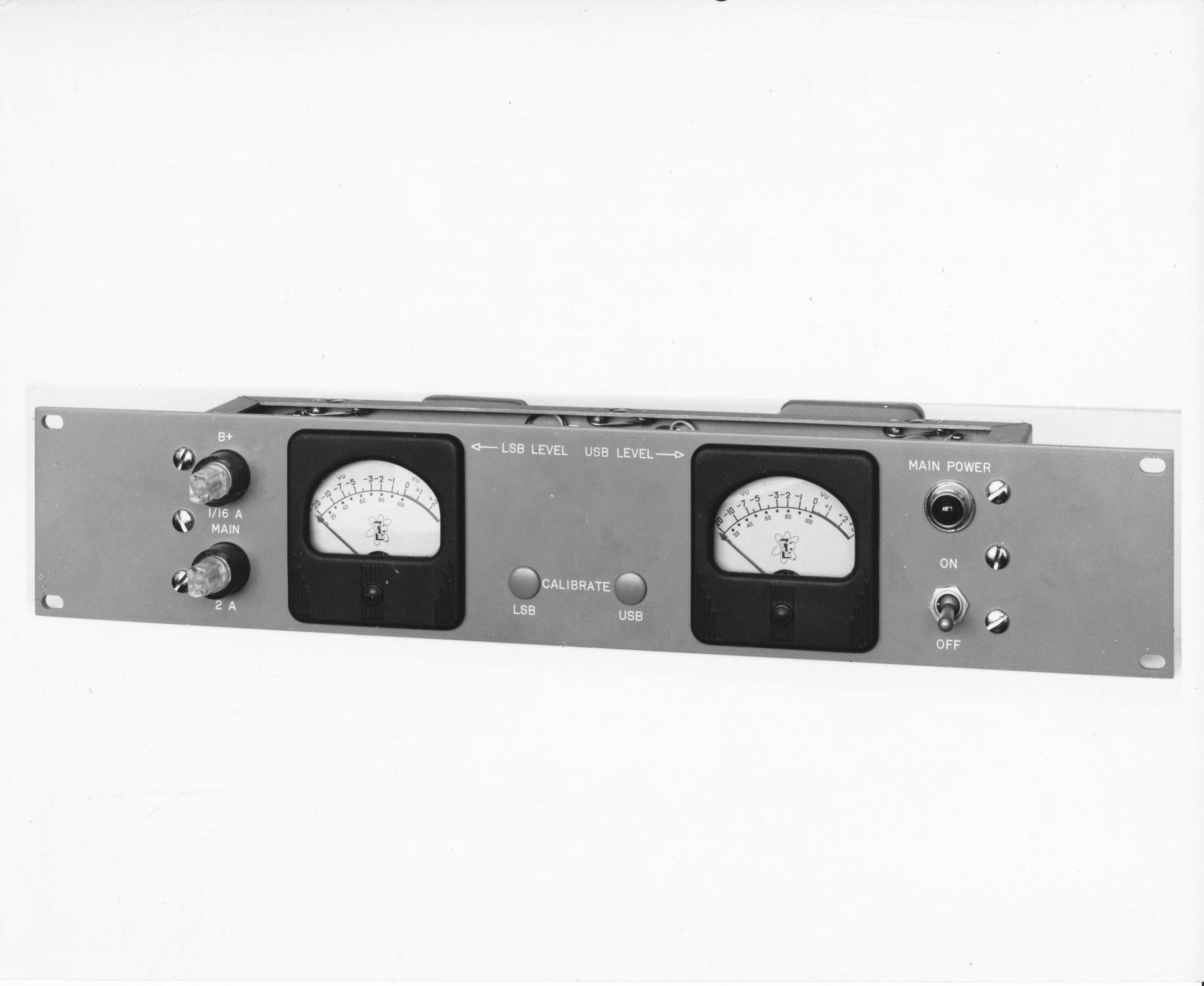

Transmitter: SLM-1, SBE-2, FSA-2, MCP-2, VOX-5, XFK, AK-100, APP-1,
TTG-3 |
TB-1008 |
AN/FRT-39A |

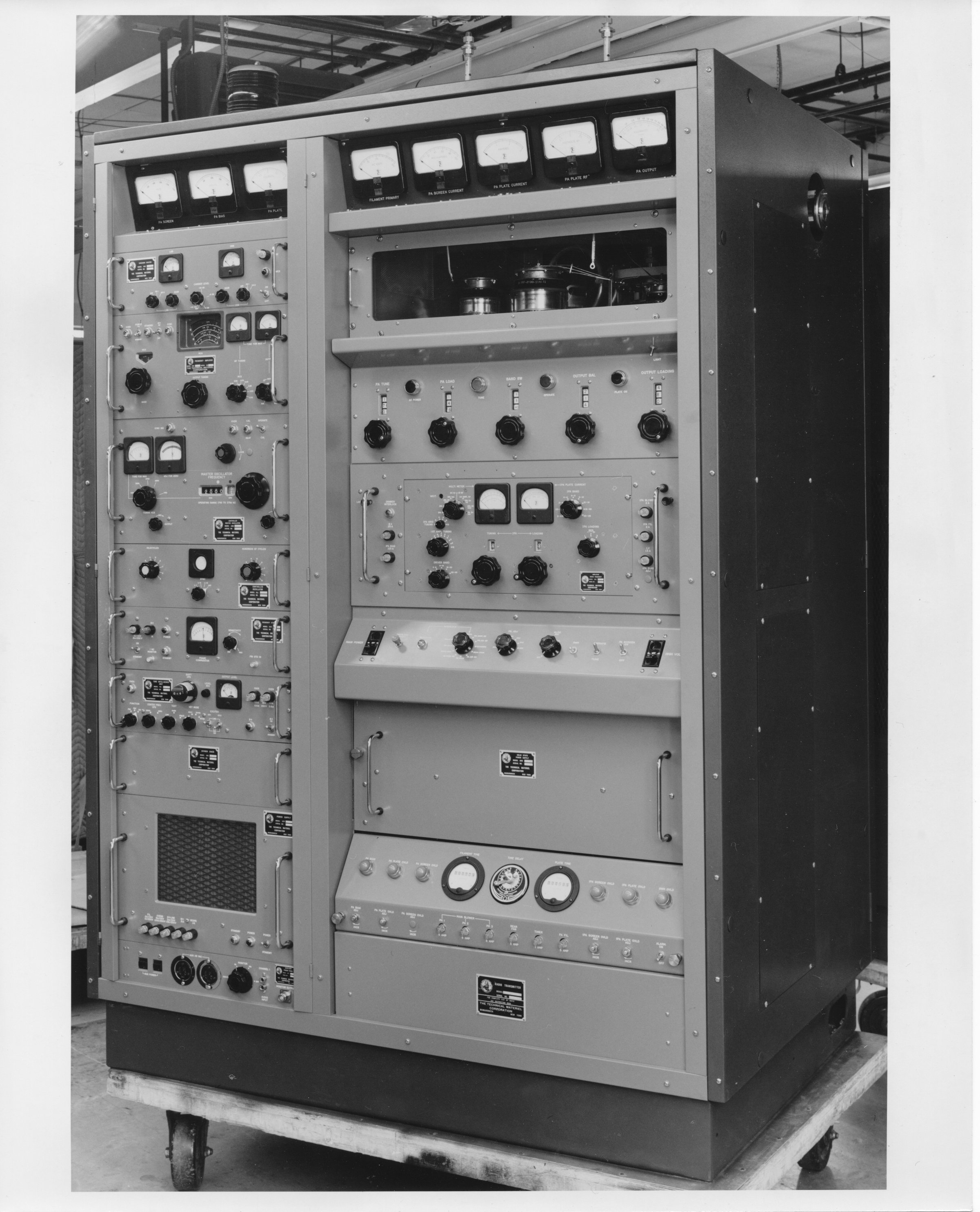

| GPT-10K-AB |
 |
General Purpose
Transmitter: SLM-2, SBE-3, MCP-2, VOX-5, APP-1, TIS-3, PVC-1 |
TB-1008 |
|
| GPT-10K-AC |
|
General Purpose Transmitter:
CBE-1, CHG-2, CMO-1, CLL-1, CSS-1A, TIS-3, CHL-1, CPP-5, APP-3, CPP-2 |
TB-1005 |
AN/FRT-39C |
| GPT-10K-AD |
|
General Purpose
Transmitter: SLM-1, SBE-23, FSA-2, VOX-5, AK-100, TTG-2 |
|
|
| GPT-10K-AE |
|
General Purpose
Transmitter: SLM-2, SBE-3 |
|
|
| GPT-10K-AF |
|
General Purpose Transmitter |
|
|
| GPT-10K-AG |
|
General Purpose Transmitter;
GPT-10K-R(6) with SPU-2 added in auxiliary frame, includes new VSWR meter
and Bird coupler |
|
|
| GPT-10K-AM |
|
General Purpose Transmitter with
VOX-5, GPE-1 in auxiliary frame, SWR-10KC, 10K main amplifier |
|
|
| GPT-10K-AP |
|
General Purpose Transmitter;
GPT-10K-T, AX-271-1U unbalanced mounting plate |
|
AN/FRT-65 |
| GPT-10K-AQ |
|
General Purpose Transmitter;
GPT-10K-T, less (1) VOX-5, (1) TTG- and (1) FSA. |
|
AN/FRT-68 |
| GPT-10K-AR |
|
General Purpose Transmitter;
incorporates kits 173, 161 |
|
|
| GPT-10K-AS |
|
General Purpose Transmitter 161;
but modified for Robinson Shock Mounts |
|
AN/FRT-39F |
| GPT-10K-AT |
|
GPT-10K less TIS-3 but with
KMCU-1 automatic changeover to internal 1 Mc Standard in event of failure
of external 1Mc standar. |
|
|
| GPT-10K-AU |
|
Same as GPT-10K-R7 less
TIS-3. Includes blank panel and wiring for future inclusion of
KMCU-1, includes KIT-21F |
|
|
| GPT-10K-AV |
|
General Purpose
Transmitter: similar to GPT-10KR with following changes:
- APP-10 replaces APP-8
- Electrical revisions to power input section of main
frame.
- Extra TF-275 in auxiliary frame power APP-10 outlets
- Provide additional transformer, 1500 watts capacity
for the purpose of supplying the 115 VAC service outlets of APP-8
|
|
|
| GPT-10K-AW |
|
|
|
|
| GPT-10K-AX |
|
General Purpose
Transmitter. Contains PVC-1, SBE-3, SLM-2, TIS-3A, VOX-5, and APP-10 |
|
|
| GPT-10K-AY |
|
General Purpose
Transmitter. Non-synthesized 10K. Contains HVRC-2, SBE-6A,
TIS-3A, VOX-5, SLM-2, APP-10, MCP-3 |
|
|
| GPT-10K-AZ |
|
General Purpose
Transmitter. Non-synthesize 10K. 10Kw PEP. Contains
SBE-10, ISK-1, XFK-2, APP-9, MCP-2, SWCU-1, RFC-1B, AX-103(tube type),
AX-104, AR-161. 00-26-0117 |
|
|
| GPT-10K-B |
|
General Purpose
Transmitter: SLM-1, SBE-2, FSA-2, MCP-2, VOX-5, APP-1, TTG-2 |
TB-1008 |
|
| GPT-10K-C |
|
General Purpose
Transmitter: SLM-2, SBE-3, FSA-2, MCP-2, VOX-5, APP-1, TTG-2,
PVC-1, SWCU-1 |
TB-1008 |
|
| GPT-10K-D |
|
General Purpose
Transmitter: SLM-1, SBE-2, FSA-2, MCP-2, VOX-5, APP-1, TTG-2 |
TB-1008 |
|
| GPT-10K-E |
|
General Purpose
Transmitter: MCP-2, APP-1 |
|
|
| GPT-10K-F |
|
General Purpose
Transmitter: SLM-1, SBE-2, FSA-2, MCP-1, VOX-5, XFK, AK-100,
APP-1, TTG-2 |
TB-1008 |
|
| GPT-10K-G |
|
General Purpose
Transmitter: VOX-5, XFK, AK-100, APP-1 |
TB-1008 |
|
| GPT-10K-H |
|
General Purpose
Transmitter: SLM-1, SBE-2, FSA-2, MCP-2, (2) VOX-5, APP-1,
TTG-2 |
TB-1008 |
|
| GPT-10K-J |
|
General Purpose
Transmitter: SLM-1, SBE-2, FSA-2, MCP-2, APP-1, TTG-2 |
TB-1008 |
|
| GPT-10K-L |
|
General Purpose
Transmitter: SLM-2, SBE-3, FSA-2, MCP-2, VOX-5, XFK, AK-100,
APP-1, TTG-2 |
TB-1008 |
|
| GPT-10K-L-4 |
|
General Purpose
Transmitter: TTG-2, AK-100, SLM-2, FSA-2, VOX-5, SBE-3, XFK |
|
|
| GPT-10K-LF |
 |
General Purpose Transmitter, Low
Frequency |
TB-1015 |
|
| GPT-10K-LFA |
|
General Purpose Transmitter, Low
Frequency |
|
AN/FRT-74(V1) |
| GPT-10K-LFB |
|
GPT-10K-LFA with shock mounts
(LTV) S.O. 23698 |
|
|
| GPT-10K-LFC (1/5/66) |
|
S.O. 5857 |
|
|
| GPT-10K-LFD |
|
Similar to GPT-10KLF
except: 10Kw average power output for CW, FSK, FAX (Linear operation
not required) Freq. range 80Kc to 500Kc. Freq stability--2
parts in 10^5 per day in total. Primary power 380 V, 3 ph, 50
cps. Output 50 ohms to LC connector on top of cabinet. Includes

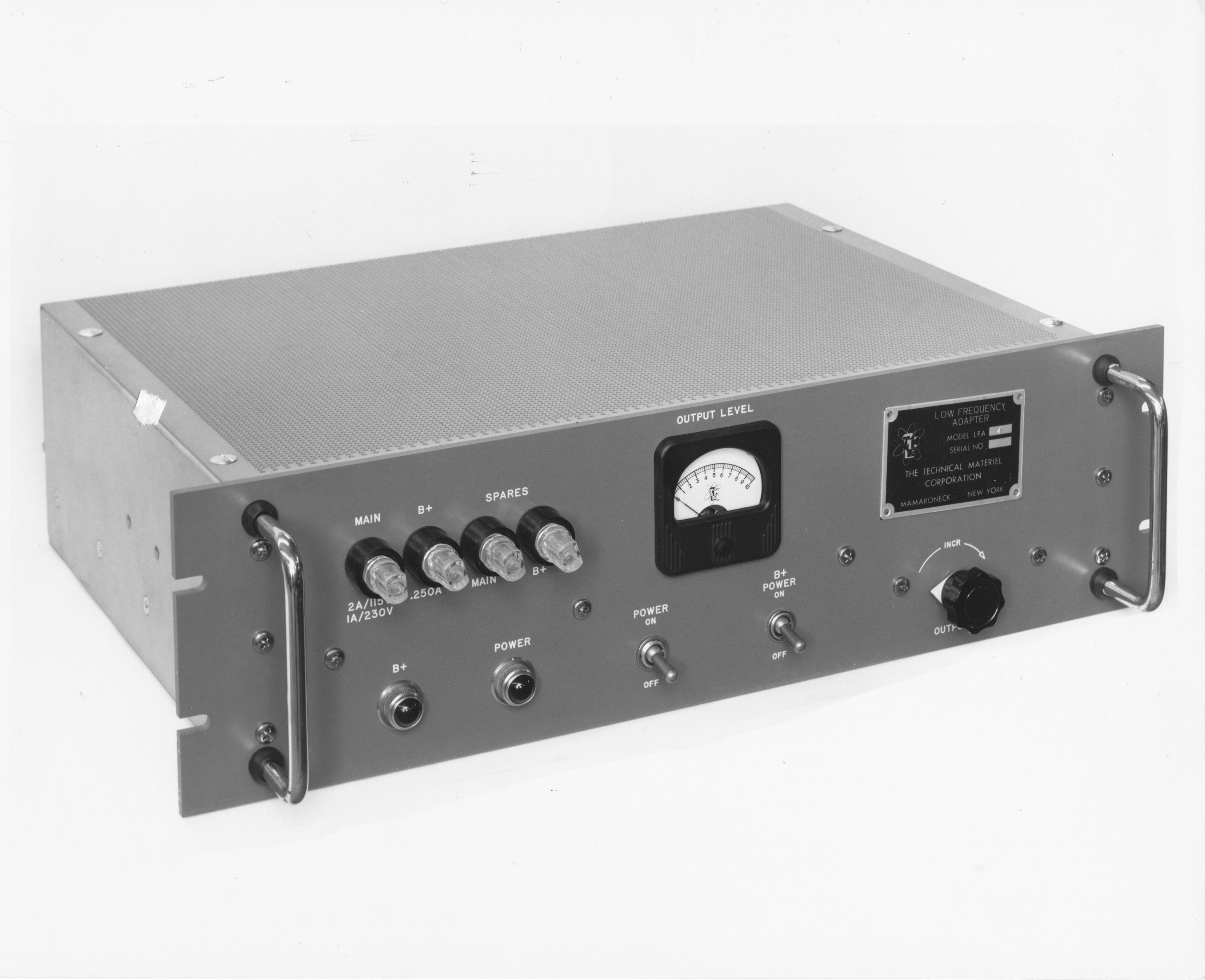

LFA-4 and VOX-5 |
|
|
| GPT-10K-LFE (7/27/66) |
|
Transmitter for Project 15,
10-600Kc |
|
|
| GPT-10K-LFF |
|
Low frequency transmitter with

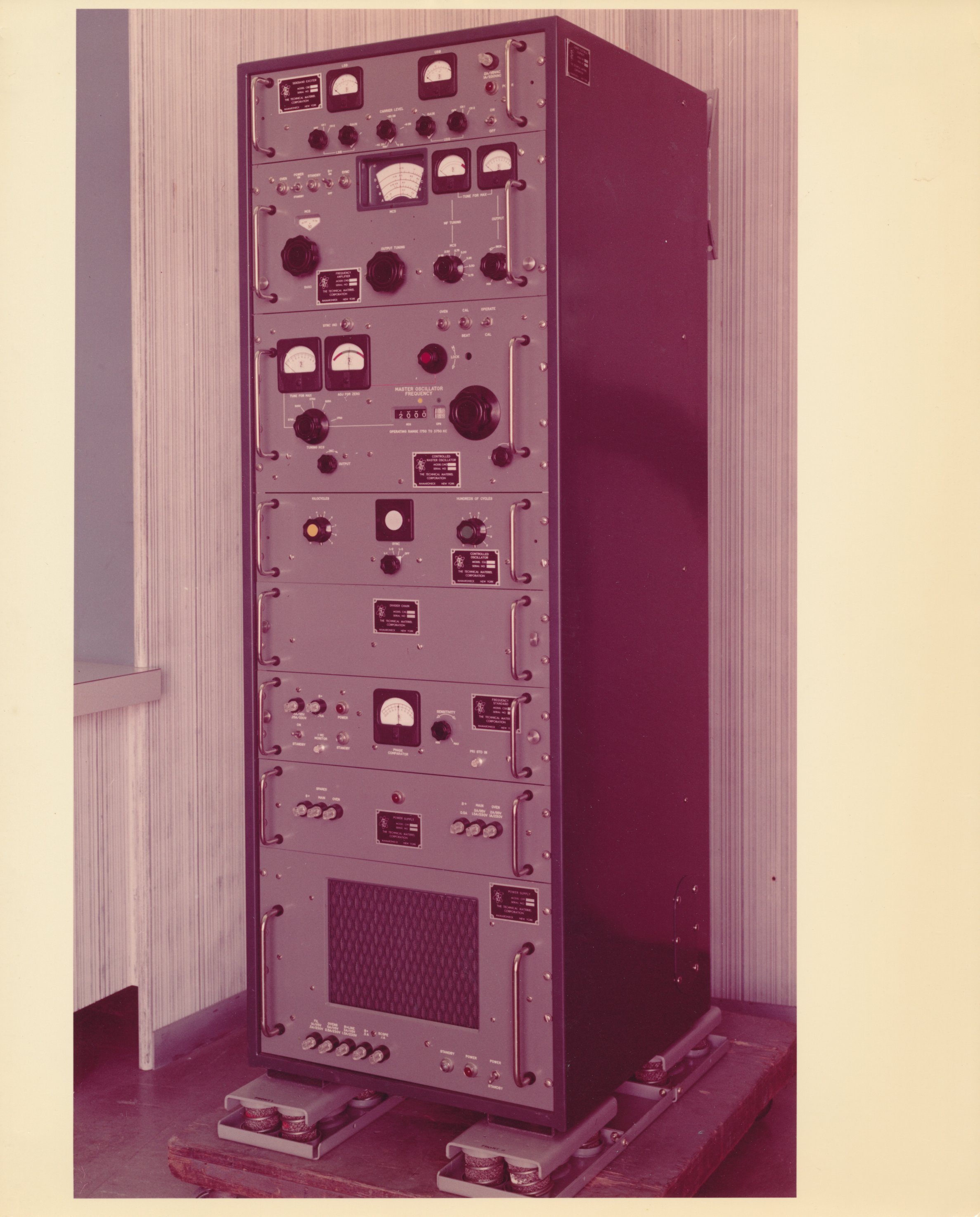

SBG-1LA and KMCU-1 in Auxiliary Rack |
|
|
| GPT-10K-M |
|
General Purpose
Transmitter: SLM-2, SBE-2, FSA-2, MCP-2, VOX-5, XFK, AK-100,
TTG-2 |
TB-1008 |
|
| GPT-10K-N |
|
General Purpose Transmitter |
|
|
| GPT-10K-O |
|
General Purpose Transmitter;
SLM-1, SBE-2, FSA-2, MCP-2, VOX-5, XFK, AK-100, APP-1, TTG-2 |
TB-1008 |
|
| GPT-10K-O-4 |
|
General Purpose Transmitter;
SLM-1, SBE-2, FSA-2, VOX-5, XFK, AK-100, TTG-2 |
|
|
| GPT-10K-P |
|
General Purpose
Transmitter. SLM-1, SBE-2 |
TB-1008 |
|
| GPT-10K-Q |
|
General Purpose
Transmitter. VOX-5, XFK, AK-100, APP-1 |
|
|
| GPT-10K-R |
 |
General Purpose
Transmitter. CBE-1, CHG-2, CMO-1, CLL-1, CSS-1A, TIS-3, CHL-1,
CPP-5, CPP-2, APP-3 |
TB-1005 |
AN/FRT-39B
AN/FRT-39D |
| GPT-10K-R(_) |
|
General Purpose Transmitter
Series. This is a number of services for transmitters that have
auxiliary frame wired to accept KMCU-1 or TIS-3A. Letter suffixes
shall be supplied by advertising department. To denote specification
configuration 10Kw PEP outfit. |
|
|
| GPT-10K-RA |
|
10K basic with: APP-10,
CBE-1, CHG-2B, CHL-1, CLL-1, CMO-1, CPP-2, CPP-5, CSS-1C, TIS-3A |
|
|
| GPT-10K-RB (9/6/66) |
|
10KR, less TIS-3A, vacuum tube HV
recitifier. S.O. 2253 (RFE) |
|
|
| GPT-10K-RC |
|
no configuration |
|
|
| GPT-10K-RD (10/26/65) |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-1C, KMCU-1, CHL-1,
CPP-2, APP-10, CPP-5, SMCU-1, RFC-1A, HVRC-2, 10Kw PEP output. |
|
|
| GPT-10K-RE (10/26/65) |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-3, KMCU-1, CHL-1,
CPP-2, APP-10, SWCU-1, RFC-1A, AX-103, 10Kw PEP output. Designed for
VAN mtg. Auxiliary frame wired to accept KMCU-1 or TIS-3A.
Front MTD Visual audible failure alarm. With provisions for remoting
to other locations to indicate loss of internal freq. Standard output. |
|
|
| GPT-10K-RF (10/15/65) |
|
Standard 10Kw transmitter.
SBG-1 in exciter frame, 240/480 power supply with KIT-270 solid state high
voltage rectificer. CBE-1, CHG-2B, CMO-1, CLL-1, CHL-1, CSS-3B,
CPP-2, CPP-5, TIS-3A, SWCU-1, TF-275, HVRC-2. |
|
|
| GPT-10K-RG |
|
Same as GPT-10K-RD except delete
KMCU-1 and put in blank panel. This is for Sales Order 26751 |
|
|
| GPT-10K-RH (10/11/65) (10/22/65) |
|
Sames as GPT-10K-RE but with
HVRC-2 Vice AX-103, Van mtg. Contains CBE-1, CHG-2B, CMO-1, CLL-1,
CSS-1C, KMCU-1, CHL-1, CPP-2, APP-10, CPP-5, SWCU-1, RFC-1B, HVRC-2.
Front and rear doors removed and replaced by panel. |
|
|
| GPT-10K-RJ (1/26/66) |
|
GPT-10K-AT but has TIS-3A Vice
KMCU-1 with AX-103 |
|
|
| GPT-10K-RK (6/8/66) |
|
Same as GPT-10K-RF except with
CSS-1C, HVRC-2 |
|
|
| GPT-10K-RL |
|
Project 15 10K modified for
plane, 2-28Mc. |
|
|
| GPT-10K-R-4 |
|
General Purpose
Transmitter. CLL-1, TIS-3, CBE-1, CSS-1A, RFC-1, CHG-2, CHL-1,
AX-104, CMO-1, CPP-1, AX-103, CPP-2, AX-139 |
|
|
| GPT-10K-S |
|
General Purpose
Transmitter. SLM-2, SBE-3 |
|
|
| GPT-10K-SA |
|
Radio Transmitter, 10Kw.

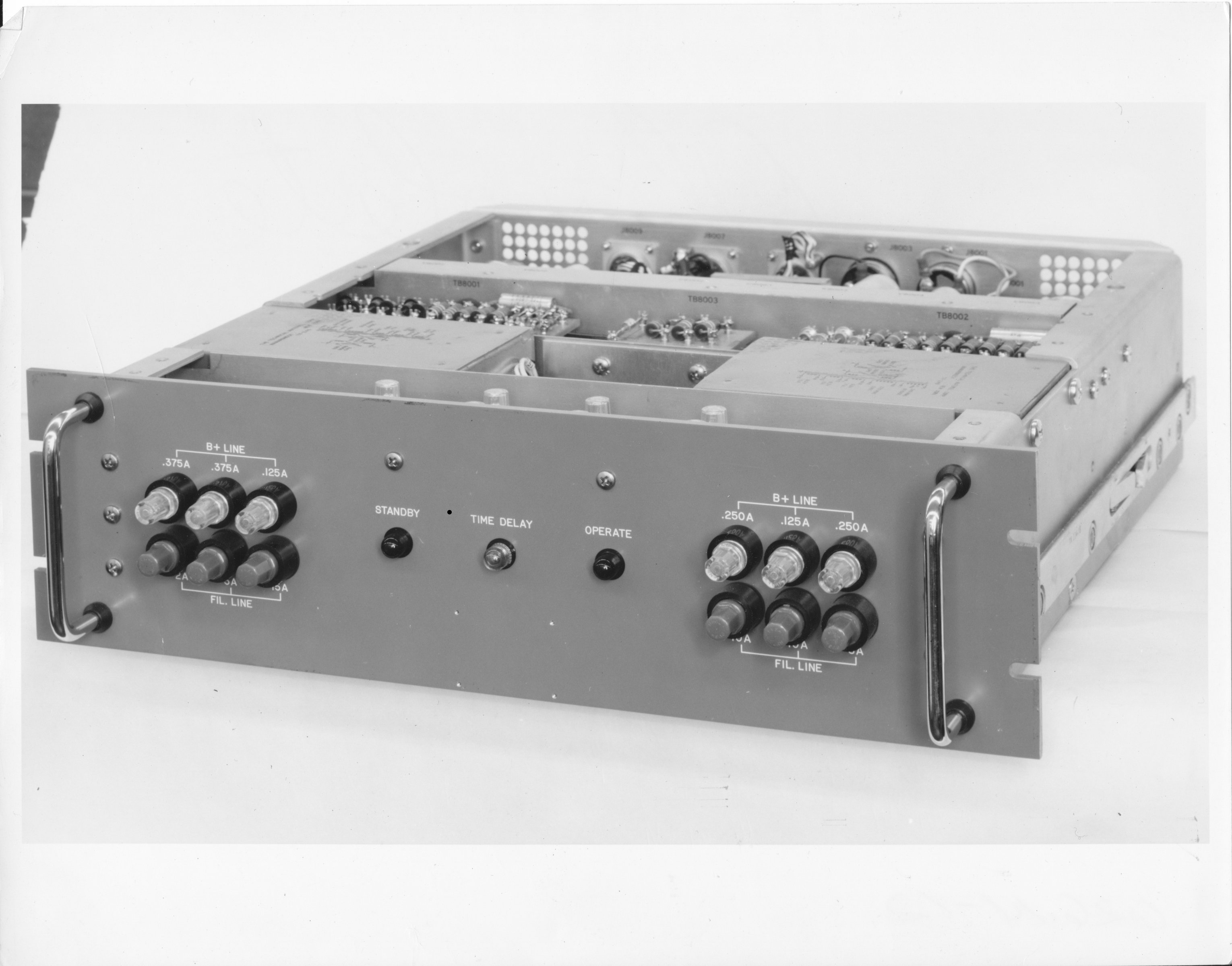

Basic GPT-10K8 with HVRC-2, CHG-3, CMRA-1A, HFS-2, HFP-1, APP-10A.
50 cps, 220V operation. (For Va. VAN) |
|
|
| GPT-10K-SB (3/14/67) |
|
Similar to GPT-10K-AZ8 sold on
S.O. 00-26-0117 with the following exceptions: delete XFK-2,
TIS-3A. |
|
|
| GPT-10K-T |
|
General Purpose
Transmitter. SLM-2, SBE-3, FSA-2, MCP-2, (2) VOX-5, APP-1, TTG-2,
AK-100 |
TB-1008 |
AN/FRT-52 |
| GPT-10K-TA (GPTA-10KR) |
|
General Purpose

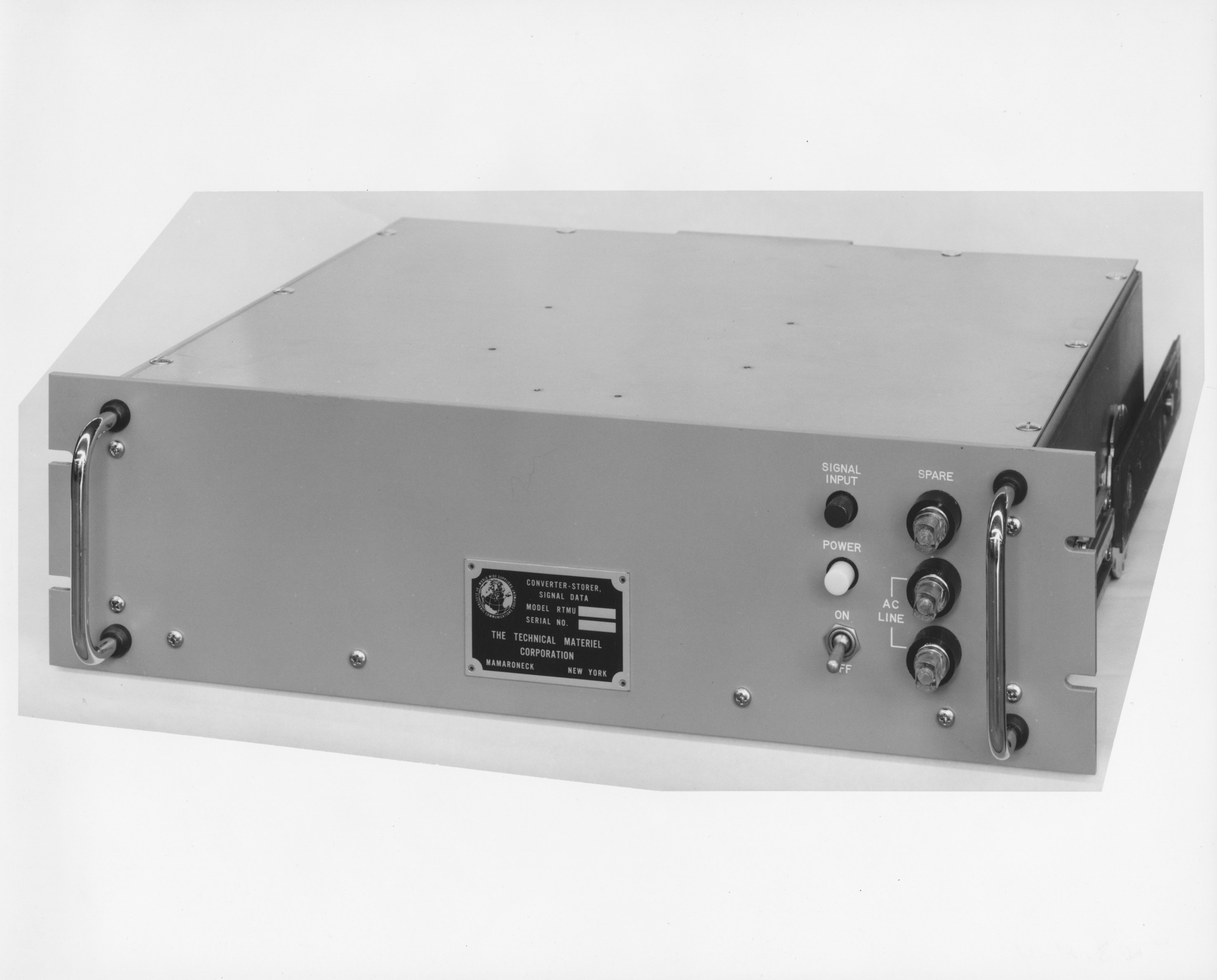

Transmitter. RTMU-1, RTTD-1, CHGR-3, HFSR-1, HFP-1, CMR(
)-1. |
|
|
| GPT-10K-TA |
|
(Note: there are two
entries in different parts of this notebook for this Model).
Provides 4 discrete audio channels, each channel 250-3040 cps with option
for a fifth wideband channel. Manually tuned but capable of
adaptation to Technimatic tuning by field modifiation. |
|
|
| GPT-10K-TB |
|
Sames as GPT-10K-TA, but fitted
with Technimatic tuning for in-station control. |
|
|
| GPT-10K-TE |
|
Sames as GPT-10K-TA, but fitted
with memory unity and timing device for completel Technimatic remote
control by means of teletypewriter message format. Message format
can be in either 7.42 Baudot or the new ASCII code. |
|
|
| GPT-10K-TF |
|
Same as GPT-10K-TA, but has
in-station control facilities for push-button control of 10 pre-set
frequencies. Manual control of 280,000 channels also available. |
|
|
| GPT-10K-U |
|
General Purpose
Transmitter. 2-28 Mc, 10Kw, SBG-2 (350-3300), AK-100, TIS-3 |
|
|
| GPT-10K-V |
|
General Purpose
Transmitter. Same as GPT-10K-U, less TIS-3 |
|
|
| GPT-10K-W |
|
General Purpose
Transmitter. SLM-1, SBE-2, FSA-2, MCP-2, VOX-5, APP-1, TTG-2, TIS-3 |
TB-1008 |
|
| GPT-10K-W-5 |
|
General Purpose
Transmitter. SLM-1, TIS-3, FSA-2, TTG-2, SBE-2, VOX-5 |
TB-1008 |
|
| GPT-10K-X |
|
General Purpose Transmitter
(Signal Corps). 2-28Mc, exciter frame wire, standard, less:
FSA, SBE-2, SLM, XFK, TTG, MCP. Deleted exciter frame rear. |
|
|
| GPT-10K-Y |
|
General Purpose
Transmitter. SLM-2, MCP-2, VOX-5, XFK, AK-100, APP-1 |
|
|

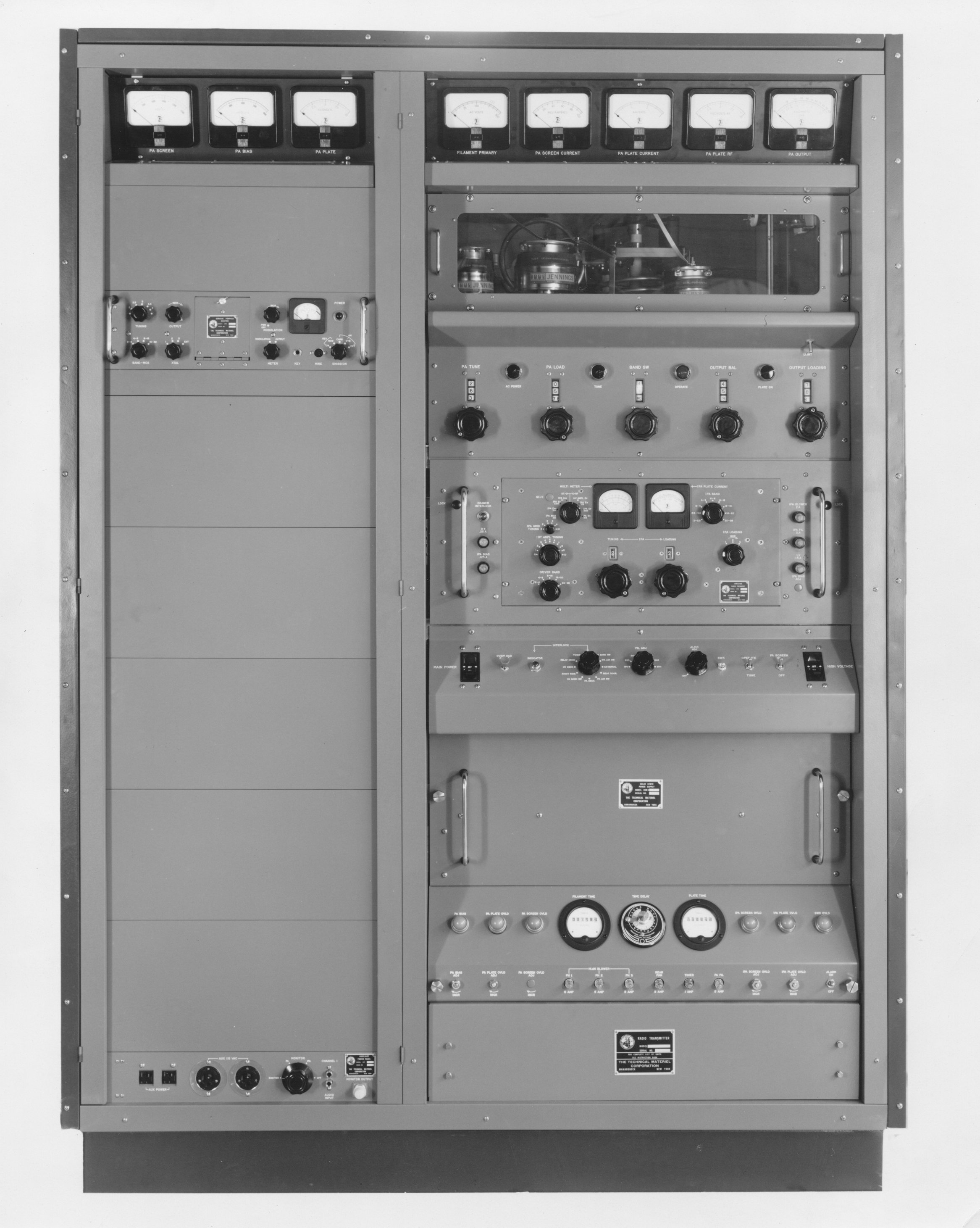

| GPT-10KYB |
 |
General Purpose
Transmitter. |
|
|
| GPT-10K-Z |
|
General Purpose
Transmitter. CLL-1, CPP-2, CBE-1, CSS-1, TIS-3, CHG-2, CHL-1, CMO-1,
CPP-5 |
|
|
| GPTG-10KA (11/19/65) |
|
..was GPT-10KUA. 1 SME with
similarity to TSTA configuration. |
|
|
| GPTA-10KA |
|
Provides 4 discrete audio
channels, each channel 250/3040 cps with option of a fifth wideband
channel. Manually tuned, but capable of adaption to Technimatic
tuning with field modification. |
|
|
| GPTB-10K(_) |
|
Same as GPTA-10K above, but
fitted with Technimatic tuning for in-station control |
|
|
| GPTE-10K(_) |
|
Same as GPTA-10K but fitted
with memory unit and timing device for complete Technimatic remote
control by means of teletypewriter message format. Message format
can be in iether 7.42 Baudot code or the new ASCII code. |
|
|
| GPTF-10K(_) |
|
Same as GPTA-10KA but has
in-station control facilities for push-button control of 10 pre-set
frequencies. Manual control of 280,000 channels also available. |
|
|
| GPTG-10K(_) |
|
Exciter uses multi-channel,
solid-state, pre-tuned (up to 8 channels) with manual selection of
the channel and automatic tuning of all high level stages of the
transmitter by pressing a button on the front of the transmitter.
Note: with this exciter, the 4 channel ISB
capability and its attendant operational capabilities are not available. |
|
|
| GPTH-10KA |
|
10Kw Technimatic tuned
transmitter uses SBG-4 exciter and ATL-10K linear. |
|
|
| GPTH-40KA |
|
40Kw transmitter, Technimatically
tuned with ATL-40K final. |
|
|
| GPTH-200KA |
|
Consists of ATL-200K with
GPTH-10KA driver. |
|
|
| GPTM-10KLA |
 |
Low Frequency Transmitter, same
as GPTM-10KLFE but with special filter (Hanrahan, letter Aug 68) |
|
|
| GPTM-10KYA |
|
not issued due to possible
confusion with GPTR-10KYA |
|
|
| GPTM-10KYB |
|
GPT-10K (basic) with AR-161,
RFC-1B, HVRC-2, SWCU-1, AX-104, APP-10, GPE-1A. S.O. 51-8498,
J-12295A |
|
|

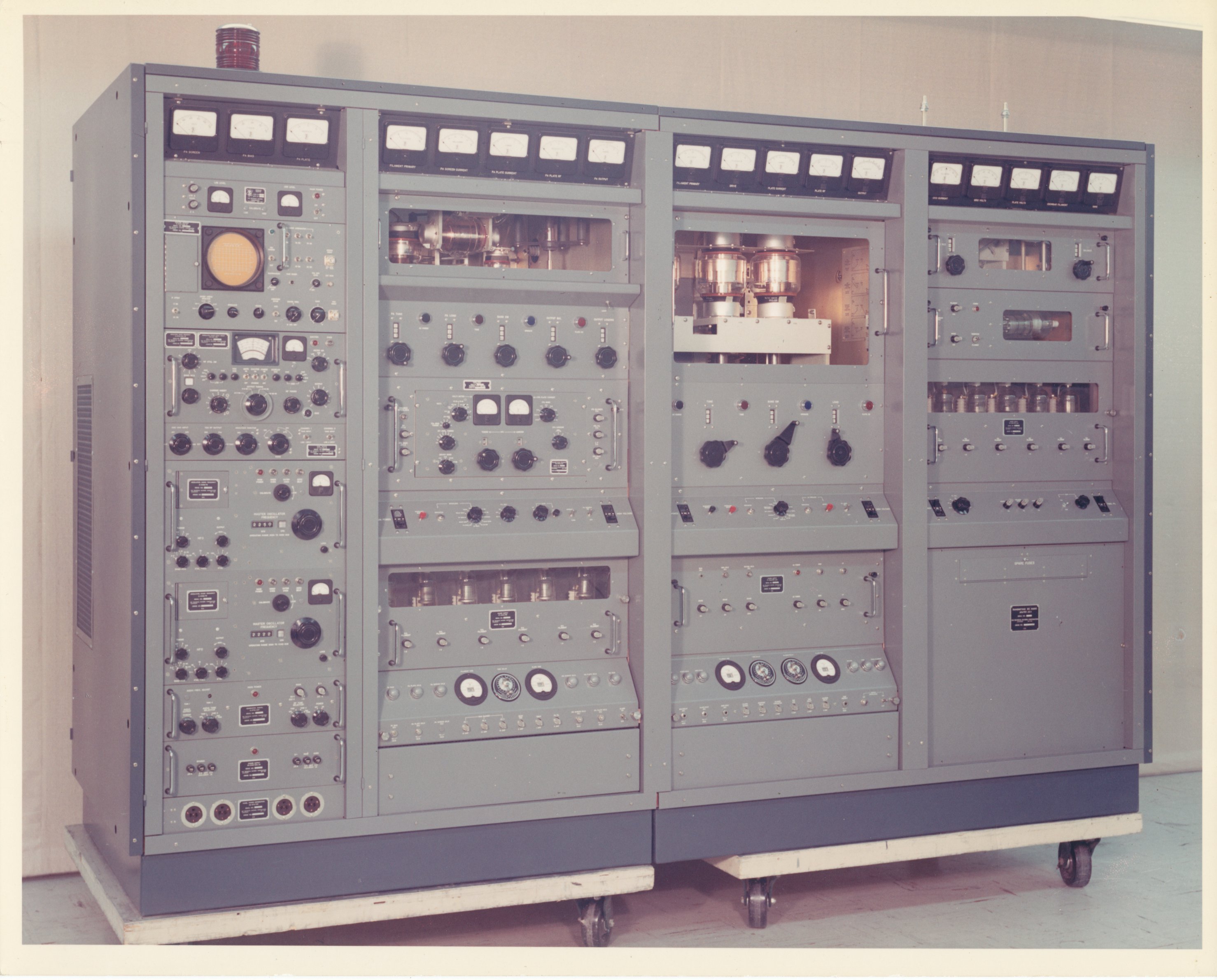

| GPT-40K-A |
 |
Radio Transmitter. XFK, SLM,
SBE, FSA-2, VOX-5, MCP-2, APP-1, TTG-2, AK-100 |
TB-1009 |
AN/FRT-40 |
| GPT-40K-B |
|
Radio Transmitter. SLM,
SBE-2, FSA-2, VOX-5, MCP-2, APP-1, XFK, TTG-2, AK-100 |
TB-1009 |
|
| GPT-40K-C |
|
Basic 40K transmitter.
Wired standard in exciter rack. Less the following: XFK, FSA,
MCP, VOX, TTG, ISK, but with SLM, SBE-2 |
|
|
| GPT-40K-D |
|
Standard 40K with SBE-2 painted
grey |
|
|
| GPT-40K-E |
|
Radio Transmitter |
TB-1006 |
|
| GPT-40K-E(_) |
|
General Purpose Transmitter
Series. This is a number series for transmitters that have auxiliary
frame wired to accept KMCU-1 or TIS-3A. LETTER suffix to be supplied
by advertising department to denote specific configuration. 40Kw PEP
output. |
|
|
| GPT-40K-EA |
|
General Purpose Transmitter |
|
|
| GPT-40K-EB |
 |
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-1C, CHL-1, CPP-2,
CPP-5, SWCU-1, RFC-1B, HVRC-2, HVRB-2, APP-10. Does not include TIS
or KMCU, but is wired to accept either one. |
|
|
| GPT-40K-EC |
|
General Purpose Transmitter |
|
|
| GPT-40K-ED |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-1C, KMCU-1, CHL-1,
CPP-2, APP-10, CPP-5, SWCU-1, RFC-1A, HVRC-1, HVRB-1, 40Kw PEP output |
|
|
| GPT-40K-EE |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-1C, KMCU-1, CHL-1,
CPP-2, APP-10, CPP-5, SWCU-1, RFC-1A, HVRC-2, HVRB-2. Designed for
van mounting. Side covers and rear doors replaced by metal
panels. Auxiliary frame wired to accept KMCU-1 or TIS-3A. 40
Kw PEP output. GPT-10K-RH with HVRB-2, HVRC-2. |
|
|

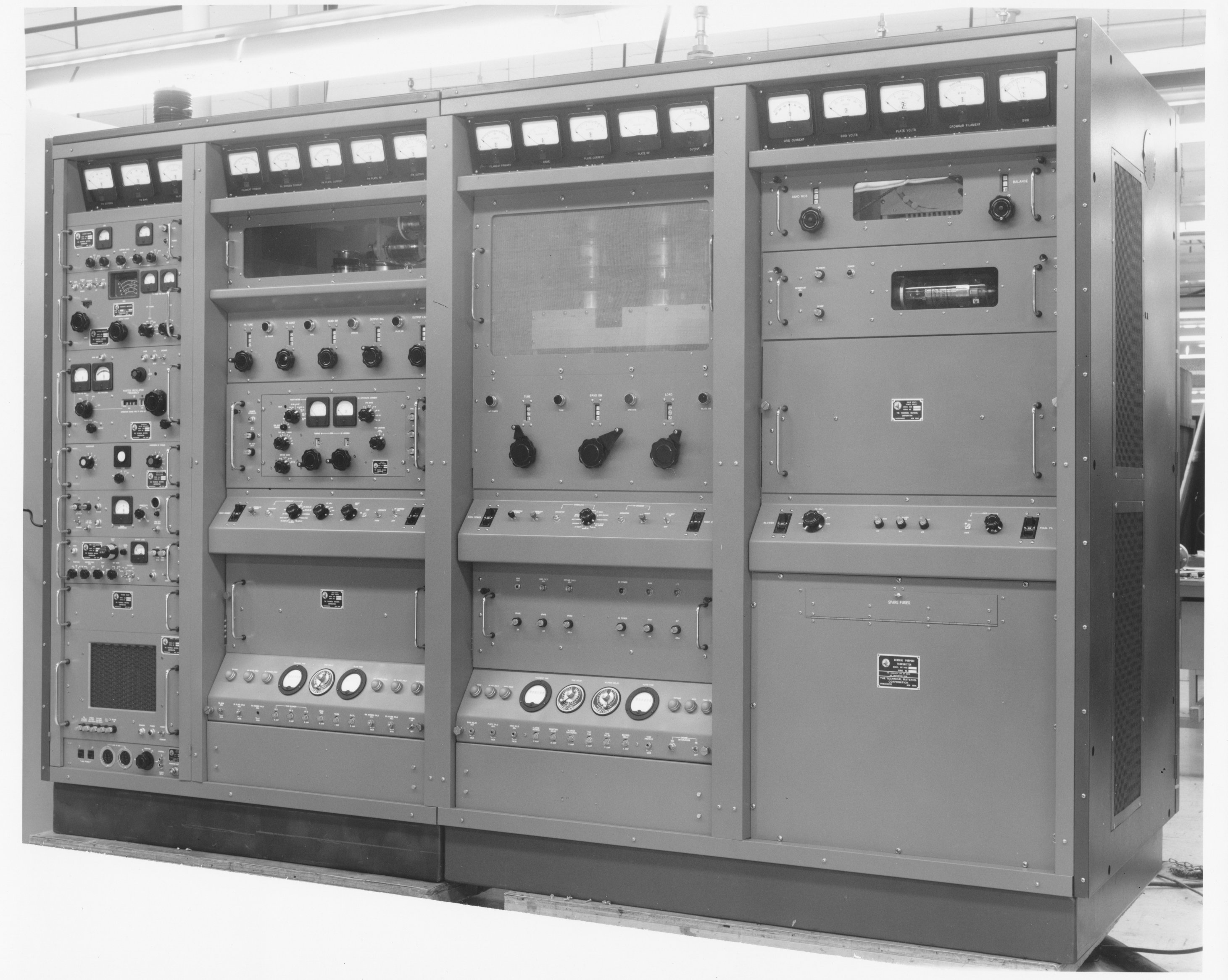

| GPT-40K-EF |
 |
Same as GPT-10K-RF, but 40Kw. |
|
|
| GPT-40K-EG |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-1C, CHL-1, CPP-2,
CPP-5, SWCU-1, RFC-1B. Vacuum tube, Recitifier drawers APP-10.
Does not include TIS or KMCU, but is wired to accept either. |
|
|
| GPT-40K-EH (4/10/66) |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CSS-1C, CHL-1, CPP-2,
CPP-5, SWCU-1, RFC-1B, HVRB-2, HVRC-2, APP-10, TIS-3A. 240/480V
supply special van mount, no front or rear doors. |
|
|
| GPT-40K-EK (5/23/66) |
|
General Purpose
Transmitter. CBE-1, CHG-2B, CMO-1, CLL-1, CHL-1, CPP-2, CPP-5,
CSS-1C, RFC-1B, HVRC-2, HVRB-2, SWCU-1, TIS-3. 240/480V transformers, no
front, but has rear doors |
|
|
| GPT-40K-EL |
 |
Modified for plane, 2-28Mc,
Project 15 |
|
|
| GPT-40K-F |
|
Radio Transmitter |
TB-1009 |
|
| GPT-40K-F3 |
|
Radio Transmitter. TTG-2,

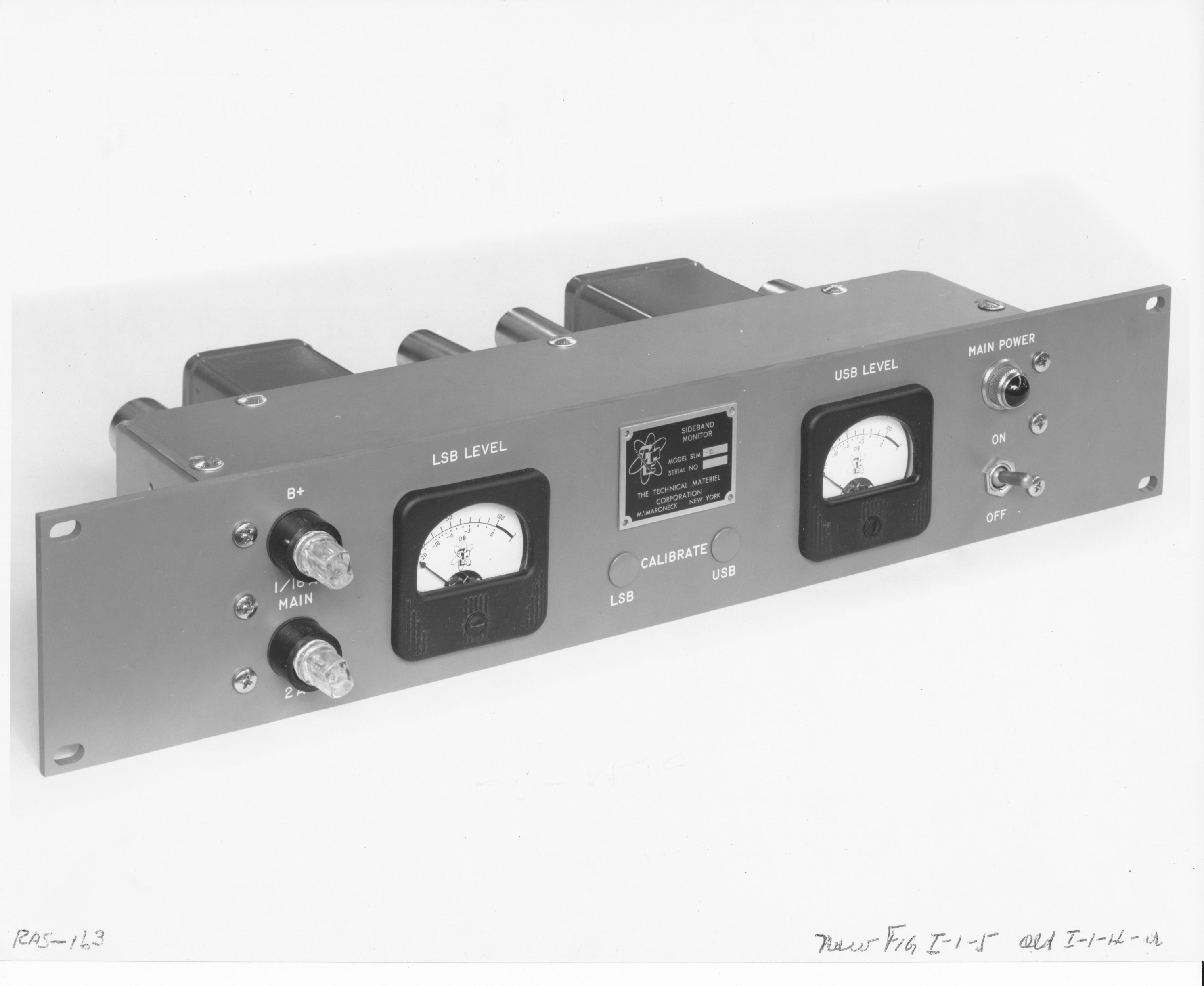

FS-2, VOX-5, SLM-2, AK-100, SBE-3 |
|
|
| GPT-40K-G |
|
Radio Transmitter |
TB-1006 |
|
| GPT-40K-H |
|
Radio Transmitter. CLL-1,
CPP-2, CBE-1, CSS-1, TIS-3, CHG-2, CHL-1, CMO-1, CPP-1 |
|
|
| GPT-40K-I |
|
General Purpose Transmitter |
|
|
| GPT-40K-L |
|
General Purpose Transmitter; 2 Mc
SBE-3 |
|
|
| GPT-40K-M |
|
General Purpose Transmitter.
GPT-40K-A less SBE-2, FSA-2, TTG-2, plus 2 MS-157-65-115 and 1 MS-157-115 |
|
|
| GPT-40K-N |
|
2 Mc, SBG-2 |
|
|
| GPT-40K-O |
|
VOX-5, APP-2, AK-100 |
|
|
| GPT-40K-P |
|
|
|
|
| GPT-40K-Q |
|
|
|
|
| GPT-40K-R |
 |
General Purpose
Transmitter. Kits 172, 173, 160, 168 |
|
|
| GPT-40K-S |
|
General Purpose Transmitter,
similar to GPT-40K-E4, with the following changes:
- APP-10 replaces APP-8
- Electrical revision to power input section of main
frame
- Extra TF-275 in auxiliary frame powers APP-10.
Provide additional transformer, 1500 watts capacity, to supply the 115
VAC service outlets of APP-8.
|
|
|
| GPT-40K-T |
|
General Purpose
Transmitter. SBE-2, SLM-2, MCP-2, APP-9, SWCU-1, no front doors on
cabinets. |
|
|
| GPT-40K-U |
|
General Purposes
Transmitter. This is GPT-40K-E4 with KIT-180 (vapor-cooling
modification) installed. |
|
|
| GPT-100K |
|
General Purpose Transmitter. |
TB-1016 |
|
| GPT-200K |
 |
General Purpose
Transmitter. CBE, TIS-3, CHG-2, CMO-1, CLL-1, CSS-1A, CHL-1, CPP-2,
APP-3, CPP-5 |
TB-1014 |
AN/FRT-62 |
| GPT-200KA |
|
|
|
|
| GPT-200KB |
|
General Purpose
Transmitter. GPT-100KA less TIS-3, plus KMCU-1 |
|
|
| GSB-1/-2 |
|
Single Sideband Adapter |
SSB-194A,
TB-4002 |
|
|
H |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| HAF-1 |
 |
Audio Filter |
TB-3001 |
F-712/FRR-60(V) |
| HAFR-1 |
|
Remote-controlled Audio Filter
(HI cutoff and LO cutoff remoted) |
|
|
| HFA-1 |
 |
Audio Frequency Amplifier |
TB-3001 |
AM-3296/FRR-60(V) |
| HFAR-1 |
 |
Remote-controlled Audio Frequency
Amplifier, p/o ARCA system |
|
|
| HFD-1 |
|
Antenna Distribution (high
frequency) |
TB-8007 |
|
| HFD-2 |
|
Antenna Distribution (high
frequency) |
TB-8007 |
|
| HFD-2/BNC |
|
Same as HFD-2, but equipped with
BNC connectors |
|
|
| HFD-3 |
|
Antenna Distribution (high
frequency) |
TB-8007 |
|
| HFD-4 |
|
HFD-2 for broadcast band |
TB-8007 |
|
| HFD-5 |
|
HFD-1 with rear connection, type
C |
TB-8007 |
|
| HFD-6 |
|
Antenna Distribution unit, HF,
all connections type QDS connectors |
|
|
| HFD-7 |
|
Antenna Distribution unit with
QDM receptacles |
|
|
| HFF-1 |
 |
Radio Frequency Amplifier, fixed
tune RF head |
TB-3001 |
TN-396(P)/FRR-60(V) |
| HFFD-1 |
|
Radio Frequency Amplifier, 2-3 Mc |
|
TN-397/FRR |
| HFFD-2 |
|
Radio Frequency Amplifier, 3-4 Mc |
|
TN-398/FRR |
| HFFD-3 |
|
Radio Frequency Amplifier, 4-6 Mc |
|
TN-399/FRR |
| HFFD-4 |
|
Radio Frequency Amplifier, 6-8 Mc |
|
TN-400/FRR |
| HFFD-5 |
|
Radio Frequency Amplifier, 8-12
Mc |
|
TN-401/FRR |
| HFFD-6 |
|
Radio Frequency Amplifier, 12-16
Mc |
|
TN-402/FRR |
| HFFD-7 |
|
Radio Frequency Amplifier, 16-24
Mc |
|
TN-403/FRR |
| HFFD-8 |
|
Radio Frequency Amplifier, 24-32
Mc |
|
TN-404/FRR |
| HFI-1 |
 |
IF Amplifier. |
TB-3001 |
AM-3295/FRR-60(V) |
| HFIR-1 |
|
HFI-1 with remote control kit for
HFI-1, provides remote control for AFC On/Off, IF Bandwidth, Manual Gain |
|
|
| HFIA-1 |
|
IF Amplifier. HFI-1 with
independent remote control of IF bandwidth. |
|
|
| HFIB-1 |
|
HFI-1 with new kit,
KIT-231. Conversion adds ledex motor to HFI-1 bandwidth control for
remote control of bandwidth. |
|
|
| HFIR-1 |
|
Remote controlled IF amplifier,
p/o ARCA system |
|
|
| HFIR-2 (11/23/65) |
|
IF Amplifier (Remoted).
Similar to HFIR-1 except only four IF strips as follows:
- Filter Function
Audio Response Remoted
Function
- FX170 USB
175-6100
Chan. A IF BW
- FX171 LSB
175-6100
Chan. B IF BW
- FX186 USB
250-3025N
AFC On/Off
- FX188 LSB
250-3025N
RF Gain (includes) AGC On/Off
Digital
|

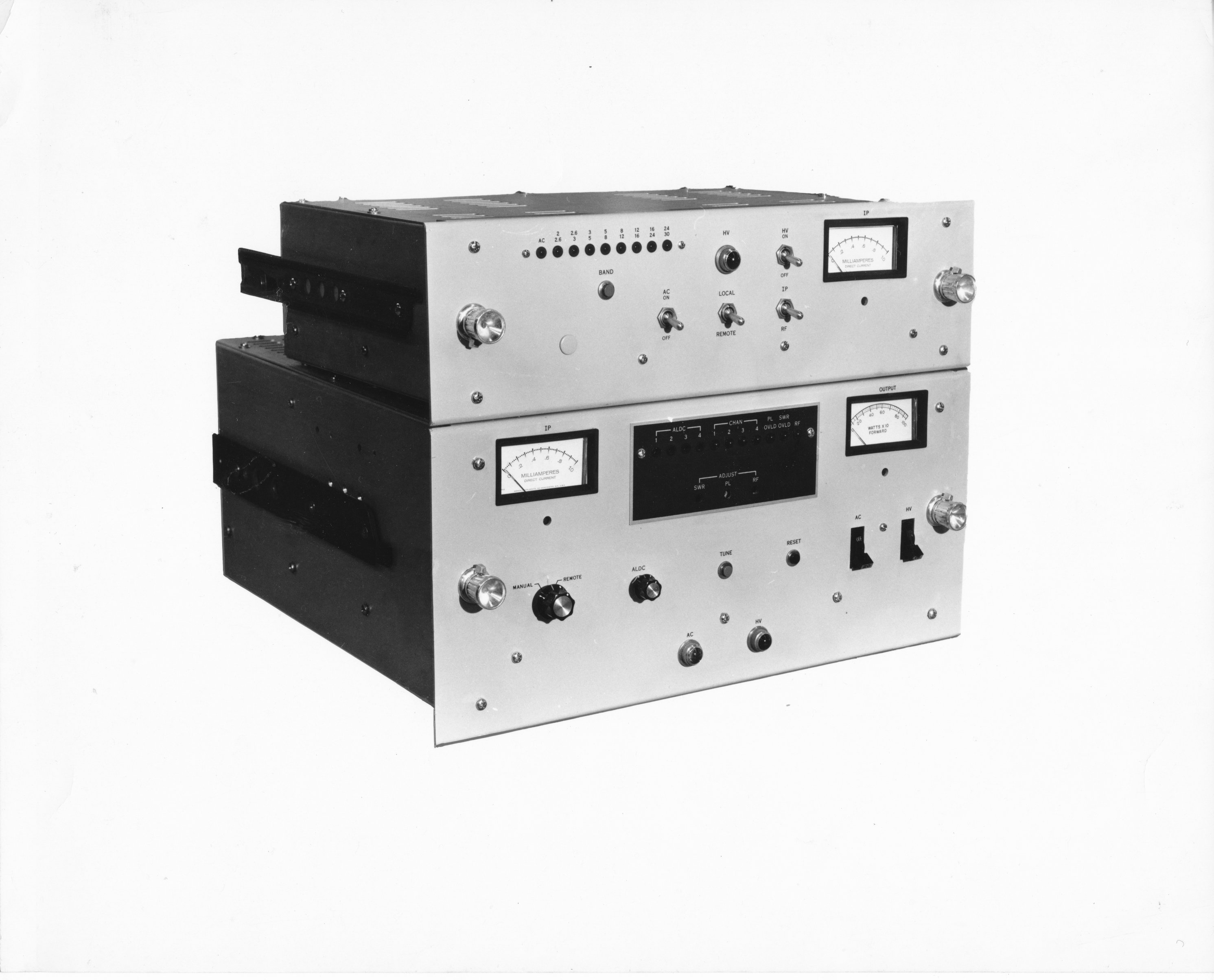

| HFL-100 (6/8/71) |
 |
High Frequency Linear
Amplifier. Uses an 8895 tube as the final. Will accept 100 mW
input from any exciter (SME-6 or MMX) broadband output 50W average, 100W
peak |
|
|
| HFLMF-200 |
|
Modified HFL-100 to provide 200W
output in the 435-500Kc range. To be provided with low-pass filter
to compy with FCC requirements. |
|
|
| HFLM-1K |
 |
High Frequency Linear
Amplifier. 1Kw PEP, manually operated, 2-30 Mc |
|
|
| HFLA-1K |
 |
High Frequency Linear
Amplifier. 1Kw PEP, automated, 2-30 Mc |
|
|
| HFLM-10K |
|
High Frequency Linear Amplifier,
10Kw PEP, manually operated, 2-30Mc |
|
|
| HFLA-10K |
|
High Frequency Linear
Amplifier. 10Kw PEP, automated, 2-30 Mc |
|
|
| HFLM-10K/1 |
|
Linear Power Amplifier--drives
HFTM-40KJ |
|
|
| HFP-1 |
 |
Power Supply |
TB-3001 |
PP-3341/FR-60(v) |
| HFP-1A |
|
Power Supply |
|
|
| HFP-1K (6/7/71) |
|
Switchable Harmonic Filter,
2-30Mc, Manual tuning |
|
|
| HFPA-1K (6/7/71) |
|
Switchable Harmonic Filter,
2-30Mc, automatic tuning |
|
|
| HFR-1 |
 |
Continuous RF Tuner |
|
TN-376/UR |
| HFR-1A |
|
Continuous RF Tuner.
Improved version of HFR-1 |
|
|
| HFR-2 |
|
Continuous RF Tuner.
Replacement for HFR-1 with electrical modification including oven
temperature overheat indictoar |
|
|
| HFR-2B |
 |
Continuous RF Tuner |
|
|
| HFR-4 |
 |
RF Tuner in DDR-10K (panel heigh
7") |
|
|
| HFRR-1 |
|
Remote Controlled Continuous RF
Tuner, p/o ARCA system |
|
|
| HFRR-1A |
|
Remote Controlled Continuous RF
Tuner, Remote controlled version of HFR-1A, bandswitch and tune control
remoted. |
|
|
| HFRR-2 |
|
Remote Controlled Continuous RF
Tuner, 2-32 Mc, bandswitch and tune control remoted. |
|
|
| HFRR-2A |
|
Remote Controlled Continuous RF
Tuner, used in DDR-506 |
|
|
| HFRR-4 |
|
RF Tuner, p/o DDR-10K (Panel
height 7") |
|
|
| HFRR-5 |
|
Reassigned for commercial version
of HFRR-4 10/10/68 |
|
|
| HFS-1 |
 |
Control Synthesizer |
TB-3001 |
O-941/UR |
| HFS-4 |
 |
Synthesizer in DDR-10K (Panel
height 5-1/4") |
|
|

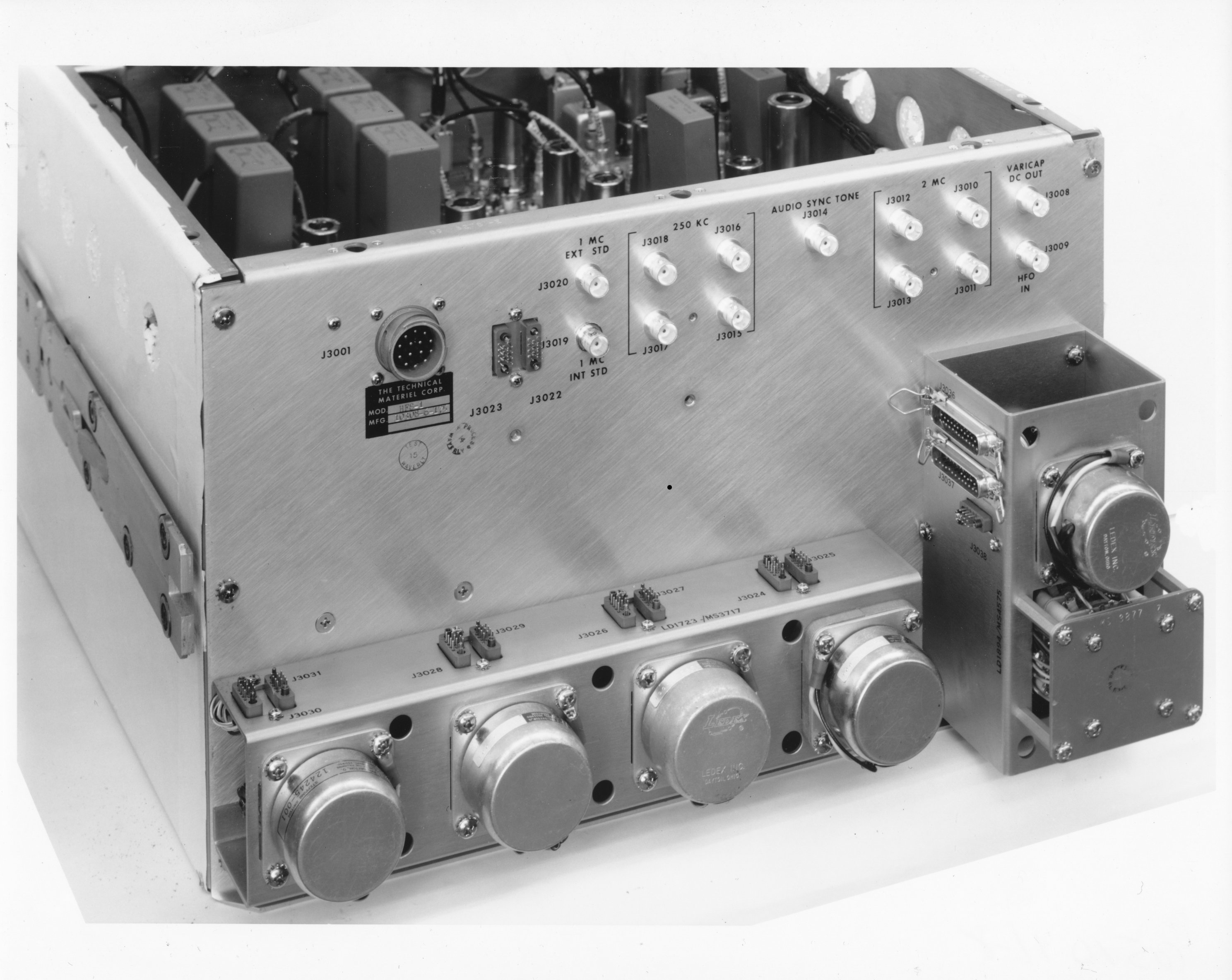

| HFSA-1/-2 |
 |
Control Synthesizer.
Similar to HFSR-1 but with readback line. Specially designed for use
in TSTE-10K. 1Mc, 100Kc, 1Kc, and 0.1Kc controls remoted. |
|
|
| HFSR-1 |
 |
Control Synthesizer. Same
as HFS-1 but with remote capability. 1Mc, 100Kc, 1Kc, and 0.1Kc
controls remoted. When controls preset, info change relayed via 18
bawos (?) to TSTE Amplifier bandswitch. |
|
|
| HFS-1A HFSR-1A HFSA-1A (12/6/65) |
|
Similar to HFS-1, HFSR-1, and
HFSA-1 with improved spurious response, pull-in and hold-in ranges of
phase detector and operation of sync indicator--application of KIT-281 |
|
|
| HFSR-4 |
|
Synthesizer, p/o DDR-10K (panel
height 5-1/4"). |
|
|

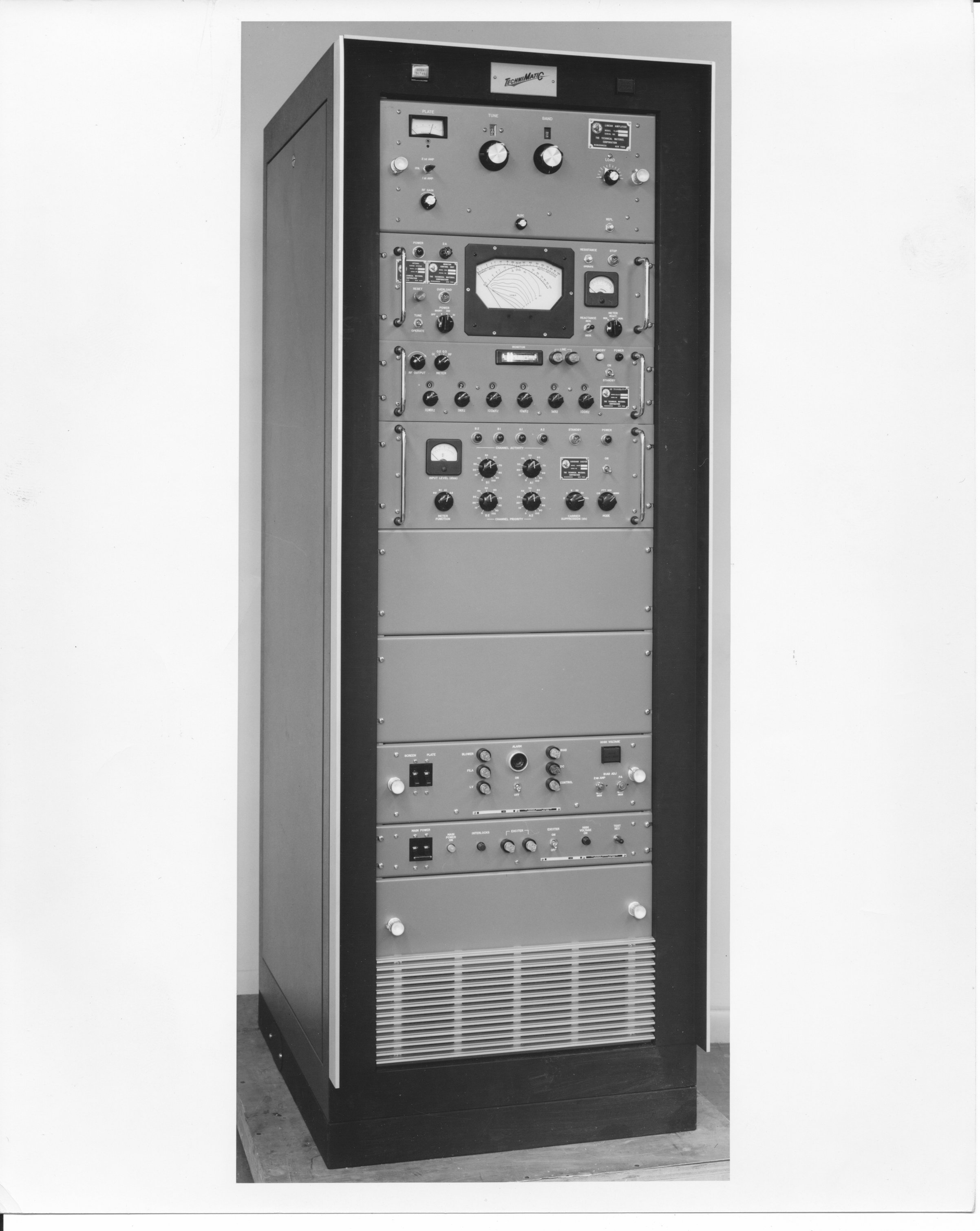

| HFTM-1KA |
|
High Frequency Transmitter.
Consists of RFD-1B, PS-4A, PS-5, SBG-4, MCU-2, TU-2. S.O.
31-0438-120. Eng. job # 3395 |
|
|
| HFTM-1KJ |
|
High Frequency Transmitter.

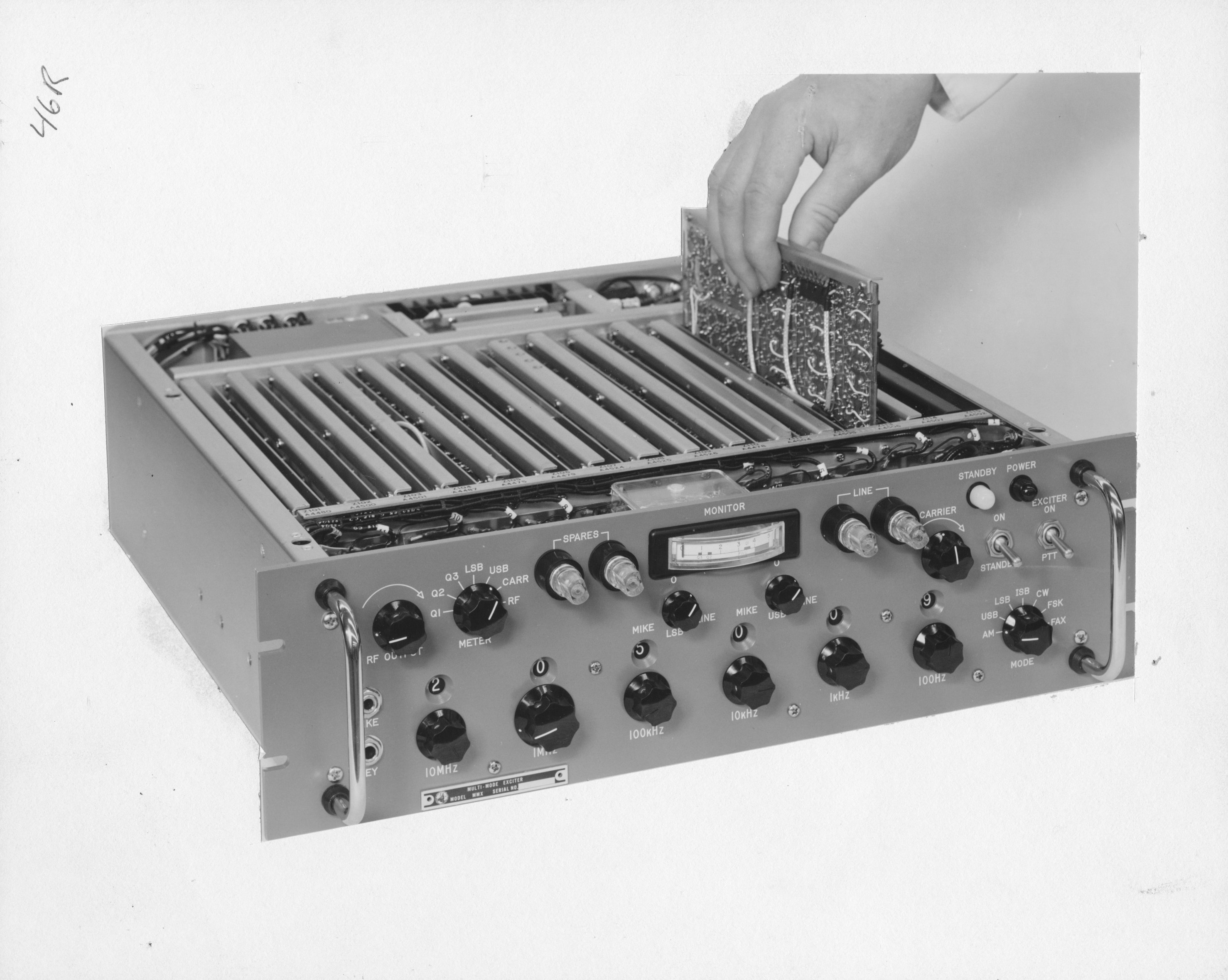

1Kw PEP, 2-30Mc, manually operated using MMX( )-2 exciter. |
|
|
| HFTM-1KJS |
|
High Frequency Transmitter.
1Kw PEP, 1.5-26 Mc, manually operated using MMX( )-2 exciter. |
|
|
| HFTA-1KJ |
|
High Frequency Transmitter.
1Kw PEP, 2-30 Mc, automatically operated using MMX(A)-2 exciter. (MRU-33) |
|
|
| HFTA-1KJ2 |
|
High Frequency Transmitter.
1Kw PEP, 2-30 Mc, automatically operated using MMX(A)-2B exciter. S.O.
31-0439 (Portugal) |
|
|
| HFTM-10KJ |
|
High Frequency Transmitter.
10Kw PEP, 2-30Mc, manually operated using MMX( )-2 exciter |
|
|
| HFTM-10KJS |
|
High Frequency Transmitter.
10Kw PEP, 1.5-26Mc, manually operated using MMX( )-2 exciter |
|
|

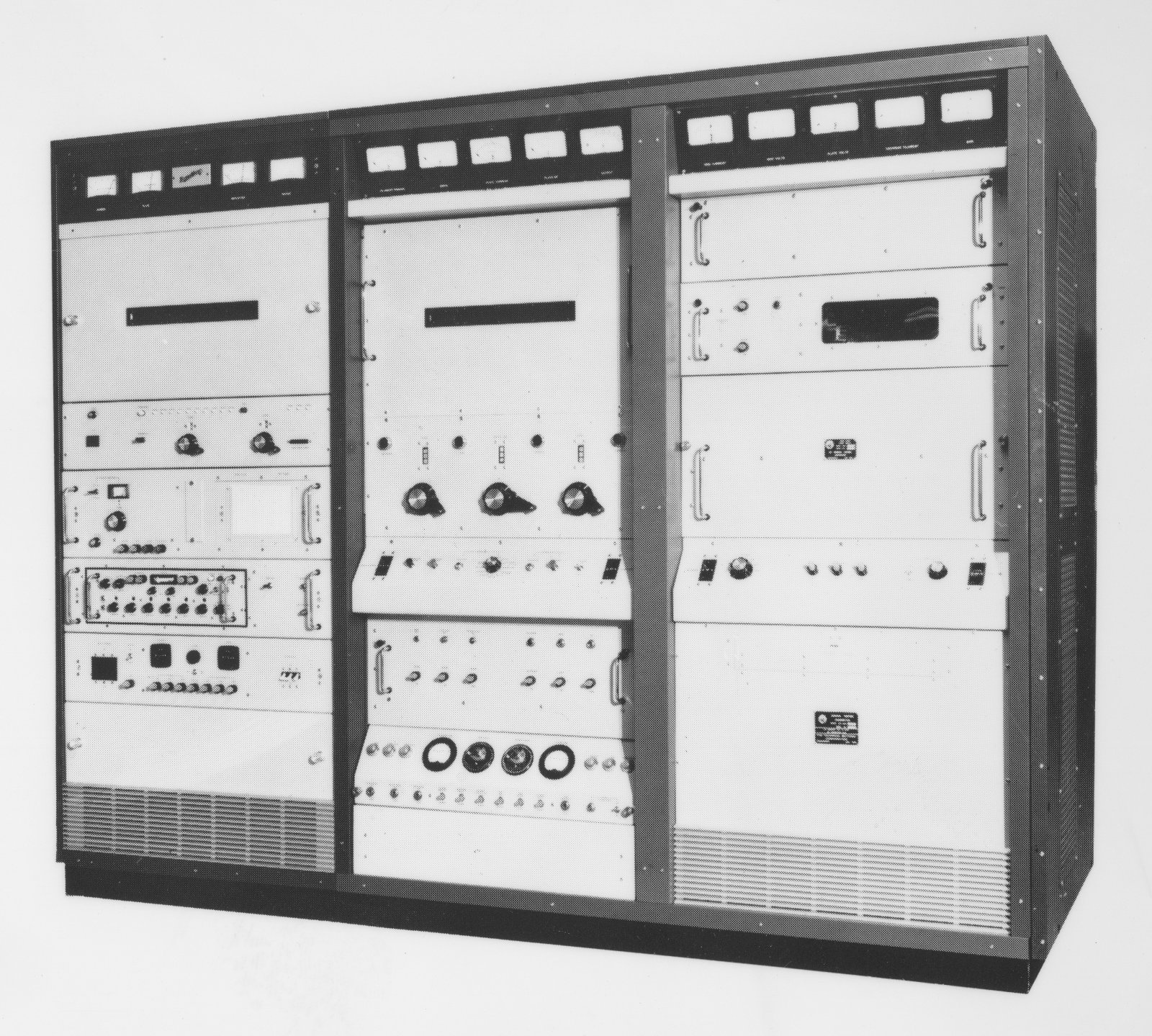

| HFTM-40KJ |
|
General Purpose Transmitter, 2-30
Mc, manually operated using HFLM-10K/1 |
|
|
| HFT-1K |
 |
High Frequency Transmitter |
TB-202-2116 |
|
| HFTA-1KJ |
 |
High Frequency Synthesized
Transmitter |
|
|
| HFTA-1KJ2 |
 |
High Frequency Synthesized
Transmitter |
|
|
| HFTA-1KJ2A |
 |
High Frequency Synthesized
Transmitter |
|
|
| HFTM-1KA |
 |
High Frequency Synthesized
Transmitter |
|
|
| HFTM-1KJ |
 |
High Frequency Synthesized
Transmitter |
|
|
| HFTM-1KJ2 |
|
High Frequency Synthesized
Transmitter |
|
|
| HFTM-1KJ2A |
|
High Frequency Synthesized
Transmitter |
|
|
| HFTM-1KJS |
|
High Frequency Synthesized
Transmitter |
|
|
| HFT-10KJ2 |
|
10KW Synthesized Transmitter |
TB-1012-1 |
|
| HFT-10KJS |
 |
HF Transmitter |
TB-1012 |
|
| HFTA-10KJ2 |
|
General Purpose Transmitter,
automatically tuned |
|
|
| HFTM-10KJ |
 |
General Purpose Transmitter,
manually tuned |
|
|
| HFTM-10KJ2 |
General Purpose Transmitter,
manually tuned |
|
|
| HFTM-10KJS |
General Purpose Transmitter,
manually tuned |
|
|
| HFT-40K |
|
40KW High Frequency Transmnitter |
TB-1B02111 |
|
| HFTM-40KJ |
 |
40KW General Purpose Transmitter,
Modifiet AN/FRT-40 |
TB-1.0301 |
|
| HHC-1 |
|
HF/HF Polar Diversity Coupler |
TB-8008 |
|
| HLC-1/-2/-3 |
 |
HF/LF Antenna Coupler with flange |
TB-8008 |
|
| HLC-4/-5 |
|
HF/LF Antenna Coupler (Special) |
|
|
| HLC-6 |
|
HF/HF Polarization Diversity
Coupler |
TB-8008 |
|
| HNF-1 |
 |
Notch Filter |
TB-3001 |
F-711/FRR-60(V) |

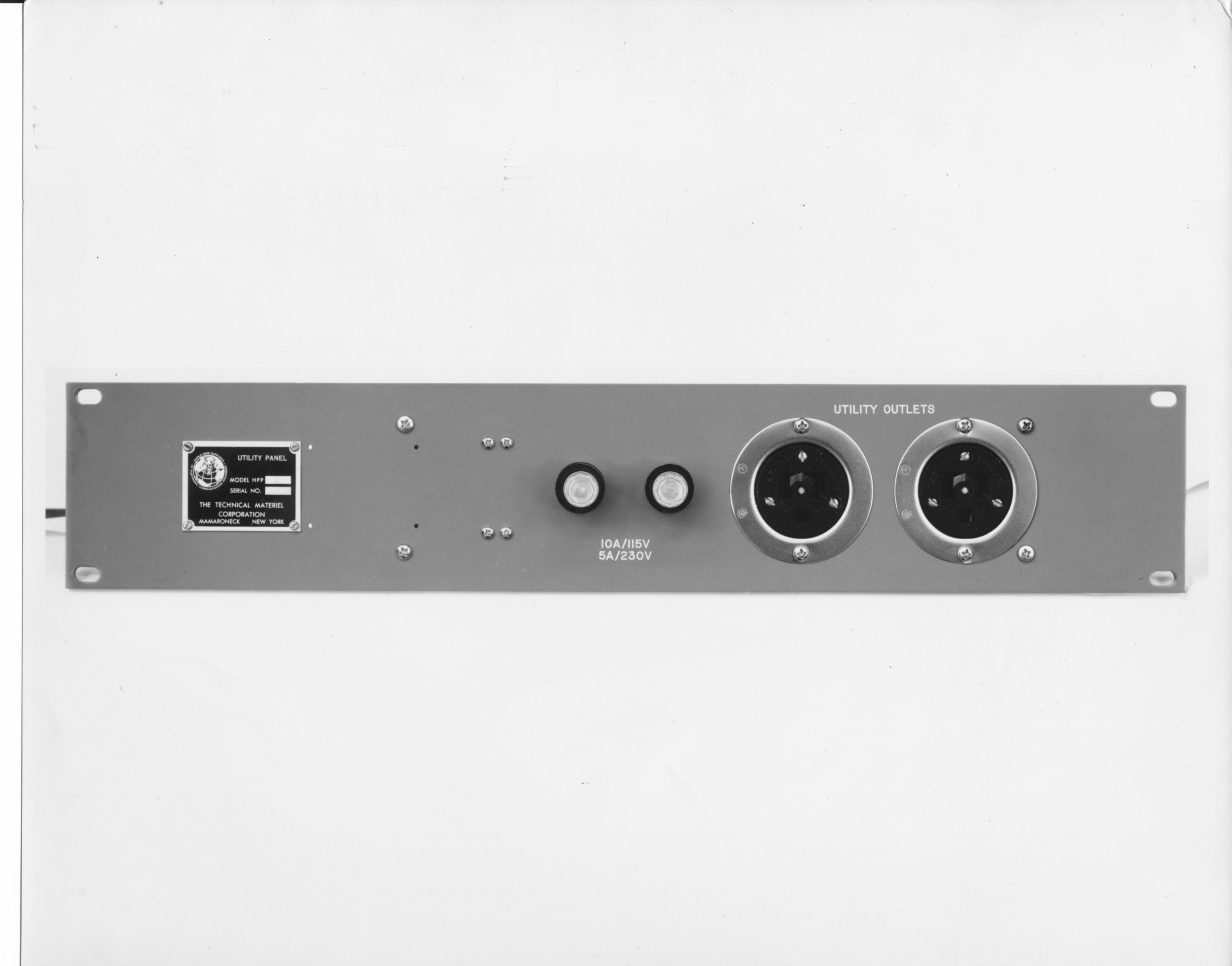

| HPP-1 |
 |
Auxiliary Power Panel, copy of
APP-1 |
|
|
| HS-100-1C |
|
Microphone, Carbon |
|
|
| HS-100-1D |
|
Microphone, Dynamic |
|
|
| HS-100-2C |
|
Microphone, Carbon |
|
|
| HS-100-2D |
|
Microphone, Dynamic |
|
|
| HS-100-3C |
|
Microphone, Carbon |
|
|
| HS-100-3D |
|
Microphone, Dynamic |
|
|
| HSP-1 |
|
Obsolete -- See HSP-2 |
|
|
| HSP-2 |
|
Audio Switch Panel, installed
height 6". p/o DDR-5 group, 3-1/2"H x 19"W x
14"D. |
TB-3001, TB-3007,
TB-3008, TB-3009 |
SB-1865/FR |
| HSP-3 |
|
Audio Switch Panel. Same as
HSP-2 but has two 600-ohm to 3.2 ohm transformers to match speaker voice
coils. |
|
|
| HSS-1 |
|
Speaker Panel, 1 speaker |
TB-3001 |
LS-491/FR |
| HSS-2 |
|
Speaker Panel |
|
|
| HSS-3 |
 |
Speaker and Control Panel,
5-1/4" height |
|
|
| HSS-4 |
|
Speaker-Amplifier-Selector Panel.
Dual 3"x5" speakers on 3-1/2" panel with two four-channel
selector switches and 2 bridging amplifiers. |
|
|
| HSS-5 |
|
Special Speaker, single, Panel
for Canadian quote. |
|
|
| HSS-6 |
|
Speaker Panel, BSP-4, with
4-channel audio selector for DDRR-5B |
|
|
| HSS-7 |
 |
Speaker Panel, BSP-4, with output
pad and 3.2-ohm to 600-ohm output. |
|
|
| HSS-8 |
|
Speaker Panel.
3"x5" speaker, 3-1/2" panel, 4-channel selector switch,
bridging amplifier (must withstand 70C ambient), AGC combiner network as
on HSP-1 |
|
|
| HSSR-5 |
|
Speaker Panel. 1 bridging
amplifier, 1 speaker, 1 volume control, 1 speaker selector switch, 1 line
output selector ledex (does not contain ledex switchings). |
|
|

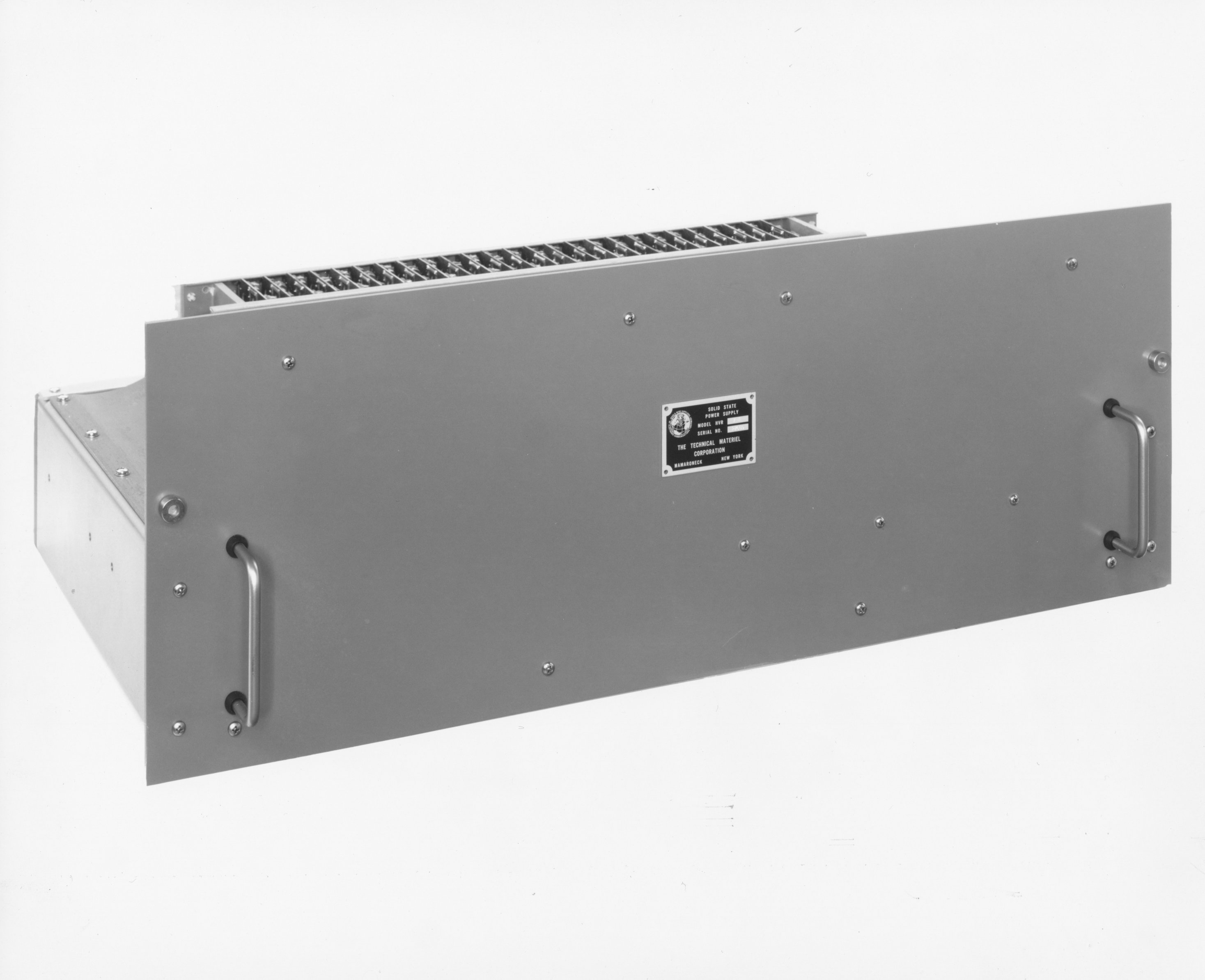

| HVRA-1 |
 |
Solid-State Power Supply for
GPT-100K and GPT-100K |
|
|
| HVRB-1 |
|
Solid-State Power Supply for
GPT-40K |
|
|
| HVRC-1 |
|
Solid-State Power Supply for
GPT-10K |
|
|
| HVRB-2 |
 |
Same as HVRB-1 but less
blowers. Metal work modified. |
|
|
| HVRC-2 |
 |
Same as HVRC-1 but less
blowers. Metal work modified. |
|
|
| HYB-2/-3 |
|
2-4-wire Voice Hybrid |
TB-9002 |
|
|
I |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| ID-234 |
|
USC and GS Antenna Test System |
|
|
| ISB-11 |
|
Impermeable Storage Bag |
SSB-161 |
|
| ISB-15 |
|
Impermeable Storage Bag |
SSB-161 |
|
| ISB-21 |
|
Impermeable Storage Bag |
SSB-161 |
|
| ISK-1 |
 |
Isolation Keyer |
SSB-240,
TB-9003 |
KY-333/URA |
|
K |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| KMCU-1 |
|
Keyer Monitor Control Unit.
Obsoletes RTC-3 |
|
|
| KMCU-2 (9/2/66) |
|
Updated KMCU-1 |
|
|

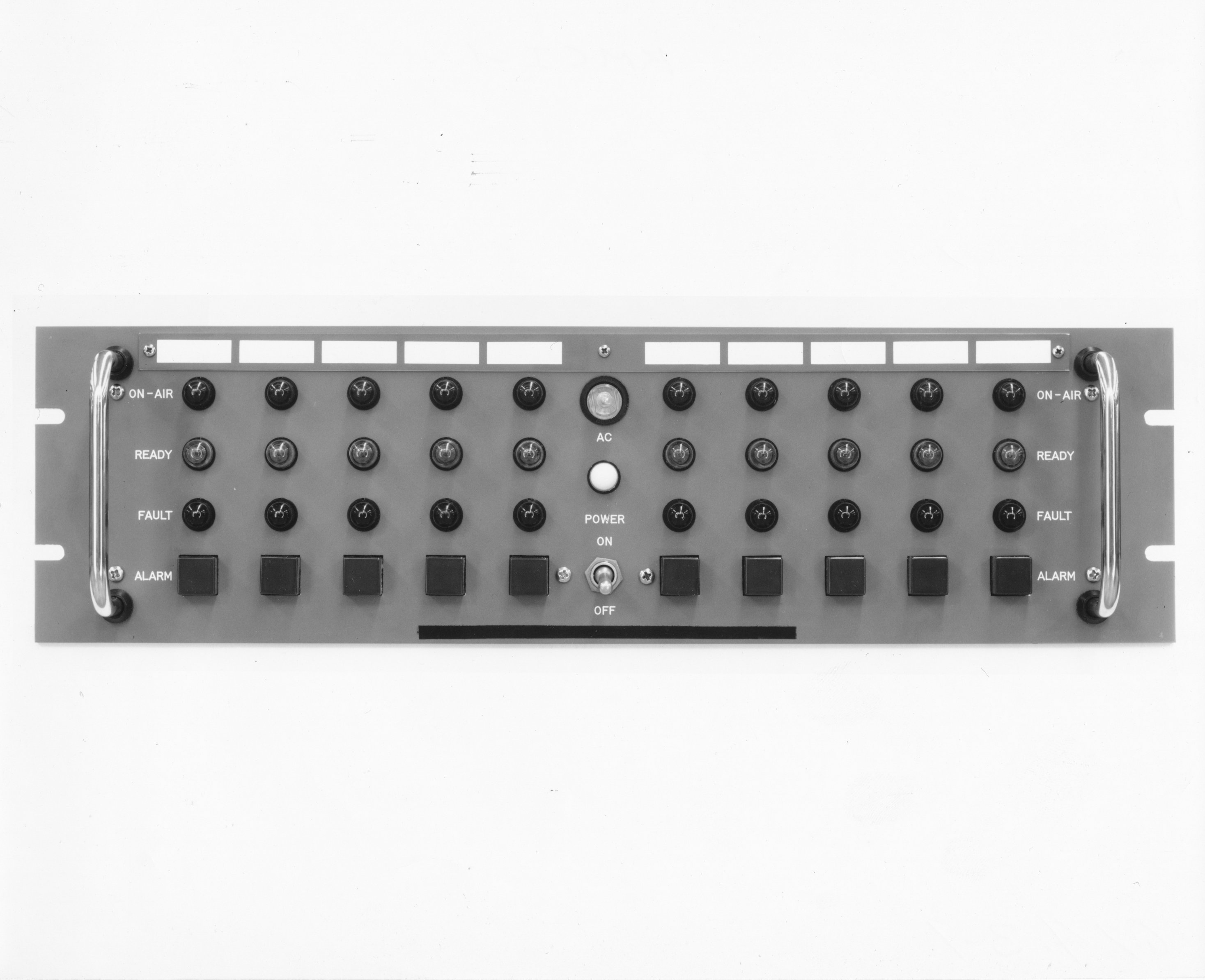

| KMCI-1 |
 |
Keyer Monitor Control
Indicator. Indicator Panel for KMCU-1. Has failure, ready, and
on-air indicator lights. For ten transmitters also alarm light,
switch, and audio generator to provide visual and audible alarm. |
|
|
| KMCU-1 |
 |
Unknown |
|
|
| KMCU-2 |
|
Unknown |
|
|
| See Separate List for KIT's |
| KTA |
|
High Frequency Transmitter |
SSB-137 |
|
| KTC |
|
High Frequency Transmitter |
SSB-138 |
|
| KTX |
|
Shortwave Transmitting System |
SSB-136 |
|
|
L |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| LAM-2 |
|
Dual Line Amplifier |
SSB-133 |
|
| LAM-3 |
|
Dual Line Amplifier |
SSB-128 |
|
| LCSA-1 |
|
10-channel Push Button Control
Unit. Installed in transmitter for Candian proposal. |
|
|
| LF Tuning head |
|
30-320Kc in 7 bands. All
frequency continuous or synthesizer controlled in 1 cps steps. |
|
|
| MF tuning head |
|
300-1999.9 Kc in 6 bands.
Same as above. |
|
|

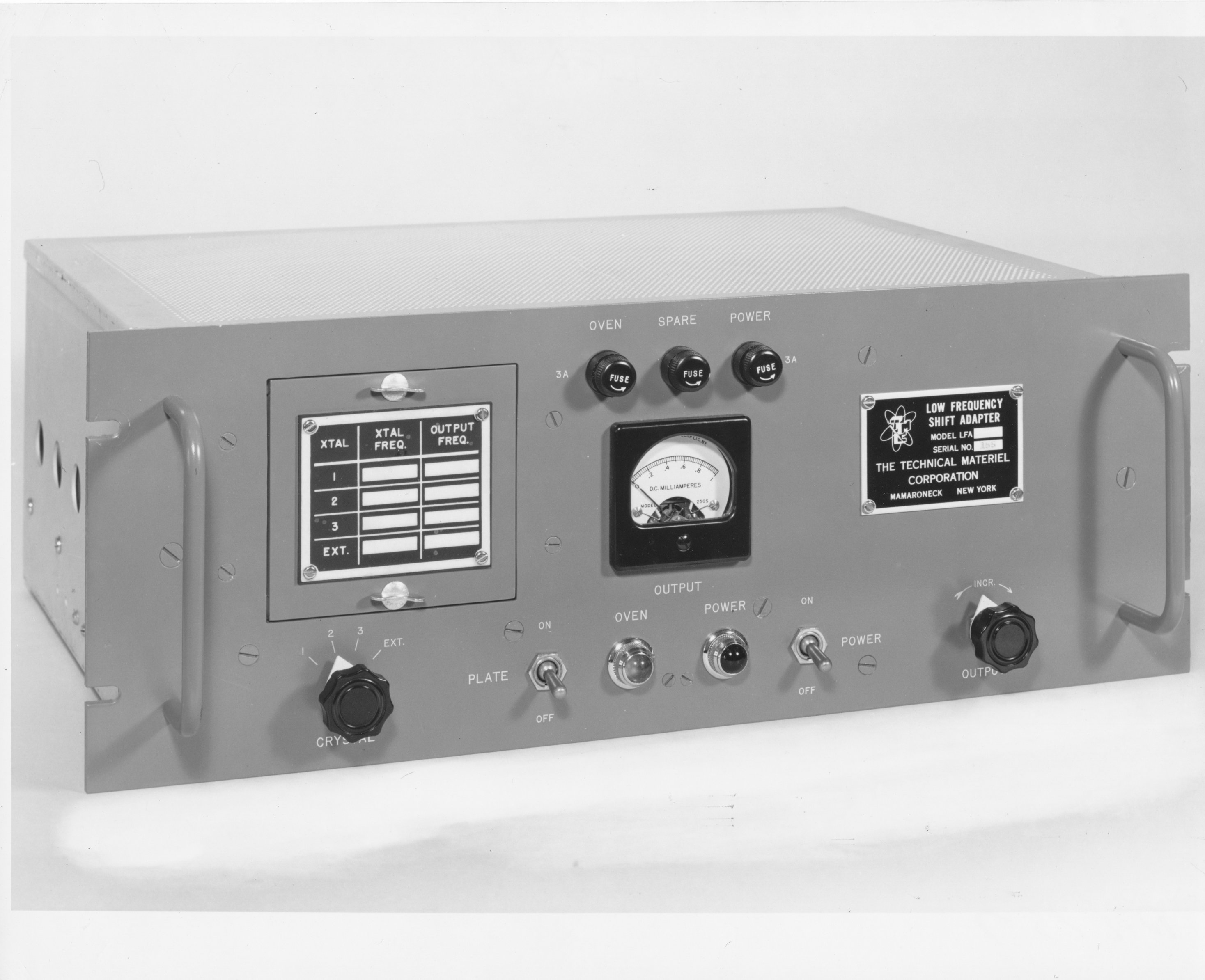

| LFA-1 |
 |
Low Frequency Adapter |
SSB-118B,
SSB-154 |
|

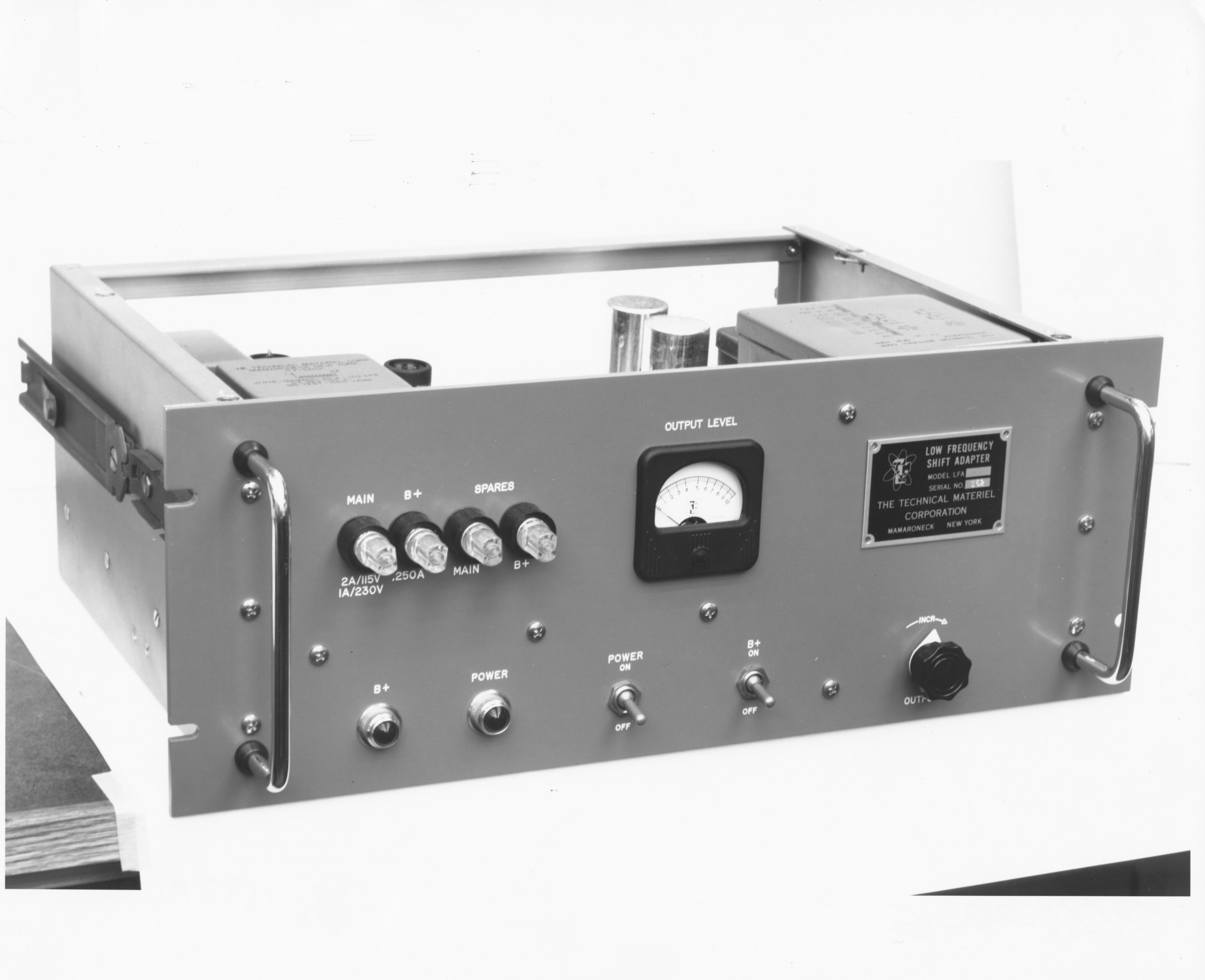

| LFA-2 |
 |
Low Frequency Adapter |
SSB-118B |
|
| LFA-3 |
|
Low Frequency Shift Adapter |
|
|
| LFA-4 |
 |
Low Frequency Shift Adapter |
TB-2028 |
|
| LFCA-1 |
 |
Sideband Converter, p/o
LRRA-1. Provides selection of USB an/or LSB over entire frequency
range and AM & ISB from 55-600Kc, also AFC circuit capable of
maintaining the unit. |
TB-3011 |
|
| LFD-1/-2/-3 |
|
LF Antenna Distribution Unit |
TB-8007 |
|
| LFLA-1 |
|
10-Kw average low frequency
broadband linear capable 25Kw average of 25% duty cycle. Canadian
bid. 1/25/65 |
|
|

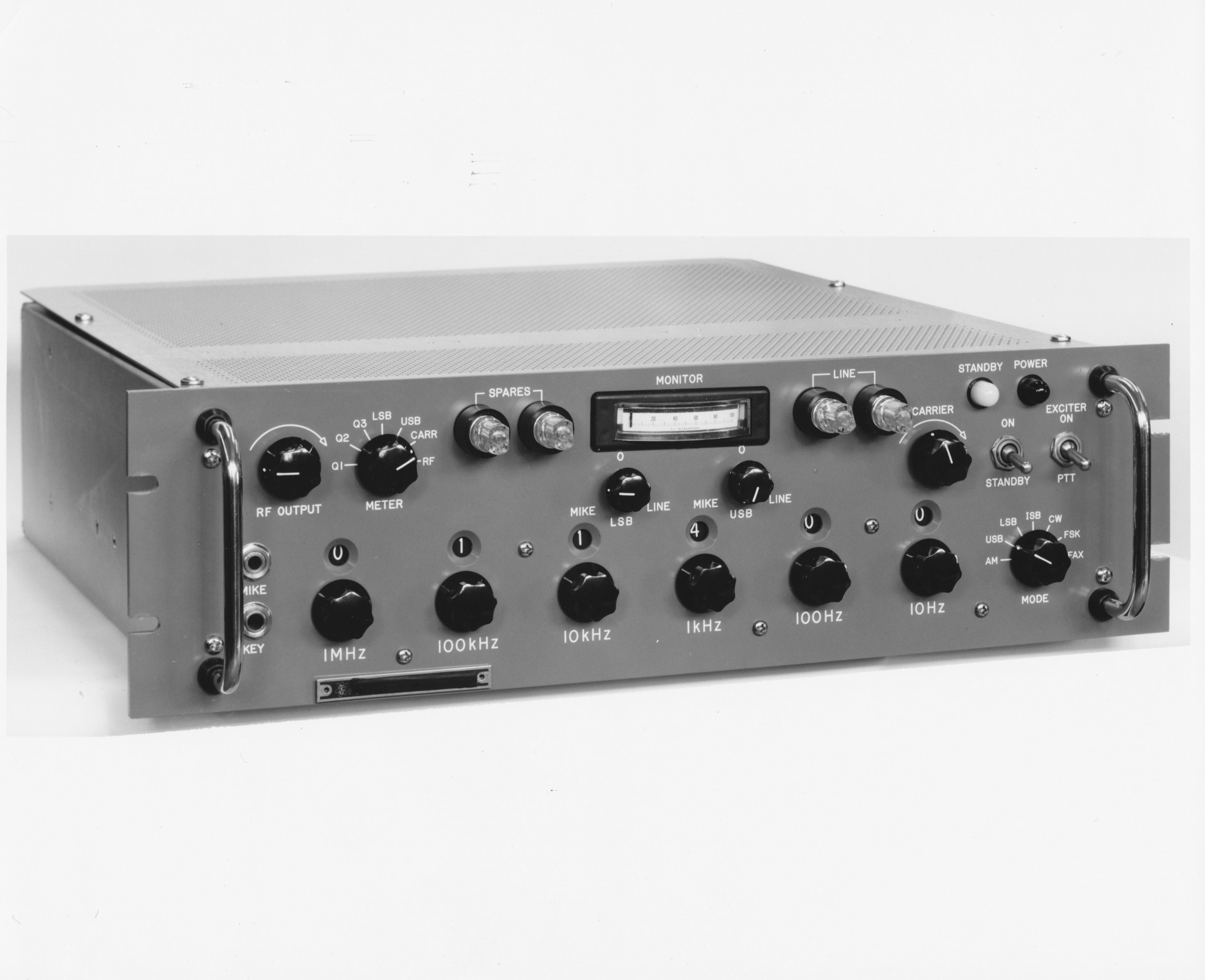

| LFE-1 |
 |
Low Frequency Exciter. MMX-1
modified for 5Kc-999Kc coverage. 11/22/66 |
|
|
| LFE-2 |
 |
Same as LFE-1, lower output. 3/69 |
|
|
| LFE-2Y |
|
Same as LFE-2 except has band
switch info for LPFA-1 used in GPTM-10KLA and only CW, FSK modes.
6/71 |
|
|
| LFRA-1 |
 |
Broadband antenna: 50 ohm,
10Kc to 100Kc, fiberglass encased antenna and impedance matching network,
anteann, network, and RFCO-AX potted, mounted on swivel base. |
|
|
| LFRB-1 |
|
Broadband antenna: 50 ohm,
60Kc to 600Kc. Physical description same as LFRA-1 |
|
|
| LFRC-1 |
|
Broadband VLF Antenna. (RMS
Engineering, Inc., Model N. 2630) comprises 1. ANTENNA (cast in epoxy), 2.
Solid state impdeance-matching amplifier encapsulated in supporting
plastic pipe, 3. Decoupling filter (separate unit, powers amplifier
through RF coax). |
|
|
| LFS-1/-2 |
|
Low Frequency Synthesizer |
TB-6004 |
|
| LFSA-1 |
 |
Frequency Synthesizer p/o VLFC |
|
|
| LFSA-1A |
|
Frequency Synthesizer (LFSA-1
modified with 1/16" PC boards). |
|
|
| LFSB-1 |
 |
Frequency Synthesizer p/o LRRA-1 |
|
|
| LFT(_)-1 |
|
Low Frequency Antenna Tuner |
|
|
| LFTA-1 |
|
Antenna Tuner, built by
Multronics--their model # LF-ZA-S |
|
|
| LFTB-1 |
|
Antenna Tuner, built by
Multronics--their model # LF-ZA-S |
|
|
| LFTC-1 |
|
Antenna Tuner, built by
Multronics--their model # LF-ZA-S |
|
|
| LFTD-1 |
|
Low frequency antenna tuner used
in conjunction with GPT-10LK. This tuner covers the frequency range
of 300 to 550 Kc and will work into a Utility Tower Company, type 170KD
AM. 150' tower is modified for KIT-312 |
|
|
| LFTO-1 |
|
200-455 Kc tuner 750W avg. |
|
|
| LFTP-1 |
|
200-455 Kc tuner 3Kw avg. |
|
|
| LMC-6 |
|
Low Frequency Antenna
Multicoupler |
SSB-203 |
|
| LMC-10 |
|
LF Antenna Multicoupler |
TB-8001 |
|
| LMC-10A |
 |
Same as LMC-10 but new power
supply, PS-7A |
|
|
| LMC-20 |
|
|
|
|
| LPA-400M |
 |
400W Linear Power Amplifier |
TB-102036-4 |
|

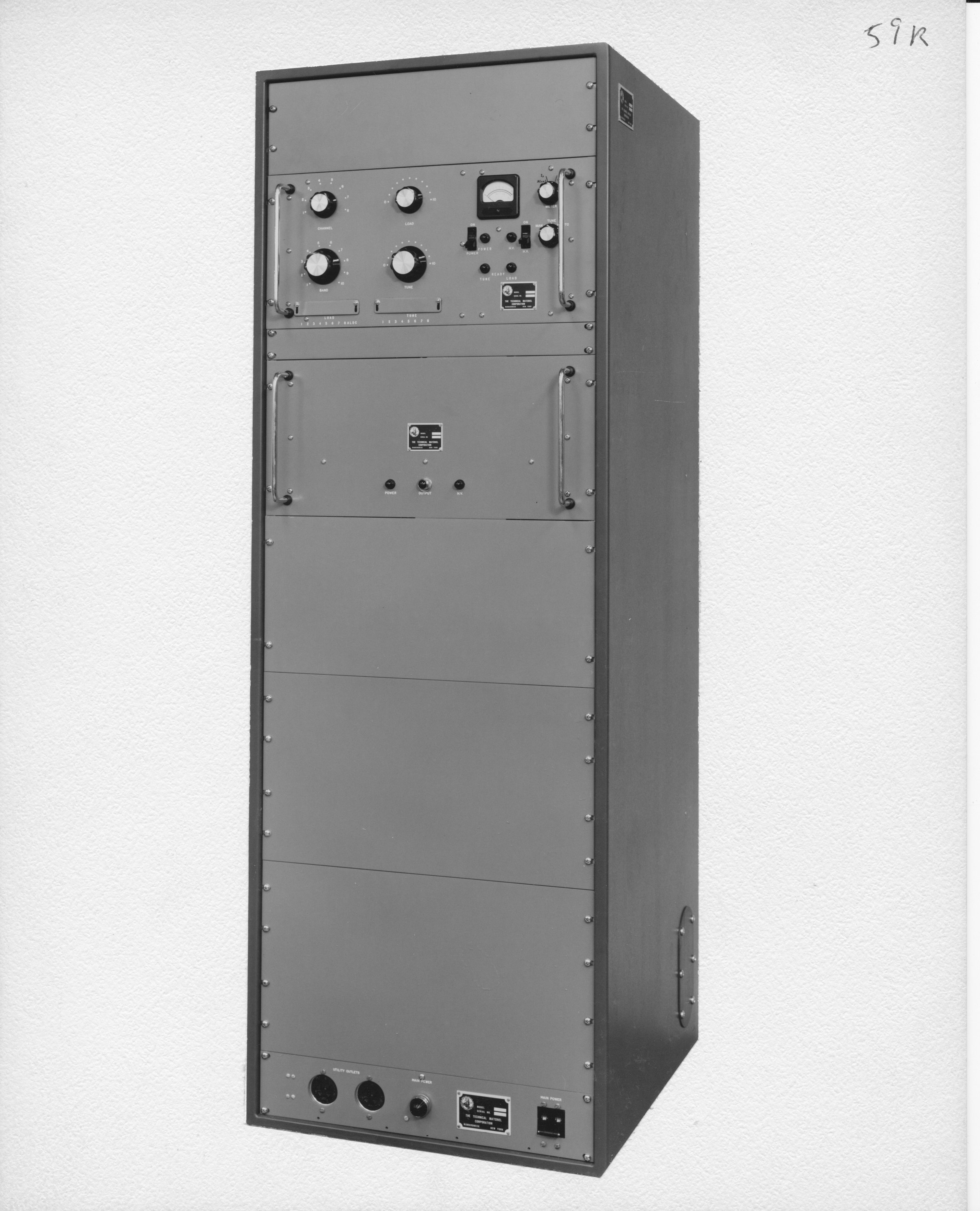

| LPA-1K |
 |
1KW Lineaer Power Amplifier |
TB-102034-3A |
|

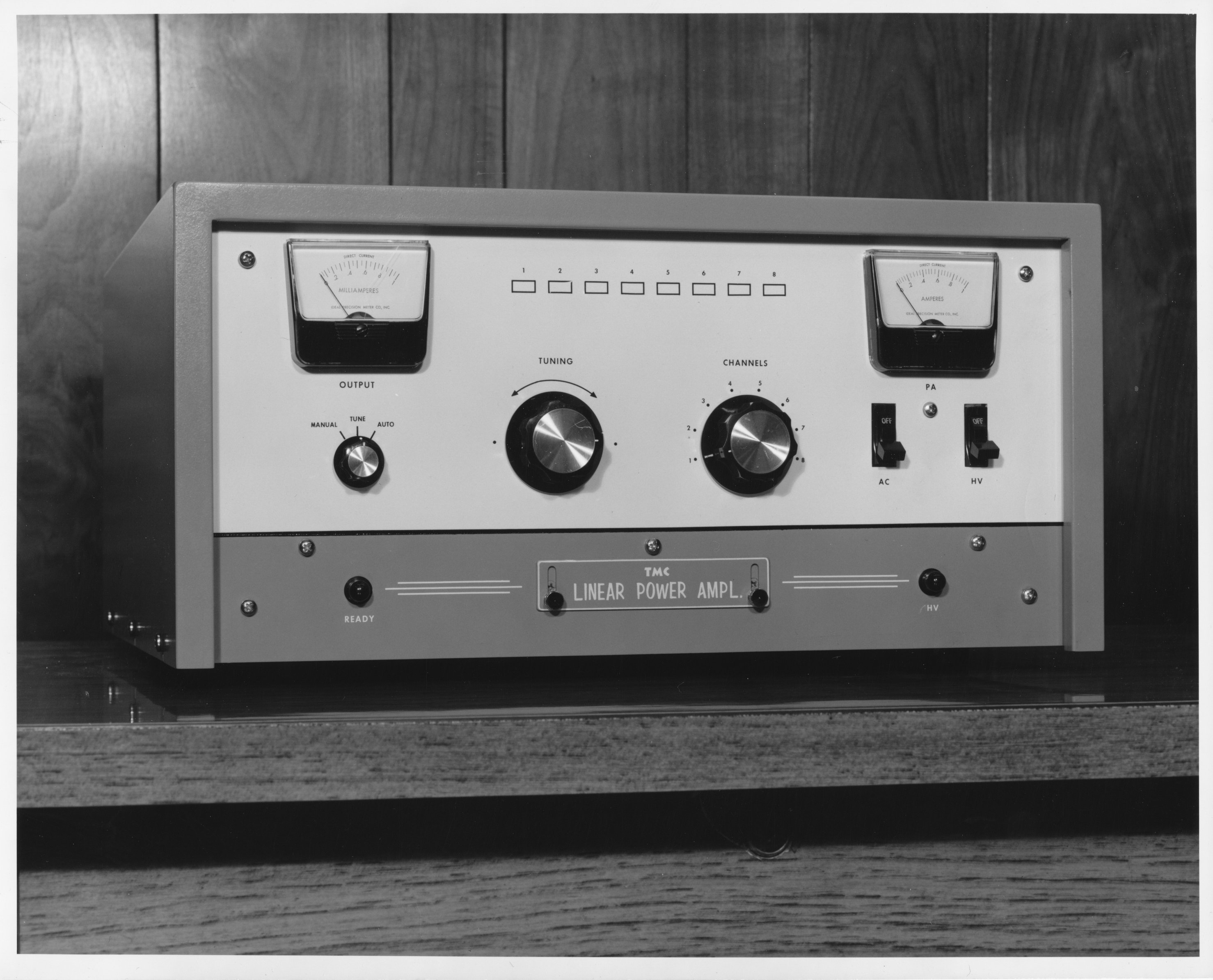

| LPA-2 |
 |
Linear Power Amplifier 1.6-23 Mc
1Kw PEP |
|
|
| LPFA-1 |
|
Low Pass Filter for GPTM-10KLA |
|
|
| LPFB-2 |
|
Part of SYM-4200, Receiver band
pass filter system for NACOM II AN/FRR-85 |
|
|
| LPP |
|
Line Patch Panel, See CK-167 |
|
|

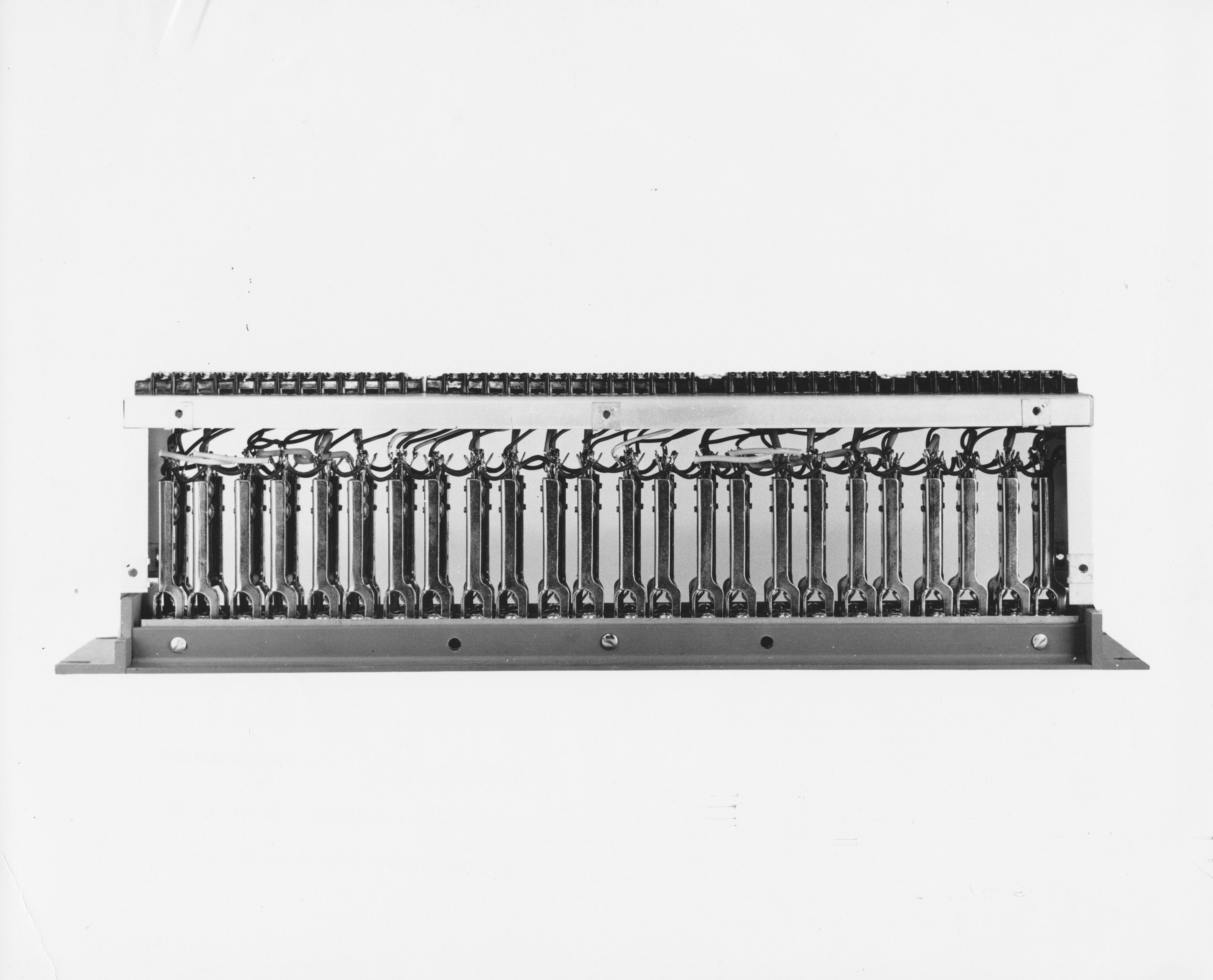

| LPP-1 |
|
Line Patch Panel, See CK-10006 |
|
|
| LPP-2 |
|
Line Patch Panel, See CK-292 |
|
|
| LPP-3 |
|
Line Patch Panel, TIP, Sleeve |
|
|
| LPP-3-2 |
|
Slight mod on wiring of LPP-3 for
DDR-7J 1/20/66 |
|
|
| LPP-3-3 |
|
Slight mod on wiring of LPP-3 for
DDR-6N 1/31/66 |
|
|
| LPP-4 |
|
Line Patch Panel, Special for
DDR-8-3123, Ring, tip sleeve DC & AF patch with programmer |
|
|
| LPP-5 |
|
Do not use |
|
|
| LPP-6 |
|
Special for 0418-120 2/25/70 |
|
|
| LPFA-1K |
 |
(1Kw PEP) Low Pass Filter |
TB-8017A |
|
| LPFA-2.5K |
|
(2.5Kw PEP) Low Pass Filter |
TB-8017A |
|
| LPFA-10K |
|
(10Kw PEP) Low Pass Filter |
TB-8017A |
|
| LPFA-10KB |
|
1/2-size LPFA-10KW blower and
different design |
|
|
| LPFA-40K |
|
(40Kw PEP) Low Pass Filter |
TB-8017A |
|
| LPFA-200K |
|
(200Kw PEP) Low Pass Filter |
TB-8017A |
|
| LPFB-1 |
|
Receiver Low Pass Filter 50-ohm
impedance, pass-band DC-40Kc |
|
|
| LPFB-2 |
|
6-Channel Receiver Low Pass
Filter |
|
|
| LPFS-2.5K |
|
LPFA-2.5K with antenna switch |
|
|
| LPP-1 |
 |
Unknown, but clearly a patch
panel |
|
|
| LRCA-1 (10/11/65) |
 |
Remote Control Terminator.
Supplies ledex control for SMEB-1. First used in TSTG-2.5K |
|
|
| LRCA-2 |
 |
Remote Control Terminator. |
|
|
| LRCB-1 |
|
Control Terminator used in
DDR-506. Component part in DDR-506 cabinet |
|
|
| LRCC-1 |
 |
Receiver Control used in
DDR-506. External control of DDR-506. |
|
|

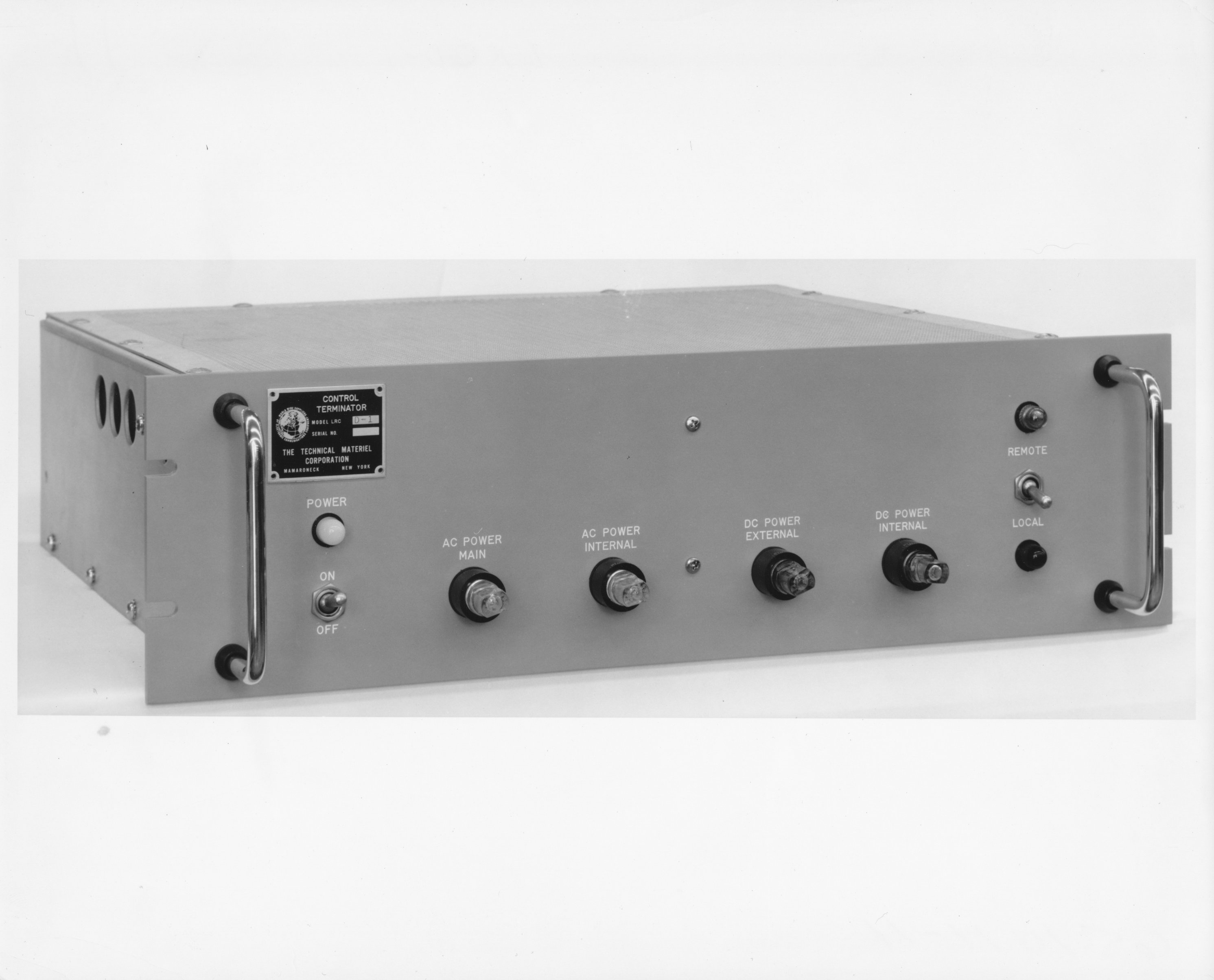

| LRCD-1 |
 |
Control Terminator used in
TSTE-1K. Receives its input from LRCM. LRCD is part of
TSTE-10K |
|
|
| LRCE-2 (11/11/65) |
|
Dual control for TSTE-2.5K.
Transmitter control panel assembly, for two TSTE-2.5K transmitter.
Front panel--2 control panels AX-616 chassis contains power supply for
logic modules, parallel-serial converter for transmission of control
signals, and scanning of control settings. Ledex drive switch to
switch scanning unit between control panels. |
|
|
| LRCF-1 (11/1/66) |
|
Remote control terminal
panel. Operational requirement: to change channels in
SMEB-1. 1-3/4" relay rack panel carrying 4 relays, 15 diodes on
a printed circuit board, a REMOTE/LOCAL switch, and fuse for 26V
source. A remote, one-pole, eight-throw switching circuit is used to
operate the 4 relays, which set up the code required to operate the rotary
solenoid on the SMEB-1 channel selection switch. |
|
|
| LRCM-1 |
 |
Transmitter control used in
TSTE-10K. (2) AX-614 (remote gain control); (6) AX-568 (local
control module); mounted on A5/37 (frame assembly) with 4 SC 166-1 units
in each LRCM-1 is external control of TSTE-10K |
|
|
| LRCM-4 (3/7/67) |
|
407L Proposal. Controls
frequency change on CHGR-4. Controls operational function of
CMRC-1. Also provides necessary readback information to remote
tuning point. |
|
|
| LRRA-1 |
 |
Low Frequency Synthesized
Receiver (RAK-44) |
TB-3011A |
|
| LRRB-1 |
|
Low Frequency Synthesized
Receiver. Special unit for shipboard evaluation, a packaged LRRA-1
containing: VLRB-1, LFSB-1, CSS-2, and LFCA-1. Appropriate
speakers and battery will be provided as separate items contained in a
23" high RAK-73 |
TB-3011A |
|
| LRRC-1 |
|
VLRB-1 and LFCA-1 in single
cabinet. See Photo 659.20-1 |
|
|
| LSCA-1 (10/11/65) |
 |
Remote Control Unit.

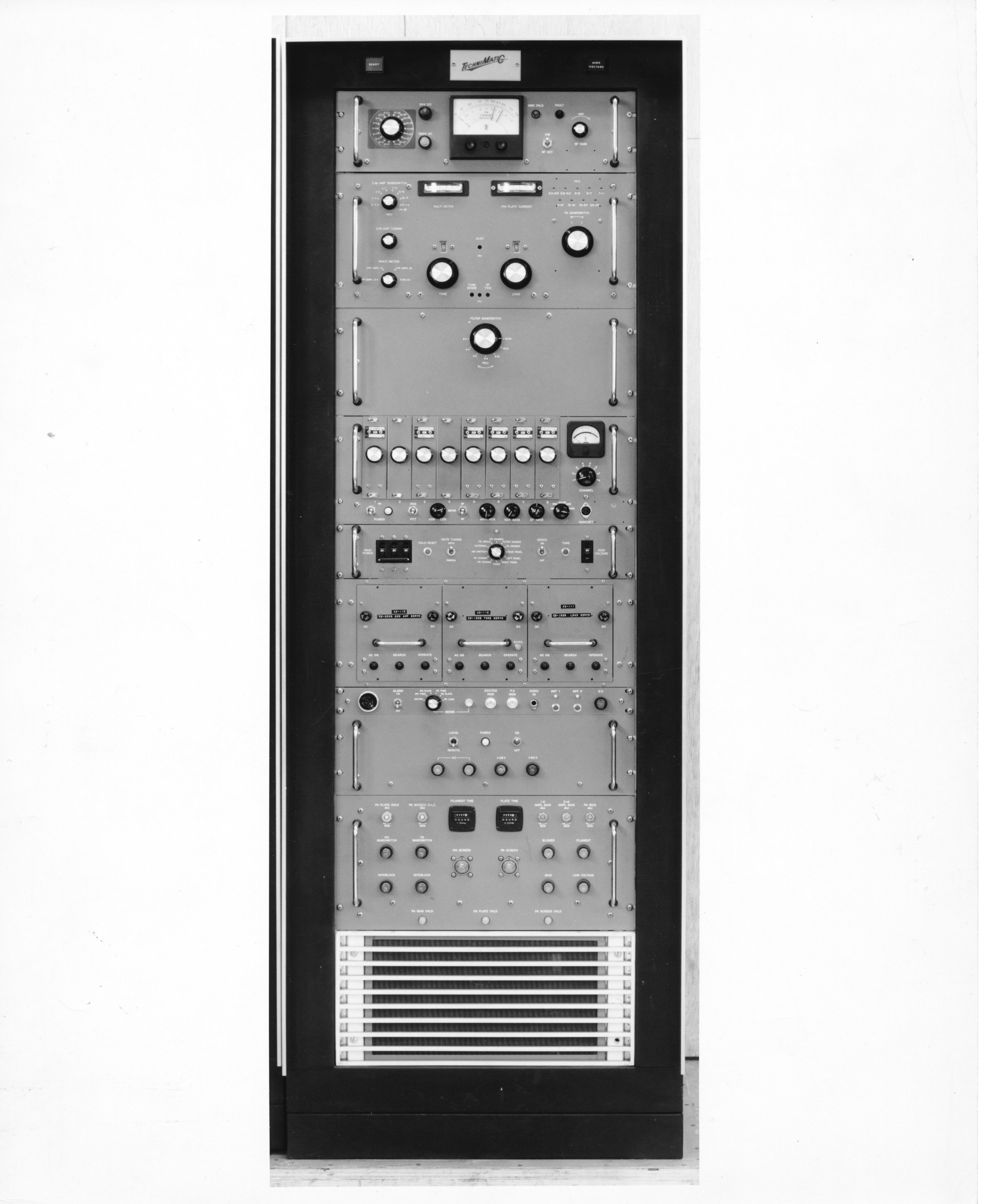

Remotely controls TSTG-2.5K. Has mike preamp etc. see TF |
|
|
| LSCA-1A |
|
Remote control unit for use with
TSTG-2.5K transmitter. Similar to LSCA-1, but with reduction in
control functions (requested by customer).
- Controls:
- A. Selection of 1 of 8 channels.
- B. Tune
- Readback:
- A. Ready
- B. Tune
- C. HV on
- D. Fault
- E. Ready
- F. Overload
|
|
|
| LSCP-1 (10/20/67) |
|
9887B Swedish Armed Forces
Proposal |
|
|
| LSCP-4 (3/7/67) |
|
407L Proposal. Contains
circuit for placing transmitters or receivers on operating frequencies and
has control for operating modes. Additionally, provides readback
info on a selected basis of transmitter or receiver so adjusted. |
|
|
| LSP-1 |
 |
Loudspeaker Panel, one 4"
speaker with bridging amplifier |
TB-6005,
TB-9008A |
|
| LSP-2 |
|
Loudspeaker Panel |
TB-6005,
TB-9008A |
|
| LSP-3 |
|
Loudspeaker Panel, three 4"
Jensen PM Speakers |
TB-6005,
TB-9008A |
|
| LSP-3A |
|
Loudspeaker Panel, three 4"
Jensen PM Speakers, Three (6-transikstor) bridging amplifiers |
TB-6005,
TB-9008A |
|
| LSP-4 |
|
Loudspeaker Panel, one 4"
Jensen PM Speaker |
TB-6005,
TB-9008A |
LS-452/U |
| LSP-4A |
|
Loudspeaker Panel, one 4"
Jensen PM speaker, one (6-transistor) bridging amplifier |
TB-6005,
TB-9008A |
|
| LSP-4B |
|
p/o DDR-7M. LSP-4 with
TF-261 for 600-ohm operation |
TB-6005,
TB-9008A |
|
| LSP-5 |
|
Monitor Speaker, single
3-1/2" x 19" panel |
TB-6005,
TB-9008A |
|
| LSP-6 |
|
Loudspeaker Panel, two 4"
Jensen PM speakers |
TB-6005,
TB-9008A |
LS-453/U |
| LSP-6A |
|
Loudspeaker Panel, two 4"
Jensen PM speakers, two (6-transistor) bridging amplifiers. |
TB-6005,
TB-9008A |
|
| LSP-6X |
|
Special LSP-6 with ledex power
supply attached thereto, used in MCTR-350 only |
TB-6005,
TB-9008A |
|

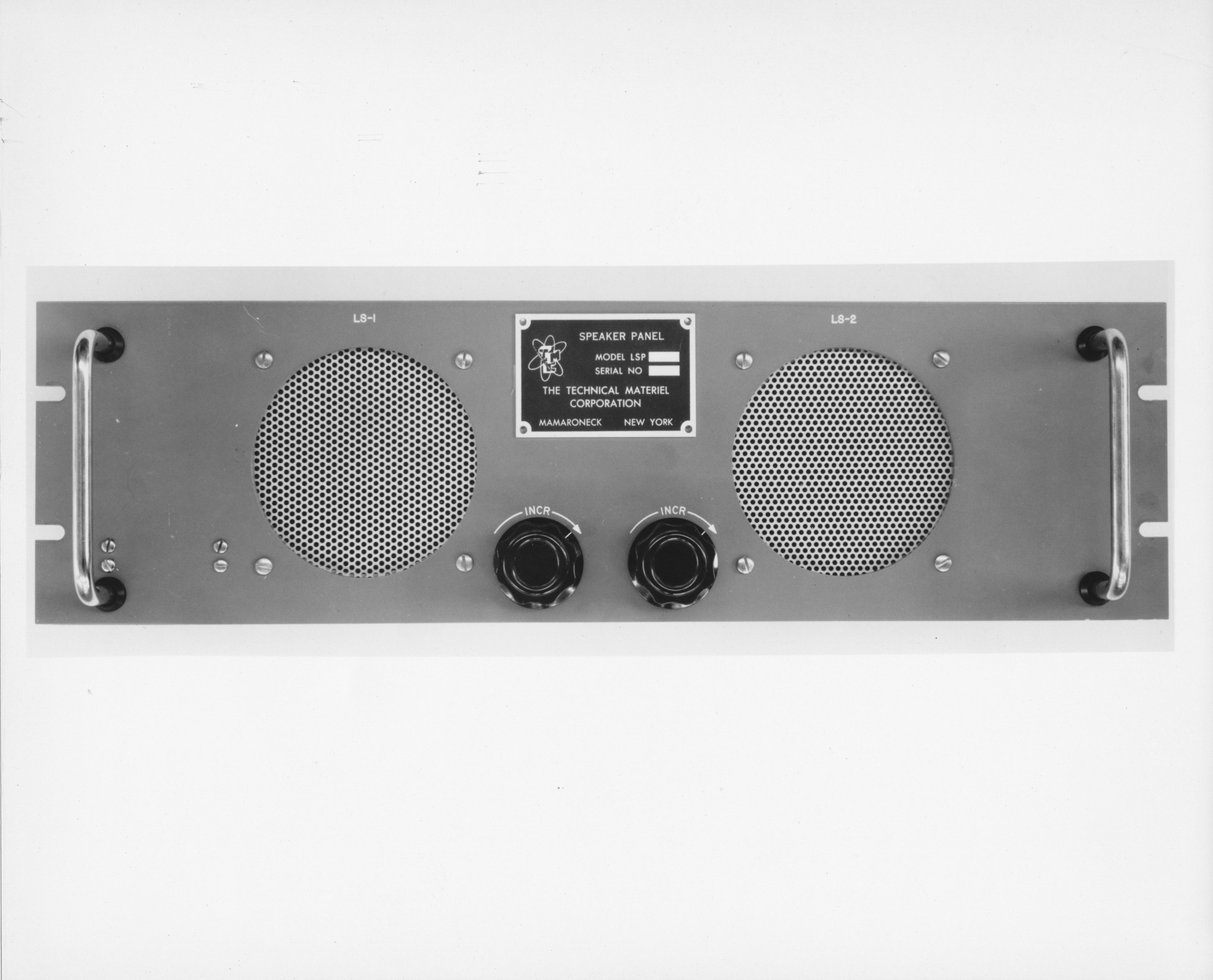

| LSP-7 |
 |
Loudspeaker Panel, two 4"
Jensen PM speakers, two potentiometer volume controls |
TB-6005,
TB-9008A |
LS-453/U |
| LSP-8 |
|
Loudspeaker Panel, three 4"
Jensen PM Speakers, three variable T-pad volume controls |
TB-6005,
TB-9008A |
|
| LSP-9 |
|
Loudspeaker Panel, two 4-ohm
T-pads, two 4-ohm speakers, two audio switches |
TB-6005,
TB-9008A |
|
| LSP-10 |
|
Loudspeaker Panel, one 4"
speaker, volume control |
TB-6005,
TB-9008A |
|
| LSP-11 |
|
Loudspeaker Panel, LSP-7 with 2
Stancor A-8101 (TF-261) transformers and mounting bracket |
TB-6005,
TB-9008A |
|
| LSP-12 |
|
Single Speaker, 3-1/2"
panel, 4-ohms, no volume control |
TB-6005,
TB-9008A |
|
| LSP-13 |
|
Dual Speaker, 3-1/2" panel,
4-ohms, no volume control |
TB-6005,
TB-9008A |
|
| LSP-14 |
|
Same as LSP-12, but with volume
control |
TB-6005,
TB-9008A |
|
| LSP-15 |
|
Same as LSP-13, but two speakers
with volume control |
TB-6005,
TB-9008A |
|
| LSP-16 |
|
Same as LSP-12, but with volume
control and 2 channel selector switch. |
TB-6005,
TB-9008A |
|
| LSP-17 |
|
Loudspeaker Panel:
3-1/2" x 19" panel, two 4-ohm speakers, two volume controls, two
TF-261 transformers, similar to LSP-15, pluse two TF-261 transformers. |
TB-6005,
TB-9008A |
|
|
M |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| MAF-1 |
 |
Four-Channel Audio Filter |
TB-4004 |
|
| MAM-1 |
|
Multiple Audio Monitor |
|
|
| MAH-1 |
|
Multiple Audio Monitor w/ Hybrids |
|
|

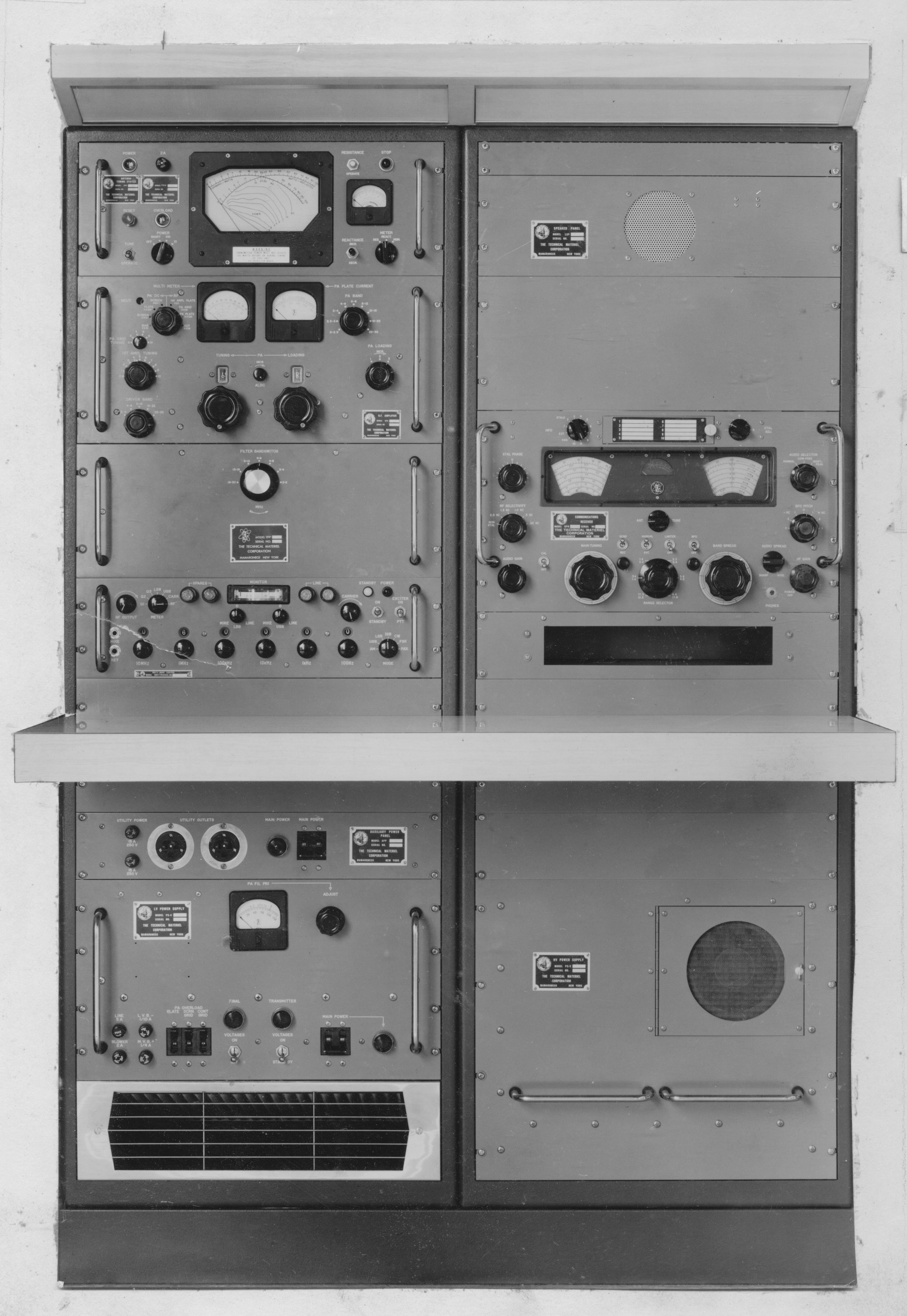

| MAS-1-TR |
 |
Unknown |
|
|
| MAT-5 |
|
Channelized Antenna Tuning Unit |
|
|

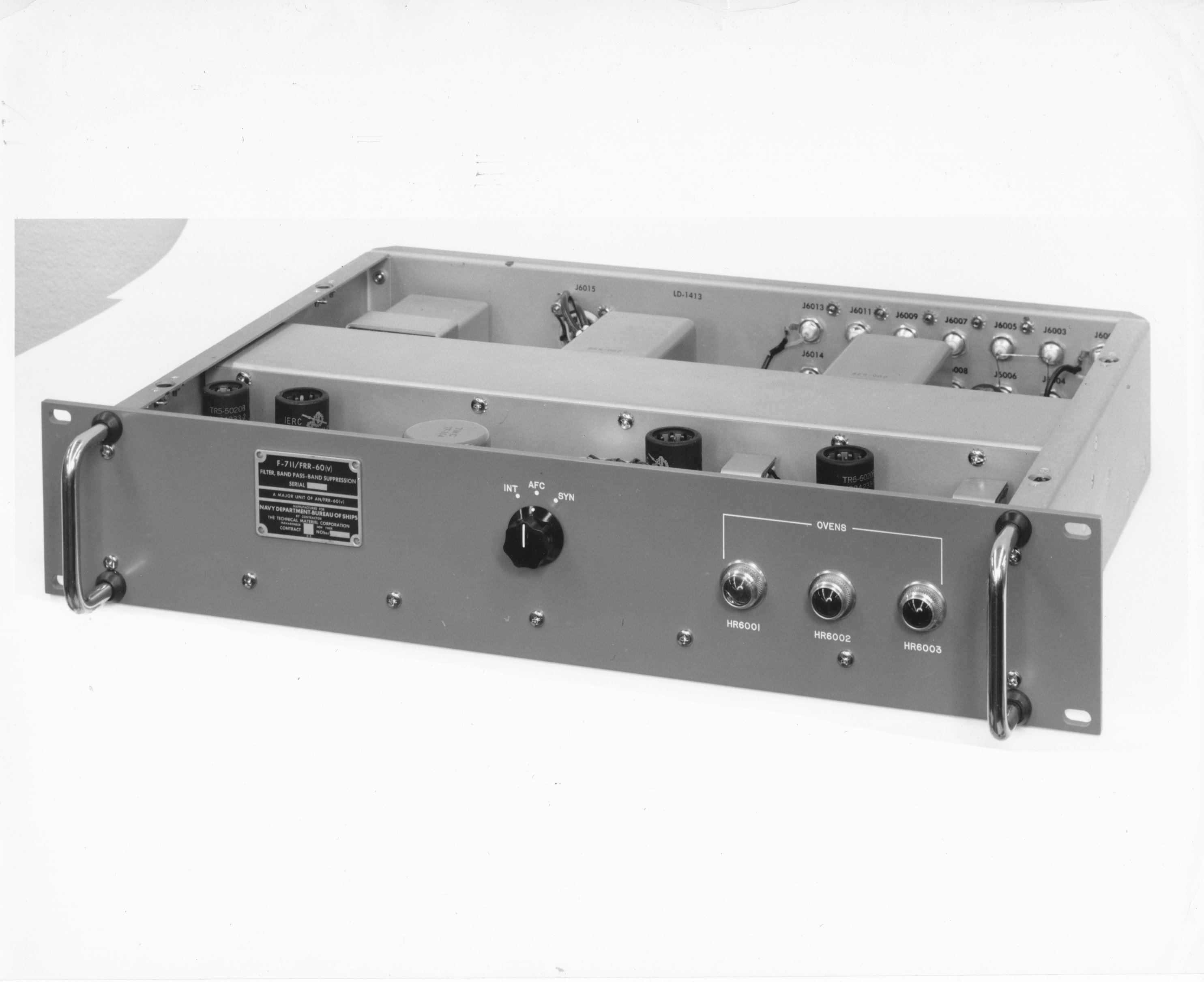

| MCG-1 |
 |
Multiple Carrier Generator |
|
|
| MCGA-1 |
|
Multiple Carrier Generator used
in DDR-506. Remote controlled. |
TB-4004 |
|
| MCGA-1I (1/26/67) |
|
Multiplex Generator to provide
demuxing frequencies for MSA-1 or MSAA-1 to meet CCIR specs. Like
MCG-1 but has 6.25Kc demux carrier vice 6.29 KHc. For use with 1.75
Mc IF. Carrier resupply switch remoted. Required for CCIR MSG
Systems. |
|
|
| MCGR-1 |
|
Mux Carrier Generator. Same
as MCG-1 but remote capability |
|
|
| MCP-1 |
 |
Control Panel |
|
|

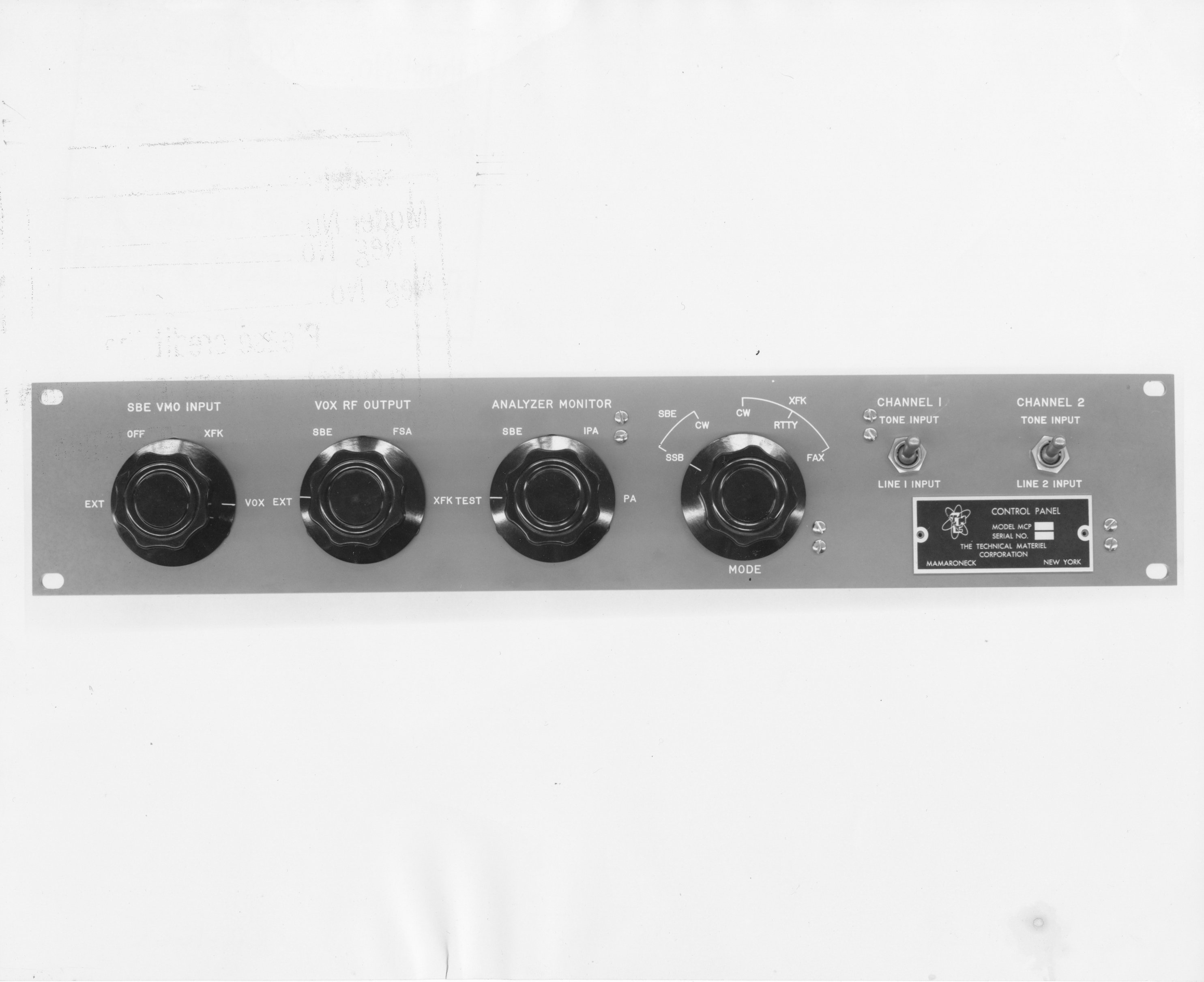

| MCP-2 |
 |
Control Panel |
|
SB-971A/FRT-39 |
| MCP-3 |
|
Control Panel |
|
|
| MCT-350 |
|
Multi-Channel Transmitter |
SSB-213 |
|
| MCT-1000 |
|
Multi-Channel Transmitter |
SSB-214 |
|
| MCTR-350 |
 |
General Purpose
Transmitter. Consists of ATS-2-50U, PAL-350A, SME-1, SMR-1, LSP-6,
ECPA-1, RAK-106 |
|
|
| MCU(A)-3 |
|
Monitor Control Unit Automatic
used with TUA-3 includes a ATSA-3 antenna tuning system, automatic
Replaces RF-601 |
|
|
| MFE-1 |
|
Same as SME-6 except freq,
400-500Kc. Mode: A1, A2, A2H, F1. Capable of operating remotely
controlled. S.O. 35-3158. Eng. job # 3400 |
|
|

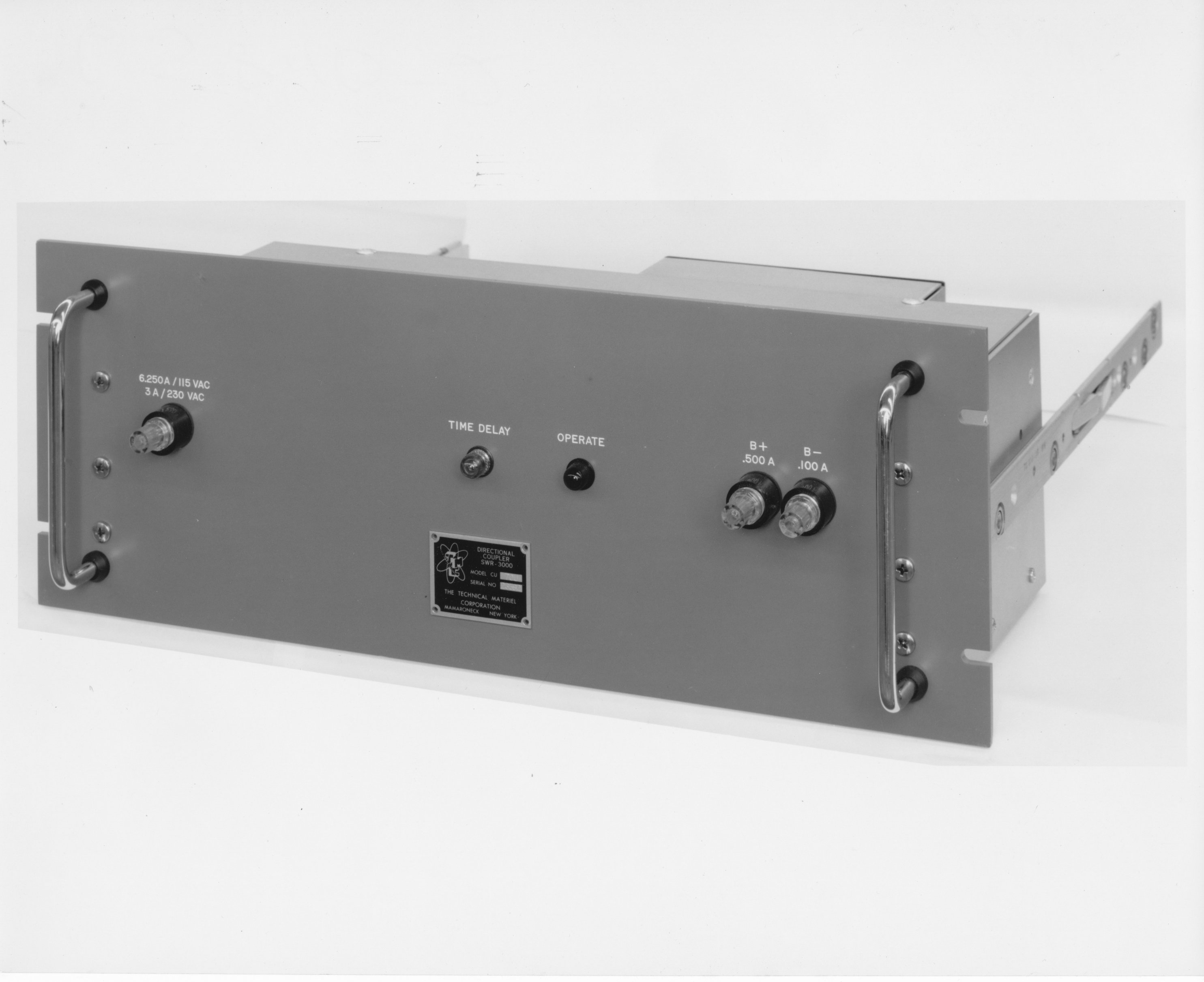

| MFP-1 |
 |
Power Supply for MSGA System
(MNF-1, 1/2 HFP-1) |
|
|
| MFT-10K/J |
|
Medium Frequency Transmitter |
|
|
| MFTR-10KE-5 |
|
BCT-10K Transmitter modified
5-channel 400-500KHz using motor driven tune capacitor and AZ-119.
Includes LPF filter. S.O. 35-3158 |
|
|
| MHPA-1 |
|
Dual Power Supply.
Repackaged HFP-1 for use in lower portion of RAK-21, 22 or RAK-100, DDR-5
or other type of receivers. |
|
|
| MID-1 |
|
Mode Indicating Device (TMC
Canada) |
|
|
| MID-3 |
|
Mode Indicating Device (TMC
Canada) |
|
|
| MID-5 |
|
Mode Indicating Device |
|
|
| Milli-SecTuner |
|
Electronic tuning of RF head for
receiver covering 2-32 Mc to conform to milli-sec random track
communications system |
|
|
| MK-102 |
|
Dynamic Mike |
|
|
| MK-103 |
|
Dynamic Mike |
|
|
| MK-106 |
|
Dynamic Mike with built-in
preamp. Desk type. |
|
|
| MMX-1 |
 |
Exciter, which will replace the
collective features of PMO-5, SBE-2A, XFK-1, GPE-1A. Output frequ
2-30Mc in1KC, 10Kc, 100Kc and 1Mc steps. |
|
|
| MMX-41 (2/23/67) |
|
Four-channel multi-mode exciter
consisting of CGH-41, CMR-41 |
|
|
| MMX-1M |
|
IT-349 for automatic operation
for emergency frequencies |
|
|
| MMX(M)-2 |
|
HF Synthesized Exciter,
1.6-29.9999 MHz, 1x10^8 stability. Operating modes A1, A3, A3H, A3A,
A3S. Manually operated |
TB-2039D,
TB-204-4115 |
|
| MMX(A)-2 |
|
Same as MMX(M)-2 except
automated. Bandswitch info supplied to auto-tuned 10K and
2.5K. KIT-349 & -363 |
|
|
| MMX(A)-2A |
 |
Same as MMX(A)-2 except:
USB only and marine emergency frequency selection (MRU-33) Mackay Marine
Unit. (KIT-349, -363, -368) |
|
|
| MMX(A)-2B |
 |
Same as MMX(A)-2A except:
ISB and to be used with HFTA-1KS2 auto tuned transmitter (KIT-373).
MMX(A)-2B never followed up--kept model number as MMX(A)-2 |
|
|
| MMX(R)-2 |
 |
Remotely controlled exciter used
with GPTR-2.5KJ2 (KIT-392) |
|
|
| MMX(R)-2A |
|
Remotely controlled exciter
MMXA-2A, used with HFTR-1KJ2, maritime type |
|
|
| MMX(R)-2B |
|
Same as MMX(R)-2A but for
standard HFTR-1KJ2--USB & LSB (KIT-396) |
|
|
| MMX-4 |
 |
Updated MMX. |
TB-204-4119 |
|
| MNF-1 |
 |
Four Channel Notch Filter |
TB-4004 |
|
| MSAR-5 (10/10/68) |
|
Commercial version of MSAR-4 |
|
|
| MSG-2 (1/26/67) |
|
Four Channel Independent AGC
system. Consists of AFC-3 (1.75Mc), MSA-1, MCG-1, MPS-1, HFP-1, A4288-1 |
|
|
| MSG-2I (1/26/67) |
|
Four Channel Independent AGC
system with CCIR filters. Consists of AFC-3 (1.75 Mc), MSA-1,
MCG-1I, MPS-1, HFP-1, A4288-1. MSG-1I similar to MSG-1 except 256.25
Kc carrier substituted for 256.29 Kc and 243.75 Kc substituted for 243.71
Kc. No change is required for MSA-1. |
|
|
| MSG-3
(1/26/67) |
|
Four Channel Independent AGC
system. Consists of AFC-2A (455Kc), MSA-1, MCG-2, MPS-1, HFP-1,
A4288-1. MCG-2 similar to MCG-1 except 2 Mc osc changed to 705 Kc. |
|
|
| MSG-3I
(1/26/67) |
|
Four Channel Independent AGC
system with CCIR filters. Consists of AFC-2A (455Kc), MSA-1, MCG-2I,
MPS-1, HFP-1, A4288-1. MCG-2I similar to MCG-21 except 256.25 Kc
carrier substituted for 256.29 Kc and 243.75 Kc substituted for 243.71 Kc. |
|
|
| MSGA-3 (1/26/67) |
|
Four Channel Independent AGC
system. Consists of AFCR-2A (455Kc), MSAA-1, MCGA-2, MPS-1, HFP-1,
A4288-1. MCGA-2I has carrier re-supuply switch remoted. MSAA-1
has "channel enable" remoted. AFCR-2A has analog remoted
control of osc tuning and fault reset with external read-out of drift
meter and drift alarm. |
|
|
| MSGA-3I (1/26/67) |
|
Four Channel Independent AGC
system with CCIR filters. Consists of AFCR-2A (455Kc), MSAA-1, MCGA-2I,
MPS-1, HFP-1, A4288-1. MCGA-2I has carrier re-supuply switch remoted.
MSAA-1 has "channel enable" remoted. AFCR-2A has analog
remoted control of osc tuning and fault reset with external read-out of
drift meter and drift alarm. |
|
|
| MSGI-2I |
|
Four Channel Independent AGC
system for CCIR standards. Consists of AFC-(3) , MSA1(2), MCGI( ),
MFP-1, HFP-1, MCG( ) similar to MCG-1 except 256.25 Kc carrier substituted
for 256.29 Kc and 243.75 Kc substituted for 243.71 Kc. MSA9 similar
to MSA-1 except outboard channels adjusted to agove. See rear page
ot TB-4004B 1.75 Mc |
Model Nos provided
for both remote and non-remote models and for either 1.75 Mc or 455 Kc
input versions. |
|
| MSGI-3I |
|
Consists of AFC-2A, MSA1(2), MCGI,
MFP-1, HFP-1. 455 Kc |
|
| Model 19 |
|
Teletype Set |
SSB-102 |
|
| Model 15 |
|
Send-Receive Page Printer |
SSB-101 |
|
| Model 1012 |
|
Noise Suppression Kit for
military job |
SSB-109 |
|
| MP-1A
Photo Gallery
|
 |
Morse Package Unit |
SSB-105 |
|
| MPA-1 |
 |
Microphone Preamplifier
(transistorized). Specific applicatioins: CMRB-1, LRCM-1,
LSCA-1. Purpose to provide 0 dBm level signal for 600-ohm
transmission line from either carbon microphone or dynamic mic. (-55
dB). Front panel gain control. Panel 19" x 1-3/4"
self contained power supply 115/230V 50/60 cps microphone connector J
133-3 (same as SBE). 5 position switch to select 1 of 5 audio
channels terminated at rear of unit |
|
|
| MPA-2 |
|
Not assigned |
|
|
| MPS-1 |
 |
Power Supply for Oven of MCG |
|
|
| MRK, MRK-1 |
|
Morse Relay Keying Unit |
SSB-150 |
|
| MRS-2 |
|
Marine Radio System.
Reciever shown (top) and Transmitter (bottom) |
|
|
| MRU-33 |
 |
Marine Radio Unit |
|
|
| MSA-1 |
 |
Multiple Sideband Adapter (1.75
Mc) |
TB-4004 |
|
| MSAA-1 |
|
Multiple Sideband Adapter,
Remote-controlled. Used in DDR-506. Squelch Adjust and Line
Level controls remoted. |
|
|
| MSA-4 |
 |
Multiple Sideband Adapter.
p/o DDR-10K (panal height 7") |
|
|
| MSAR-1 |
 |
Remote Controlled version of MSA
(presumably) |
|
|
| MSAR-4/-5 |
|
Remote Controlled version of MSA
(presumably) |
|
|
| MSG-1 |
 |
Independent AGC Receiving System |
|
|
| MSG-2/-3 |
|
4-Channel Independent AGC System |
TB-4004B |
|
| MSGA-1 |
 |
Independent AGC Receiving System
(1.75 Mc) RAK-35A |
TB-4004,
TB-4004A |
|
| MSGB-1 |
|
Independent AGC Receiving System,
RAK-102-3 |
|
| MSGC-1 |
 |
MSGA-1 with BSP-6 (RAK-104) SAme
as MSGSA-1A |
|
| MSR-1 |
|
Mode Selector Receiver |
|
CV |
| MSR-3 |
|
Mode Selector Receiver |
TB-4001, SSB-196A |
CV-657/URR |

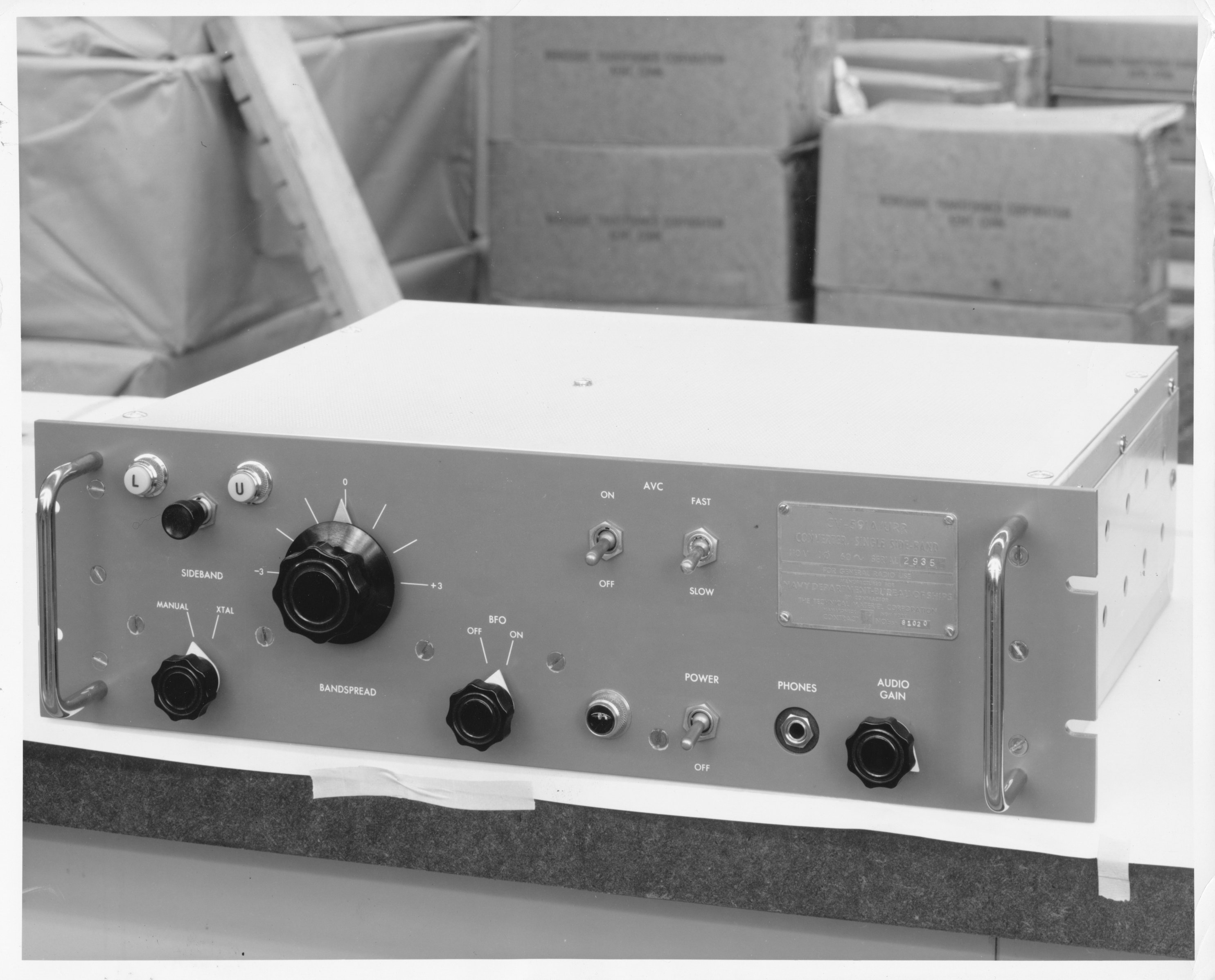

| MSR-3A |
 |
Mode Selector Receiver |
TB-4001 |
CV-657A/URR |
| MSR-4 |
 |
Mode Selector Receiver |
TB-4001, SSB-196A |
CV-591A/URR |
| MSR-5 |
 |
Mode Selector Receiver |
TB-4001 |
|

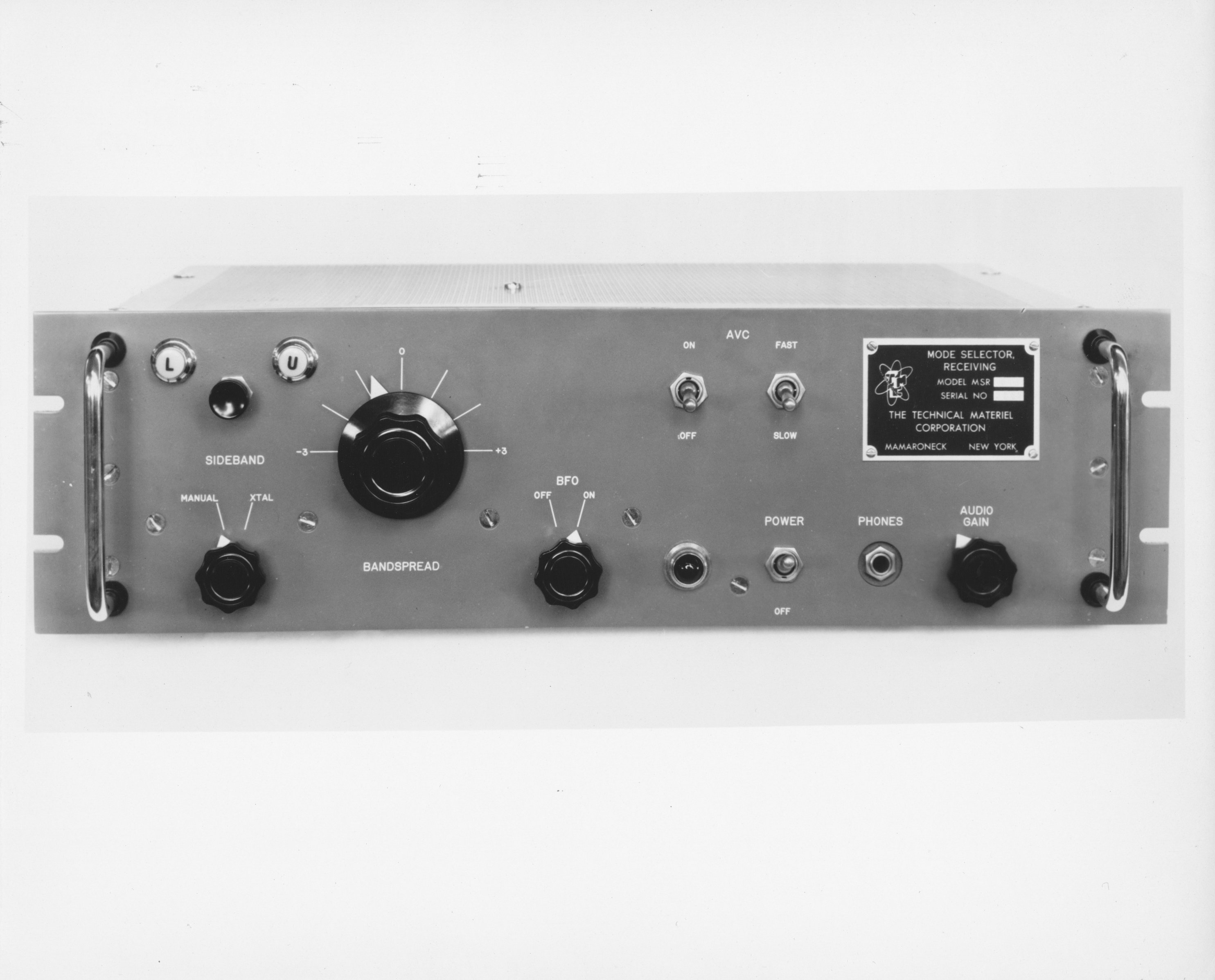

| MSR-6 |
 |
Mode Selector Receiver.
Special for Project Mercury |
TB-4005 |
CV-1758/URR |
| MSR-8 |
|
Receiving Mode Selector |
TB-4001 |
|
| MSR-9 |
|
Receiving Mode Selector |
|
|
| MSR-10 |
|
Receiving Mode Selector |
|
|
| MTR-2 |
 |
Unknown, shown with CPA-2 |
|
|

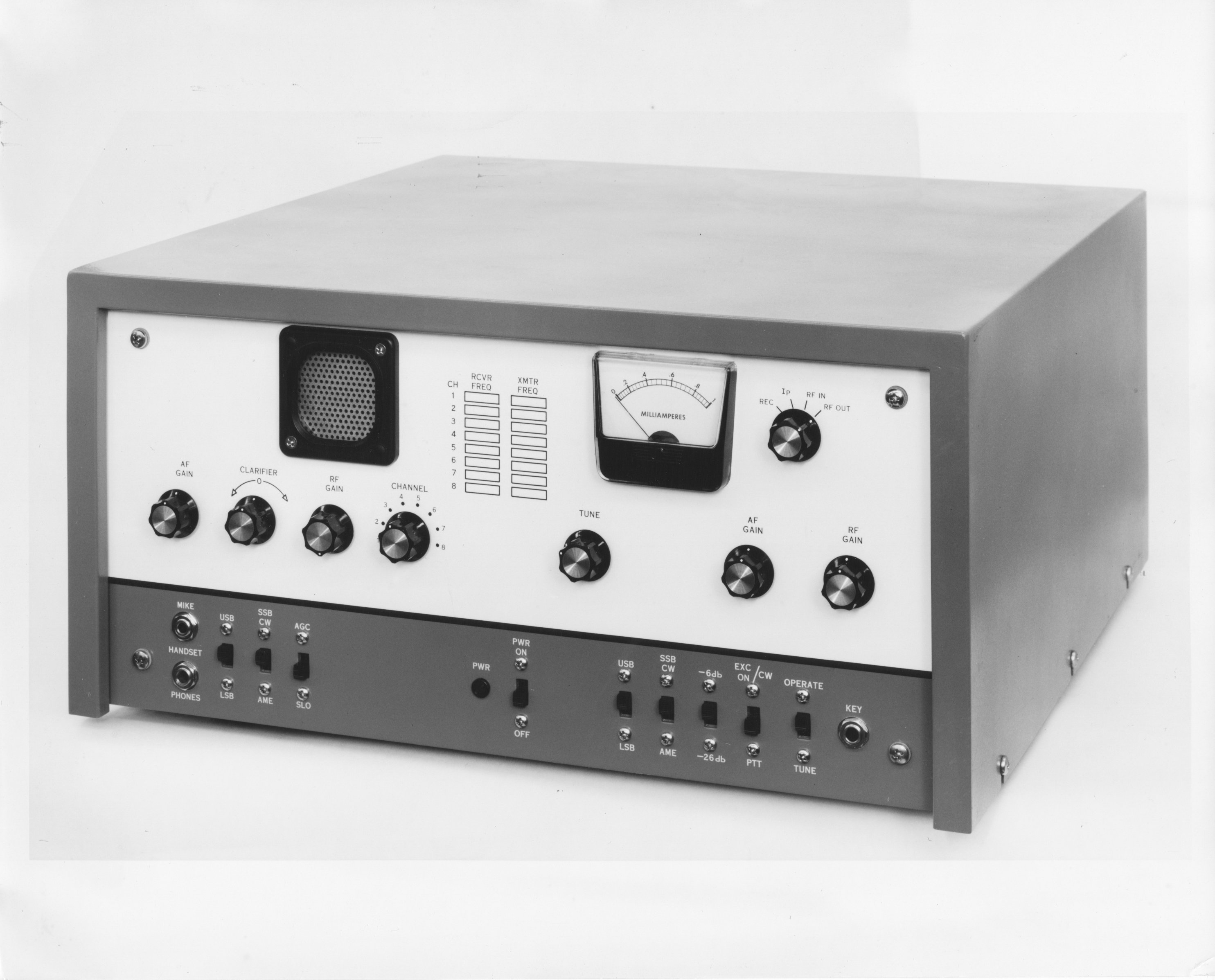

| MTR-7 |
 |
Unknown |
|
|
| MTR-100 |
 |
Multi-Channel
Transmitter/Receiver |
|
|

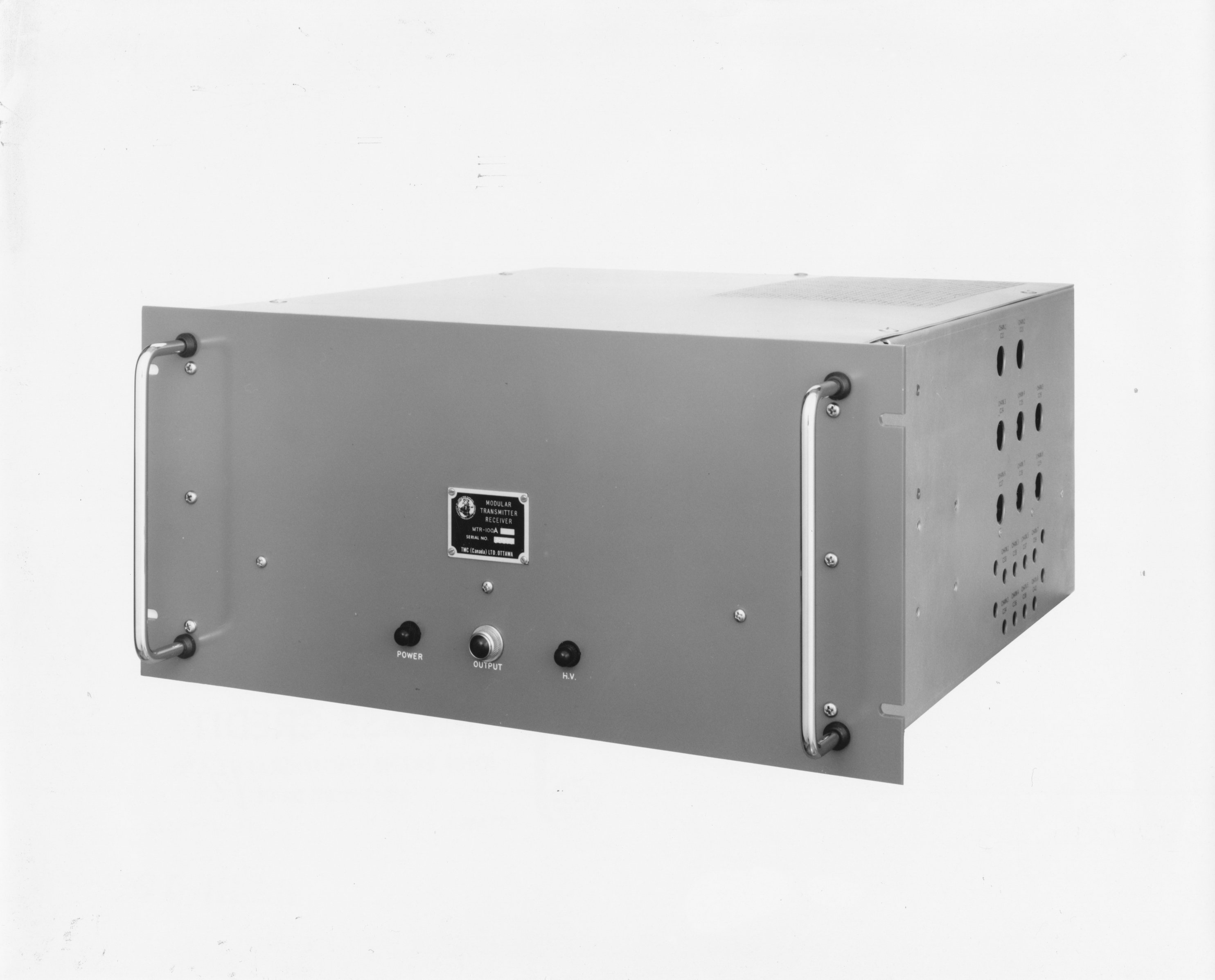

| MTR-100A |
 |
Multi-Channel
Transmitter/Receiver |
|
|
| MTR-150 |
 |
Multi-Channel
Transmitter/Receiver |
|
|

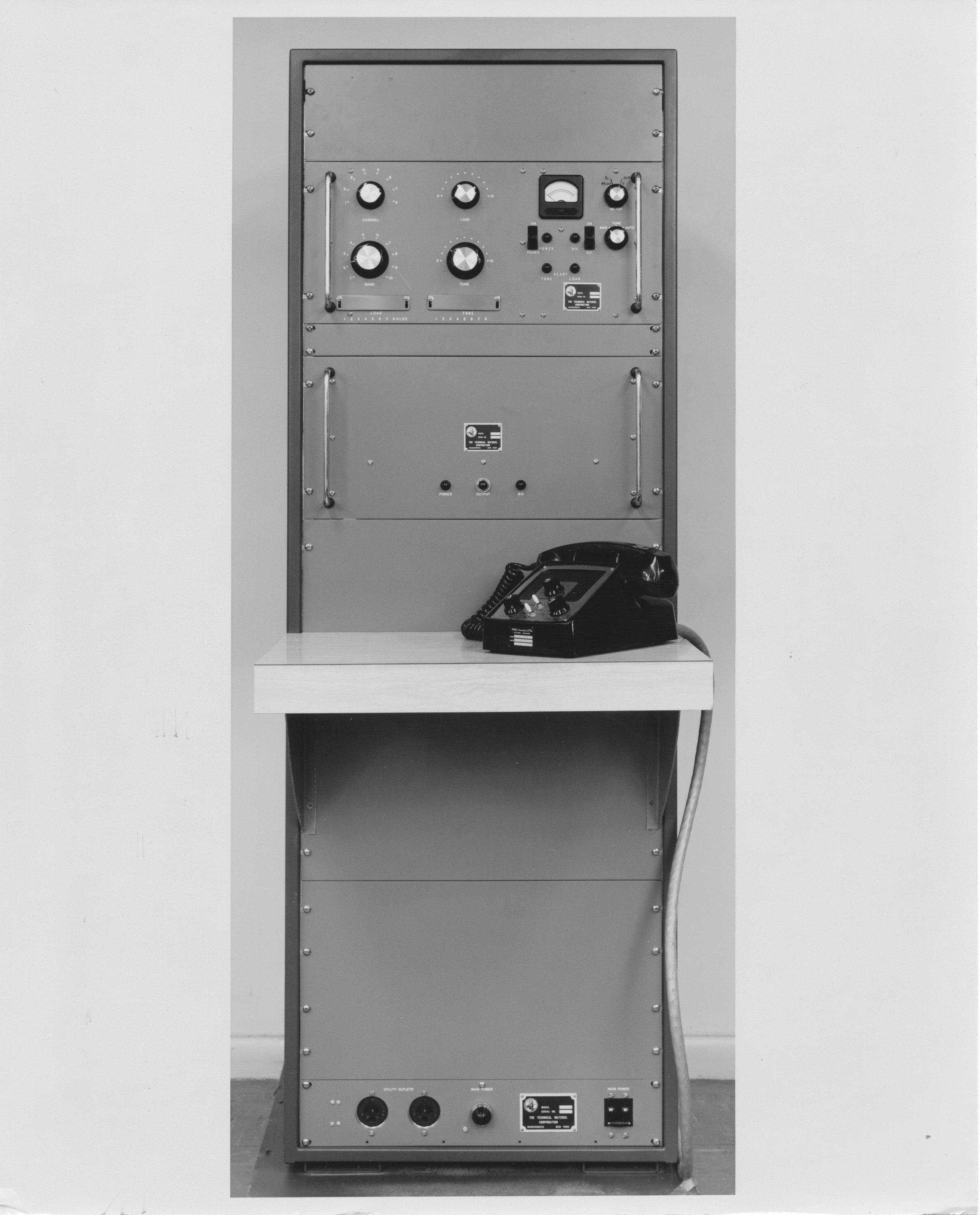

| MTR-1K |
 |
Marine Radio and Subscriber
Transmit-Receive Systems |
TB-105015 |
|
|
|
|
|
|
| MXR-1K |
|
Multi-Channel Transmitter |
TB-1010 |
|
|
P |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
|
|
|
|
|
|
|
|
|
|

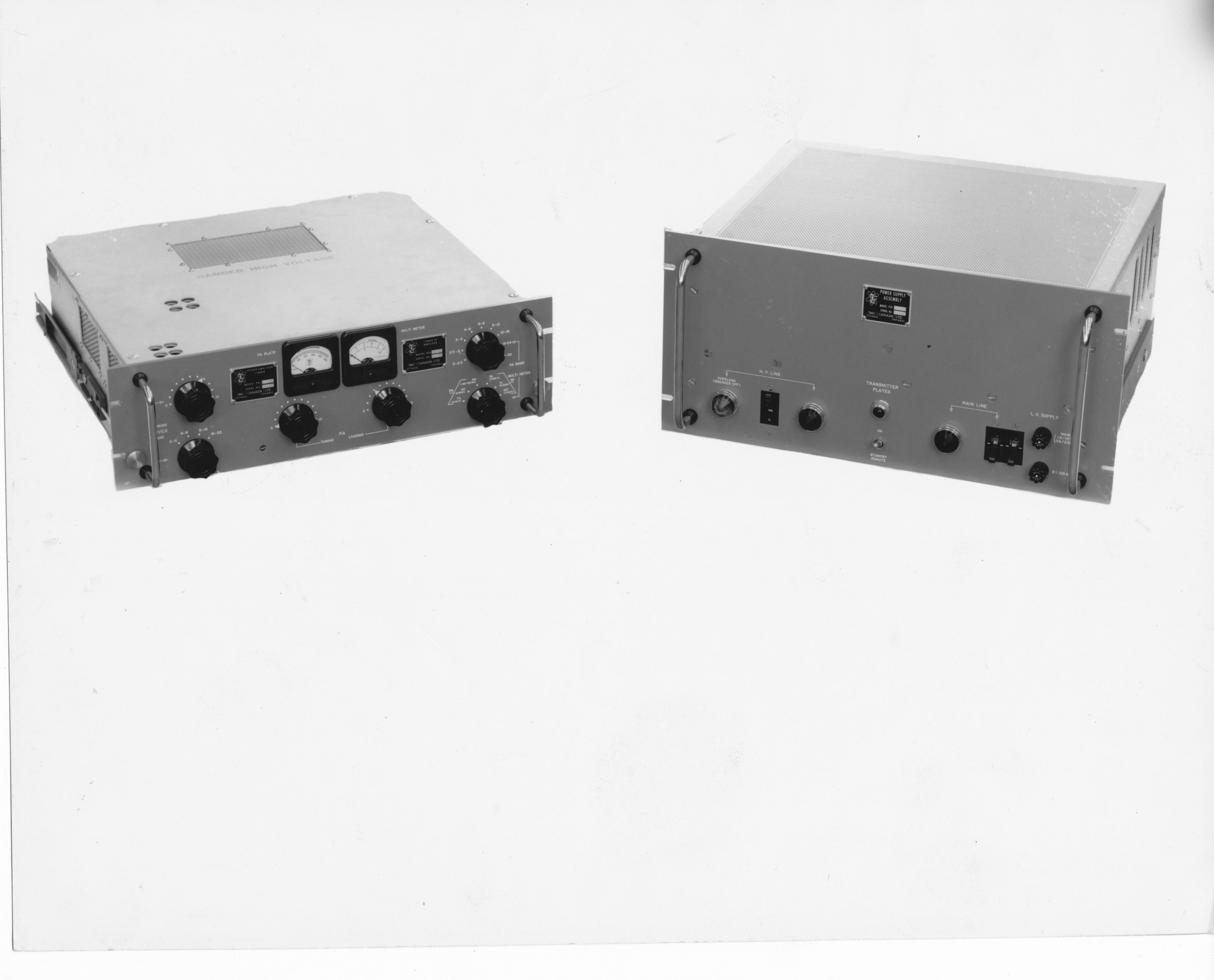

| PAL-350 |
|
350W Linear Power Amplifer,
comprised of RFA-1 amplifier and PSP-350 power supply |
SSB-204A,
SSB-215 |
|
| PAL-350A |
350W Linear Power
Amplifer,comprised of RFA-1 amplifier and PSP-350A power supply |
|
|
| PAL-350B |
350W Linear Power Amplifer, RFA-1
amplifier and PSP-350B power supply w/ s/s rectifiers |
|
|
| PAL-350C |
350W Linear Power Amplifer,
consists of RFA-1C amplifier and PSP-350C power supply |
TB-2002 |
AM-2867/GRT-9 |
| PAL-500 |
|
500W Linear Power
Amplifier. Updated version of PAL-350 with 4CX350 PA tubes, all s/s
power supplies. Comprised of RFE-1, PSP-500 |
|
|
| PAL-500-4 |
|
PAL-500 with RFE-2-4, with four
fixed-frequency channels |
|
|

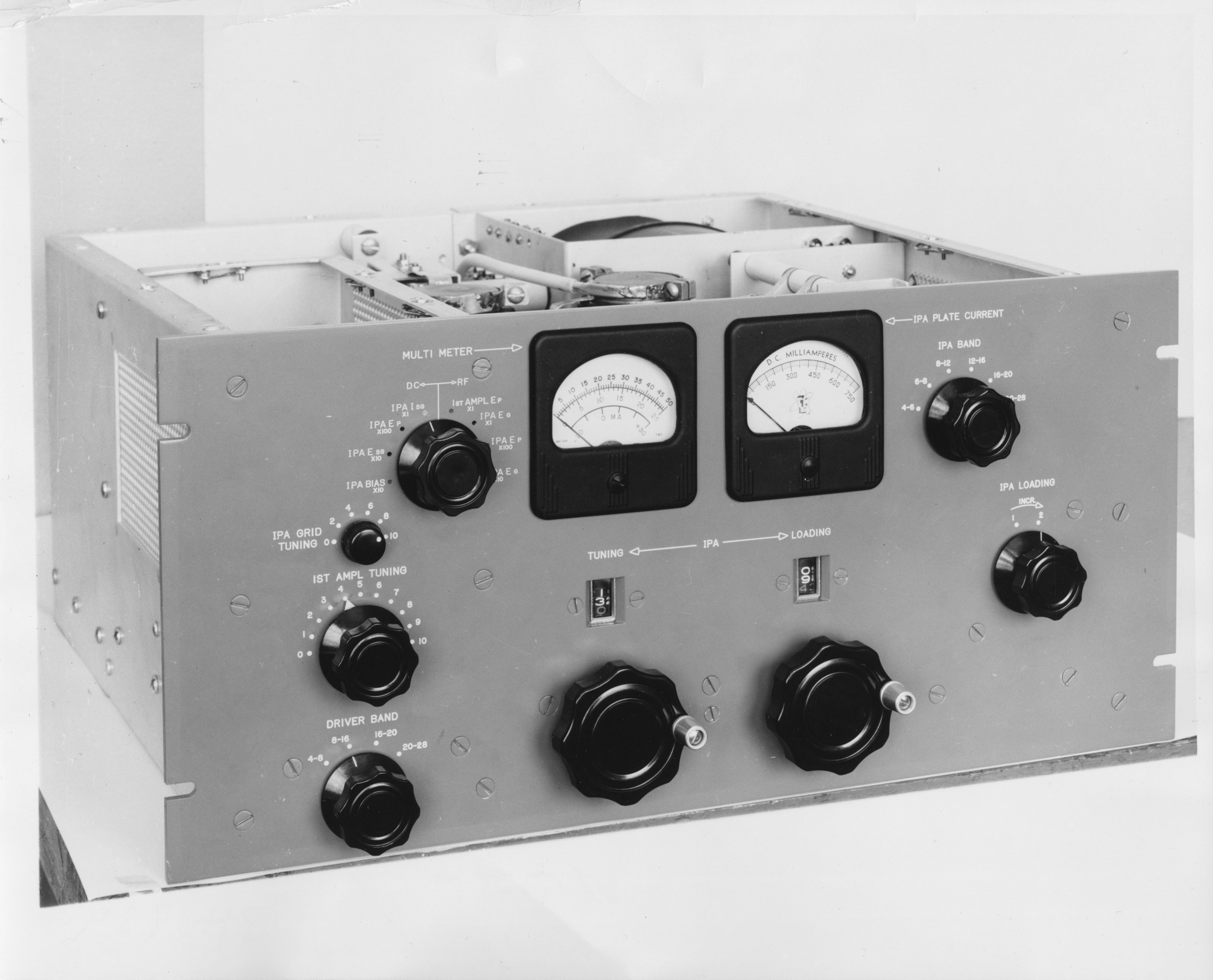

| PAL-1K |
 |

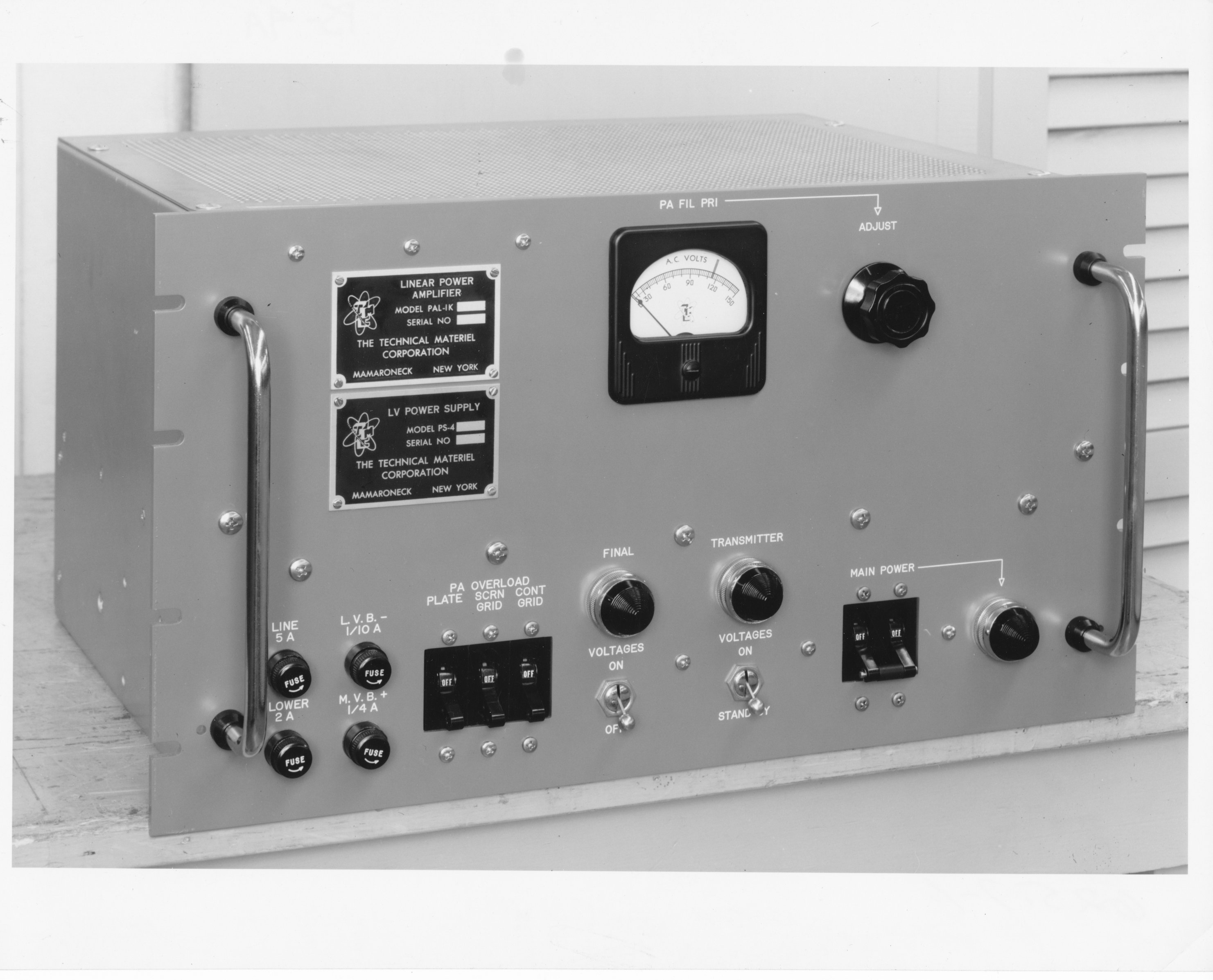

1KW Linear Power Amplifier,
consisting of RFD-1, PS-4, PS-5 |
SSB-221 |
AN/URA-36 |
| PAL-1KA |
1KW Linear Power Amplifier,
consisting of RFD-1A, PS-4A, PS-5A |
|
AN/URA-36A |
| PAL-1KB |
1KW Linear Power Amplifier,
consisting of RFD-1B, PS-4B, PS-5B (s/s rectifiers) |
TB-2003 |
AN/URA-36B |
| PAL-1KB1 |
1KW Linear Power Amplifier |
|
|
| PAL-1KB2 |
1KW Linear Power Amplifier |
|
|
| PAL-1KB3 |
1KW Linear Power Amplifier |
|
|
| PAL-100K |
 |
100KW Linear Power Amplifier (PA
portion of GPT-100K) |
|
|
| PALA-2.5K |
 |
2.5KW Linear Power Amplifier |
|
|
| PALA-10K |
 |
10KW Linear Power Amplifier |
|
|
| PFCB-1 |
 |
Precision Frequency Comparator |
|
CM-326/UR |
| PMO-1 thur -6 |
 |
Portable Master Oscillator |
SSB-173A,
SSB-193B |
O-459( )/URT |
| PS-4/-4A |
 |
Low Voltage Power Supply for
PAL-1K |
|
PP-2765/URA-36, PP-2765A/URA-36A |
| PS-5 |
 |
High Voltage Power Supply for
PAL-1K |
|
PP-2766/URA-36, PP-2766/URA-36A |
| PSP-1/-2 |
 |
Power Supply (TTY line
current). PSP-2 is two PSP-1's mounted on common panel |
SSB-121 |
|
| PTE-1 |
|
SSB Analyzer |
SSB-231 |
|

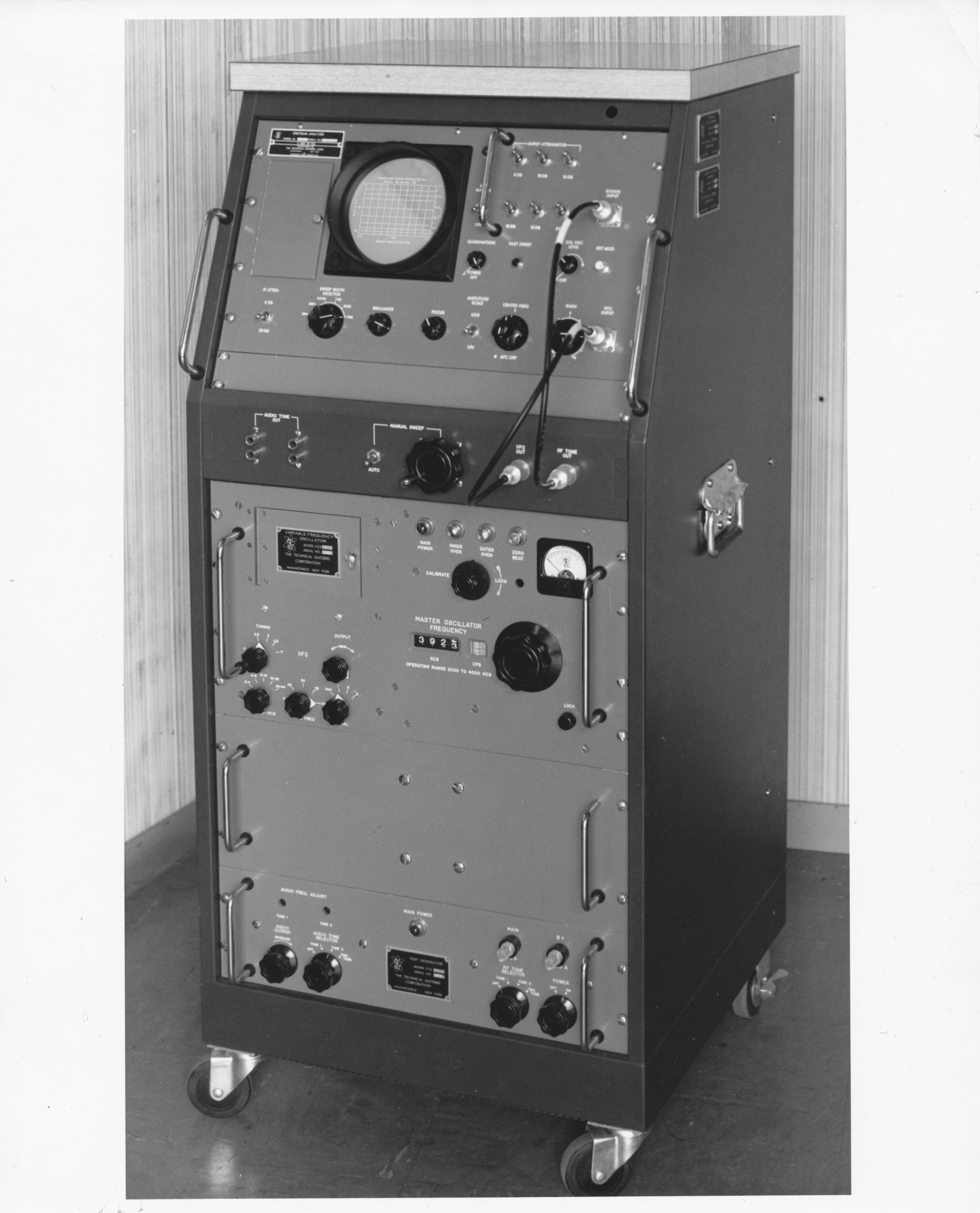

| PTE-3 |
 |
RF Spectrum Analyzer |
SSB-260 |
|
| PTE-4/-4A |
 |
RF Spectrum Analyze |
TB-6001A |
|
| PVC-1/-2 |
 |
Passive Volume Compressor.
PVC-2 is two PVC-1's packaged together |
SSB-216 |
|
|
Q |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| QDP-( ) |
 |
Quick-Disconnect RF Patch Panels
(QDP-38 shown) |
SSB-197 |
|
|
R |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |

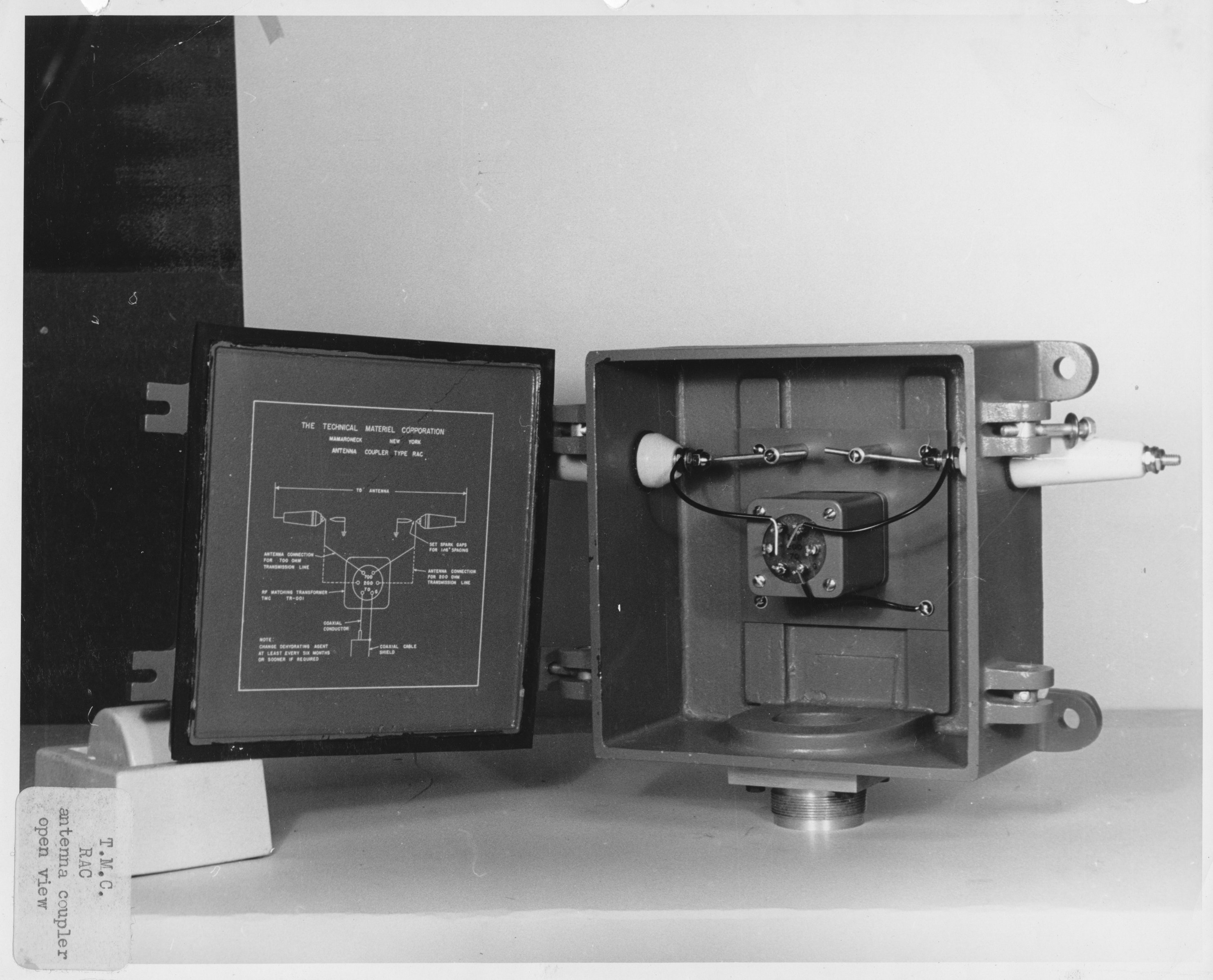

| RAC-1 thru -32 |
 |
Rhombic Antenna Coupler |
SSB-112D,
TB-4036, TB-204-4513 |
|
| See List
of Rack (RAK) Types |
| RARA |
 |
Unknown |
|
|

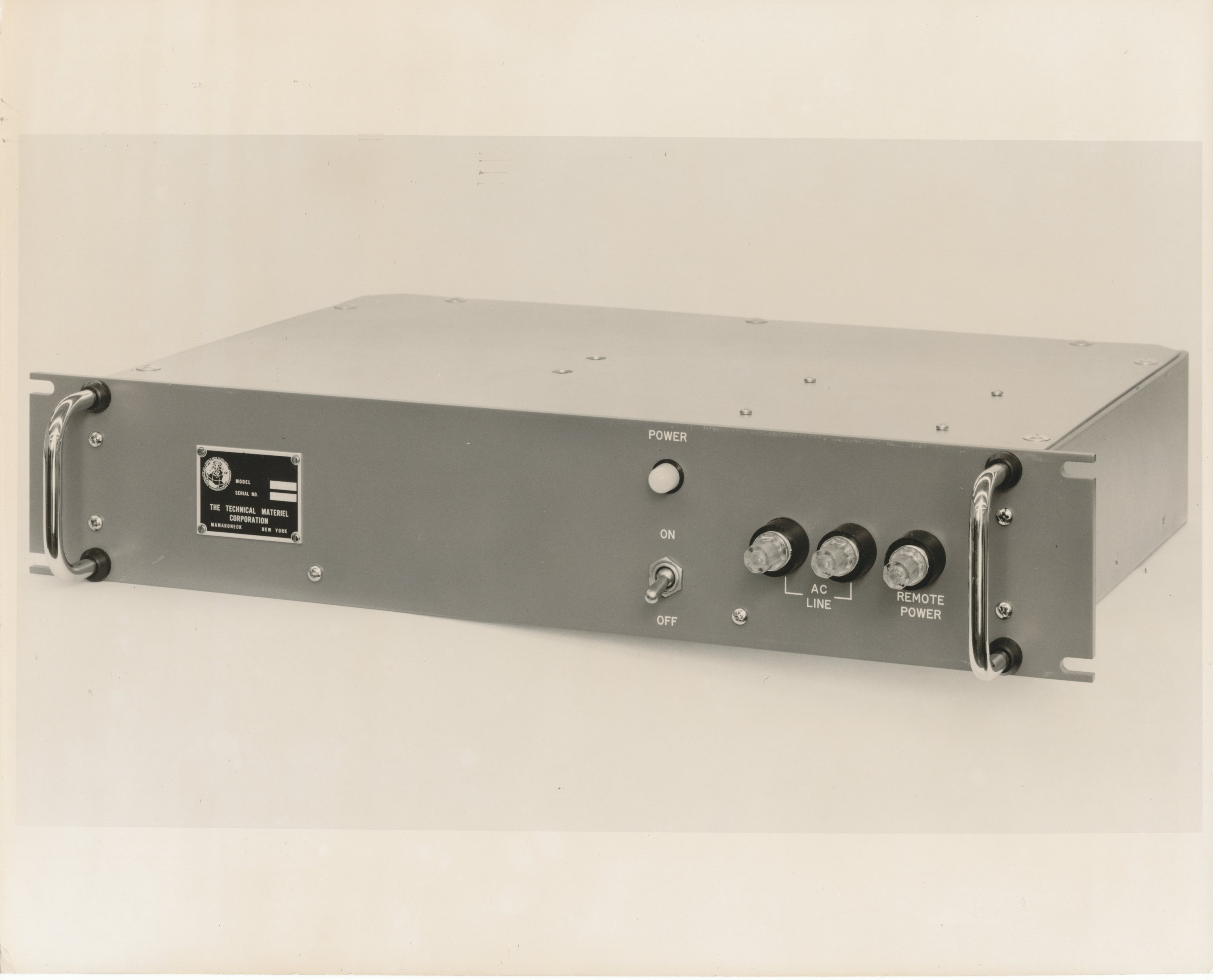

| RARY |
 |
Unknown |
|
|
| RASA |
 |
Unknown |
|
|
| RASY |
 |
Unknown |
|
|
| RCCA-1 |
|
Receiver Remote Control Console |
|
|
| RCR-5 |
 |
Unknown |
|
|

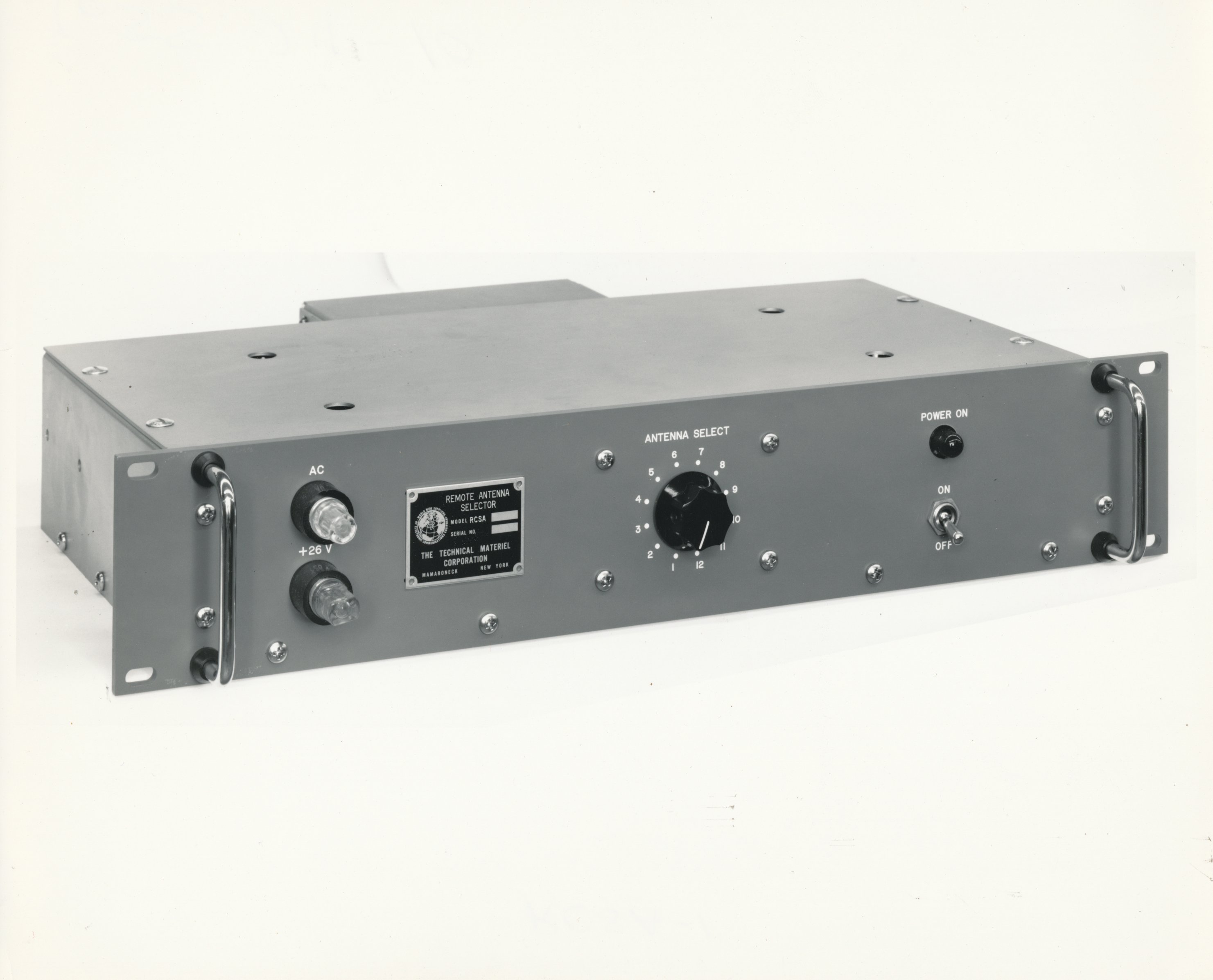

| RCSA-1 |
 |
Unknown |
|
|
| RCSR-1 |
|
Receiver Remote Control System |
|
|
| RCWA-1/-1A |
 |
Unknown |
|
|
| RDCR-1 |
 |
Receiver, Analog-Digital Control |
|
|
| RDCR-1Y |
 |
Receiver, Analog-Digital Control,
p/o ADC-3/-4/-5 |
|
|
| RFD-1 |
 |
Amplifier portion of
PAL-1K |
|
AM-2785/URA-36 |
| RFD-1A |
|
AM-2785A/URA-36 |
| RFD-1B |
|
|
| RGCA-1 |
 |
Unknown |
|
|

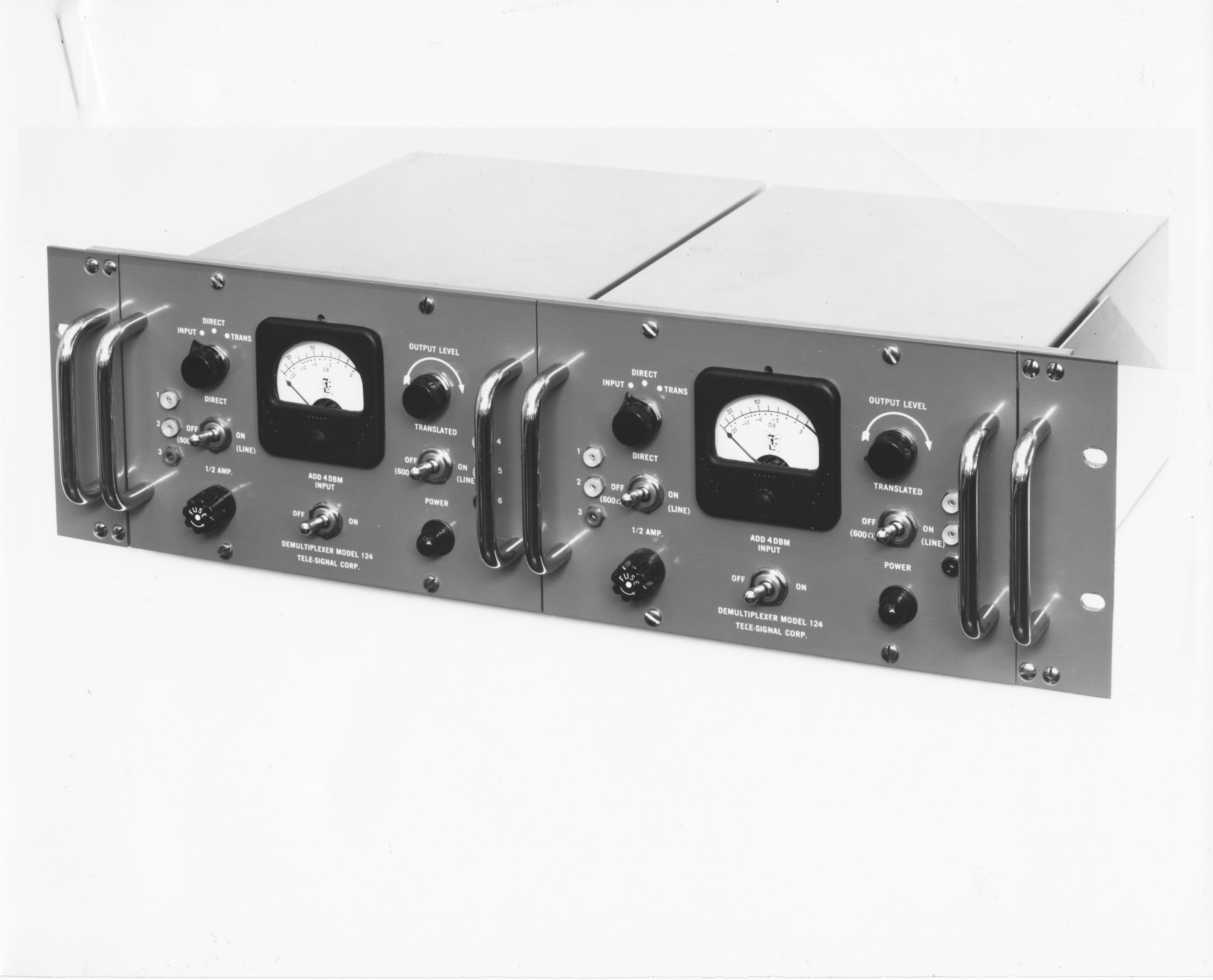

| RMX-1/-2 |
 |
Audio Demultiplexer. RMX-2
is a pair of RMX-1's. Used in SBC-2 |
|
|

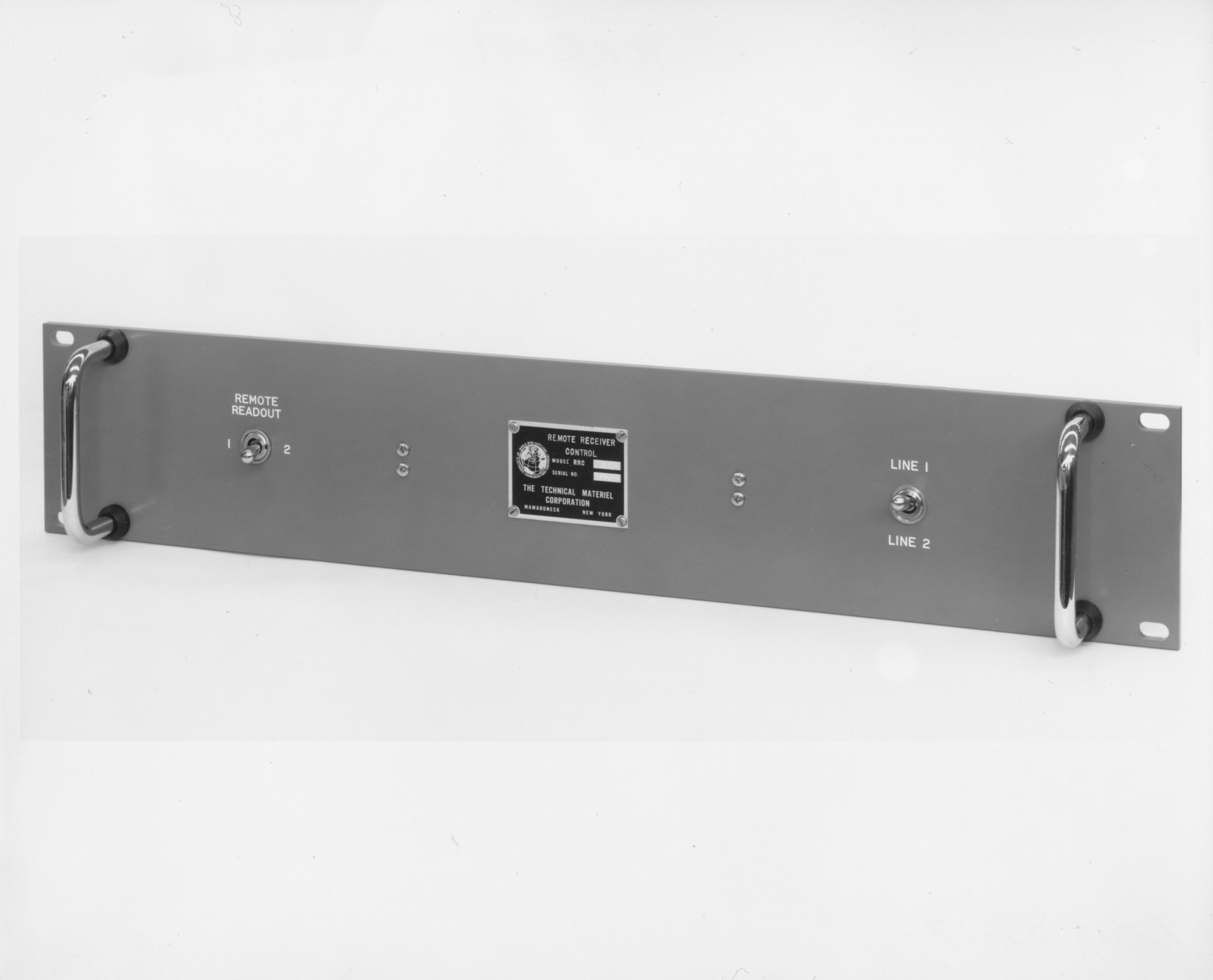

| RRCA-1 |
 |
Unknown |
|
|

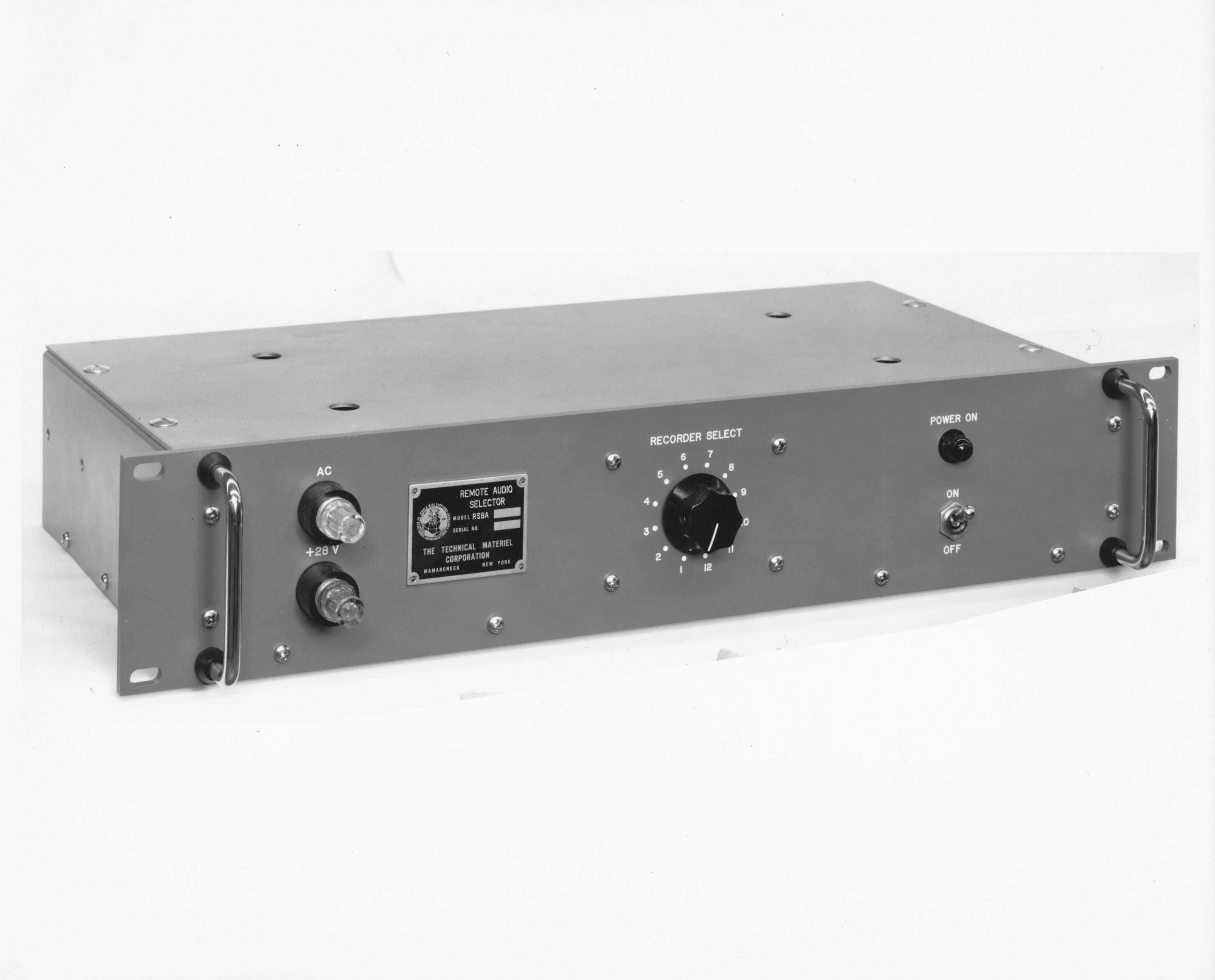

| RSBA-1 |
 |
Unknown |
|
|
| RSC-1 thru -3 |
 |
Unknonw. Only have top view
of RSC-3 |
|
|
| RSU-1 |
|
Receiver Stablization Unit |
|
|
| RSM-1/-2 |
 |
Unknown. Only have top view of
RSM-2 |
|
|
| RSSA-( ) |
 |
Unknown. RSSA-6YA shown. |
|
|
| RTB-1 thru -15 |
 |
Rhombic Terminator Unit |
|
|
| RTC |
 |
Station Control |
|
|
| RTDA-1 |
 |
Technimatic Test Set |
|
|
| RTIA-1 |
|
Channel Frequency Indicator |
|
ID-12771/FRR-72 |
| RTID-1 |
 |
Channel Frequency Indicator |
|
|
| RTIF-1 |
|
Channel Frequency Indicator |
|
|
| RTIH-1 |
 |
Channel Frequency Indicator |
|
|
| RTIH-3 |
|
Channel Frequency Indicator |
|
|

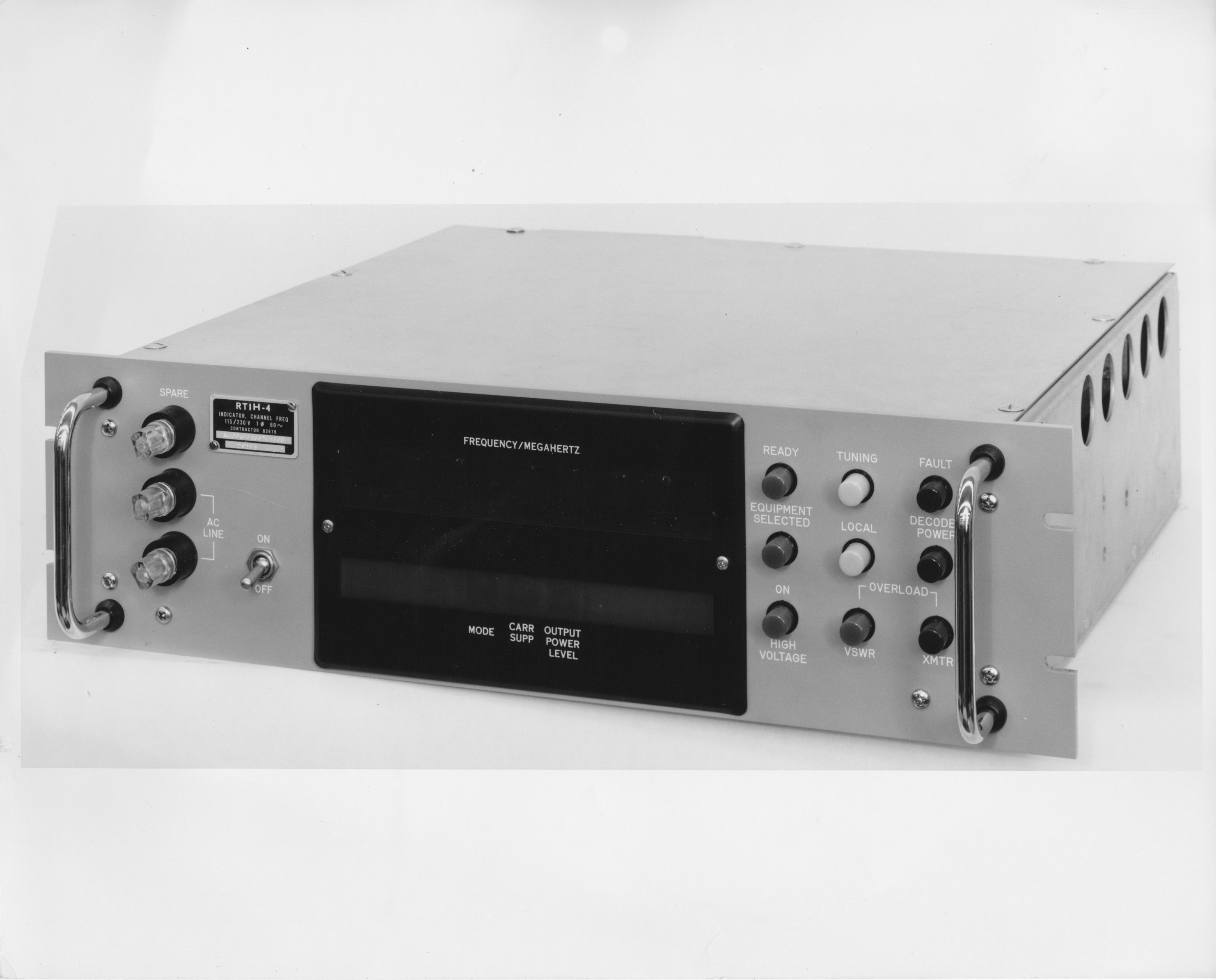

| RTIH-4 |
 |
Channel Frequency Indicator |
|
|

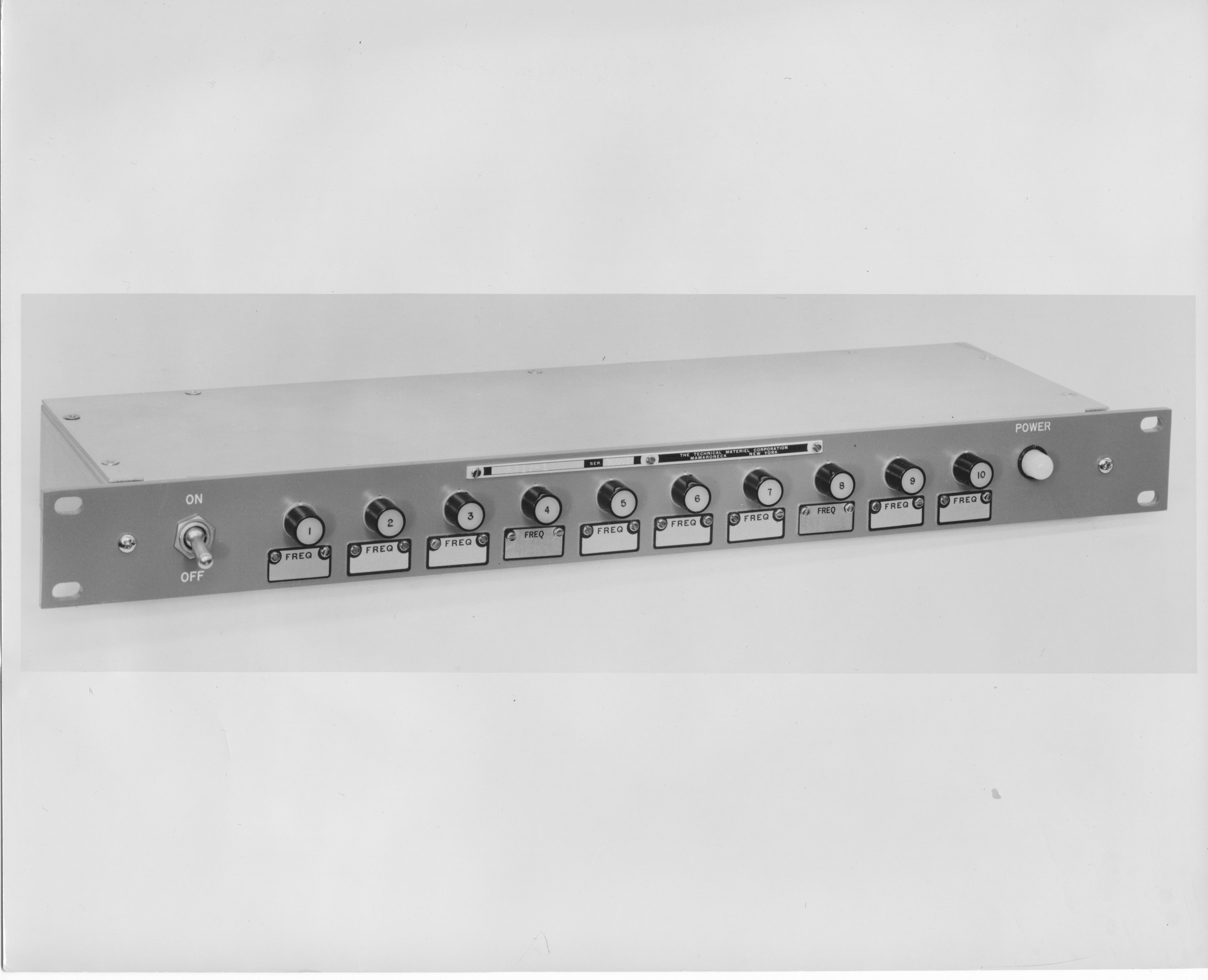

| RTIY |
 |
Unknown |
|
|

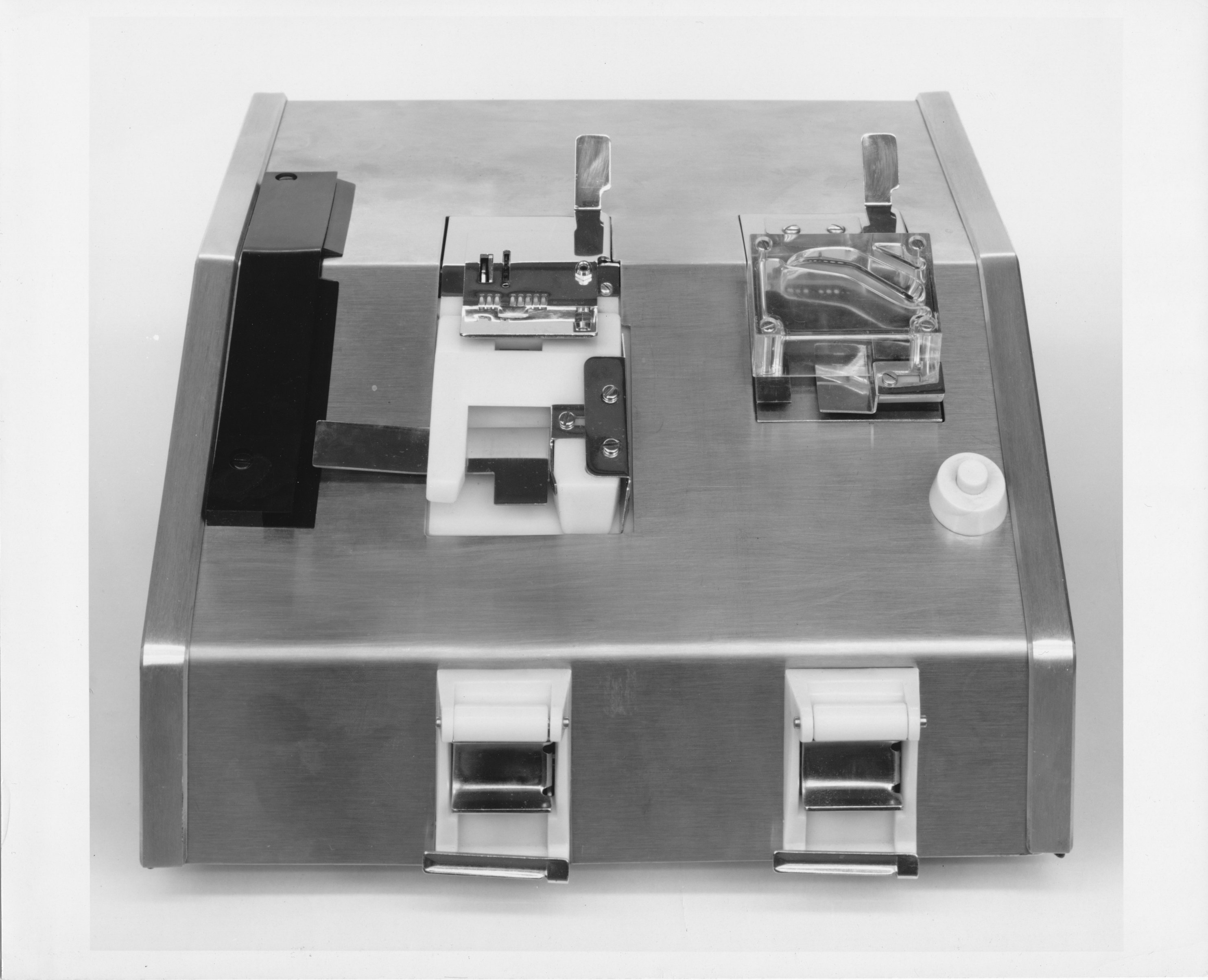

| RTKY-1 |
 |
Royal McBee M-950 Paper Tape
Reader/Punch |
|
|
| RTMU-1 |
|
Signal Data Converter-Storer |
|
|

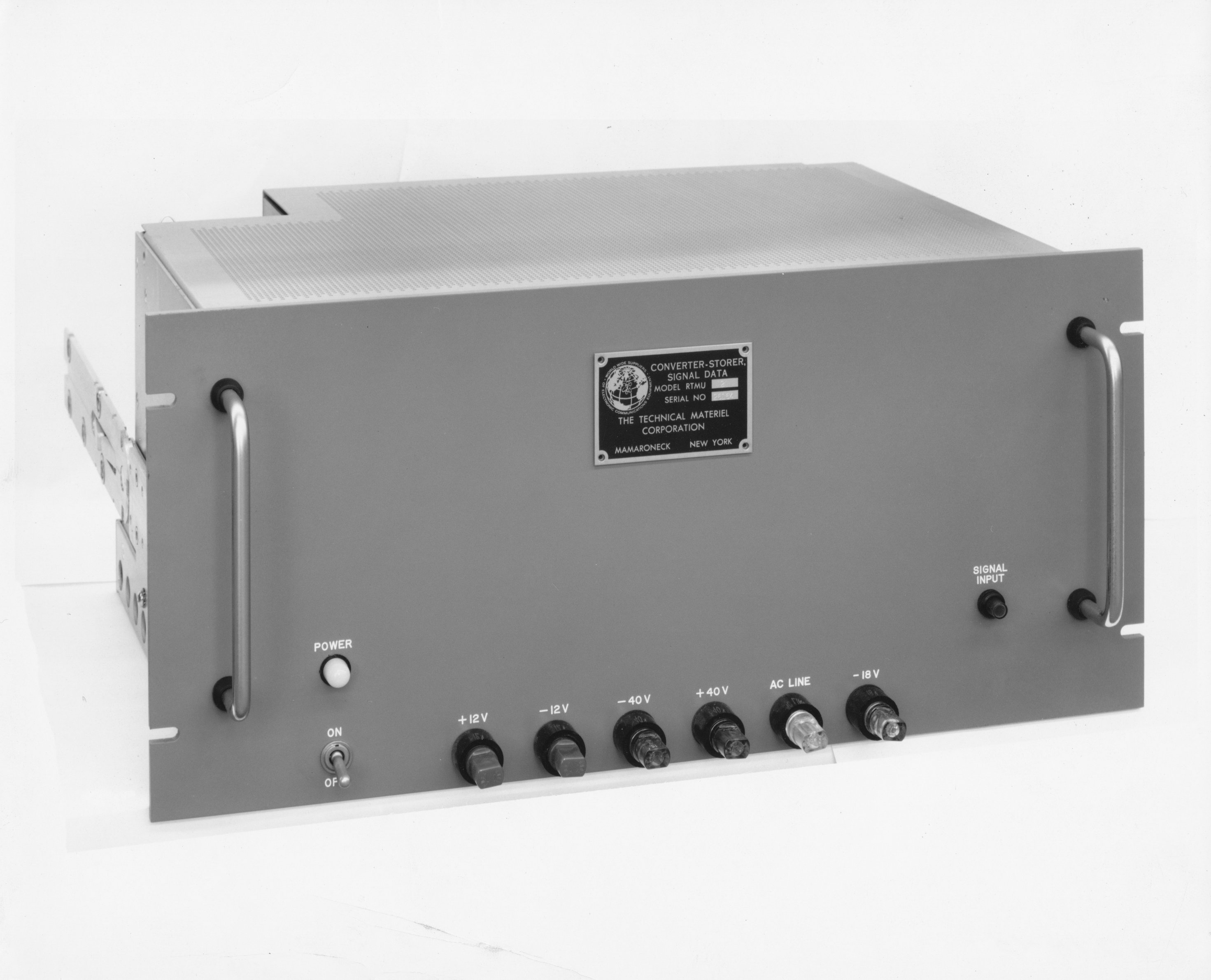

| RTMU-2 |
 |
Signal Data Converter-Storer |
|
|
| RTMU-41 |
 |
Signal Data Converter-Storer |
|
|

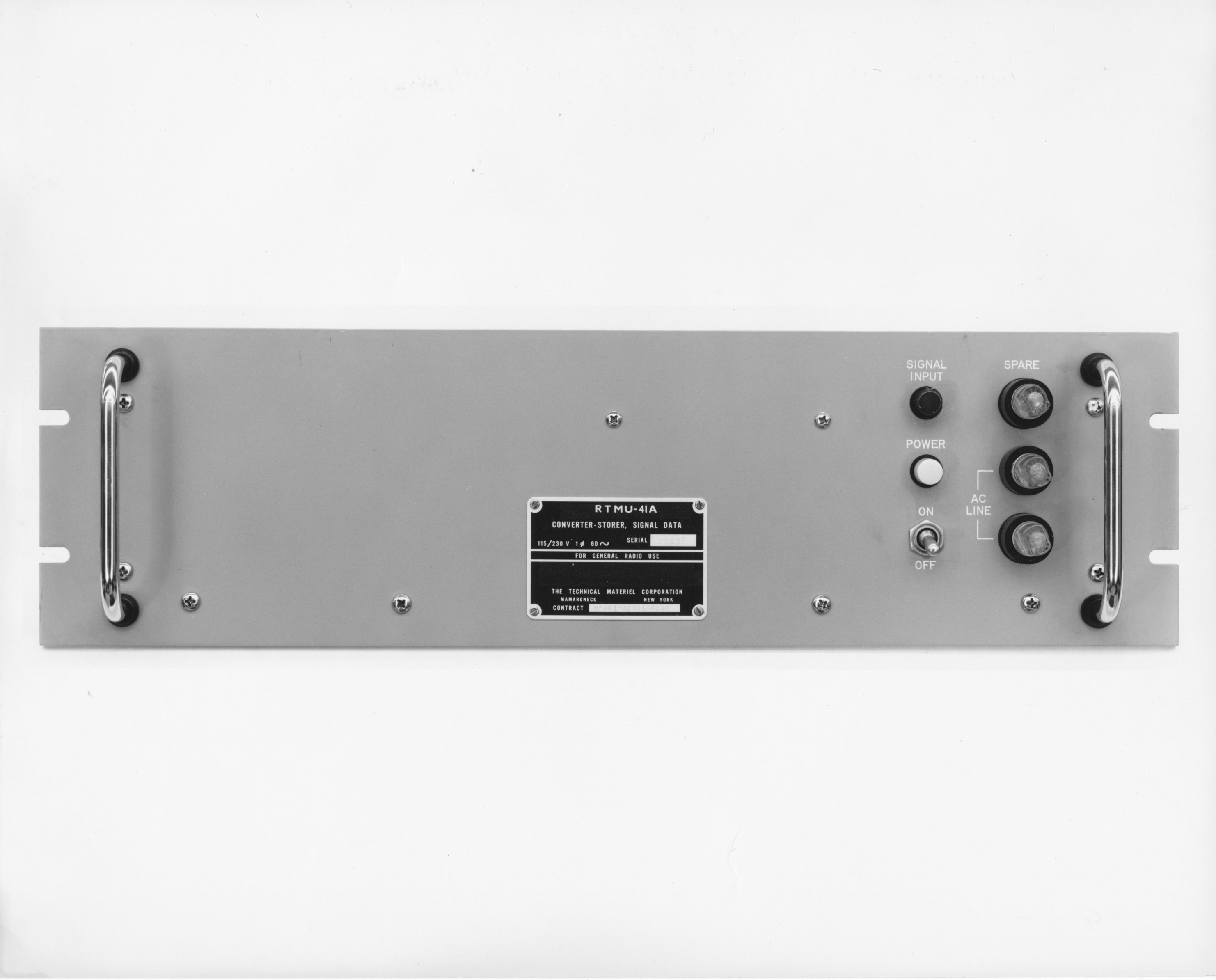

| RTMU-41A |
 |
Signal Data Converter-Storer |
|
|
| RTMU-41B |
|
Signal Data Converter-Storer |
|
|
| RTMU-42 |
|
Signal Data Converter-Storer |
|
|
| RTO-1 |
 |
Receiver Test Oscillator |
|
|
| RTO-1A |
 |
Receiver Test Oscillator |
|
|

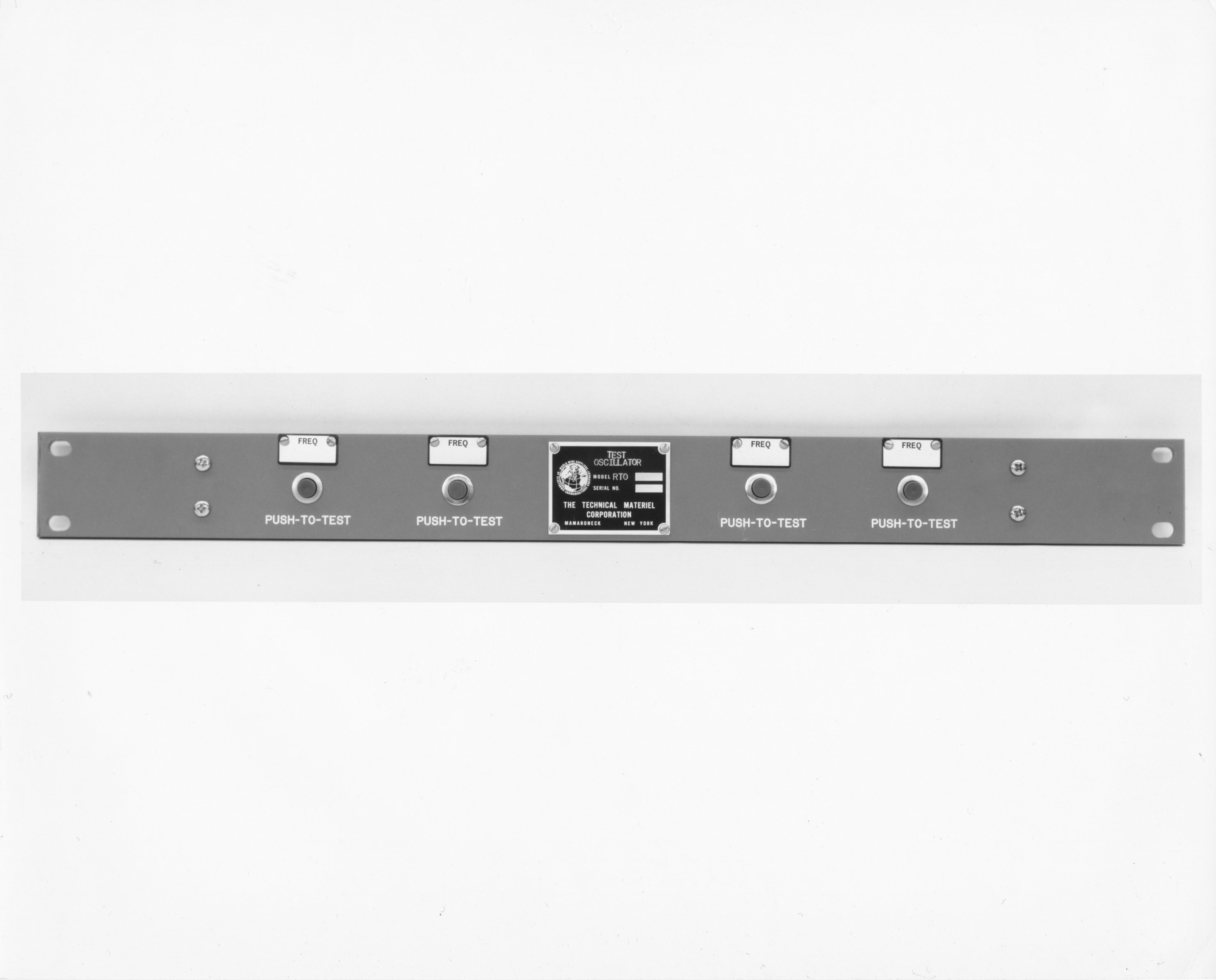

| RTO-2 |
 |
Receiver Test Oscillator |
|
|
| RTPA-1 |
|
Electronic Programmer |
|
MK-6758/FRR-72 |
| RTPE-1 |
|
Electronic Programmer |
|
|
| RTPF-1 |
|
Electronic Programmer |
|
|
| RTPH-1 |
 |
Electronic Programmer |
|
|
| RTPH-3 |
 |
Electronic Programmer |
|
|
| RTPH-4 |
 |
Electronic Programmer |
|
|
| RTPR-1Y |
 |
Transmitter, Analog/Digital
Control, Part of ADC-3/-4/-5 |
|
|
| RTRS-1 |
|
Receiver Selector, used for
example in AN/FRR-72 |
|
MK-6759/FRR-72 |
| RTRS-1B |
 |
Receiver Selector |
|
|
| RTRS-209 |
|
Receiver Selector |
|
|
| RTRS-216 |
|
Receiver Selector |
|
|
| RTTA-1 |
|
Decoder/receiver |
|
|
| RTTD-1 |
 |
Decoder/receiver |
|
|

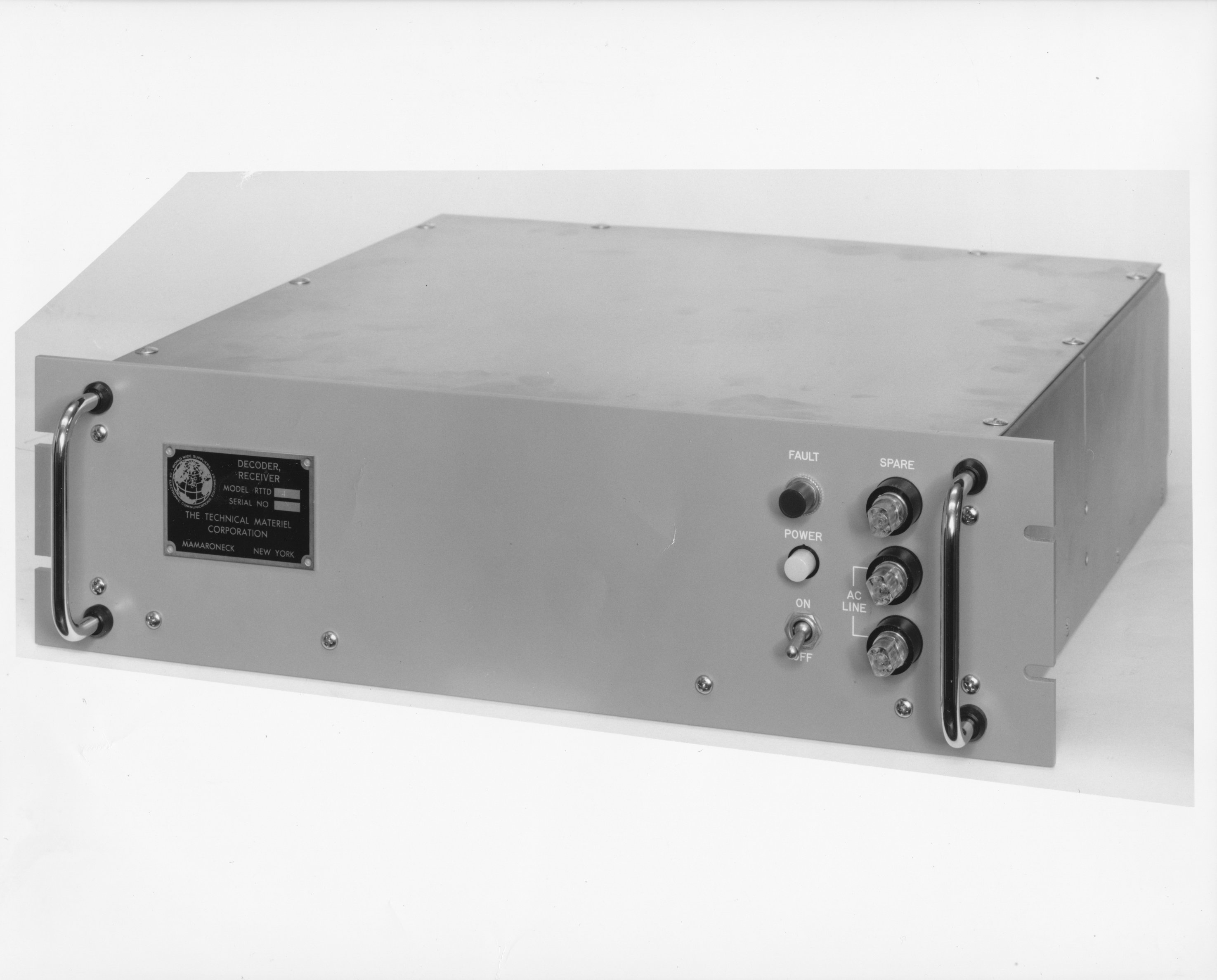

| RTTD-4 |
 |
Decoder/receiver |
|
|
| RTTD-5 |
 |
Decoder/receiver |
|
|
| RTTD-5A |
|
Decoder/receiver |
|
|
| RTTE-1 |
|
Decoder/receiver |
|
|
|
S |
| Model |
Photo/Gallery |
Description |
TB or SSB No. |
Mil Nomenclature |
|
|
|
|
|
|
|
SBC-1 |
Shown with R-390A |
Sideband Converter. SBC-1 provides 2 audio outputs
and independent AGC for each channel. Consists of AFC-2 AFC control,
and SBS-1 sideband selector. |
SSB-262,
TB-4003, TB-4003A |
AN/URA-42A |
|
SBC-2 |
|
Sideband Converter. SBC-1 with addition of a
pair of audio demultiplexers, RMX-2 |
|
|
SBC-1A/-2A |
|
Updated version of SBC-1/-2, using AFC-2A |
|
AN/URA-42A |
|
SBC-9 |
 |
Sideband Converter |
TB-4003B |
AN/URA-42( ) |
|
SBCI-9 |
|
Narrow-band version of SBC-1A/-2A, replaces 3.5/7.5Kc
filters with 3.0/6.0Kc |
|
|
|
SBE-1 |
 |
Sideband Exciter |
SSB-195,
SSB-195A, SSB-195B |
AN/URA-23 |
|
SBE-2 |
Sideband Exciter, 350-3300 cps audio |
SSB-195C,
SSB-2008 |
AN/URA-23A |
|
SBE-2A |
 |
Sideband Exciter, presumably improved version of the '2 |
|
|
|
SBE-3 |
 |
Sideband Exciter, 250-7500 cps audio |
SSB-2008 |
AN/URA-28A |
|
SBE-4 |
|
Sideband Exciter, 250-6000 cps audio |
SSB-2008 |
|
|
SBE-6 |
|
Sideband Exciter, 250-7500 cps audio |
SSB-2008 |
|
|
SBE-8 |
 |
Sideband Exciter, 250-3500 cps |
SSB-2008A,
SSB-2008B |
|
|
SBE-9 |
Sideband Exciter, 250-8500 cps |
|
|
SBE-10 |
Sideband Exciter, 250-6000 cps |
|
|
SBG-1 |
 |
Single Sideband Generator. Consists of CBE-1, CPO-1,
CPP-2, CMO-1, CHG, CLL-1, TIS-3, CSS-1, CHL-1, APP-3 |
SSB-228 |
AN/URA-30 |
|
SBG-2 |
Narrow-band version of SBG-1, uses CBE-2. |
SSB-228 |
AN/URA-30 |
|
SBG-1A/-2A |
 |
Update versions of SBG-1/-2. Details unknown |
|
AN/URA-30A |
|
SBG-1B/-2B |
|
Updated versions of the SBG-1/-2 with CPO-1A |
|
AN/URA-30B |
|
SBG-1L |
 |
Low Frequency Sideband Generator, 50-500Kc |
TB-2013 |
AN/URA-41 |
|
SBG-1M |
Low Frequency Sideband Generator, 10-50Kc |
|
|
SBG-3 |
 |
Sideband Generator, consists of CMR-1 exciter, CHG-3 rf
translator, HFS-2 control synthesizer, HFP-1 power supply |
TB-2012 |
|
|
SBG-4 |
 |
Sideband Generator, consisting of CMR-4 exciter and CHG
frequency translator (prototype shown at left) |
|
|
|
SBGM-4 |
 |
Manual version of SBG-4 |
|
|
|
SBGR-4YA |
 |
Appears to be a pair of remotely tuned SBG-4's |
|
|
|
SBS-1 |
 |
Sideband Selector, part of SBC-1, for example |
|
CV-1288/UR |
|
SBS-2 |
|
1750Kc IF version of SBS-1 (455Kc) |
|
CV-1293/FRR-60(V) |
|
SBS-9 |
|
Sideband Selector |
|
|
|

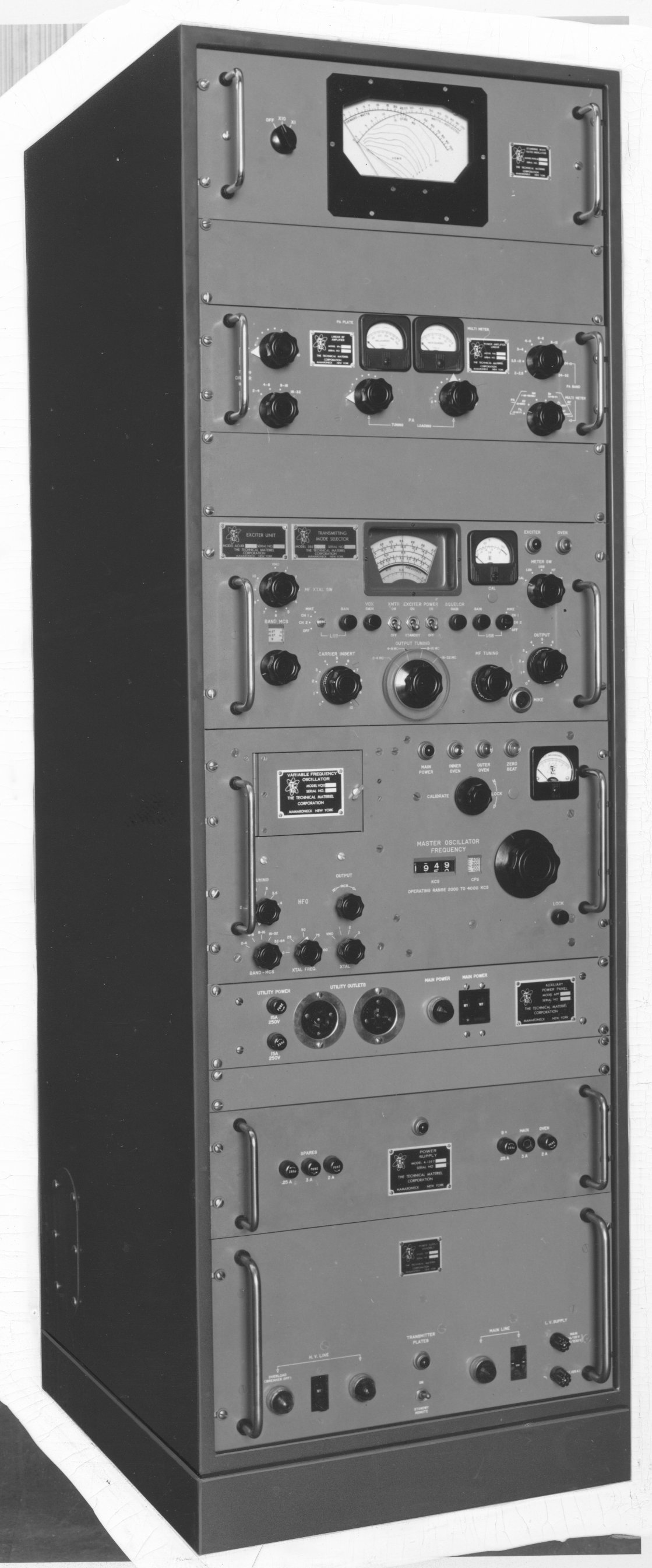

SBT-350A |
 |
350W AM, CW, SSB Transmitter, including: SWR-1K,
PAL-350, SBE-2, VOX-1, APP-2 |
SSB-220,
TB-1003 |
|
|
SBT-350B |
|
350W AM, CW, SSB Transmitter, including: PAL-350,
SBE-2, APP-2 |
|
|
SBT-350C |
|
350W AM, CW, SSB Transmitter, including: ATS-2,
PAL-350, SBE-2, VOX-1, APP-2 |
|
|
SBT-350D |
|
350W AM, CW, MCW, RTTY Transmitter, including:
SWR-1K, PAL-350, SBE-2, VOX-1, TIS-2 |
|
|
SBT-350E |
|
350W CW, FAX, RTTY Transmitter, including: ATS-2,
PAL-350, VOX-1, APP-2, XFK |
|
|
SBT-350H |
 |
350W AM,CW,SSB, FSK, FAX Transmitter, inlcuidng:
SWR-1K, PAL-350, SBE-3, VOX-5, TIS-3, APP-5 |
TB-1003 |
|
|
SBT-350I |
 |
350W AM,CW,SSB, FSK, FAX Transmitter, inlcuidng:
ATS-2, PAL-350, SBE-2, VOX-5, TIS-3, APP-5 |
|
|
SBT-350J |
|
350W AM,CW,SSB, FSK, FAX Transmitter, inlcuidng:
ATS-2, PAL-350, SBE-3, VOX-5, TIS-3, APP-5 |
|
|
SBT-350K |
|
350W CW, FSK, FAX Transmitter, inlcuidng: SWR-1K,
PAL-350, XFK, APP-5 |
|
|
SBT-350L |
|
350W CW, FSK, FAX Transmitter, inlcuidng: ATS-2,
PAL-350, XFK, APP-5 |
|
|
SBT-350M |
|
350W AM,CW,SSB, FSK, FAX Transmitter, inlcuidng:
SWR-1K, PAL-350, SBE-2, TIS-3, APP-5 |
|
|
SBT-350M1 |
 |
These variations seem to have the same equipment as the 'M,
but packaged slightly differently. |
|
|
SBT-350M2 |
 |
|
|
SBT-350N |
|
350W AM,CW,SSB, FSK, FAX Transmitter, including:
SWR-1K, PAL-350, SBE-3, TIS-3, APP-5 |
|
|
SBT-350O |
|
350W AM,CW,SSB, FSK, FAX Transmitter, including:
ATS-2, PAL-350, SBE-2, TIS-3, APP-5 |
|
|
SBT-350P |
|
350W AM,CW,SSB, FSK, FAX Transmitter, including:
ATS-2, PAL-350, SBE-3, TIS-3, APP-5 |
|
|
SBT-350Q |
|
350W AM,CW,SSB, FSK, FAX Transmitter, including:
SWR-1K, PAL-350, SBE-2, VOX-5, TIS-3, APP-5 |
|
|

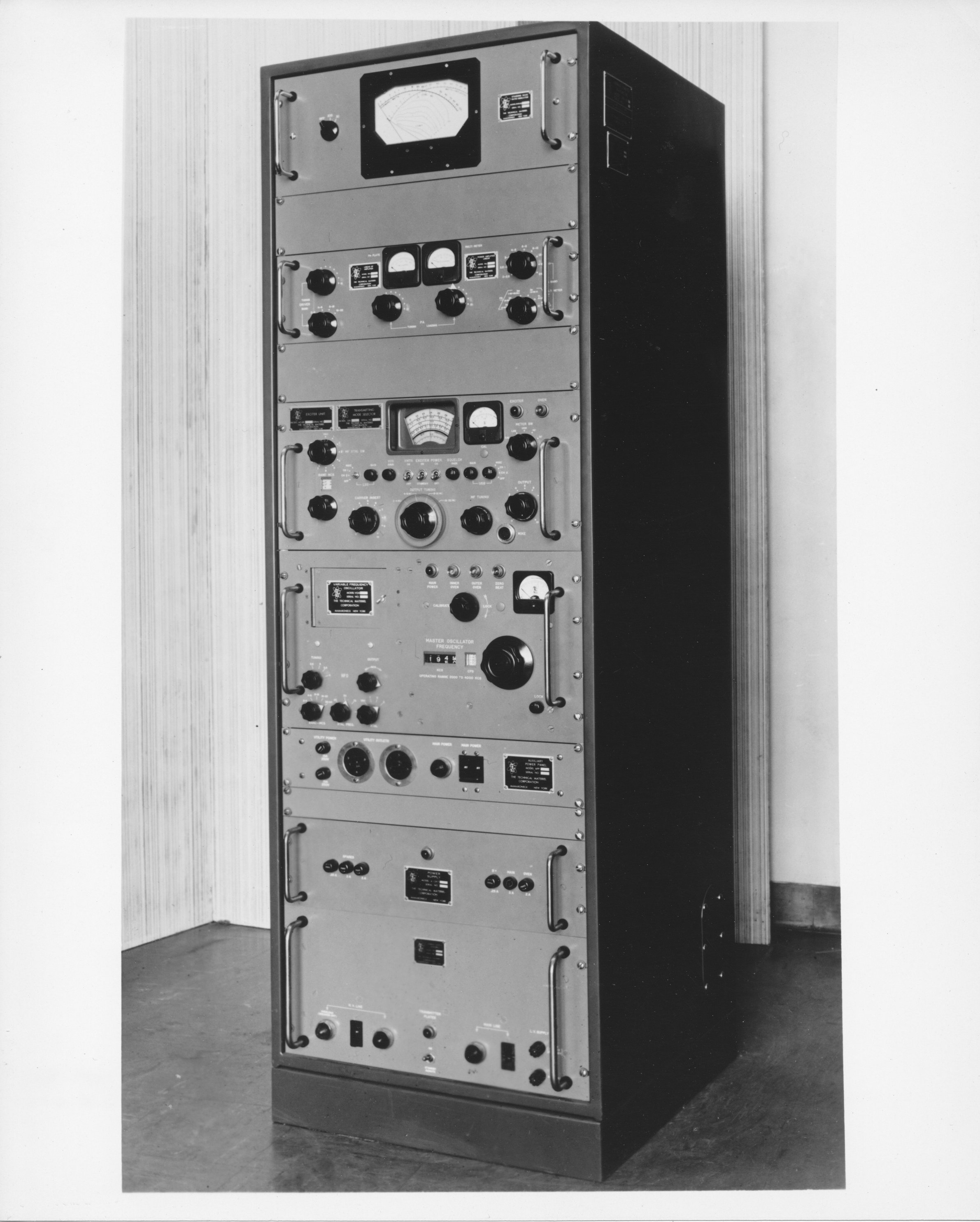

SBT-350R |
 |
350W AM,CW,SSB Transmitter, including: SWR-1K,
PAL-350, SBE-2, VOX-5, APP-5 |
|
|

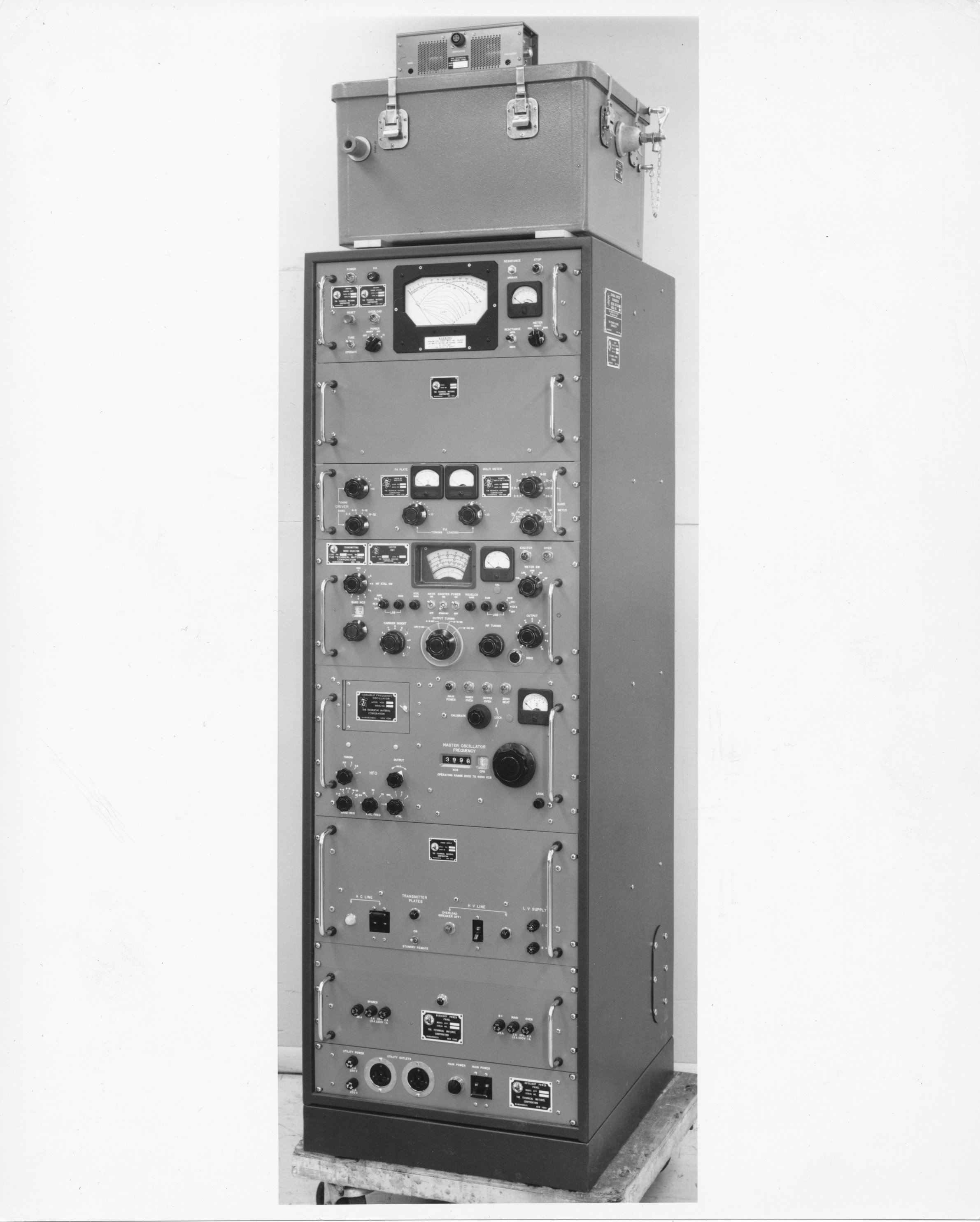

SBT-350S |
 |
350W AM,CW,SSB Transmitter, including: SWR-1K,
PAL-350, SBE-3, VOX-5, APP-5 |
|
|
SBT-350T |
|
350W AM,CW,SSB Transmitter, including: ATS-2,
PAL-350, SBE-2, VOX-5, APP-5 |
|
|
SBT-350U |
|
350W AM,CW,SSB Transmitter, including: ATS-2,
PAL-350, SBE-3, VOX-5, APP-5 |
|
|
SBT-350V |
|
350W AM,CW,SSB Transmitter, including: SWR-1K,
PAL-350, SBE-2, APP-5 |
|
|
SBT-350W |
|
350W AM,CW,SSB Transmitter, including: ATS-2,
PAL-350, SBE-2, APP-5 |
|
|
SBT-350Y |
|
350W AM,CW,SSB Transmitter, including: SWR-1K,
PAL-350, SBE-3, APP-5 |
|
|
SBT-350Z |
|
350W AM,CW,SSB Transmitter, including: ATS-2,
PAL-350, SBE-3, APP-5 |
|
|

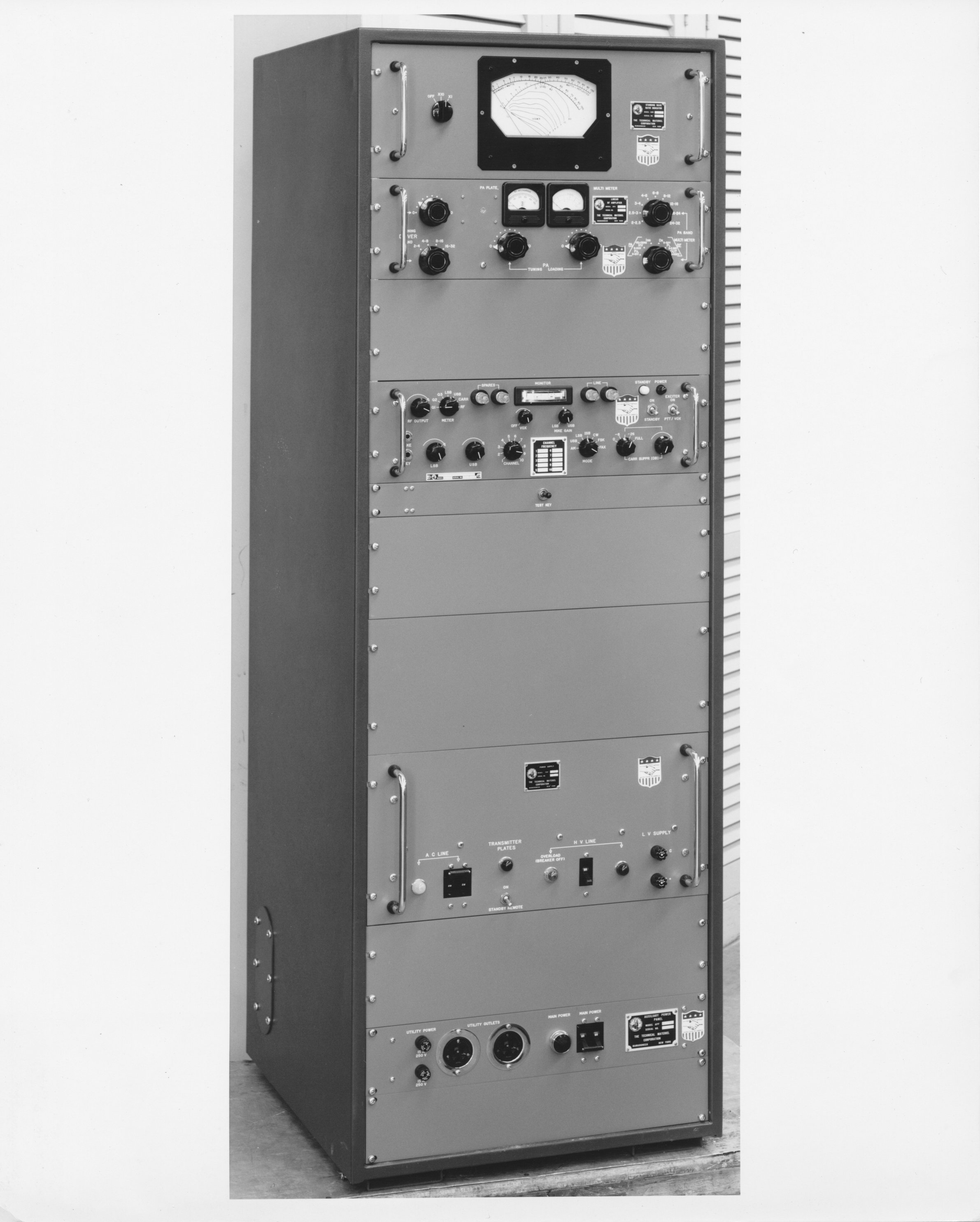

SBTM-350EA |
 |
350W Transmitter, AM, CW, SSB, RTTY, including:
SWR-1K, PAL-350, MMX, APP-5 |
|
|
|

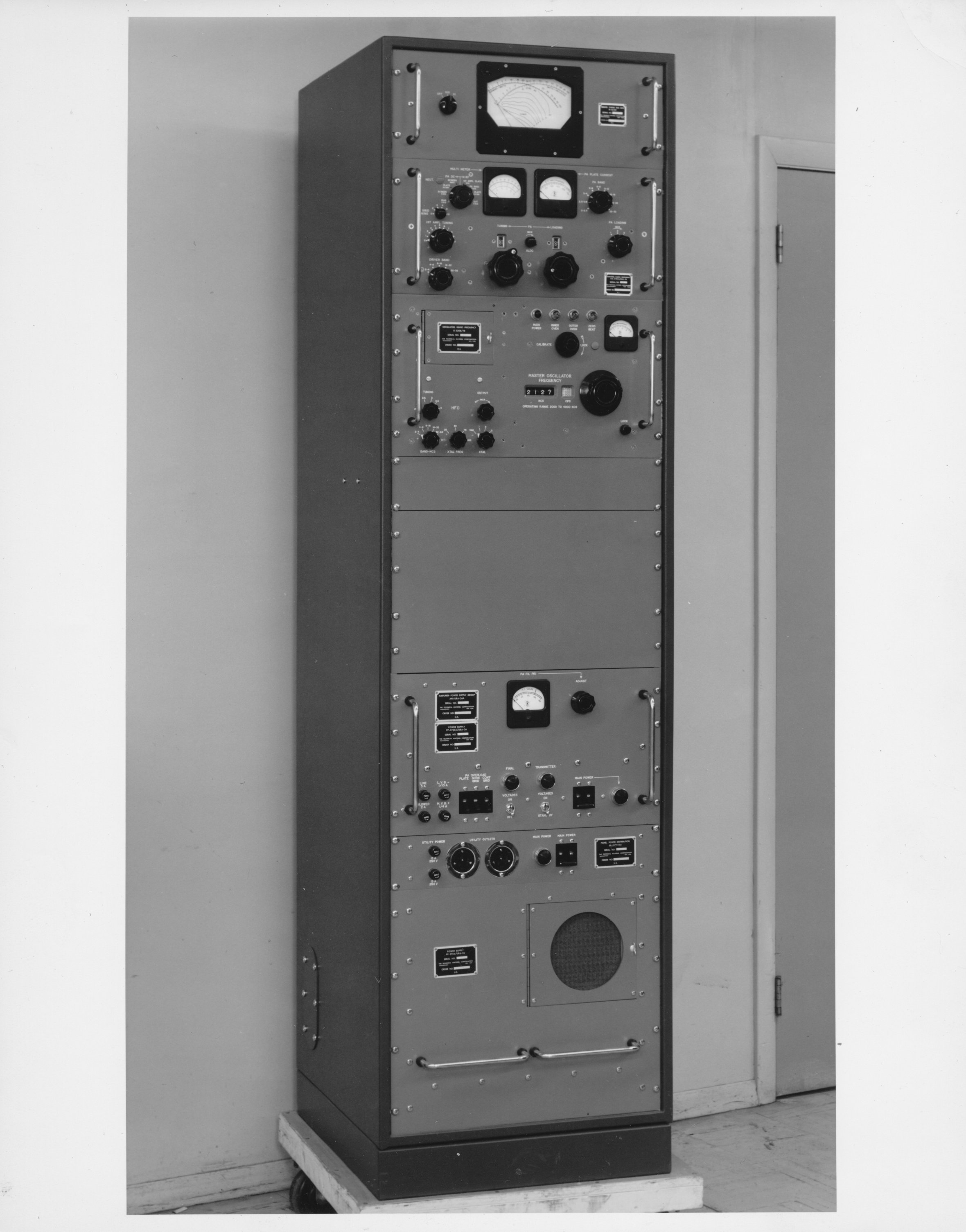

SBT-1KA |
 |
1KW AM, CW, SSB Transmitter, including: SWR-1K,
PAL-1K, VOX-1, SBE-2/-3, APP-2 |
SSB-237,
SSB-1001, SSB-1001A |
AN/URT-19(V) |
|
SBT-1KA6 |
|
1KW AM, CW, SSB Transmitter, including: SWR-1K,
PAL-1KB, VOX-5, SBE-8, APP-4 |
|
|
|
SBT-1KB |
|
1KW AM, CW, SSB Transmitter, including: ATS-2,
PAL-1K, VOX-1, SBE-2/-3, APP-2 |
SSB-237,
SSB-1001, SSB-1001A |
AN/URT-19(V) |
|

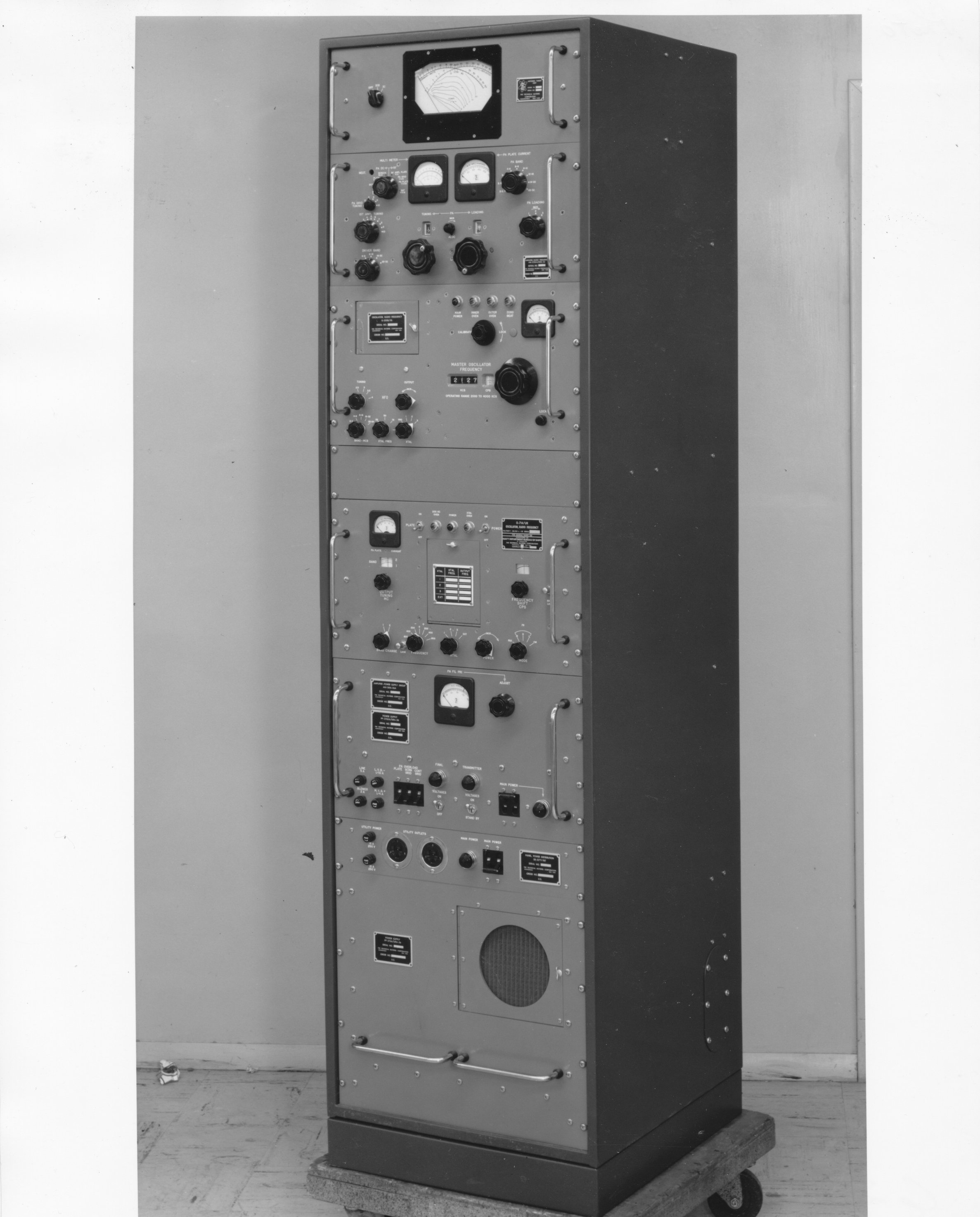

SBT-1KC |
 |
1KW CW, FSK Transmitter, including: SWR-1K, PAL-1K,
VOX-1, XFK, APP-2 |
SSB-237,
SSB-1001, SSB-1001A |
AN/URT-19(V) |
|
SBT-1KD |
|
1KW CW, FSK Transmitter, including: ATS-2, PAL-1K,
VOX-1, XFK, APP-2 |
SSB-237,
SSB-1001, SSB-1001A |
AN/URT-19(V) |
|
SBT-1KE |
 |
1KW Synthesized Transmitter, including: SWR-1K,
PAL-1K, SBG-1, TIS-2, APP-2 |
SSB-237
Addendum |
|
|

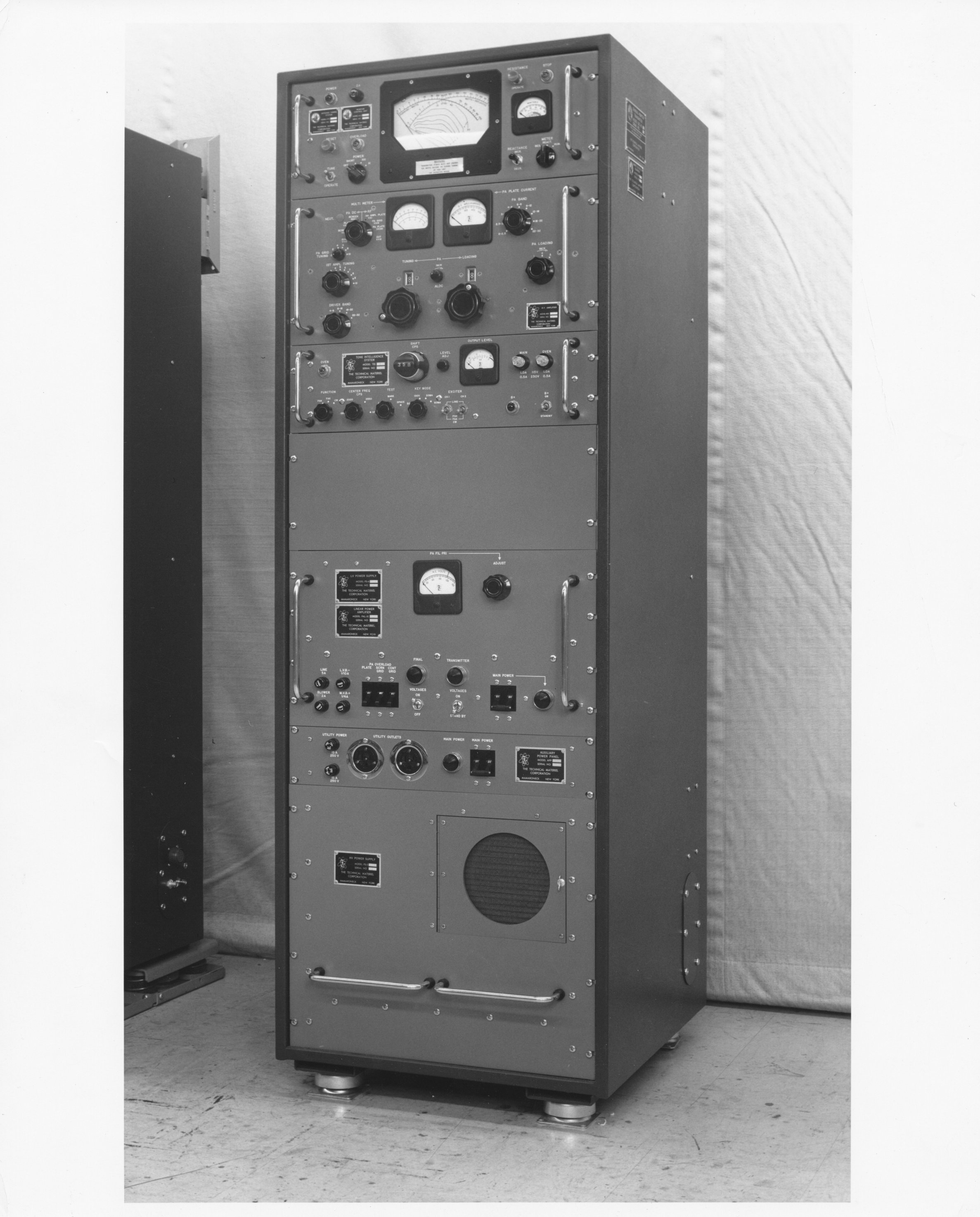

SBT-1KF |
 |
1KW Synthesized Transmitter, including: ATS-2,
PAL-1K, SBG-1, TIS-2, APP-2 |
|
|
SBT-1KG |
1KW Synthesized Transmitter, including: SWR-1K,
PAL-1K, SBG-2, TIS-3, APP-2 |
|
|
SBT-1KH |
1KW Synthesized Transmitter, including: ATS-2,
PAL-1K, SBG-2, TIS-3, APP-2 |
|
|

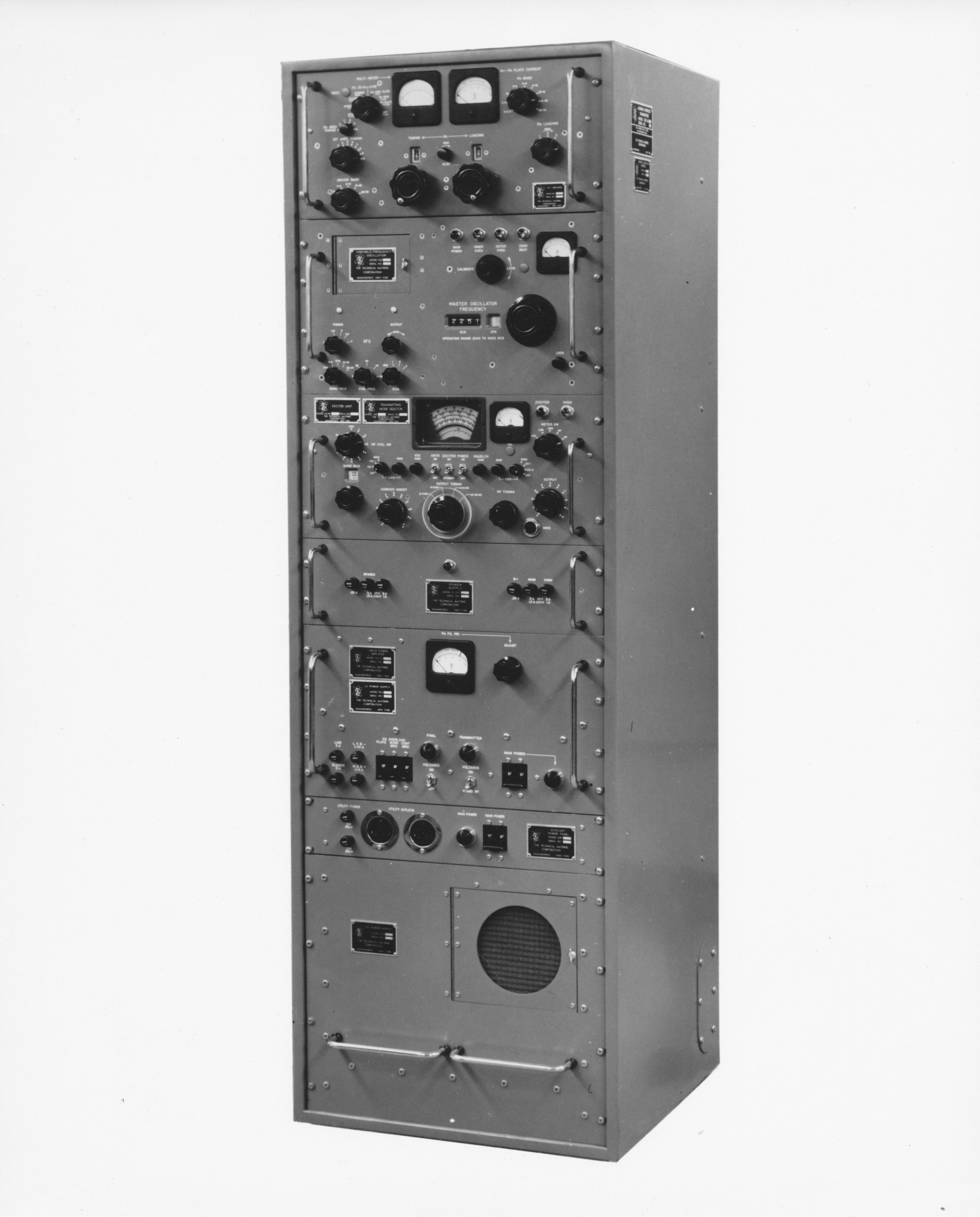

SBT-1KJ |
 |
1KW AM, CW, SSB Transmitter, including: PAL-1K,
SBE-3, VOX-5, APP-2 |
SSB-255,
SSB-1001 |
AN/FRT-53 |
|
SBT-1KJC |
 |
1KW Synthesized Transmitter, including: ATS-2,
PAL-1K, MMX, APP-2 |
|
|
|

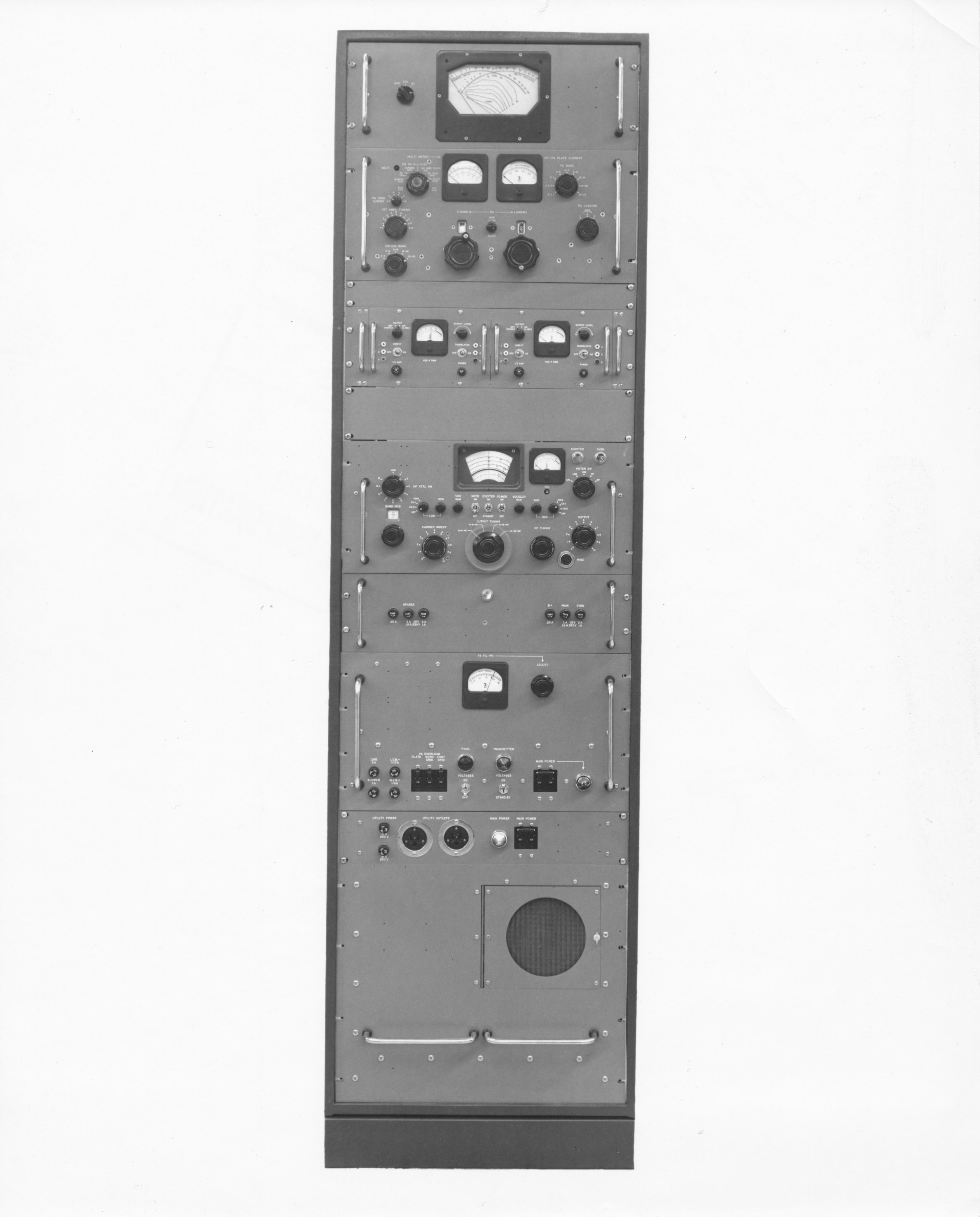

SBT-1KL |
 |
1KW AM, CW, SSB Transmitter, including: SWR-1K,
PAL-1K, SBE-3, VOX-5, APP-2 (apparently shipped in a version with no VOX,
shown at left) |
SSB-257A,
SSB-1001 |
AN/FRT-57 |
|
SBT-1KM |
|
1KW AM, CW, SSB Transmitter, including: ATS-2,
PAL-1K, SBE-3, VOX-5, APP-2 |
SSB-1001 |
|
|
SBT-1LM |
|
1KW AM, CW, SSB Transmitter, including: PAL-1K,
SBE-3, VOX-5, APP-2 |
SSB-1001 |
|
|
SBT-1LN |
|
1KW AM, CW, SSB Transmitter, including: PAL-1K,
SBE-2, APP-2 |
SSB-1001 |
|
|
SBT-1LO |
|
1KW AM, CW, SSB Transmitter, including: PAL-1K,
SBE-3, APP-2 |
SSB-1001 |
|
|
SBT-1KP |
|
1KW Synthesized Transmitter, including: ATS-2,
PAL-1K, SBG-1, APP-2 |
SSB-1001 |
|
|
SBT-1KPA1 |
|
1KW Synthesized Transmitter, including:
SWRA-1K, PAL-1KB, CHG-3, HFS-2, CMR-1, AX-560A, HFP-1, APP-4 |
|
|
|
SBT-1KPA2 |
|
Same as the 'PA2, but package in a different rack |
|
|
|
SBT-1KQ |
|
1KW Transmitter with external exciter, including:
SWR-1K, PAL-1K |
SSB-256,
SSB-256A, SSB-1001 |
AN//FRT-56 |
|
SBT-1KS |
 |
1KW AM, CW, SSB, FSK, FAX Transmitter,
including: SWR-1K, PAL-1K, SBE-3, VOX-5, TIS-3, APP-2 |
SSB-1001,
SSB-1001A |
|
|
SBT-1KSX2 |
 |
Appears to be nearly identical to the 'KS version |
|
|
|
SBTM-1KG |
 |
1KW Synthesized Transmitter, including: ATS-2,
PAL-1K, MMX, TIS-3, APP-2 |
|
|
|
SBTM-1KJ |
 |
1KW Synthesized Transmitter, including: ATS-2,
PAL-1K, MMXM-2, TIS-3A, APP-2 |
|
|
|
SBTM-1KJC |
|
1KW Synthesized Transmitter, including: ATS-50-2A,
PAL-1K9B2, MMXM-2, APP-4A |
|
|
|
SBTM-1KJG |
 |
1KW Synthesized Transmitter, including: ATS-2, PAL-1,
MMXM-2, TIS-3A, APP-2 |
|
|
|

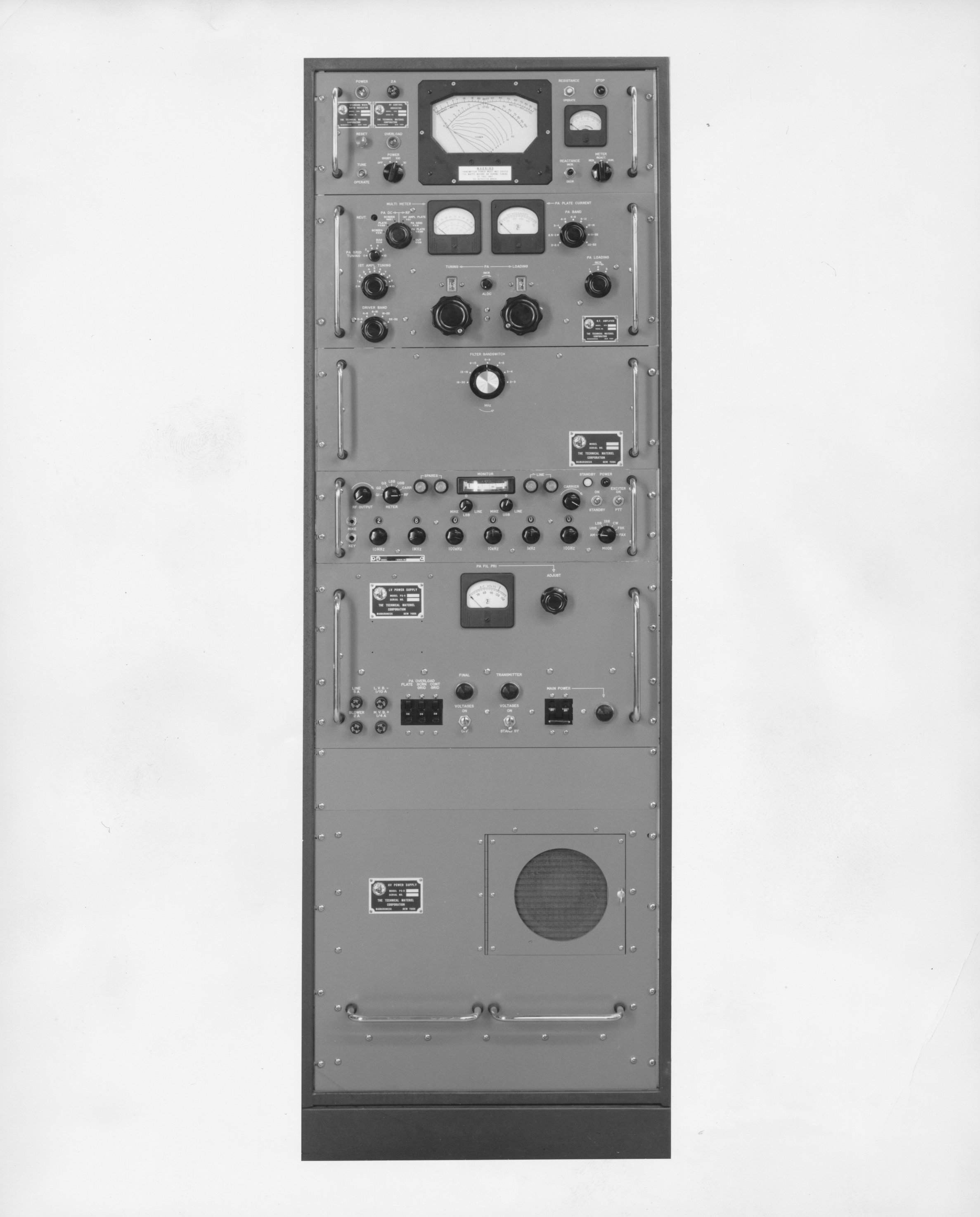

SBTM-1KJK |
|

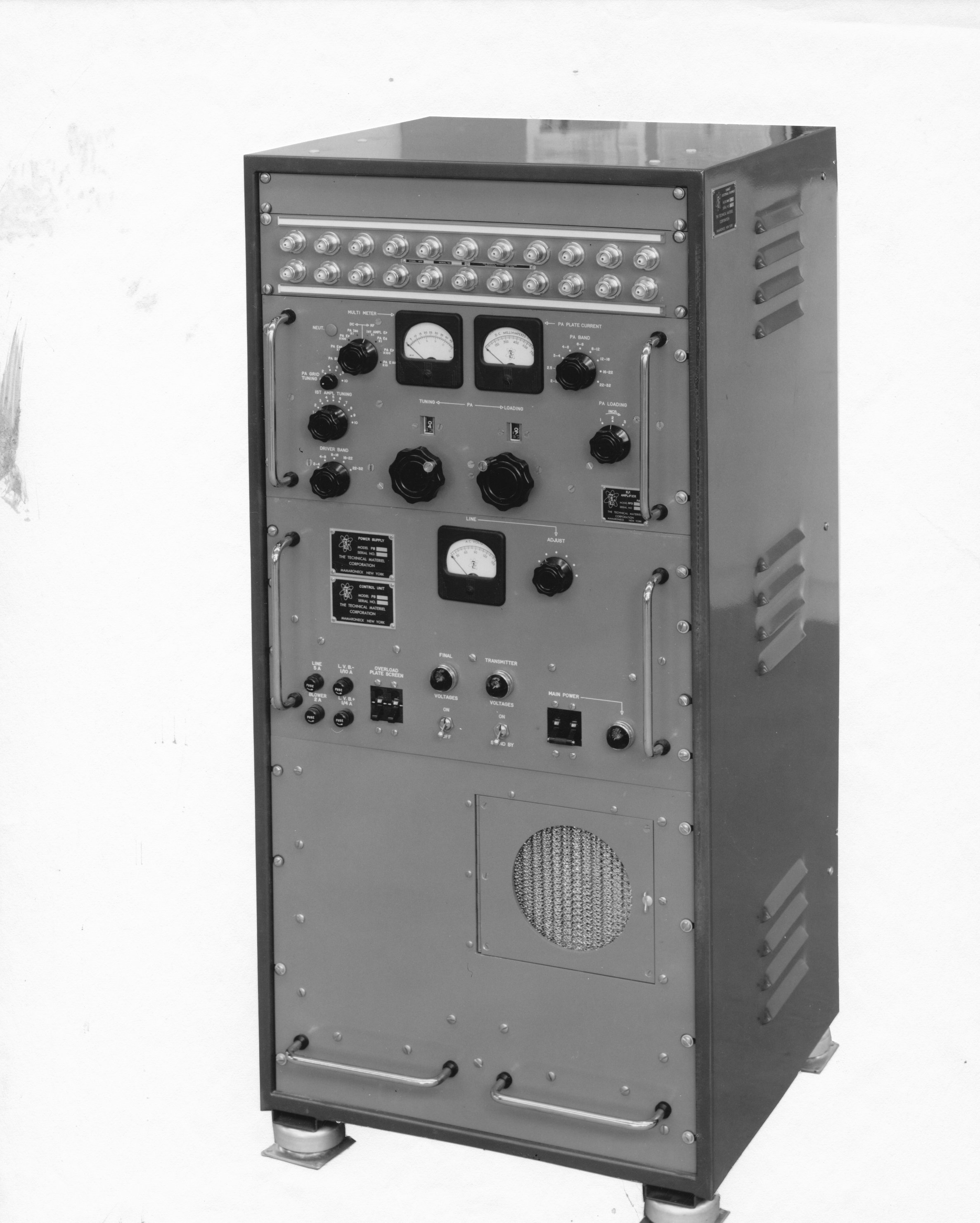

1KW Synthesized Transmitter, including: PAL-1K,
MMXM-2, TIS-3D, APP-4 |
|
|
|
SCU-1 |
|
Signal Control Unit |
SSB-172,
SSB-233 |
RE-5023/G |
|
SFO-1 |
 |
Teletype Regenerator |
SSB-103,
SSB-111 |
|
|
SFO-2 |
|
Teletype Regenerator |
|
|
|
SFP-1 |
 |
Filter Panel |
|
|
|
SFP-2 |
|
Filter Panel |
|
|
|
SLM-1 |
 |
Sideband Level Monitor |
|
|
|
SLM-2 |
 |
Sideband Level Monitor |
|
|
|

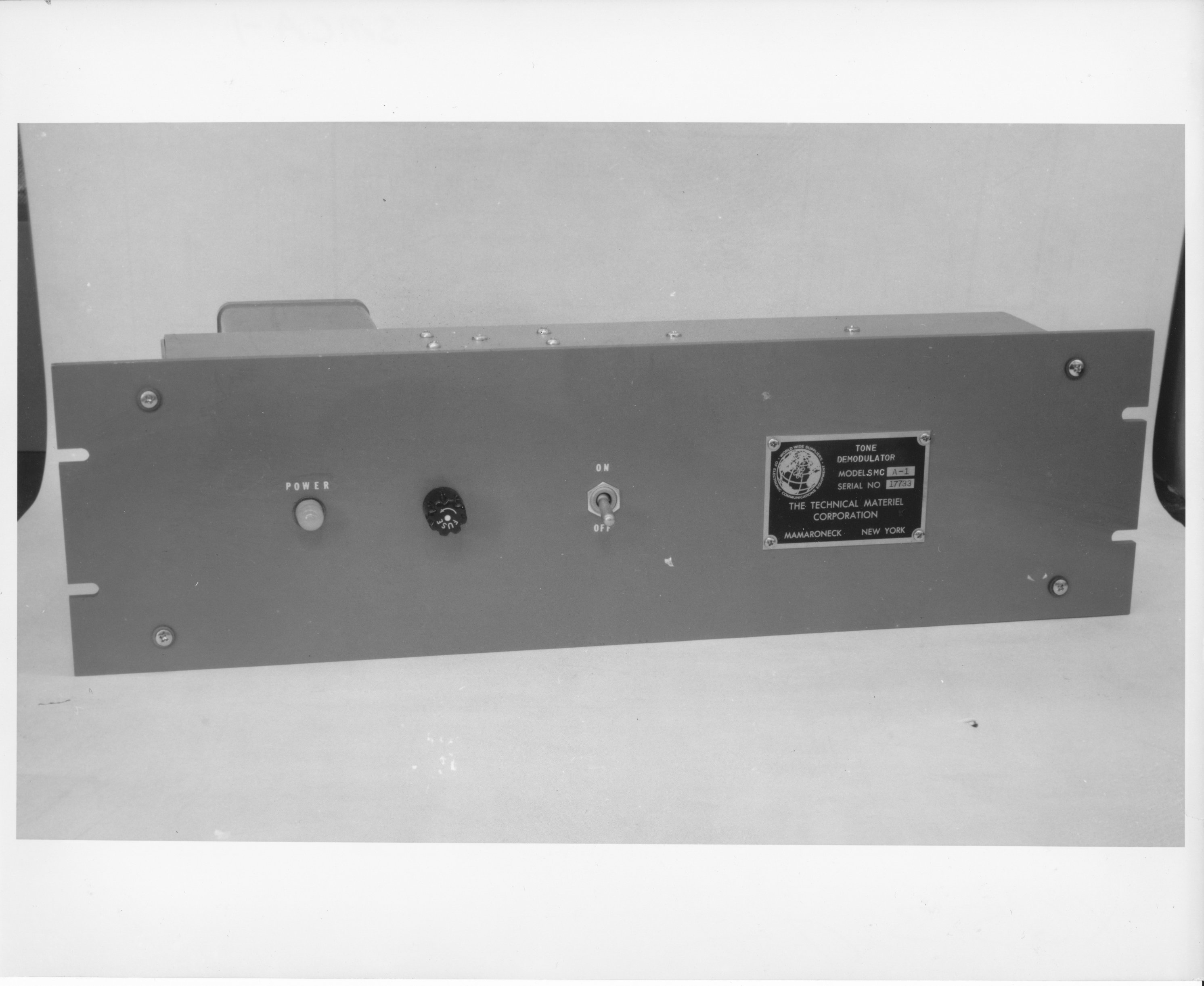

SMCA-1 |
 |
Tone Generator |
|
|
|

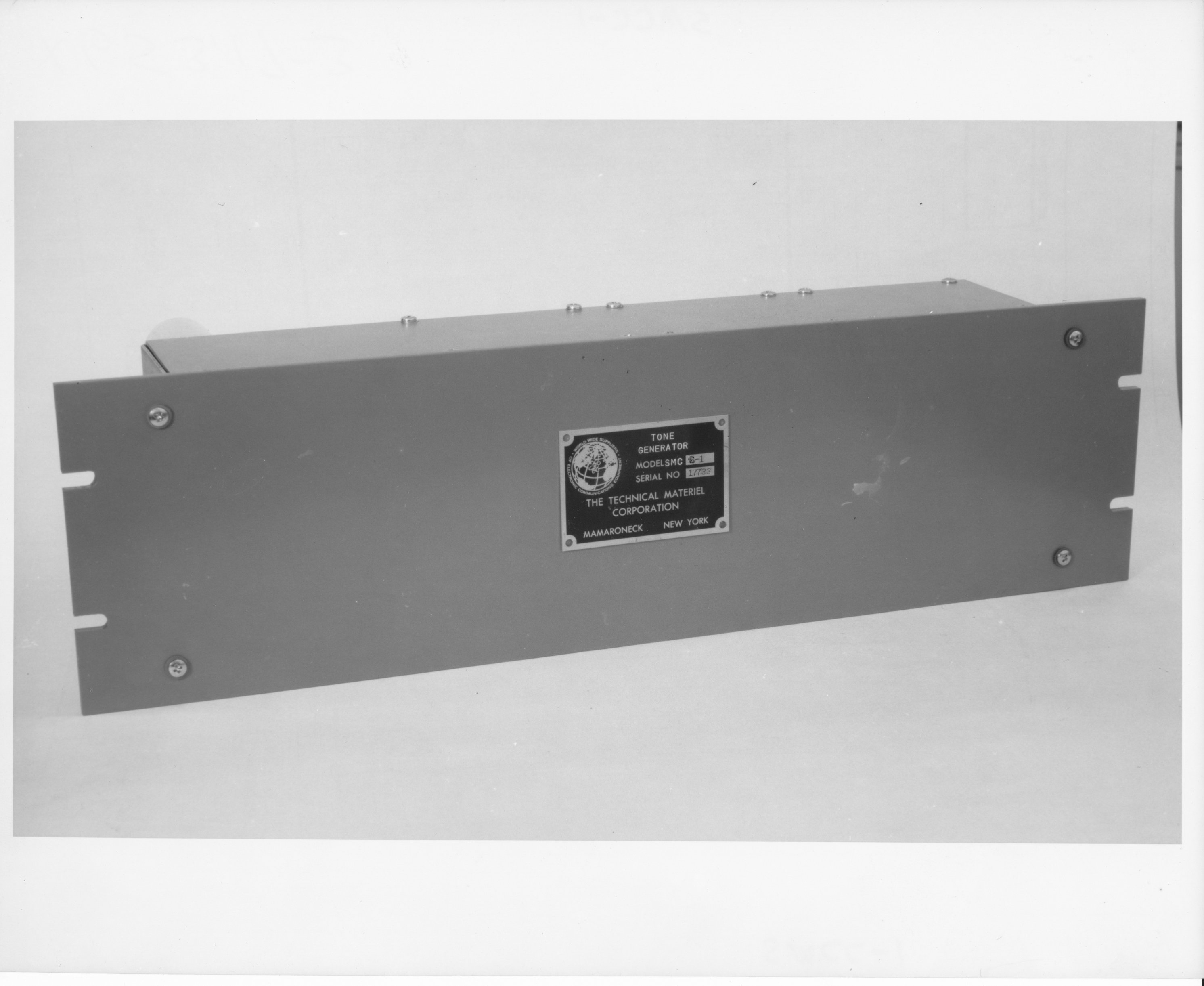

SMCC-1 |
 |
Tone Generator,
p/o CMSA-1 System Desk telephone with six push buttons when used with TPC-51 |
|
|
|

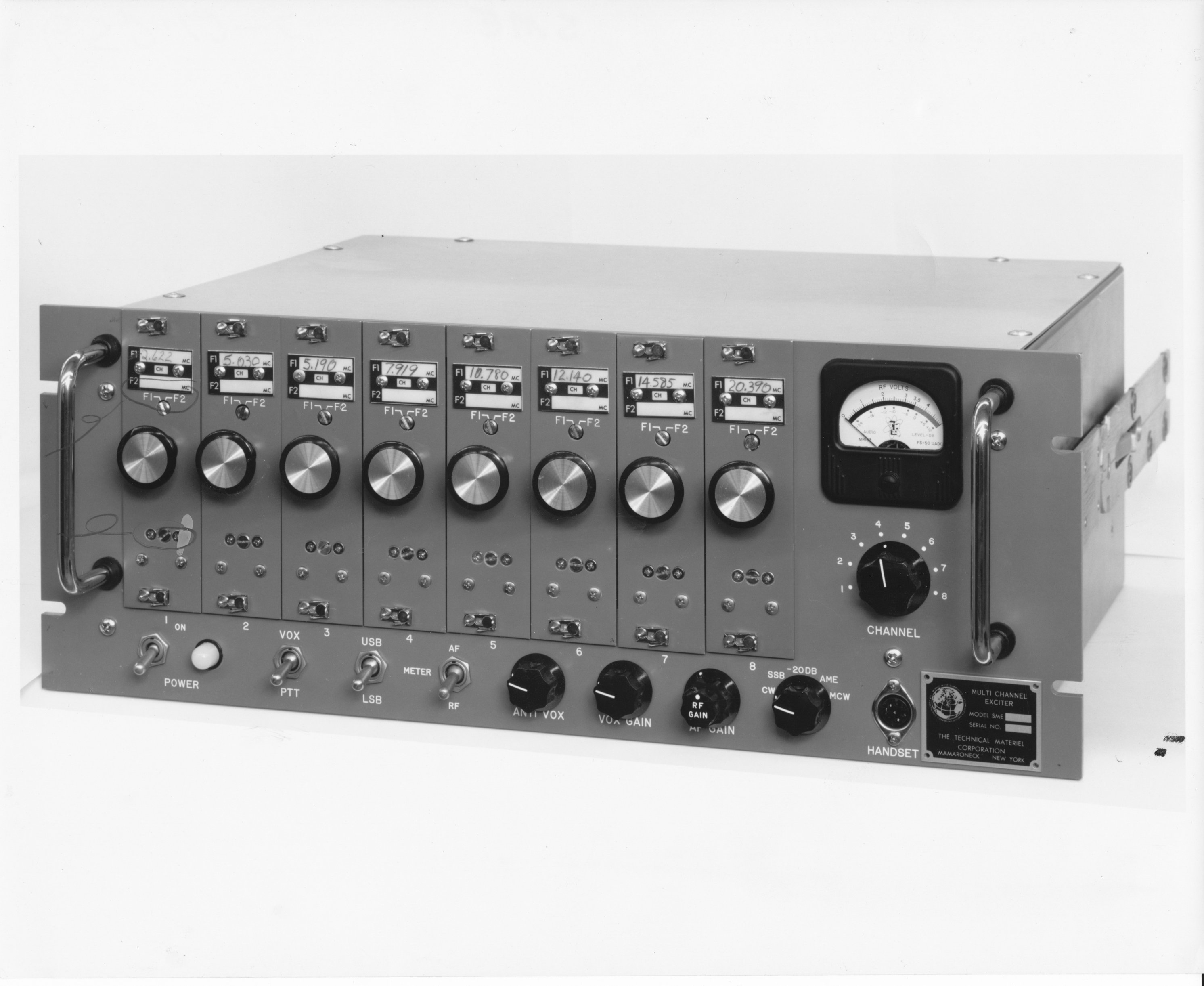

SME-1 |
 |
Solid-State Multi-Channel Exciter |
TB-2030 |
|
|
SME-5 |
|
Solid-State Multi-Channel Exciter |
TB-2.0306,
TB-102033, TB-102033B |
|
|
SME-6 |
 |
Solid-State Multi-Channel Exciter |
TB-2030A,
TB-2030B |
|
|
SMEB-1 |
 |
Solid-State Exciter |
|
|
|
SMEC-1 |
 |
Solid-State Exciter |
|
|
|

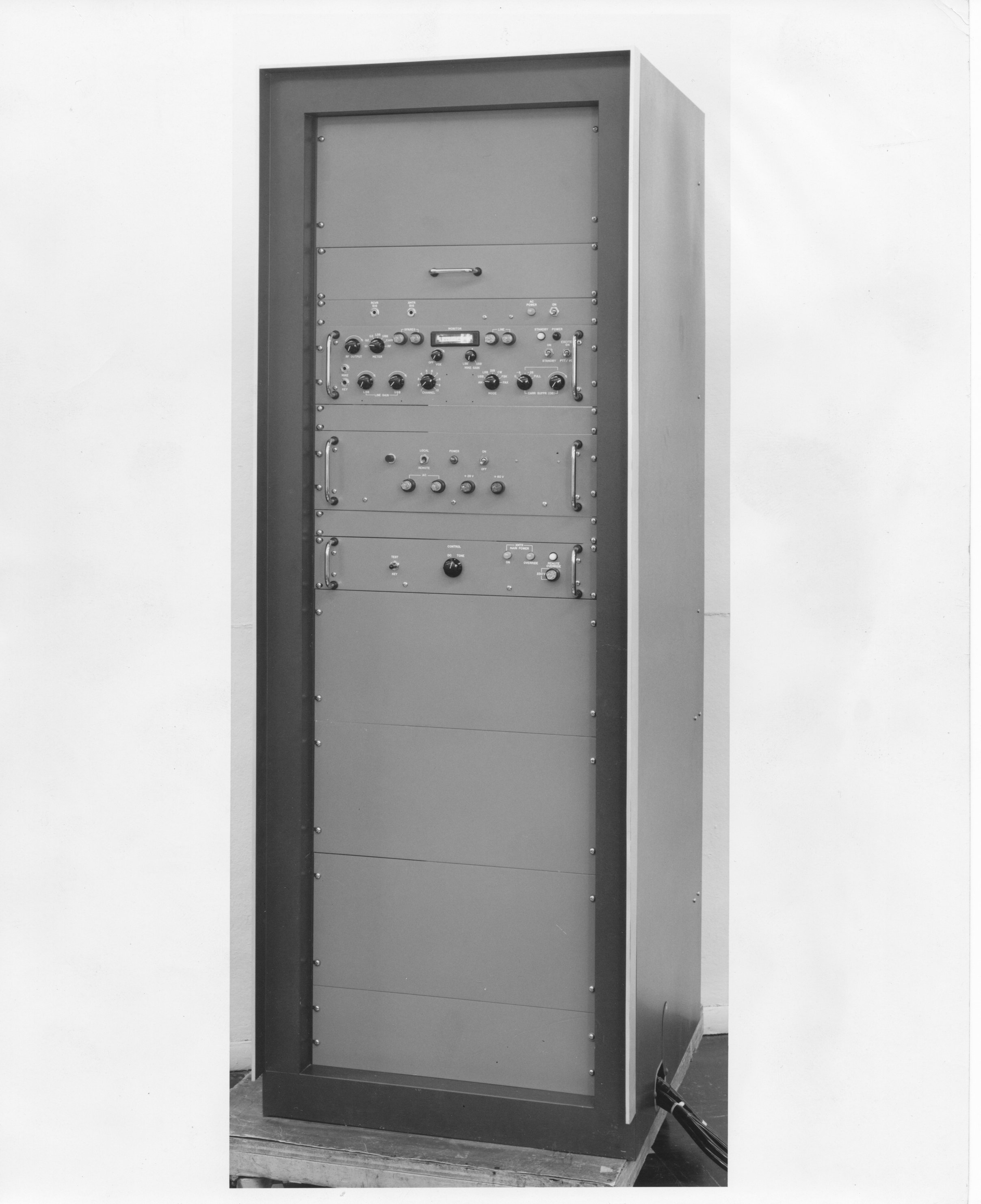

SMER( )-8 |
 |
Unknown. Contains AX-5128 |
|
|
|
SMR-1/-2 |
 |
Solid-State Multi-Channel Receiver |
TB-3010A |
|
|

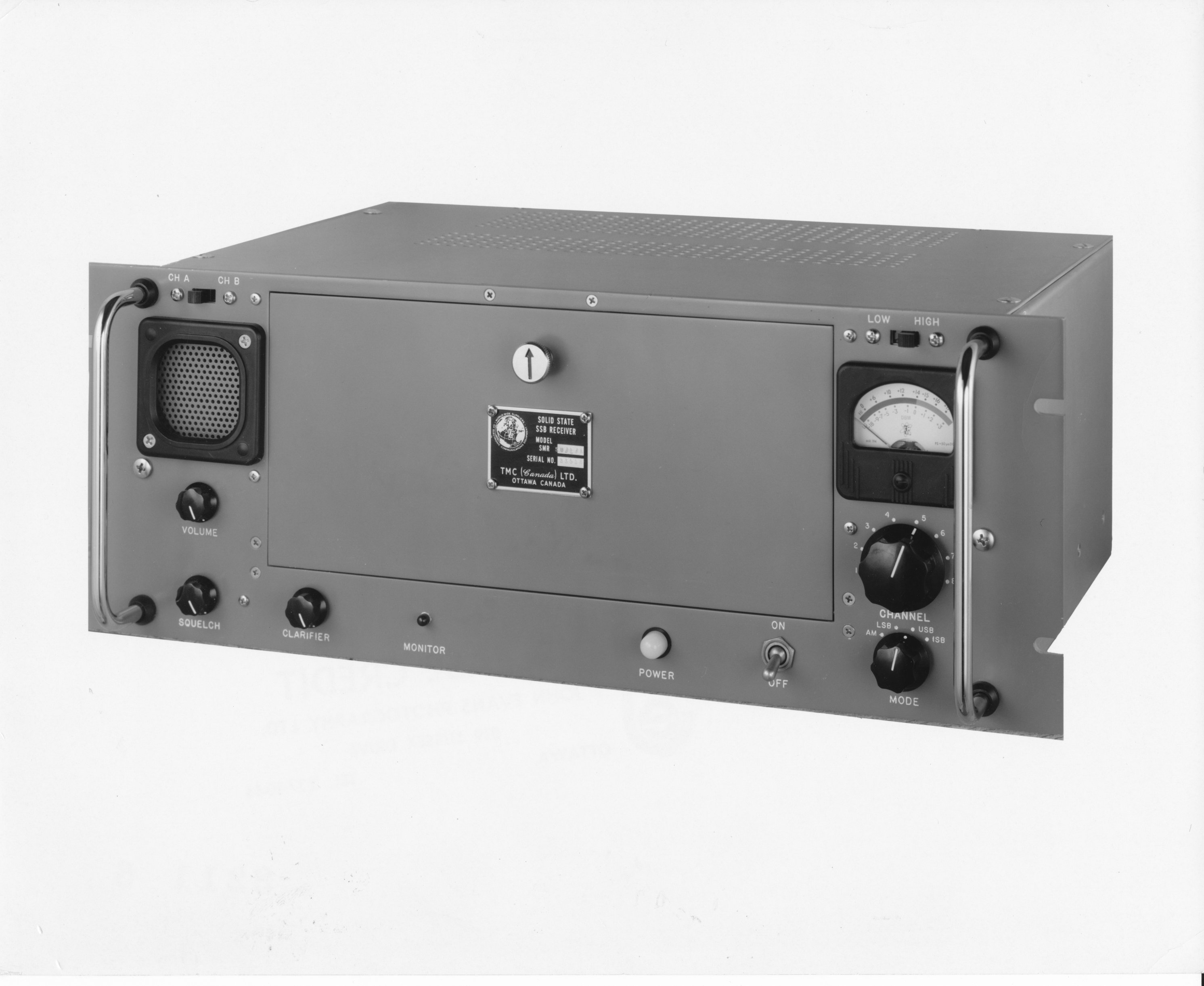

SMR-5 |
 |
Solid-State Multi-Channel Receiver |
|
|
|
SMR-6 |
 |
Solid-State Multi-Channel Receiver |
|
|
|

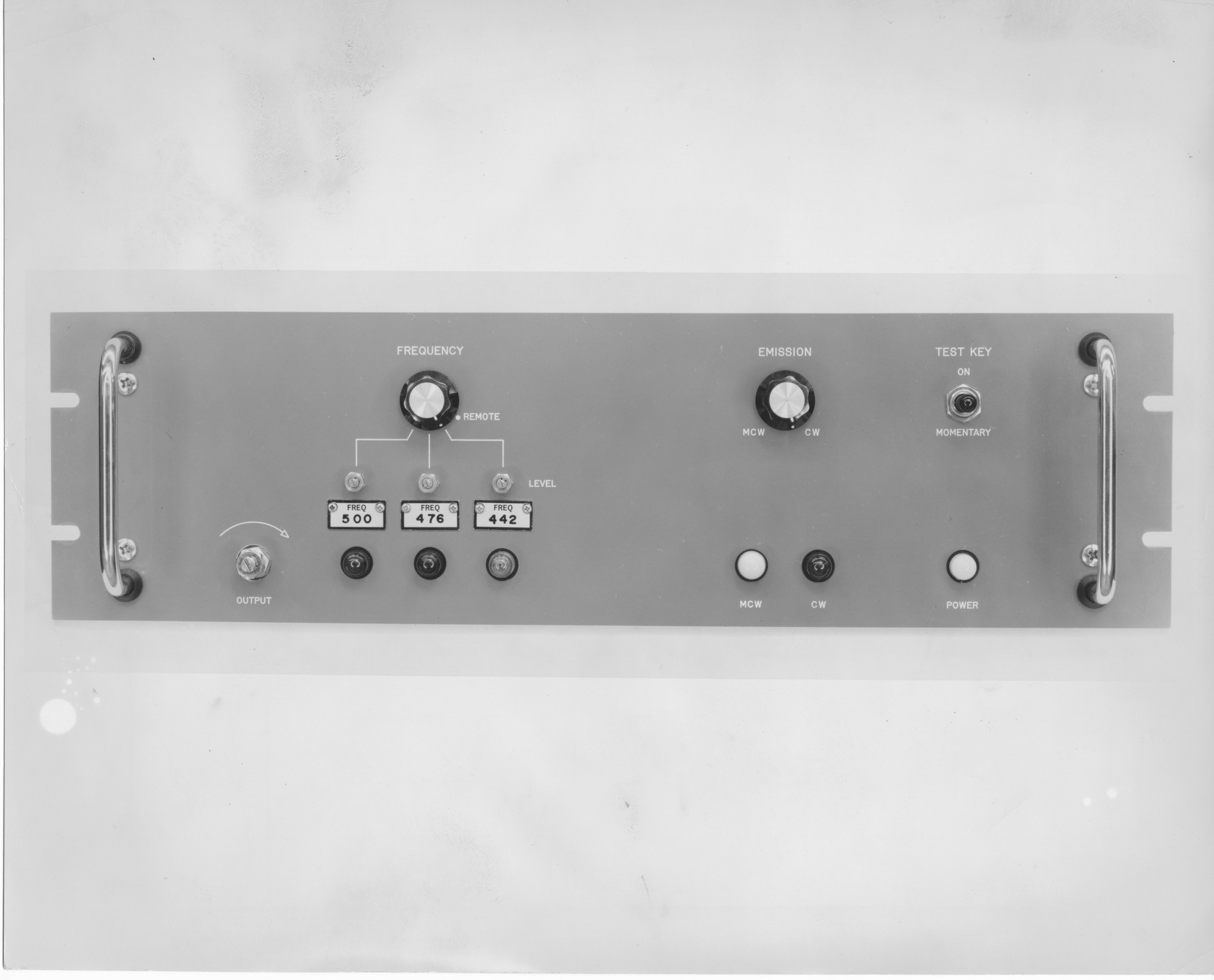

SPER-1F3 |
 |
Unknown |
|
|
|

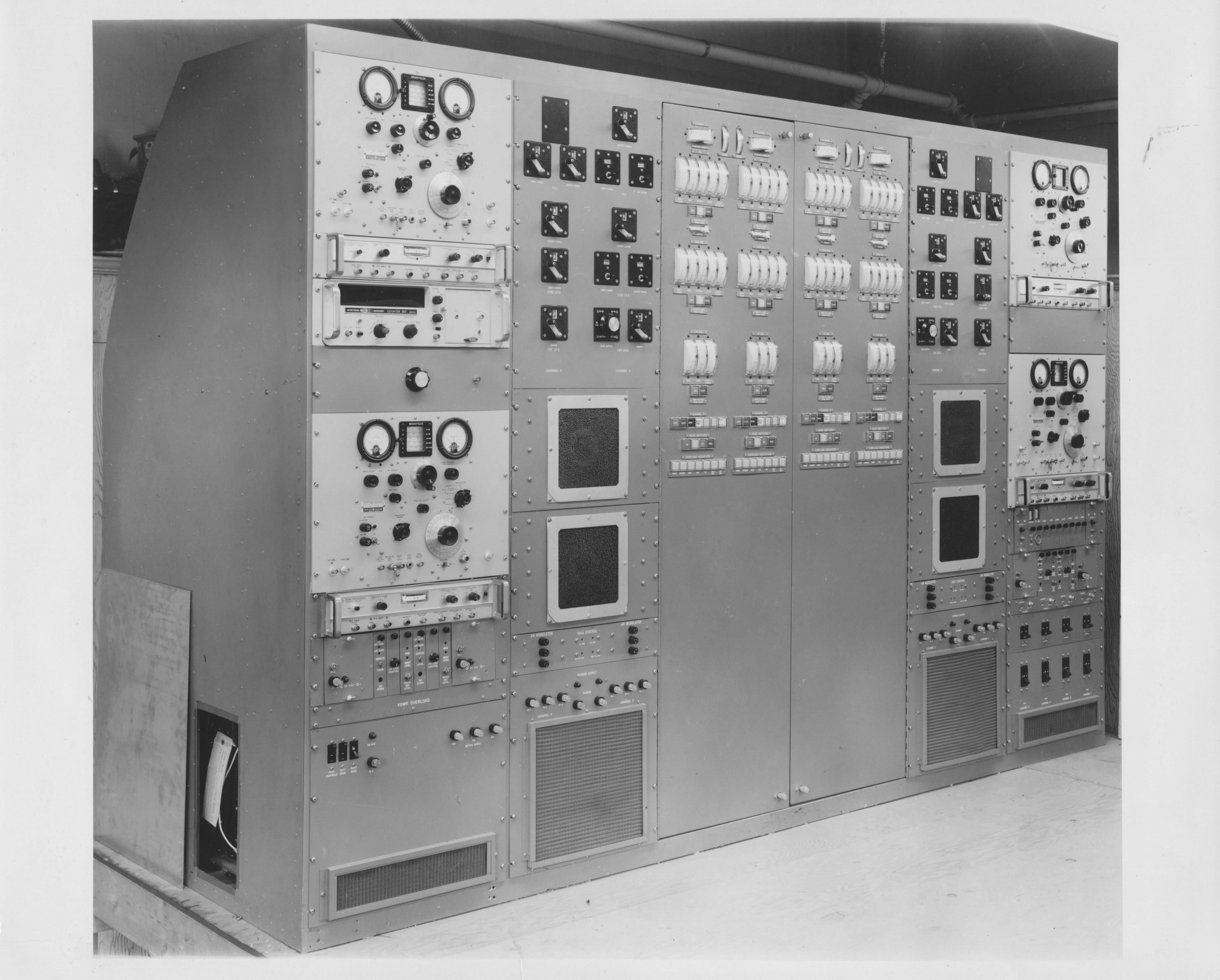

SPT-3KVHF |
 |
CW, AM, FM and TV transmitter, 30-350MHz. Provides 2
simultaneous 2KW outputs on each of 2 bands. Used in Project 15. |
|
|
|
SPU-1 |
|
Speech Processing Unit |
TB-2026 |
|
|
SPU-2 |
 |
Speech Processing Unit |
TB-2026A |
|
|
STE-1 |
 |
Strip Exciter |
TB-2032 |
|
|
STE-5 |
 |
Strip Exciter |
TB-2032A |
|
|
STE-5U |
|
Strip Exciter |
TB-102032A |
|
|
STE-5L |
|
Strip Exciter |
|
|
STEA-5 |
 |
Strip Exciter |
|
|
|
STR-1 |
 |
Strip Receiver |
|
|
|

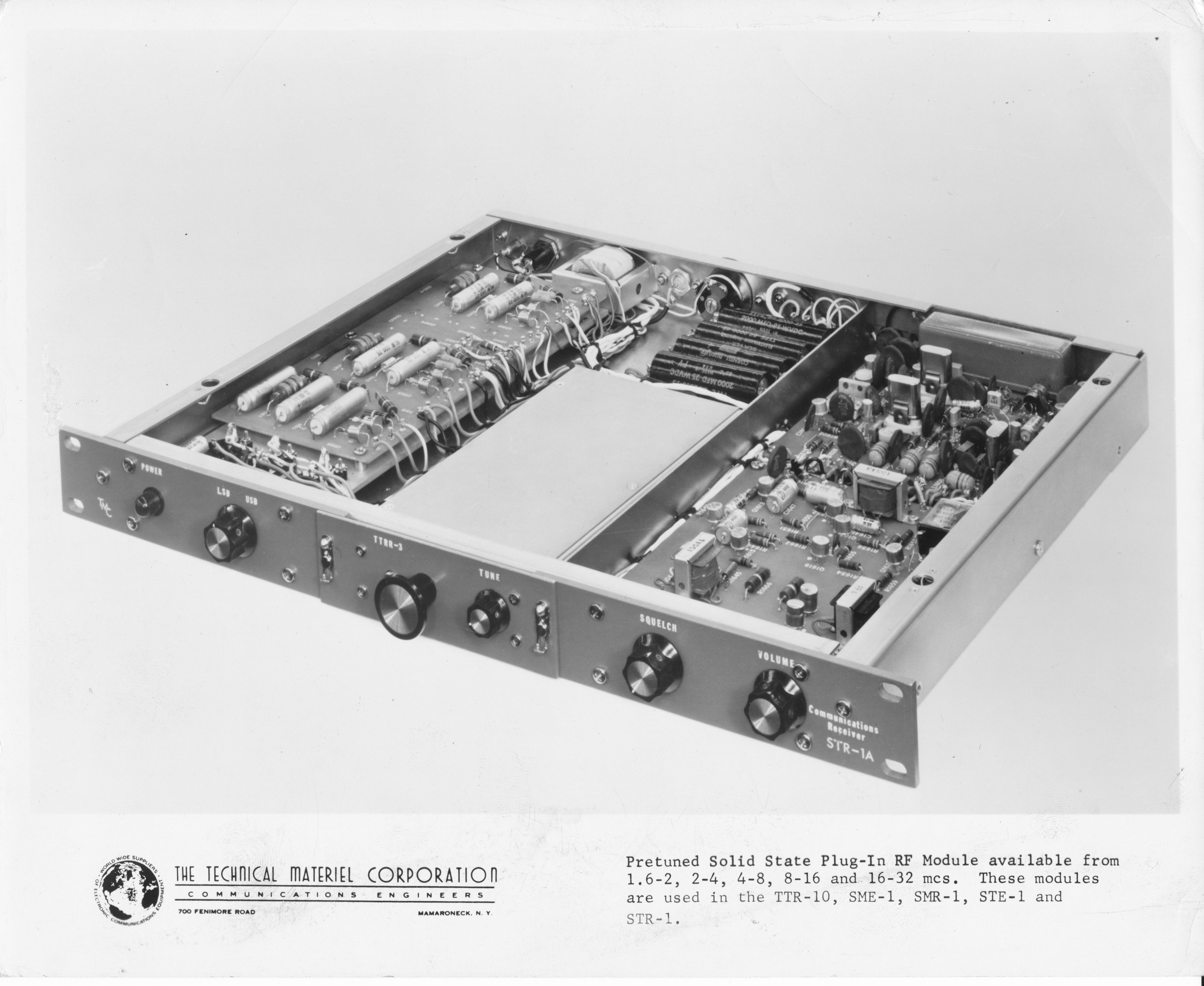

STR-1A |
 |
Strip Receiver |
|
|
|
STR-2 |
|
Strip Receiver |
|
|
|
STR-2C |
|
Strip Receiver |
|
|
|
STR-5 |
 |
Strip Receiver |
TB-3010-1,
TB-103014B |
|
|
STT-1 |
 |
Speech-plus-Telegraph System |
TB-5011 |
|
|
SWCA-3K |
 |
Standing Wave Control Unit |
|
|
|
SWCD-1 |
 |
Standing Wave Control Unit |
|
|
|
SWCU-1 |
 |
Standing Wave Control Unit |
|
|
|
SWR-1K |
 |
Standing Wave Ratio Indicator, 1KW |
SSB-234,
TB-2014 |
IM-16/URT |
|
SWR-3K |
 |
Standing Wave Ratio Indicator, 3KW |
SSB-198,
SSB-198A |
|
|
SWR-10K |
 |
Standing Wave Ratio Indicator, 10KW |
TB-2031 |
|
|
SWR-60K |
|
Standing Wave Ratio Indicator, 60KW |
TB-2029 |
|
|

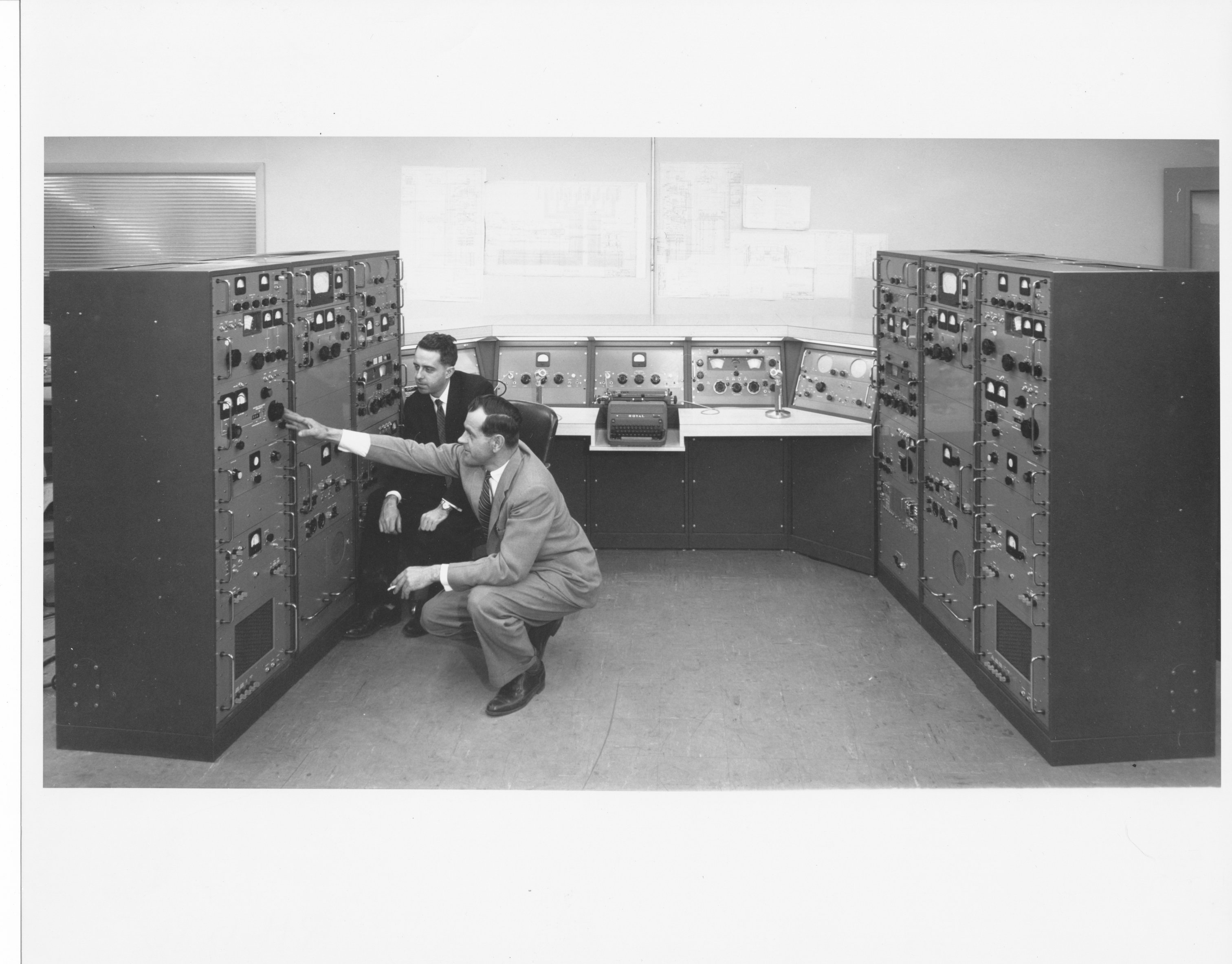

SYM-1023 |
 |
Described only as "RCA System", this installation
appears to be composed of a pair of SBT-1KE's and a pair of receivers
systems utilizing GPR-90RX's. |
|
|
|
SYM-1084 |
 |
Receiver System |
|
|
|
SYM-1200 |
|
Frequency Standard |
|
|
|
SYM-1202 |
|
Coastal Harbor Radio Transmitting System for Station KTJ |
|
|
|
SYM-1203 |
|
Coastal Harbor Radio Transmitting System for Station KOW |
|
|
|
SYM-1204 |
|
Coastal Harbor Radio Transmitting System for Station KFX |
|
|
|
SYM-1205 |
|
Radio Transmitting System |
|
|
|

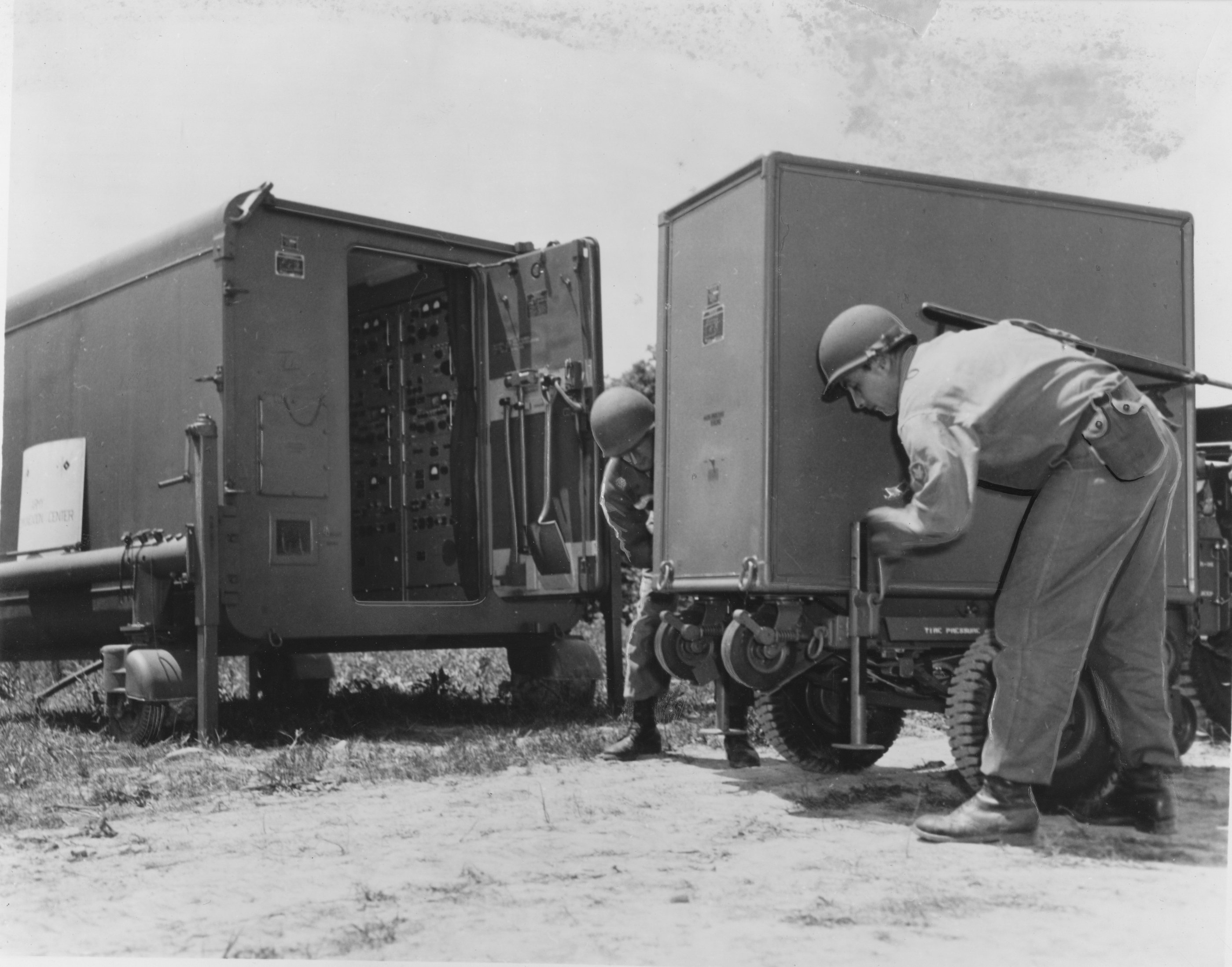

SYM-2003 |
 |
AKA, Project DOG, Air Transportable Communications System,
configurable with 3 or 5 trailers. |
|
AN/TSC-24, ATCU-100 (3 shelters),
ATCU-100A (5 shelters) |
|
SYM-2007 |
|
New Yok State Cvil Defense Emergency Communications Station |
|
|
|
SYM-2014 |
 |
Portable Communications System for Libyan Army |
|
|
|

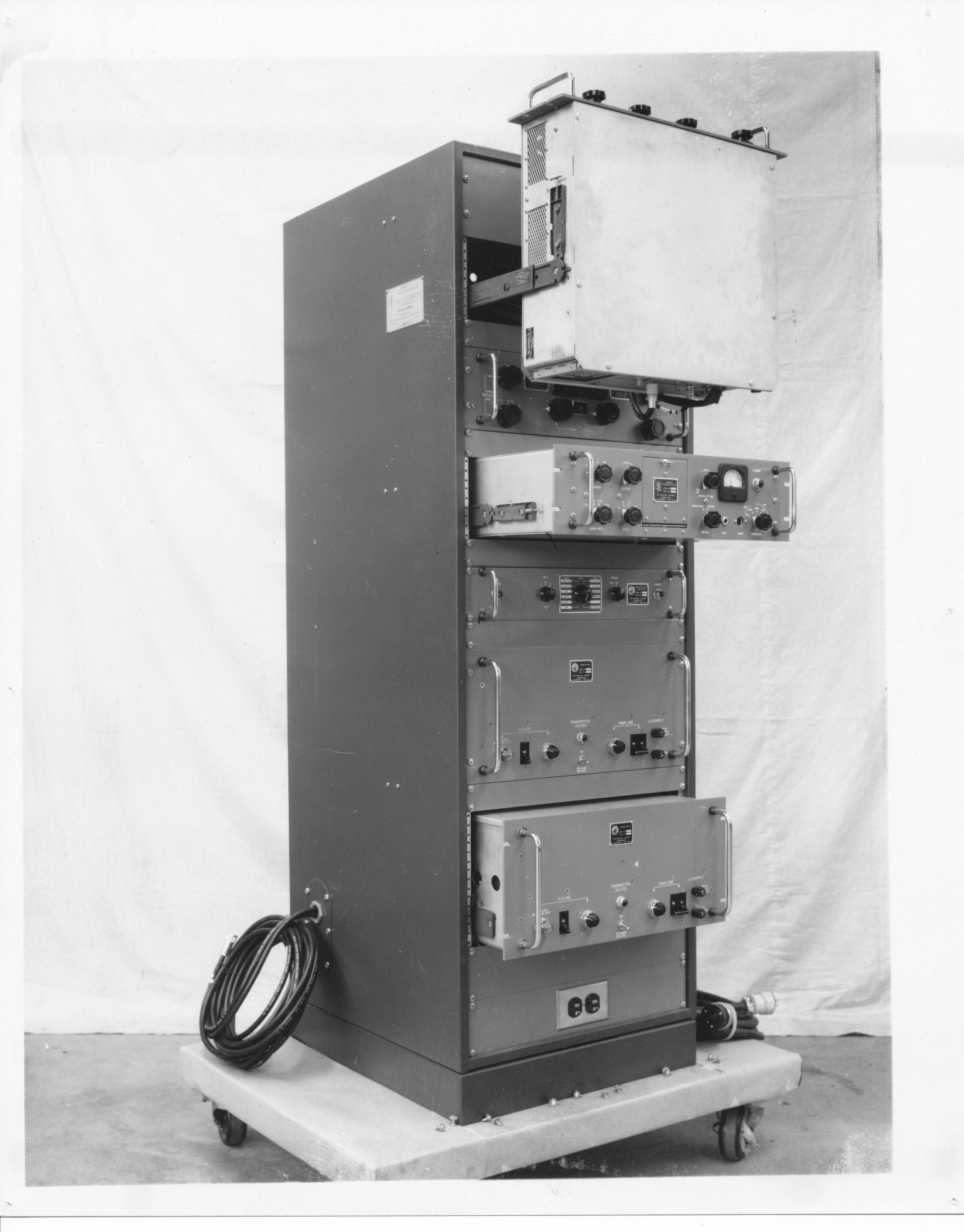

SYM-2015 |
 |

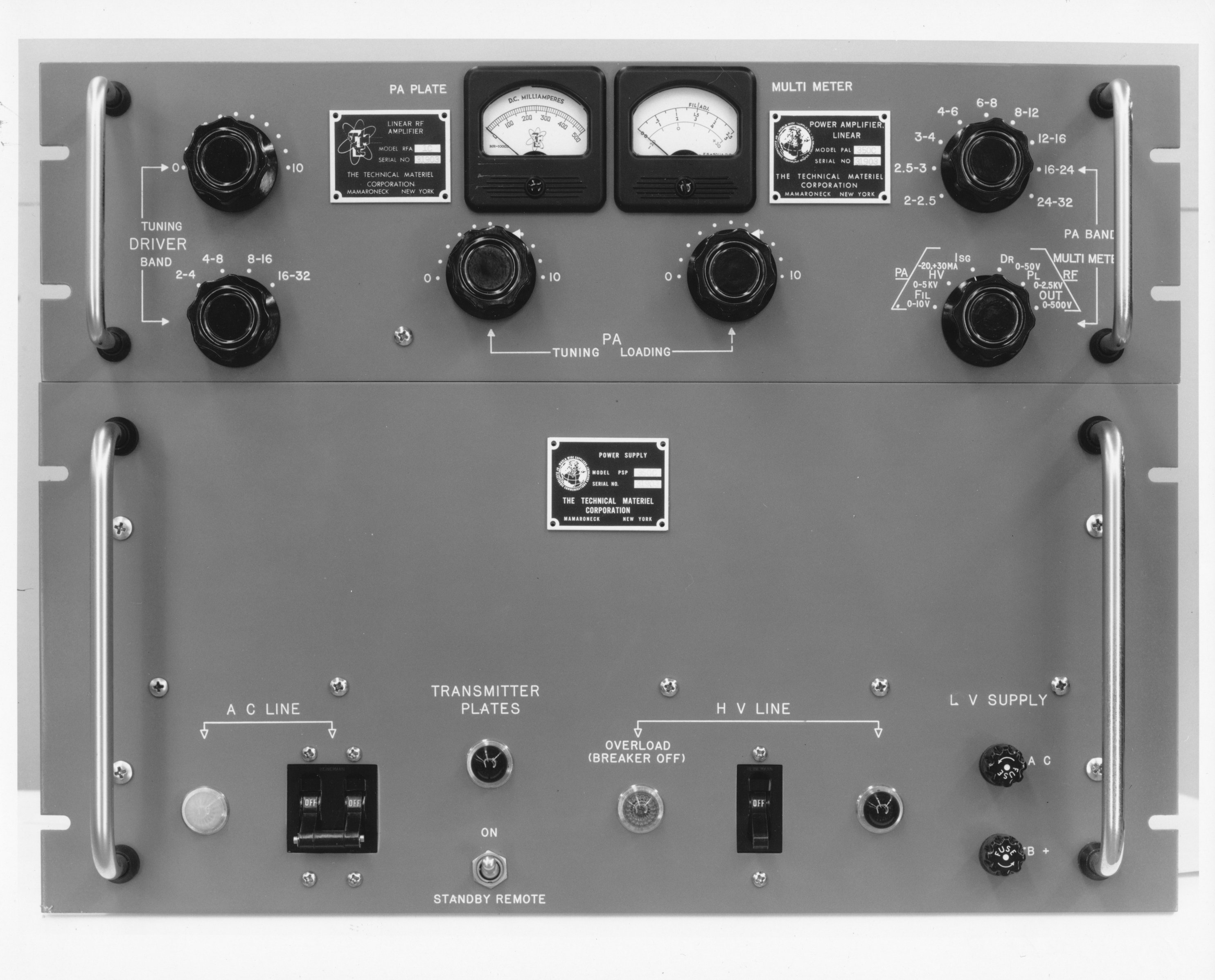

(2) PAL-350 350W amplifiers, (1) GPE-1 General Purpose
Exciter, and (1) TCP-1 Control Unit |
|
|
|
SYM-3202 |
|
Dual Diversity Receiver System |
|
|
|
SYM-3204 |
|
RTTY Receiving System |
|
|
|
SYM-5201 |
|
High Frequency Transmit/Receive Ship Set |
|
|
|
SYM-5203 |
|
Transportable Transmitter/Receiver System |
|
|
|
SYM-5204 |
|
Transportable Transmitter/Receiver System |
|
|
|
SYM-5211 |
|
Remote Control Receiving System |
|
|
|
SYM-5212 |
|
Strip Receiver System |
|
|
|
SYM-5213 |
|
Frequency Shift Converter System |
|
|
|
SYM-678568 |
|
MF/HF Radio Telephone and Telegraph System |
|
|
|
|
|
|
|
|
|
T |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
|
|
|
|
|
|
|

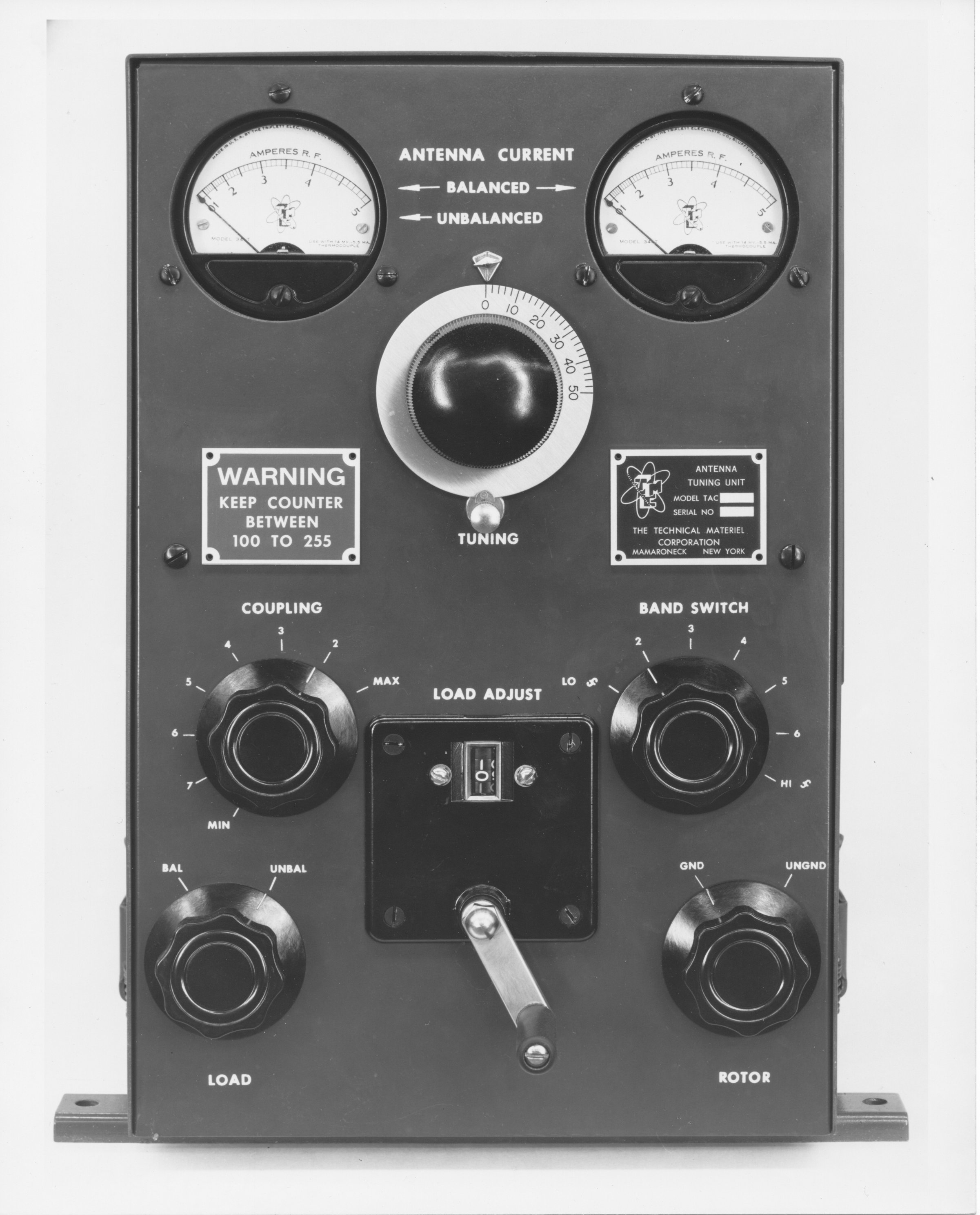

TAC-1 |
 |
Antenna Tuner |
SSB-163(early),
SSB-163(late),
SSB-163A |
Equivalent to BC-939 |
|
TAD-1 |
 |
6-Channel Tone Demodulator |
SSB-115 |
|
|
TAD-2 |
|
Tone Demodulator |
SSB-115-2 |
|
|
TAK-1 |
 |
6-Channel Tone Keyer |
SSB-114 |
|
|
TAK-2 |
|
Tone Keyer |
SSB-114-2 |
|
| TCP-1 |
 |
Technimatic Control Unit |
|
|
|
TCP-2 |
|
Technimatic Control Unit |
|
|

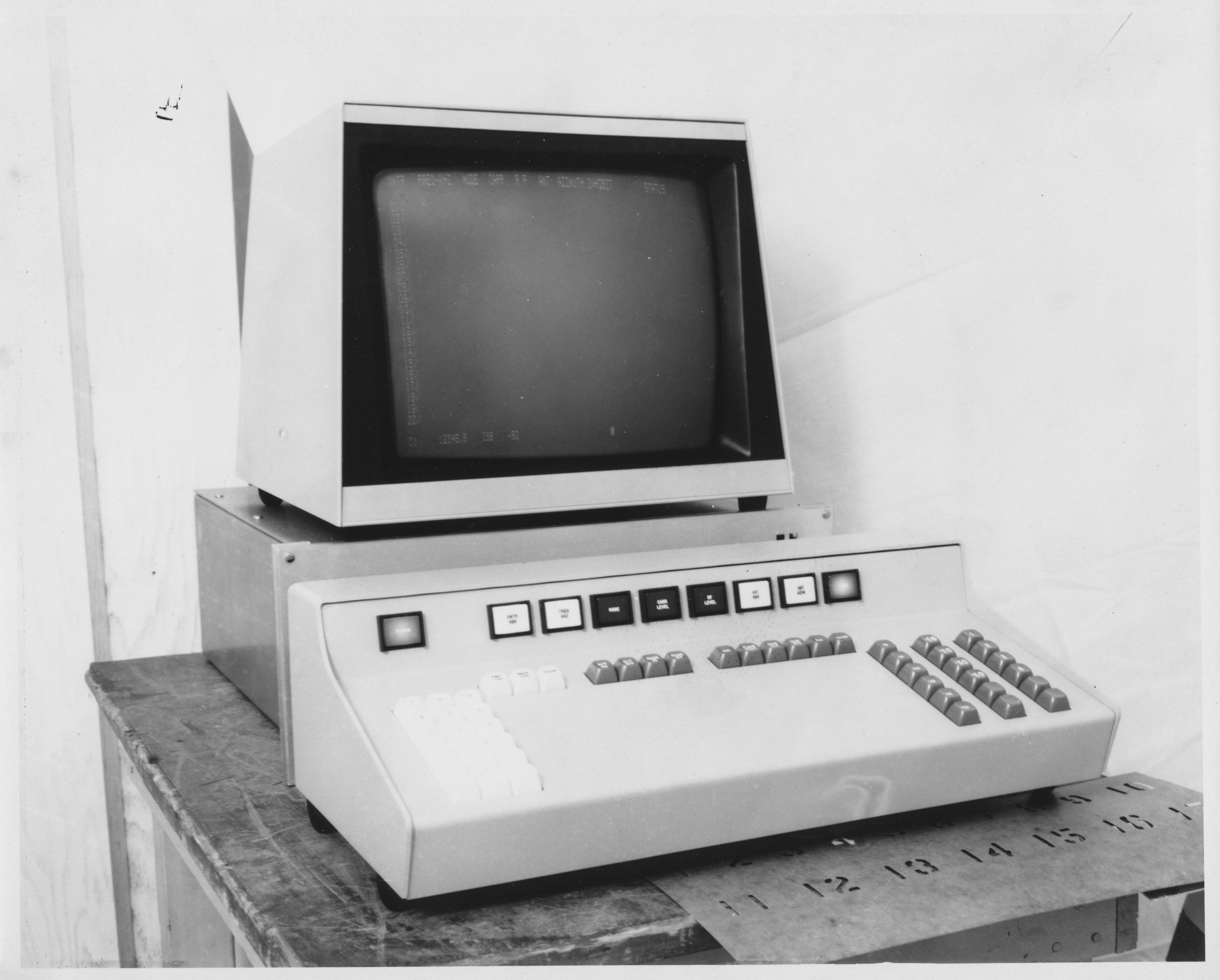

| TCS-10 |
 |
Transmitter Terminal Control
System |
TB-051201 |
|
| TER-500 |
|
Terminator and Dummy Load, 500W |
SSB-188,
SSB-188A, SSB-188B
TB-8009,
TB-8009A |
DA-166/U |

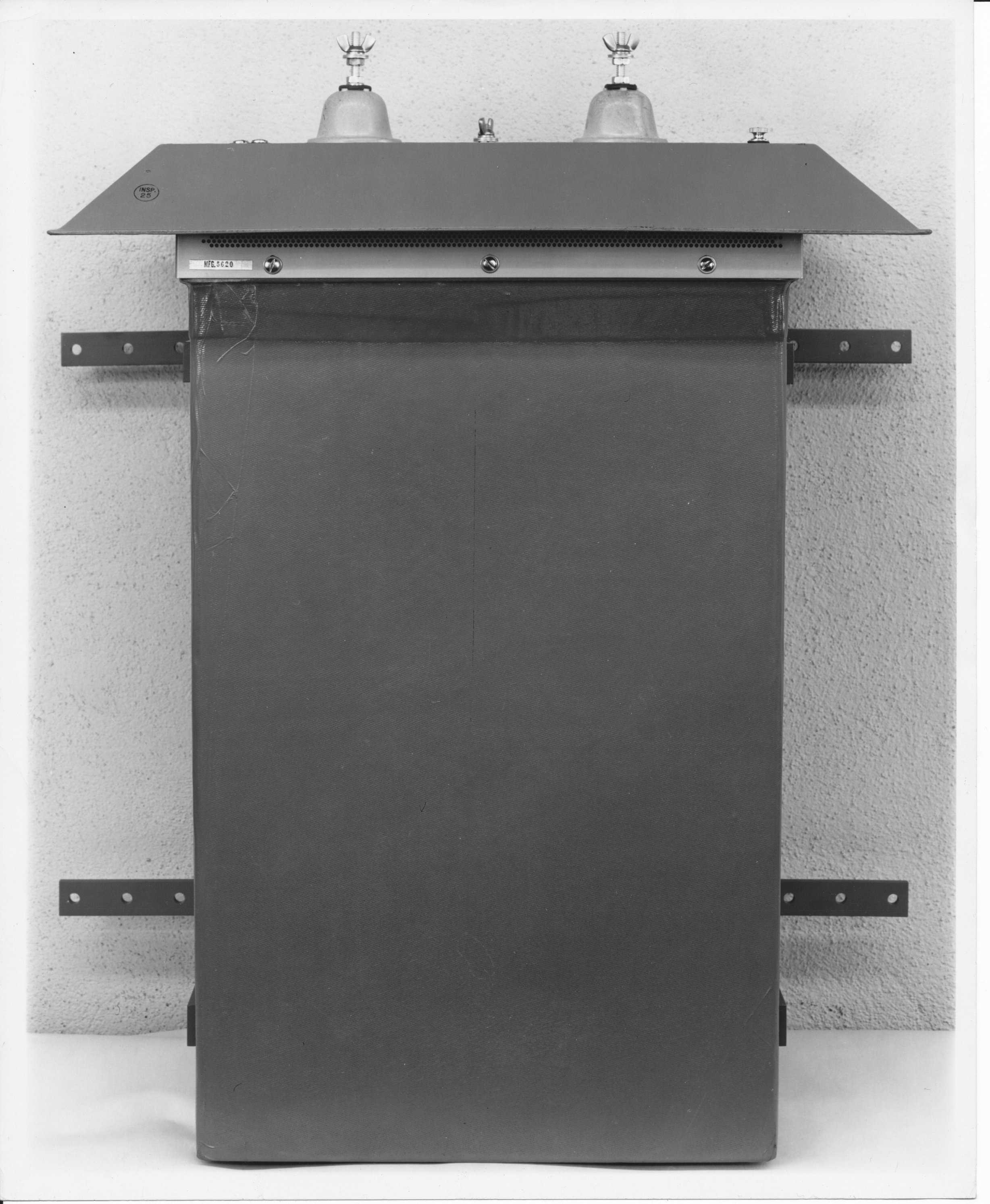

| TER-3.5K |
 |
Terminator and Dummy Load, 3,500W |
DA-200/U |
| TER-5K |
 |
Terminator and Dummy Load, 5,000W |
DA-209/U(50ohm), DA-210/U(70ohm),
DA-201/U(600Ohm) |
| TER-15K |
 |
Terminator and Dummy Load, 15KW |
|
|
| TER-25K |
 |
Terminator and Dummy Load, 25KW |
|
|
| TER-100K |
|
Terminator and Dummy Load, 100KW |
TB-8016 |
|
| TER-200K |
 |
Terminator and Dummy Load, 200KW |
|
|
| TIS |
|
Tone Intelligence System |
SSB-167 |
|
| TIS-2 |
|
Tone Intelligence System |
SSB-236 |
TH-39/UGT, F-425/UGT |
| TIS-3 |
 |
Tone Intelligence System |
SSB-238 |
|
| TLA(_)-10K |
|
Linear RF Amplifier Technimatic
Tuned 10Kw |
|
|
| TLAA-2.5K |
|
Technimatic Tuned Linear
Amplifier (part of 2.5K transmitter series) |
|
|
| TLAB-2.5K |
|
Technimatic Tuned Linear
Amplifier Same as TLAA but with remoted tuning motors removed.
Manually tuned |
|
|
| TLAE-10K |
|
Linear RF Amplifier Technimatic
Tuned 10Kw. Amplifier used in TSTE-10K |
|
|
| TLAM-10K |
|
Linear Amplifier, BC Band,
BCT-10KA |
|
|
| TLAC(_)-40K |
|
Linear RF Amplifier Technimatic
Tuned 40Kw |
|
|
| TLI-1 |
|
Tower Lighting Transformer ID-209 |
|
|

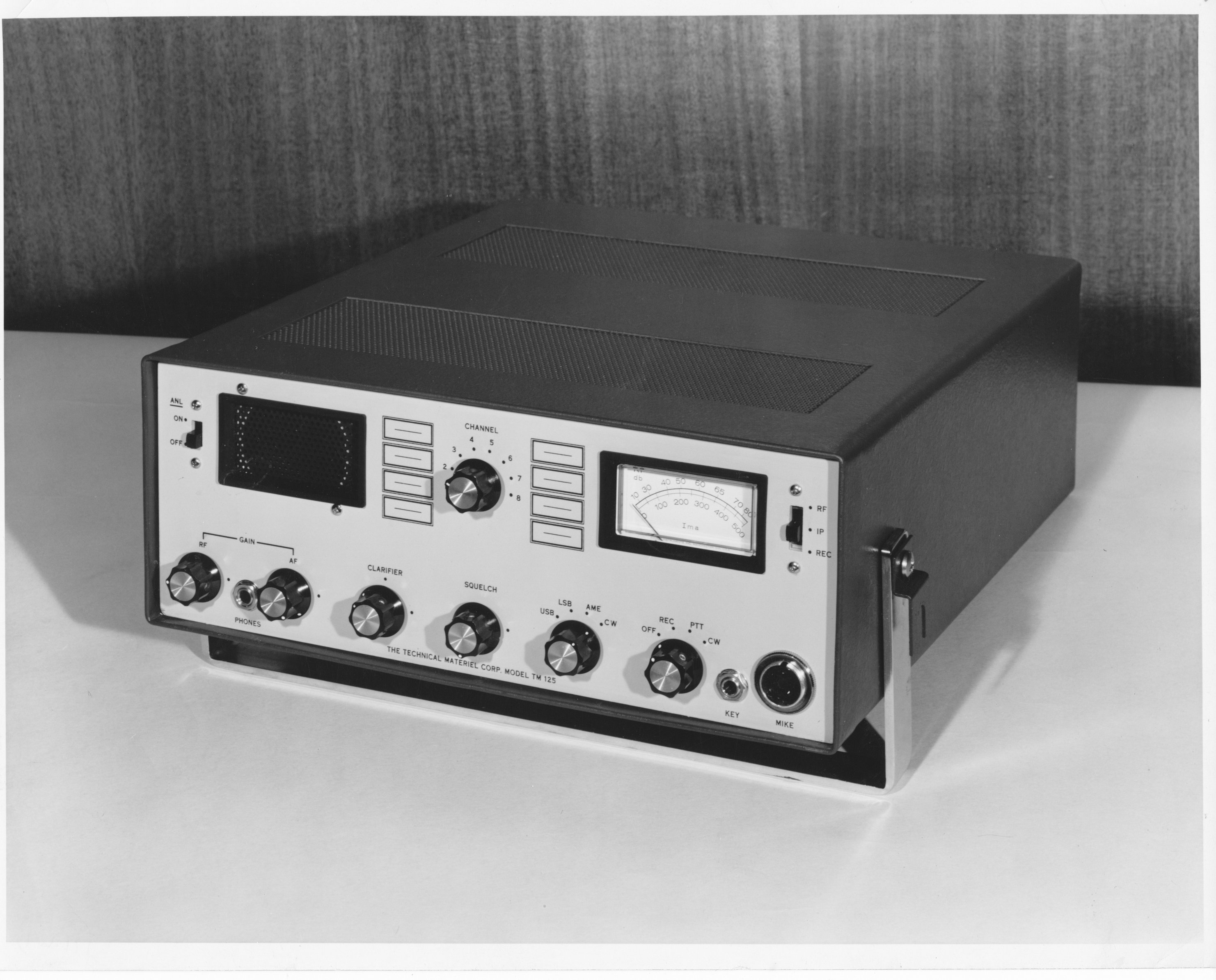

| TM-125 |
 |
Transceiver 1.6 to 26 MHz
USB or LSB, AME and CW. 115/230V @ 50/60Hz or 12VDC Neg
Ground. S.O. 31-0576-121 |
|
|
| TM-350 |
|
Transceiver. TM-125 with
TMA-350 Linear Amplifier |
|
|
| TM-1000 |
|
Transceiver. TM-125 with
TMA-1000 Linear Amplifier |
|
|
| TM-10K |
|
Transmitter RF Meter Assy, for
use with 10K transmitters |
|
|
| TM-40K |
|
Transmitter RF Meter Assy, for
use with 40K transmitters |
|
|

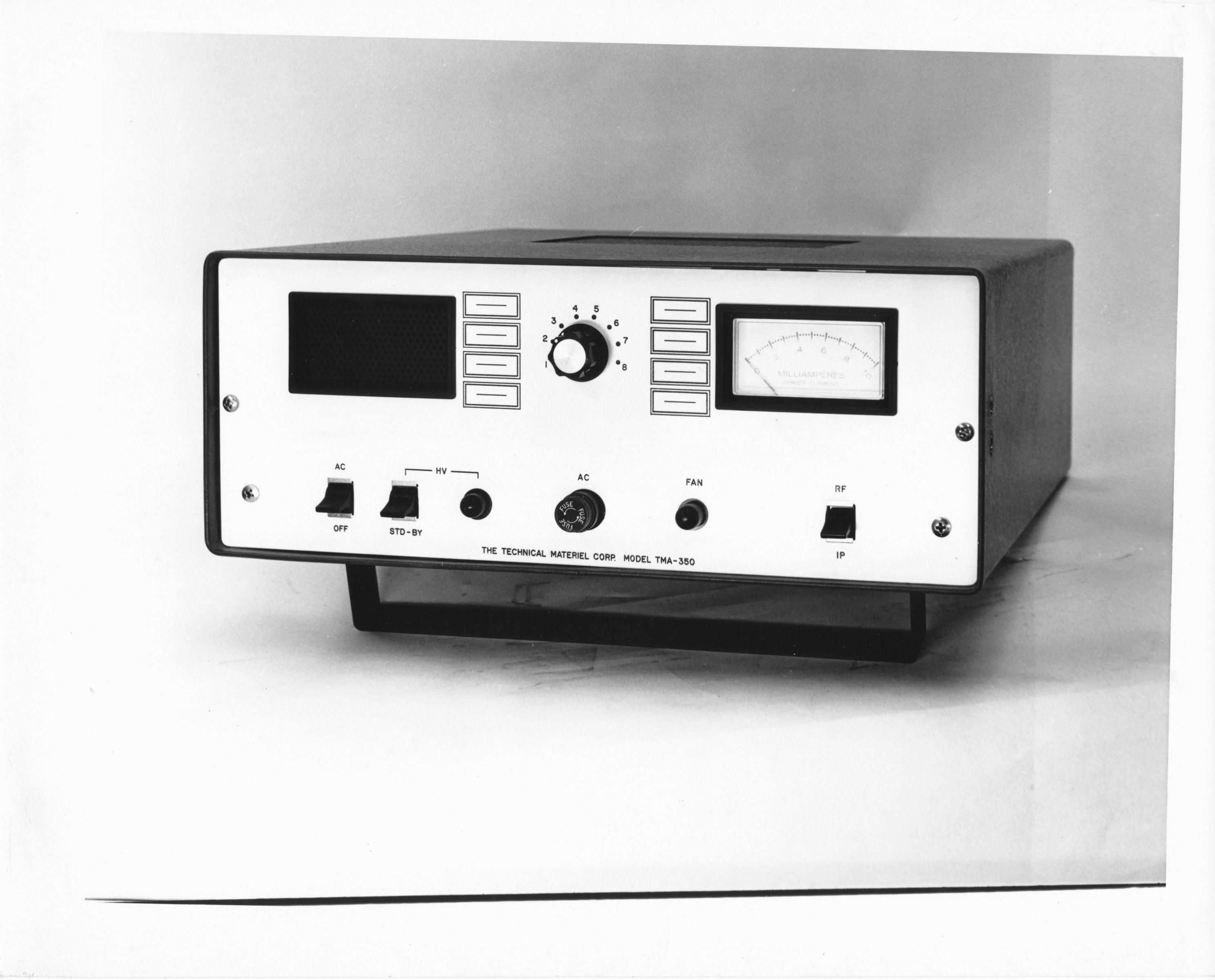

| TMA-350 |
 |
Linear Amplifier, pwr output 350W
PEP or CW. Input 115/230V 50/60Hz. 8 channel remote controlled
by TM-125 or equivalent. |
|
|
| TMA-1000 |
 |
Linear Amplifier, pwr output
1,000W PEP or CW. |
|
|
| TME-1 |
 |
Transmitter, shown with TMT-350 (a.k.a,
ATU-350) Tuner |
|
|
| TMP |
|
Tone Monitoring Panel |
|
|
| TMPA-1 |
|
Transmitter monitor concolse
(Project 15) |
|
|
| TMR-1 |
 |
Receiver |
|
|
| TMS-1 |
Speaker |
|
| TMT-350 |
|
Formerly ATU-350. Antenna
Tuning Unit, 125W peak, 8 channel presetting any channel up to 8.
Complete interface with TM-125 (formerly MTR-125) |
|
|

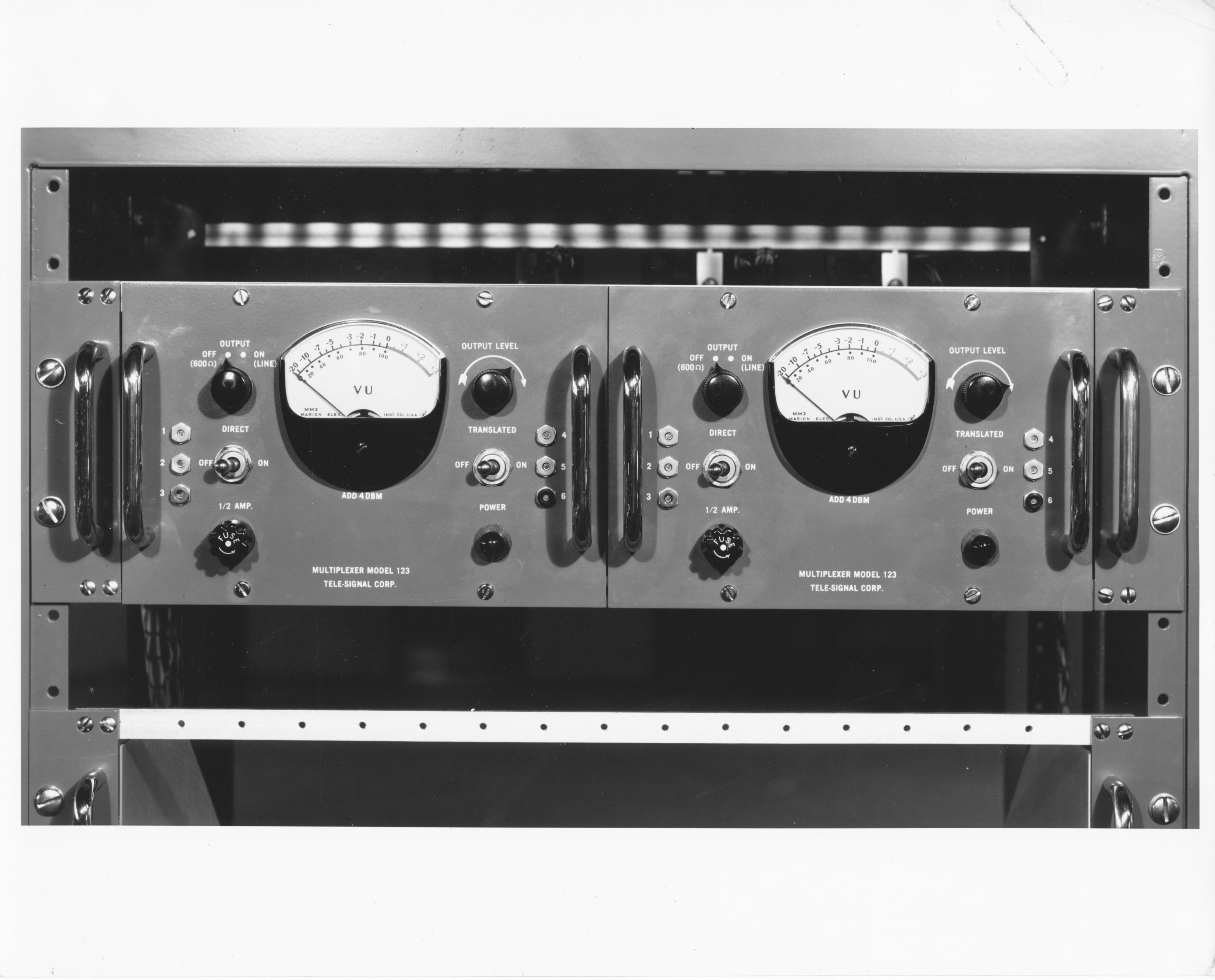

| TMX-1 |
 |
Voice Frequency Multiplexer |
TB-5002 |
|

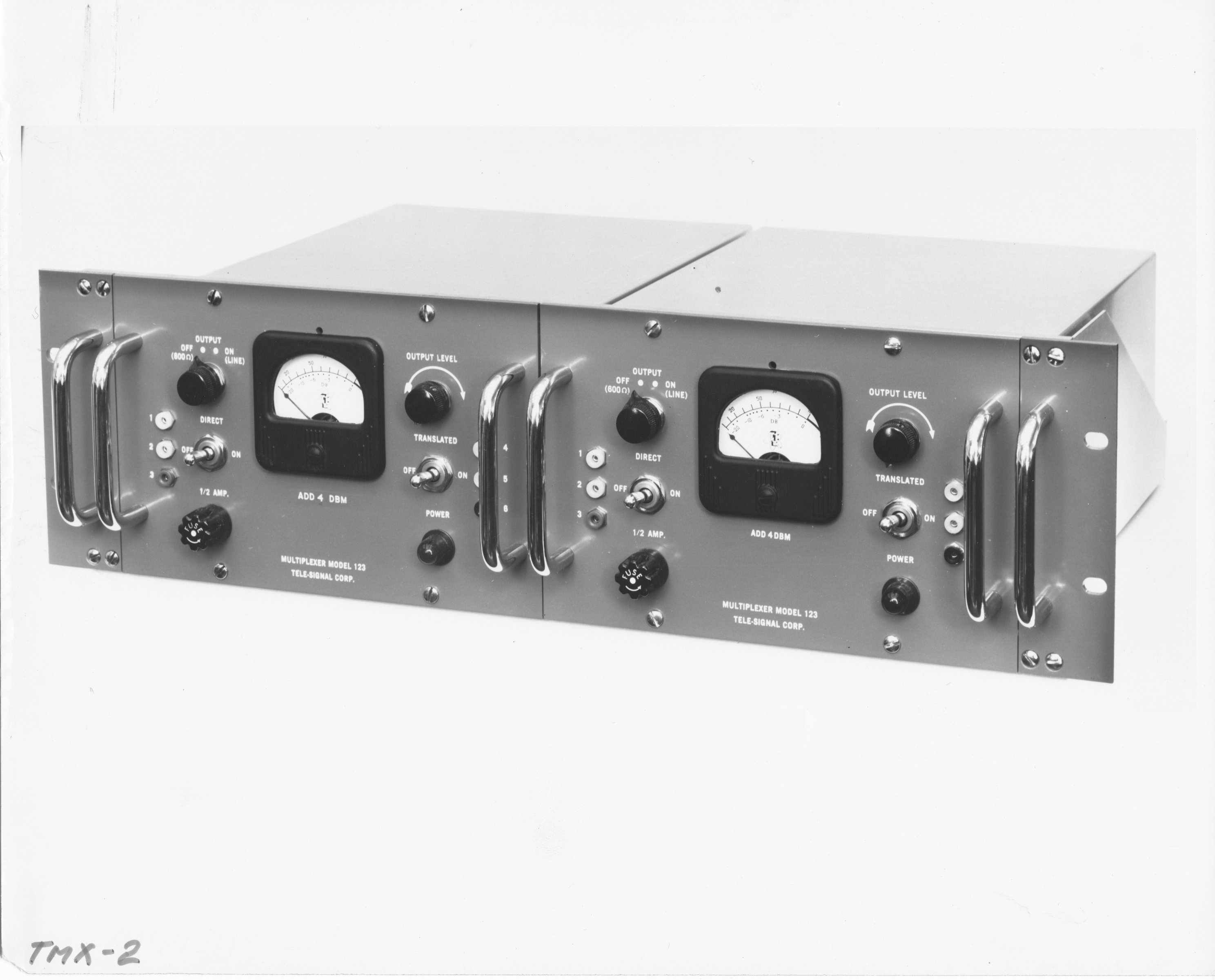

| TMX-2 |
 |
Voice Frequency Multiplexer |
|
|
| TMXI-1 |
|
Voice Frequency Multiplexer (250
- 6000 cps to meet CCIR requirements) |
TB-5002 |
|
| TOC |
|
Transit/Operating Case (Standard
Case) |
TB-9005 |
|
| TOC-1 |
Transit/Operating Case (beefed up
for power supply) |
TB-9005 |
|
| TOC-2 |
Transit/Operating Case (storage
and spares) |
TB-9005 |
|
| TOC-3 |
Transit/Operating Case |
|
|
| TOC-4 |
Transit/Operating Case.
19-38" x 14-1/8" x 3-1/2" smaller in all dimensions than
TOC, including panel space |
|
|
| TOC-5 (10/22/65) |
Same as basic TOC but modified
for COR( ) system |
|
|
| TOC-6 |
Same as basic TOC-2 but modified
to accept Western Electric RS 5361 batteries or equivalent for use with
COR-() system |
|
|
| TOC-7 |
Louvers on each side 21"H x
20-1/2"W x 18"D |
|
|
| TOC-8 |
21"W x 20-1/2"w x
18"D |
|
|
| TOC-24 |
-1/-2/-3 uses WC108
Transit/Operating Case |
|
|
| TOC-25 |
-1/-2/-3/-4 SYM-5204 |
|
|
| TOC-26 |
-1/-2/-3 SYM-5205 |
|
|

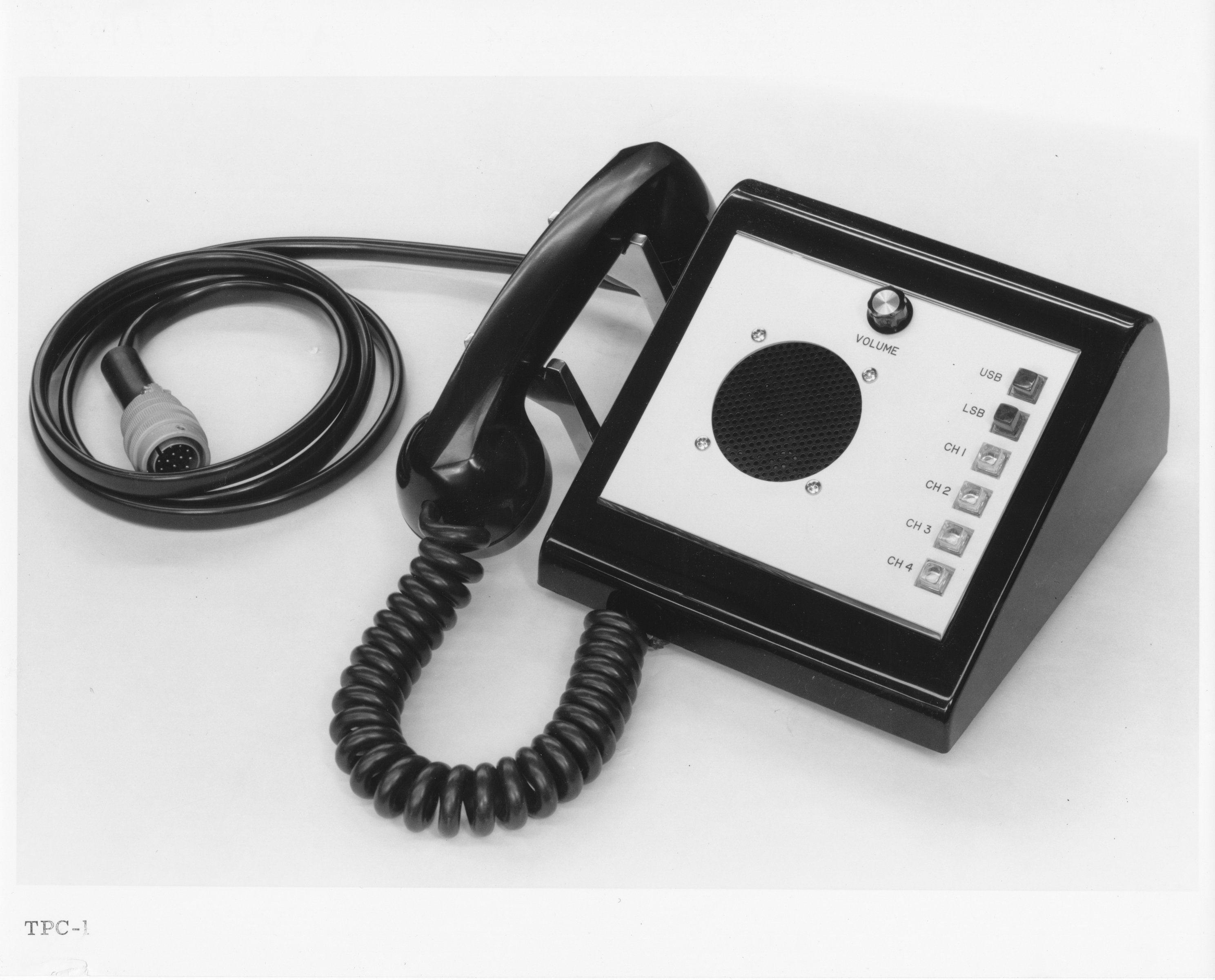

| TPC-1 |
 |
Telephone Remote Control unit for
TTR-10 cancelled 2/16/67 R Hay |
|
|

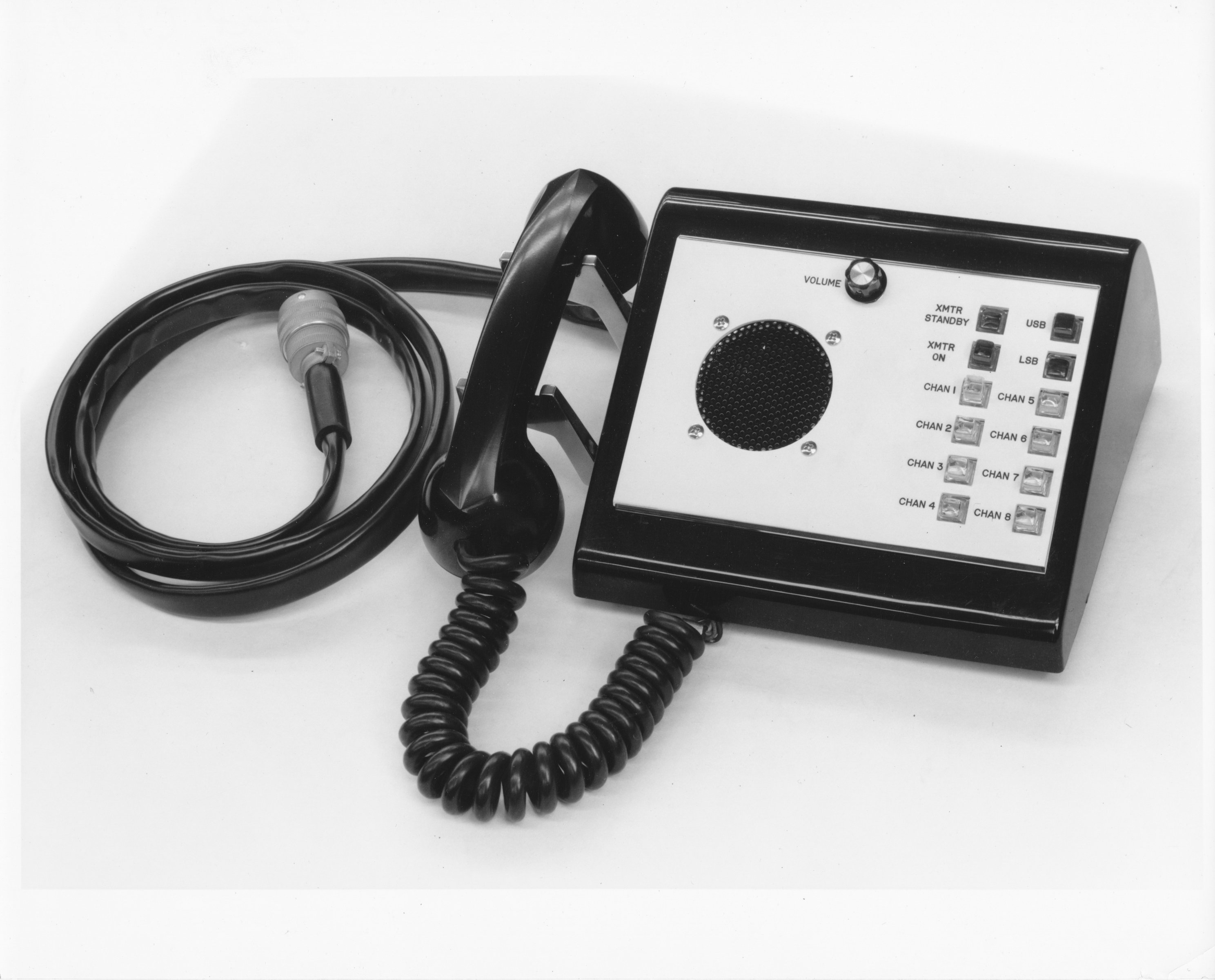

| TPC-11 |
 |
Telephone Remonte Control |
|
|

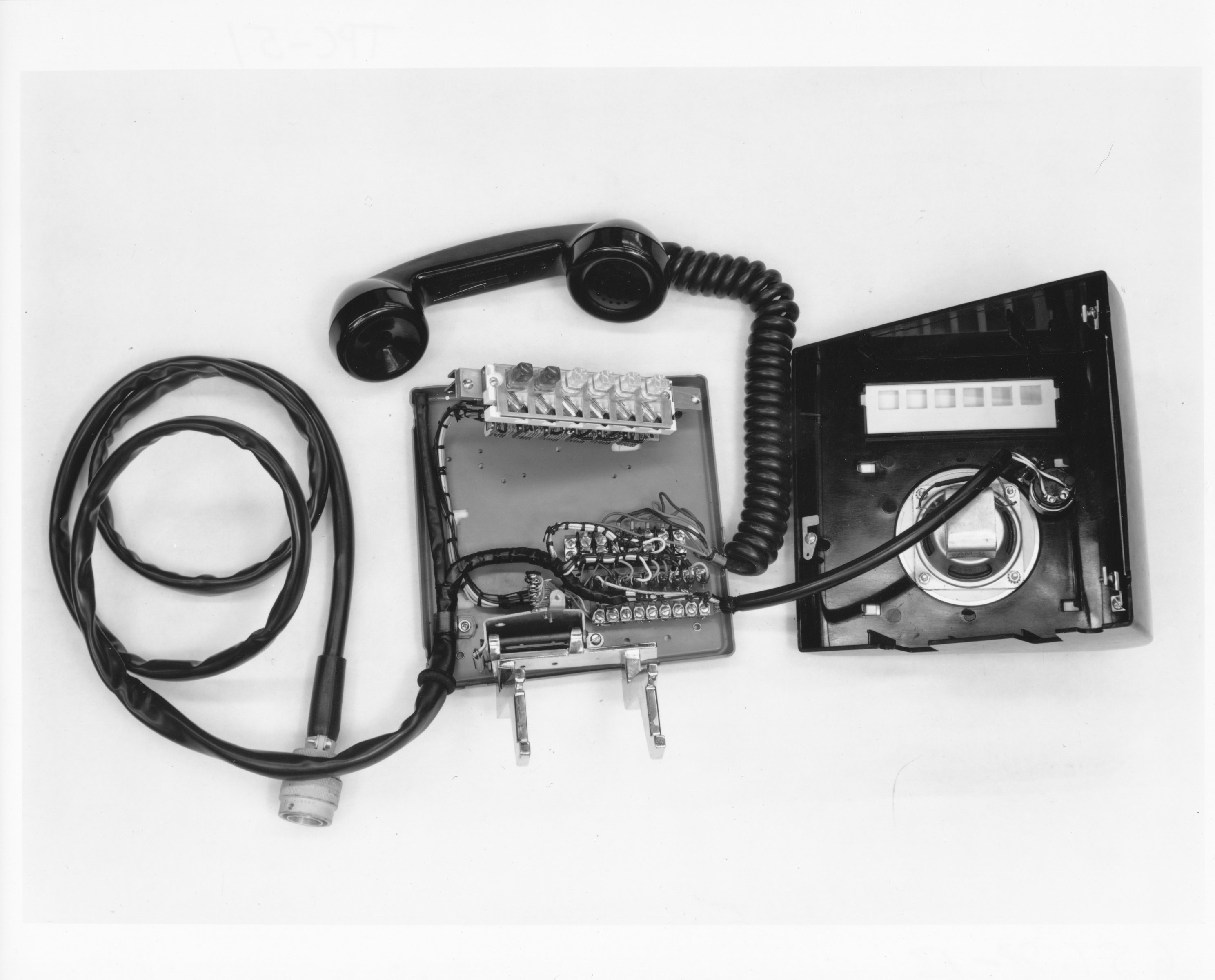

| TPC-51 |
 |
Telephone Remote Control:
p/o CMSA-1 System Desk telephone with six push buttons when used with Tone
Generator SMCC-1 |
|
|
| TPCA-1 |
|
Remote Control System (for
TTR-10) Connects TPC-1 and TPCK-1 |
|
|
| TPCK-1 |
 |
Remote Control Unit.
Contains master ledex and p/s for TTR-10, etc. power for TTC |
|
|
| TPSA-1 |
 |
Power Supply for TTR-10, 115 VAC |
|
|
| TPSB-1 |
|
Power Supply for TTR-10, 24 VDC |
|
|
| TPSC-1 |
|
Power Supply for TTR-40, 115 VAC |
Note:
engineering on TTR-40 has been suspended, therefore thes units have been
discontinued |
| TPSD-1 |
|
Power Supply for TTR-40, 24 VDC |
| TPSE-1 |
|
Power Supply for TTR-10, 2085 VAC |
|
|
| TPSF-1 |
|
Power Supply for TTR-10, 230 VAC |
|
|
| TPSG-1 |
|
Power Supply for TTR-10, 12/24/32
VDC |
|
|
| TPSH-1 |
|
Power Supply for TTR-10, 32 VDC |
|
|
| TPSI-1 |
|
No designation |
|
|
| TPSJ-1 |
|
Power Supply for TTR-40, 208 VAC |
Note:
engineering on TTR-40 has been suspended, therefore thes units have been
discontinued |
| TPSK-1 |
|
Power Supply for TTR-40, 230 VAC |
| TPSL |
|
Power Supply for STE, STR, SME,
SMR 12/24/32 VDC |
|
|
| TPSM-1 |
|
Power Supply for TTR-40, 32 VDC |
Note:
engineering on TTR-40 has been suspended, therefore thes units have been
discontinued |
| TR-107 |
|
Distribution Transformer, 2-30 Mc |
TB-8014 |
|
| TRC-100-70U/600B |
|
100W Broadband Coupler, 70 ohms
unbalanced to 600 ohm balanced; without flange or connector assembly
(AX-274-1) (flange for RG-85/U cable) 2-32 Mc |
TB-8015 |
|

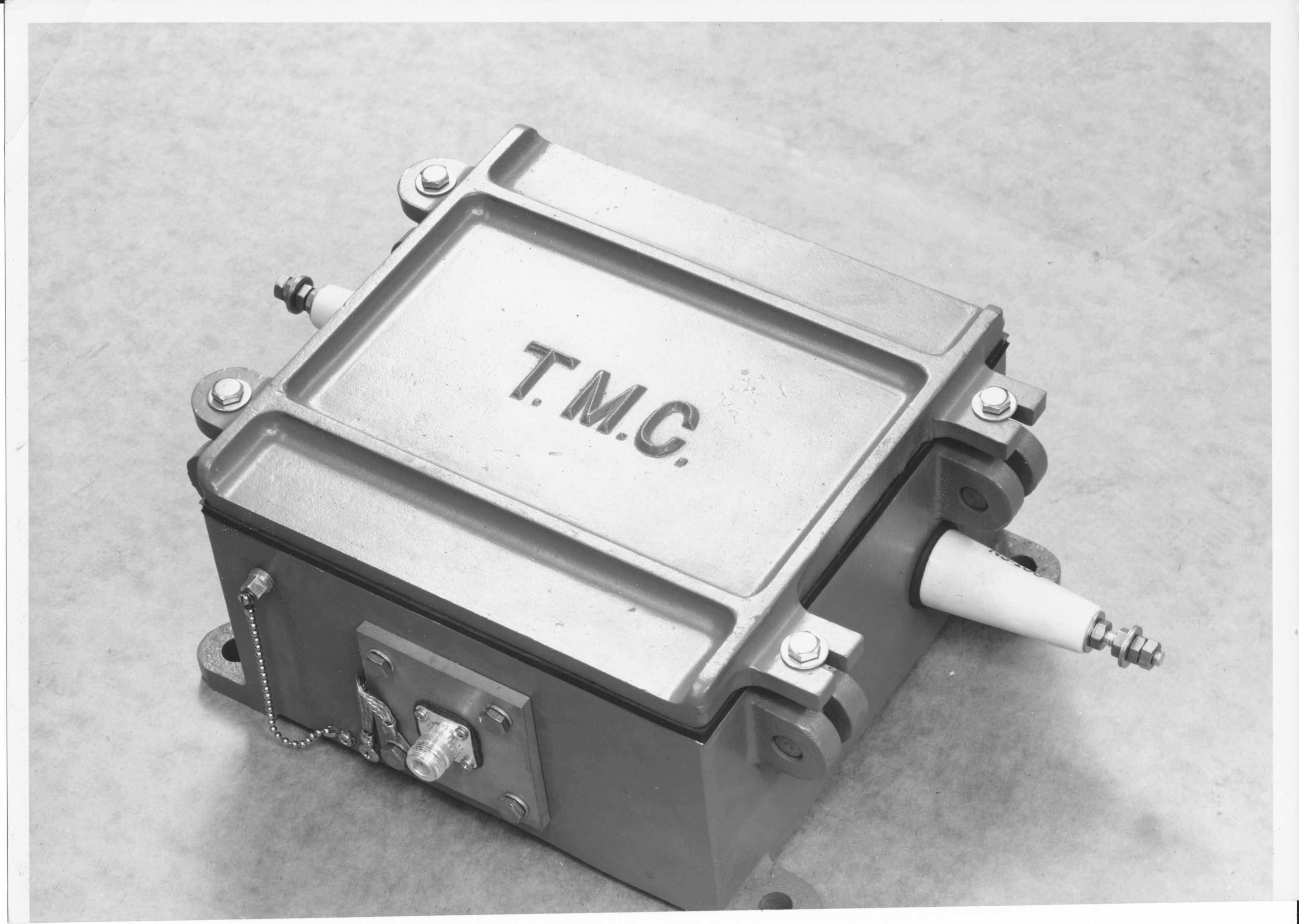

| TRC-500-50U/600B |
 |
500W Broadband Coupler, 50 ohms
unbalanced to 600 ohm balanced; without flange or connector assembly
2-30 Mc |
TB-8015 |
|
| TRC-500-70U/600B |
500W Broadband Coupler, 70 ohms
unbalanced to 600 ohm balanced; without flange or connector assembly
2-30 Mc |
TB-8015 |
|
| TRC-3500-50U/600B |
 |
3500W Broadband Coupler, 50 ohms
unbalanced to 600 ohm balanced; without flange or connector assembly
2-30 Mc |
TB-8015 |
|
| TRC-3500-70U/600B |
3500W Broadband Coupler, 70 ohms
unbalanced to 600 ohm balanced; without flange or connector assembly
2-30 Mc |
TB-8015 |
|
| TRC-3500-50U/50B |
3500W Broadband Coupler, 50 ohms
unbalanced to 50 ohm balanced. |
TB-8015 |
|
| TRC-5000-50U/600B |
 |
5000W Broadband Coupler, 50 ohms
unbalanced to 600 ohm balanced. Without flange or connector
assembly. 2-28 Mc. |
TB-8015 |
|
| TRC-5000-70U/600B |
5000W Broadband Coupler, 70 ohms
unbalanced to 600 ohm balanced. Without flange or connector
assembly. 2-28 Mc. |
TB-8015 |
|
| TRC-20K-50U/600B |
|
20Kw Broadband Coupler, 50 ohms
unbalanced to 600 ohm balanced. With 3-1/8" EIA flange.
4-30 Mc |
TB-8015 |
|
| TRC-20K-70U/600B |
|
20Kw Broadband Coupler, 70 ohms
unbalanced to 600 ohm balanced. With 3-1/8" EIA flange.
4-30 Mc |
TB-8015 |
|
| TRF |
|
Tone Receive Filter, p/o TIS
System |
SSB-167 |
|
| TRL-1 |
|
Transmit-Receive Relay
Assy. for use with GPT-750 Mark I, 70 ohms |
|
|
| TRL-2 |
|
Transmit-Receive Relay
Assy. for use with GPT-750 Mark I, 50 ohms |
|
|
| TRL-3 |
|
Transmit-Receive Relay
Assy. for use with GPT-750 Mark II, 70 ohms |
|
|
| TRL-4 |
|
Transmit-Receive Relay
Assy. for use with GPT-750 Mark II, 50 ohms |
|
|
| TRL-11 |
|
Transmit-Receive Relay
Assy. for use with 10Kw Transmitter |
|
|

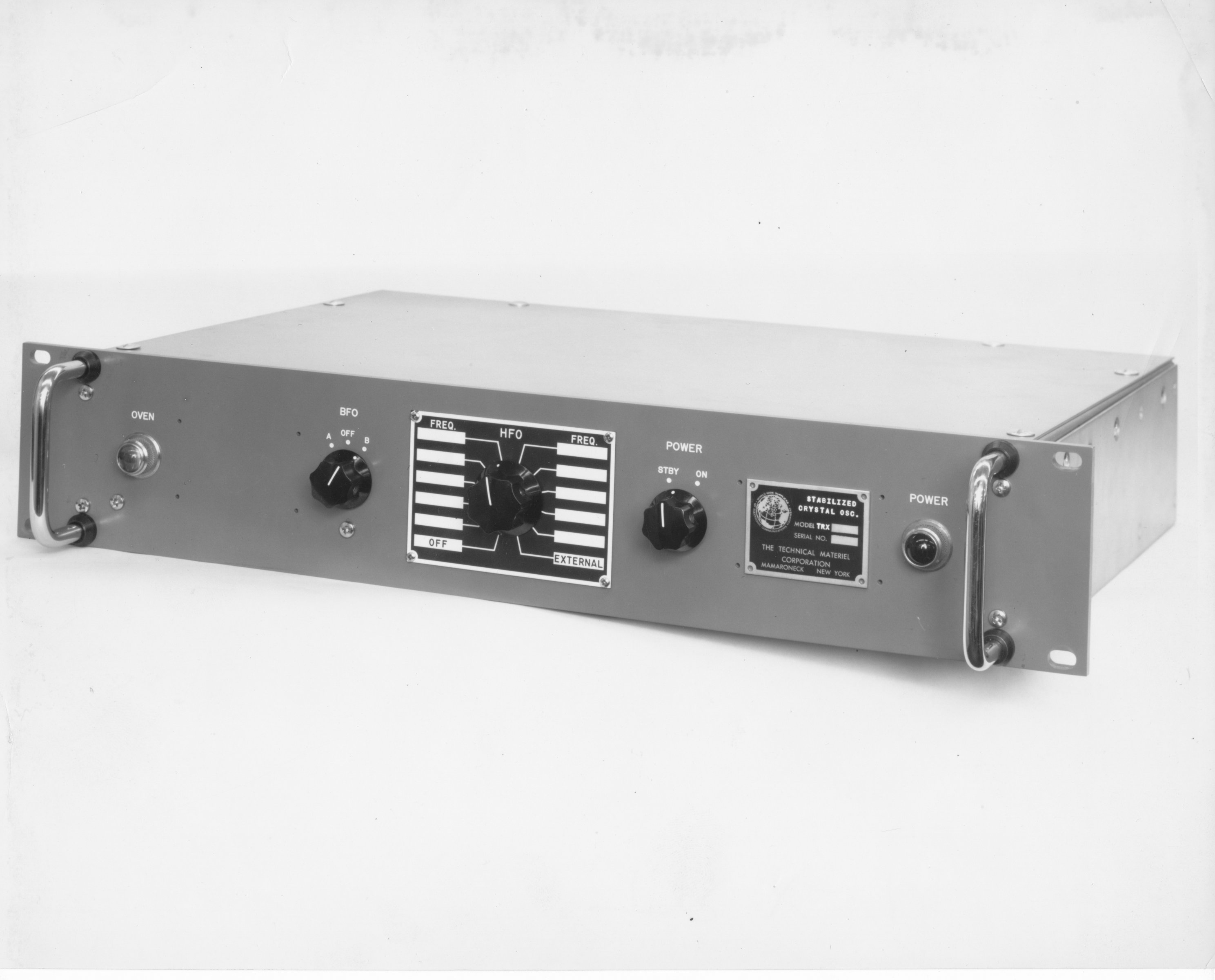

| TRX-1 |
 |
Stabilized Crystal Oscillator |
TB-4006 |
|
| TRX-2 |
|
Stabilized Crystal Oscillator |
|
|
| TSI-1 |
|
Auxiliary Panel used in Low Power
Transmitters |
|
|
| TSI-2 |
|
Transmitter Status Indicator |
|
|
| TSR |
|
Tone System Transmitter |
SSB-167 |
|
| TST |
|
Tone System Transmitter |
SSB-167 |
|
| TST(_)-1K,10K,40K |
|
Radio Transmitter Technimatic
tuned |
|
|

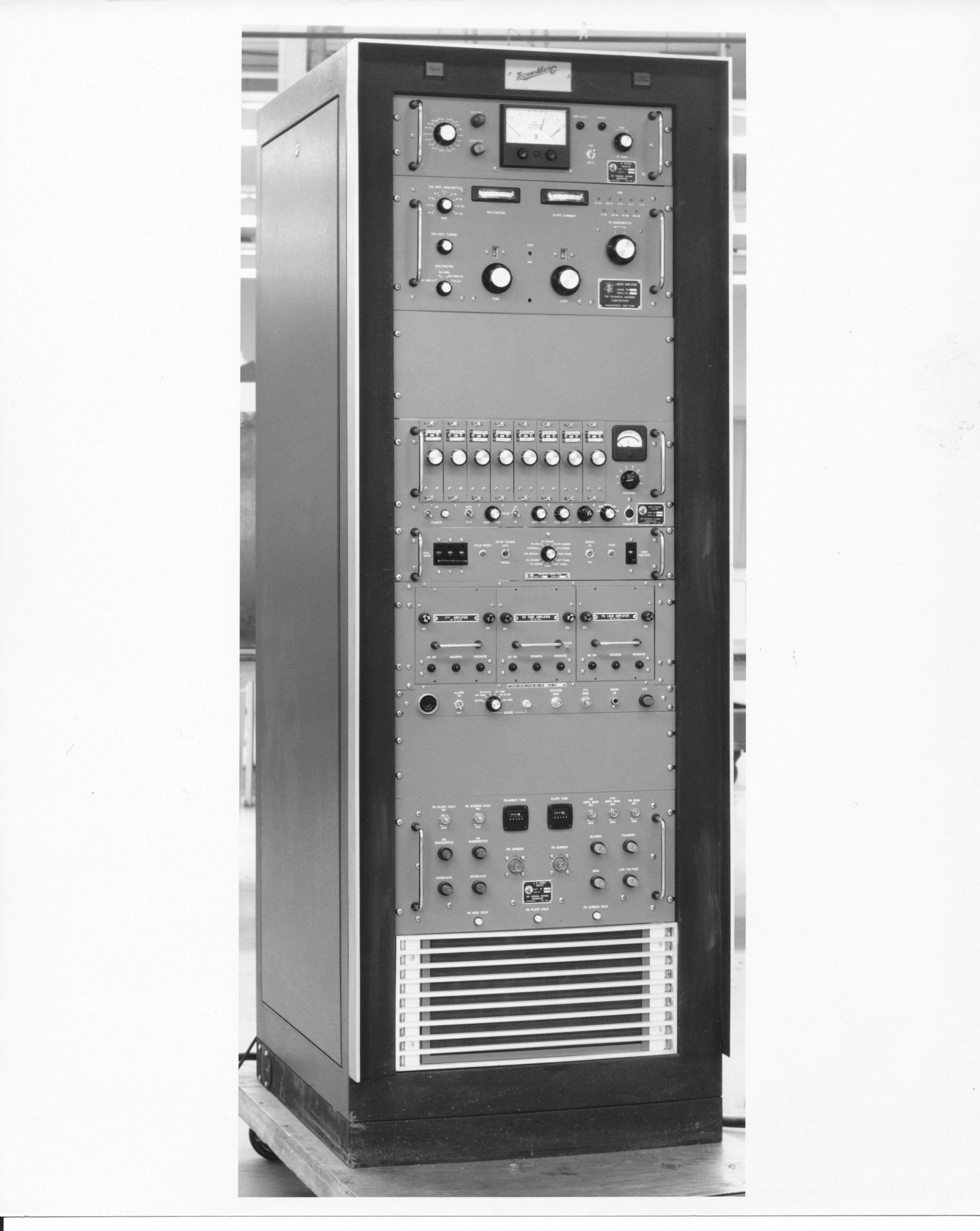

| TSTA-2.5K |
 |
(GPTA-2.5EA) Consists of
TLA-2.5K, SWCA-3K, SMEA-1, TCSA-1, Solid state power supply and
cabinet. TCP-2, TFP-2.5K |
|
|
| TSTB-2.5K |
|
TSTA-2.5K less SME but with SBE
& VOX. Note: this would require special panel for
TLAA-2.5K bandswitch postiiong, and a of 9/15/65 this unit has not been
sold |
|
|
| TSTC-2.5K |
|
TSTA-2.5K less SME but with SBE
& 10 xtals. This is a non-automated unit. Delete TCSA and
automated unit. |
|
|
| TSTC-2.5K |
|
Synthesized 2 chananel unit (has
capability of 3 Kc, 6 Kc, 7.5 Kc ISB). Note form factor and
engineering on this non-finalized. Canada has quoted this. |
|
|
| TSTE-2.5K |
|
Exciter is 4 channel CMRA-1
automated by Technimatic control. TCP-1, TFP-2.5K. Note:
engineering details not available on this model. Has not been sold as of
9/15/65. |
|
|
| TSTF-2.5K (4/13/66) |
|
Same as TSTE, has automated
provisions for 10 preset frequencies with manual tuning of remaining
frequencies. |
|
|
| TSTG-2.5K |
 |
(GPTR-2.5EA) Like TSTA but has
SMEB-1, LRC(A)-1 for hardware inhouse remote control. Uses TCP-2,
TCP-1. Tunign cycle to start immediately upon change of channel in
SMEB-1. Capability of operating a seprater antenna selection unit
simultaneously with channel selection. Remote fun tions: Channel
Selection, Main Power On/Off, HG B+ On/Off, overload resest. |
|
|
| TSTH-2.5K |
|
Same as TSTE-2.5K. Can be
field modified with memory unit timing device for complete Technimatic
remote control by means of teletypewriter messages. No sales. |
|
|
| TSTJ-2.5K |
|
Same as TSTE-2.5K but fitted with
Technimatic tunig for in-station control. No sales. |
|
|
| TSTK-2.5K |
|
(GPTA-2.5VA) For basic
transmitter complete less exiter. (Salesman is F. O. S. III) SBE
with prepositioner (necessary for automatic transmitter), TFP-2.5K,
pre-position panel. |
|
|
| TSTL-2.5K |
|
Sames as TSTA but has provisions
for 6 Kc ISB capability Note: export sale |
|
|
| TSTM-2.5L (10/4/65) |
|
TLAA-2.5K, SWCA-2K, SBE-8,
TIS-3A, Tunign panel TSCA in 84" CAB |
|
|
| TSTN-2.5K (10/4/65) |
|
(GPTA-2.5EE) TLAA-2.5K, blank,
SWCA-3K, SMEA-1, TCP-2, TIS-3A, TSCA-1, AD-128, AP-129 |
|
|
| TSTP-2.5K (4/4/66) |
 |
TLAA-2.5K (manual) SWCC-3K,
TCP-1, SBE-10, AP-128, AP-129 QR16377 |
|
|
| TSTP-2.5KA (11/8/66) |
|
(GPT-2.5WA) Radio Transmitter,
2.5Kw. Consists of SWCB-2K, TLAB-2.5K, SBE-10, TCP-3, AP-128,
AP-129, RAK-110-( ), AX-647, VOX-5. Mount P/s for SBE-10 in rear if
necessary |
|
|
| TSTE-10K |
 |
CHGR-3, HFSR-3, CMRA-1, LRECD,
HFP-1. Uses hard wire remote control using LRCM-1, CMRA-1, TLAE-10K |
|
|
| TTA-1 |
|
Tuning Terminator Assy (for use
with AN/URA-28) |
|
|
| TTC-1 |
 |
Transmitter-Receiver Antenna
Coupler |
|
|
| TTC-2 (6/13/66) |
|
Whip Antenna Coupler for
TTR-500. Tranceiver - 6 channel switchalbe L-sectoins to matche a.
35' whip (fixed), b. 10' whip (mobile). Both applicants to be
combined in one unit if poossible. Input 50 ohms 150W. VSWR 2:1
max. Waterproof housing. |
|
|
| TTC-3 (6/13/66) |
|
Whip Antenna for LPA-2 Linear
Amplifier. 6 channel, swithcable L-sections to match 35' whip.
Input 50 ohms 1000 watts. VSWR 2:1 max. Waterproof Housing.
Built-in Lightning arrestor. |
|
|
| TTF |
|
Tone Transmit Filter p/o TIS
System |
SSB-167 |
|
| TTG |
|
Tape Bridge |
SSB-152 |
|
| TTG-1 |
 |
Two Tone Generator |
SSB-230 |
|
| TTG-2 |
 |
Two Tone Generator |
SSB-230A,
TB-6002 |
|
| TTM-2 |
 |
Tone Telegraph Terminal |
SSB-5009 |
|
| TTR-10 |
 |
Transmitter-Receiver Set, 100W |
TB-1004 |
|
| TTR-10A |
Transmitter-Receiver Set, 100W,
Trumpy Yacht |
|
|
| TTR-10B |
Transmitter-Receiver Set, 100W,
Public Power, Greece |
|
|
| TTR-20 |
 |
(no info) |
|
|
| TTR-40 |
|
Transmitter-Receiver Set, 35W
(not developed) |
|
|

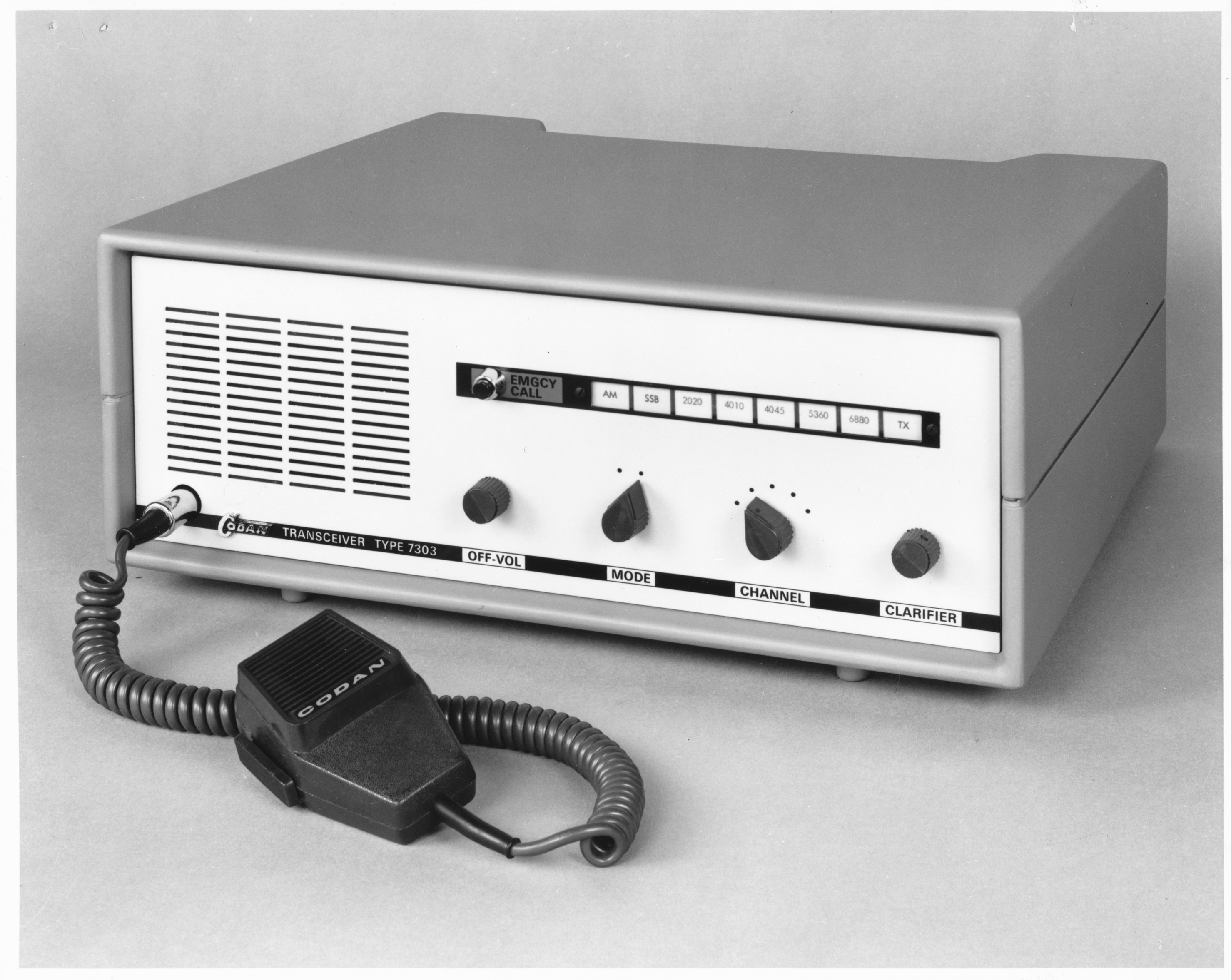

| TTR-50 |
 |
TMC resale of Codan 7303
"Homestead" SSB/CW Transceiver, 2-11 Mc, 50W. Not clear
this was ever a real product. |
|
|

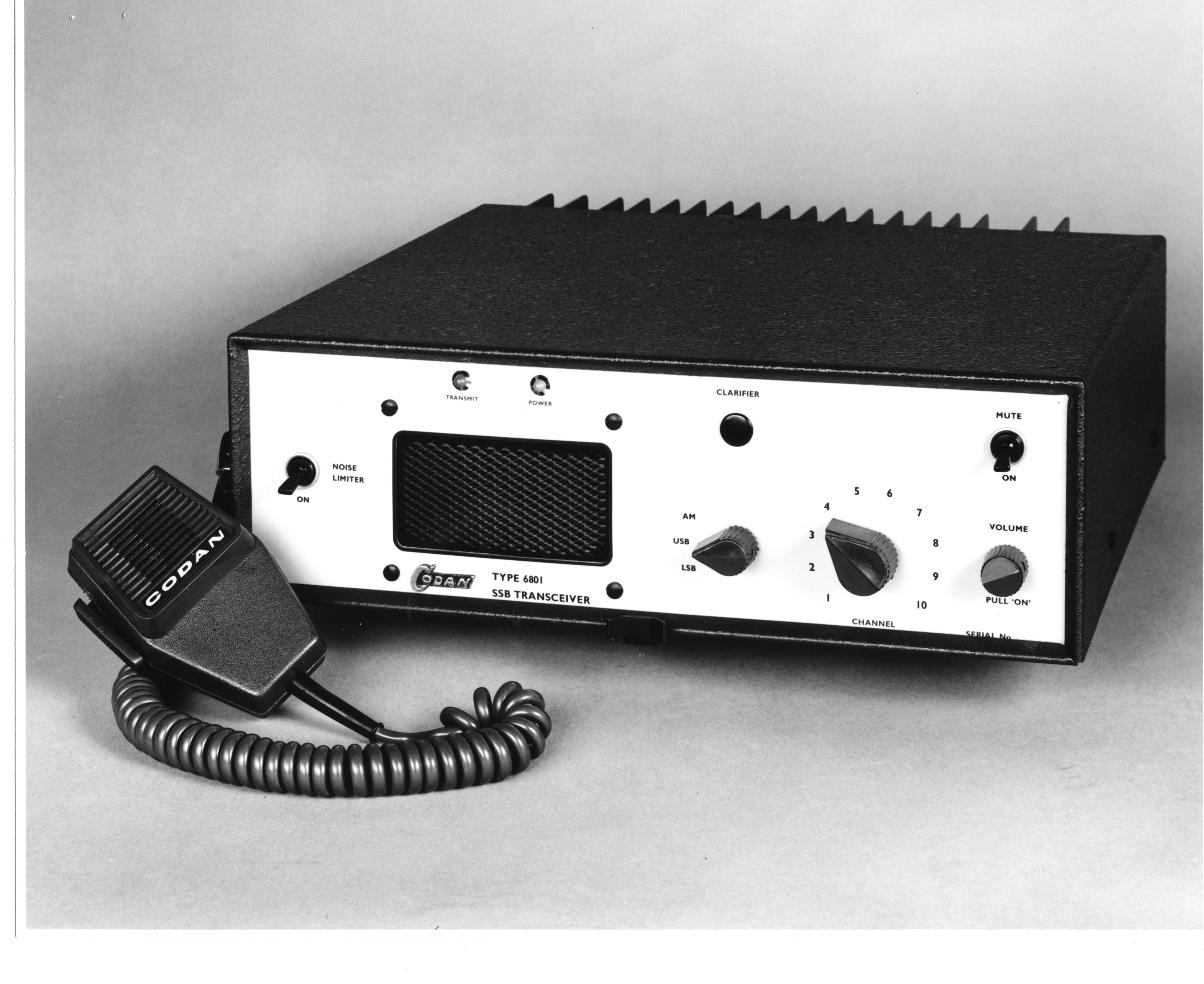

| TTR-100 |
 |
TMC resale of Codan 6801-S Marine
SSB Transceiver, 2-15Mc, 100W PEP. Not clear this was ever a real
product. |
|
|
| TTR-500 (11/24/65) |
|
Transceiver. Frequency
coverage: any 500 Kc band range, 1-30 Mc. 5 spot frequencies.
Controlled by oven. Single conversion. For xmtr and rcvr modes
- 455 Kc IF. All transistor except final amplifier |
|
|
| TTRA-1 |
|
Transmitter Amplifier Module,
TTR-10, 2-4 Mc |
|
|
| TTRA-2 |
|
Transmitter Amplifier Module,
TTR-10, 4-8 Mc |
|
|
| TTRA-3 |
|
Transmitter Amplifier Module,
TTR-10, 8-16 Mc |
|
|
| TTRA-4 |
|
Transmitter Amplifier Module,
TTR-10, 16-32 Mc |
|
|
| TTRA-5 |
|
Transmitter Amplifier Module,
TTR-10, 1.6-2 Mc |
|
|
| TTRR-1 |
 |
Receiver Converter Module,
TTR-10, 2-4 Mc. |
|
|
| TTRR-2 |
Receiver Converter Module,
TTR-10, 4-8 Mc. |
|
|
| TTRR-3 |
Receiver Converter Module,
TTR-10, 8-16 Mc. |
|
|
| TTRR-4 |
Receiver Converter Module,
TTR-10, 16-32 Mc. |
|
|
| TTRR-5 |
Receiver Converter Module,
TTR-10, 1.6-2 Mc. |
|
|
| TTRR-6 |
Receiver Converter Module, 500 Kc
+/- 10Kc. Applies principally to STR-1 but can be used on SMR-1 and
TTR-10 |
|
|
| TTRT-1 |
 |
Transmitter Converter Module,
TTR-10, 2-4 Mc. |
|
|
| TTRT-1B |
Canadian made TTRT-1B modifie
TTRT using (unreadable) |
|
|
| TTRT-2 |
Transmitter Converter Module,
TTR-10, 4-8 Mc. |
|
|
| TTRT-3 |
Transmitter Converter Module,
TTR-10, 8-16 Mc. |
|
|
| TTRT-4 |
Transmitter Converter Module,
TTR-10, 16-32 Mc. |
|
|
| TTRT-5 |
Transmitter Converter Module,
TTR-10, 1.6-2 Mc. |
|
|

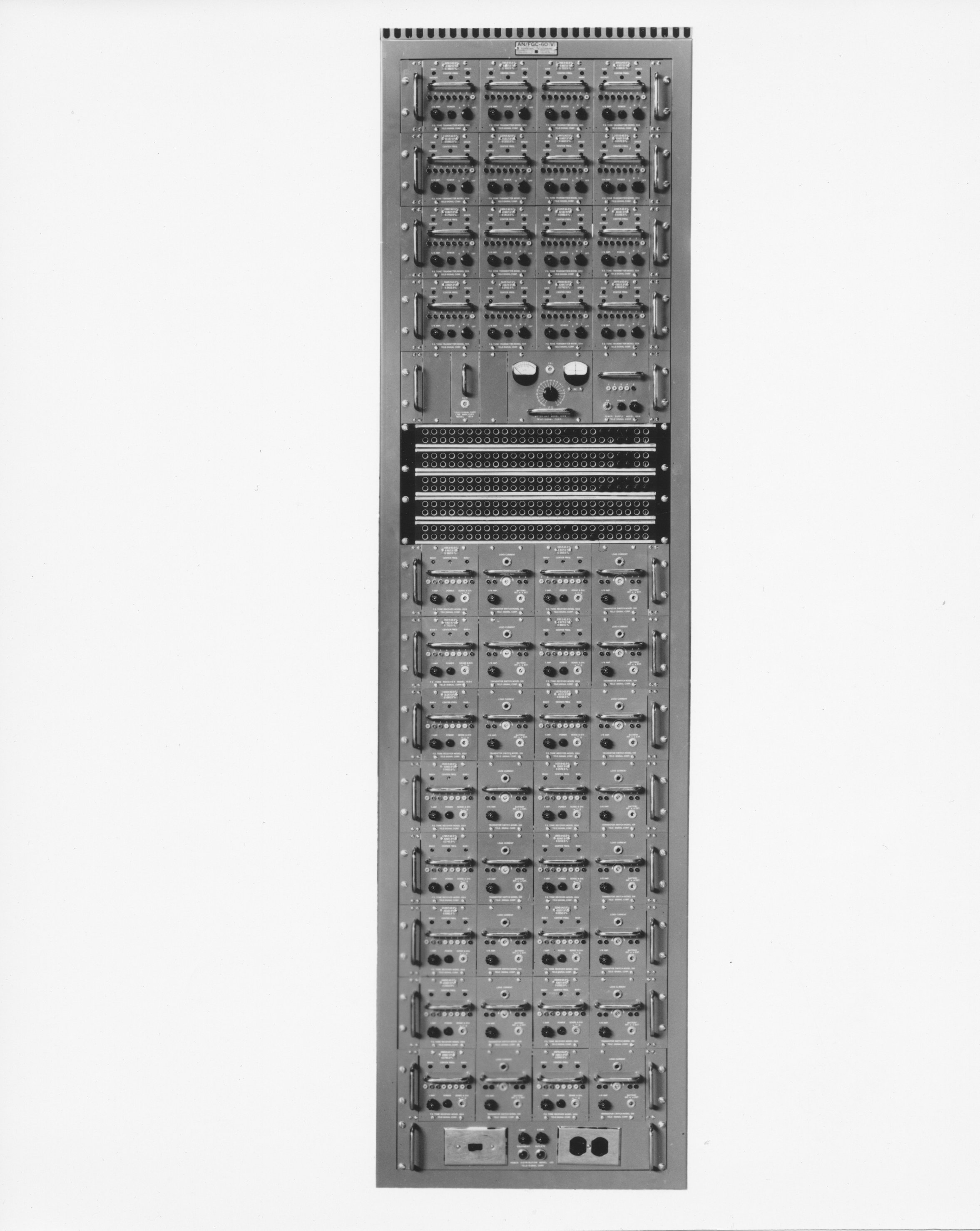

| TTS-1 |
 |
Tone Telegraph System |
SSB-5003 |
|

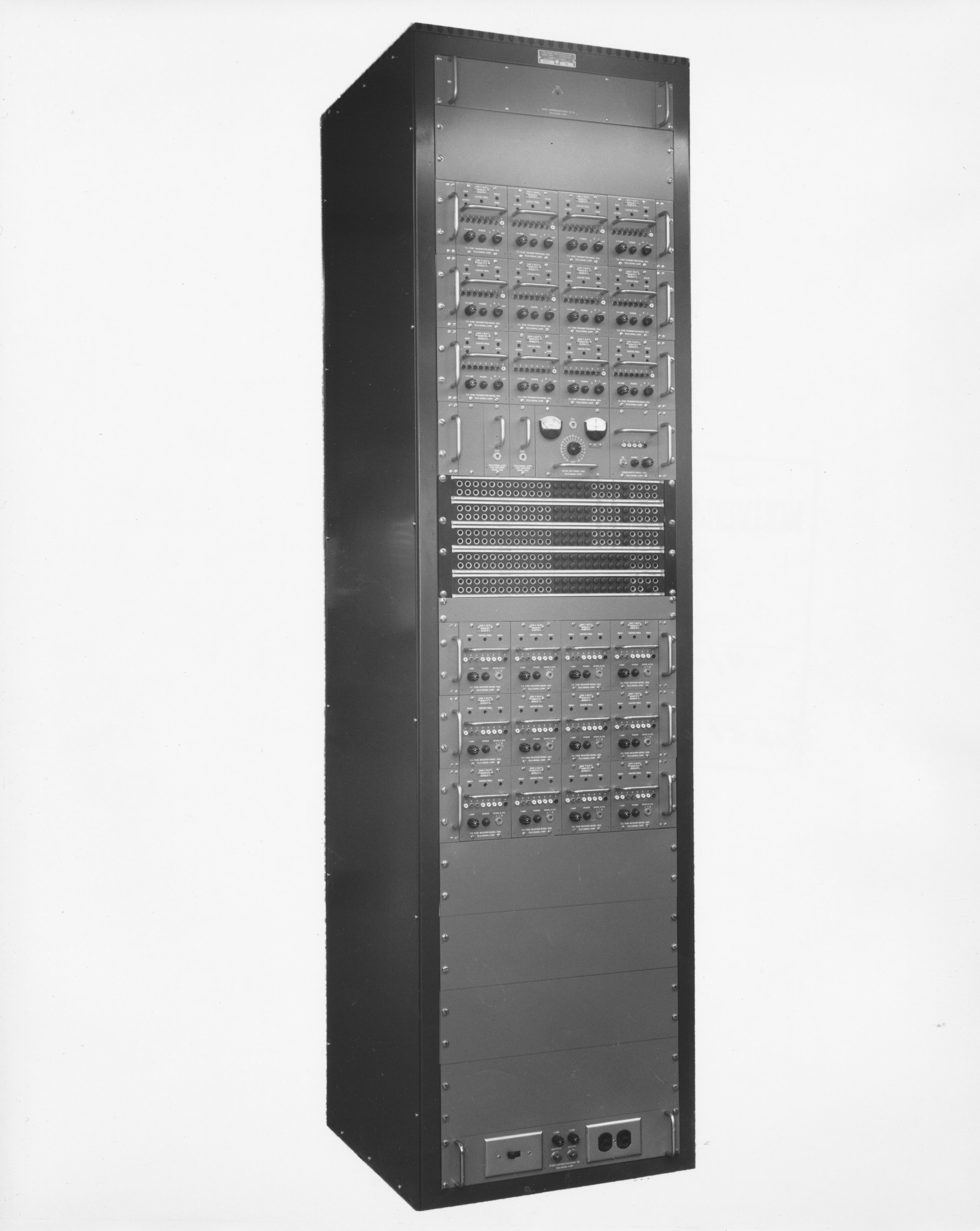

| TTS-2 |
 |
Tone Telegraph System |
SSB-5004 |
|

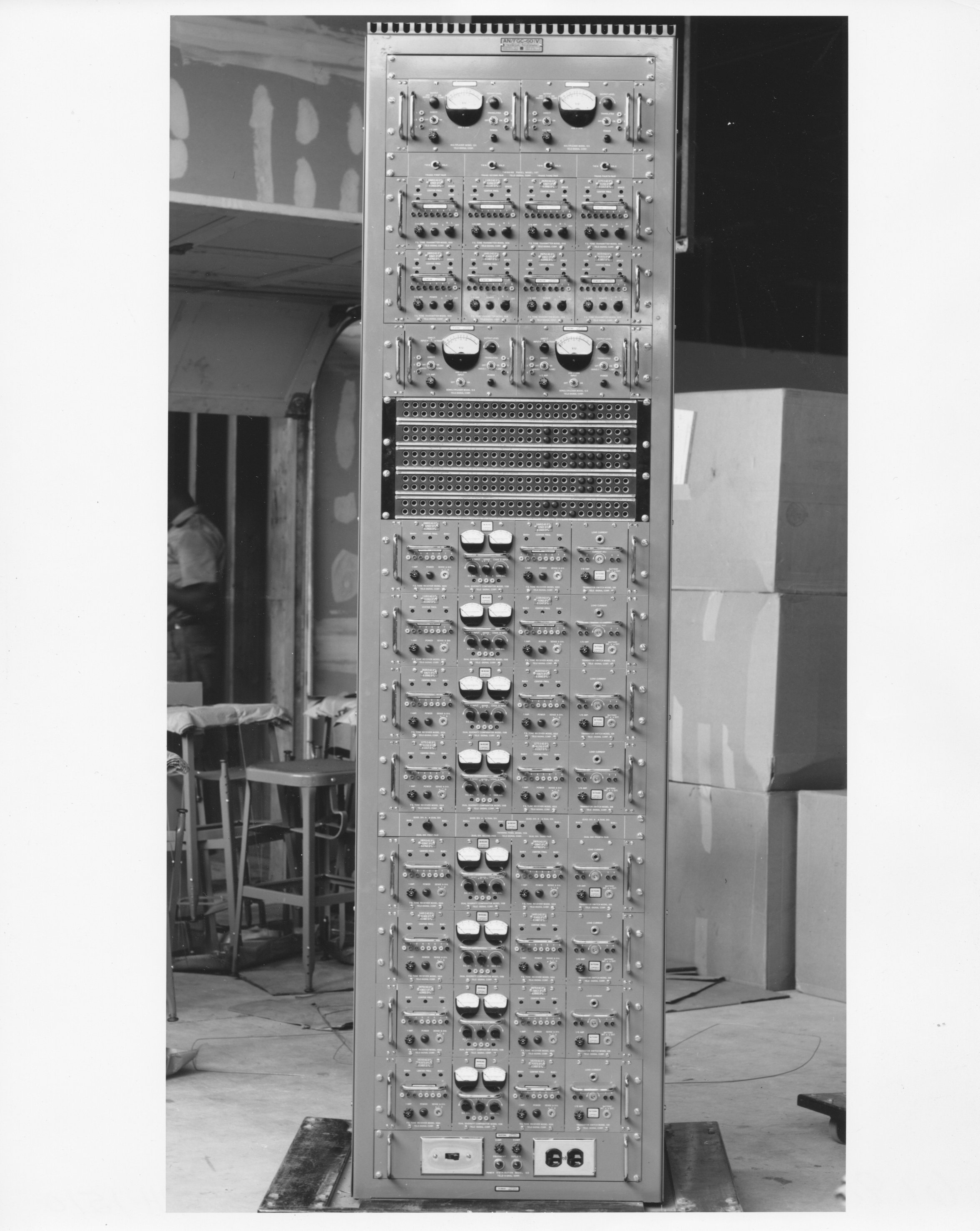

| TTS-3 |
 |
Tone Telegraph System |
SSB-5001 |
|
| TTU |
|
Tone Keyer, p/o TIS System |
SSB-167 |
|
| TTU-A |
|
Telephone Terminal Unit |
|
|
| TU(A)-3 |
|
Tunig unit automatic with MCU(
)-2 make up the ATS(A)-3 antenna tuning system. |
|
|
|
U |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| UMC-6 |
|
VHF/UHF Antenna Multicoupler |
|
|

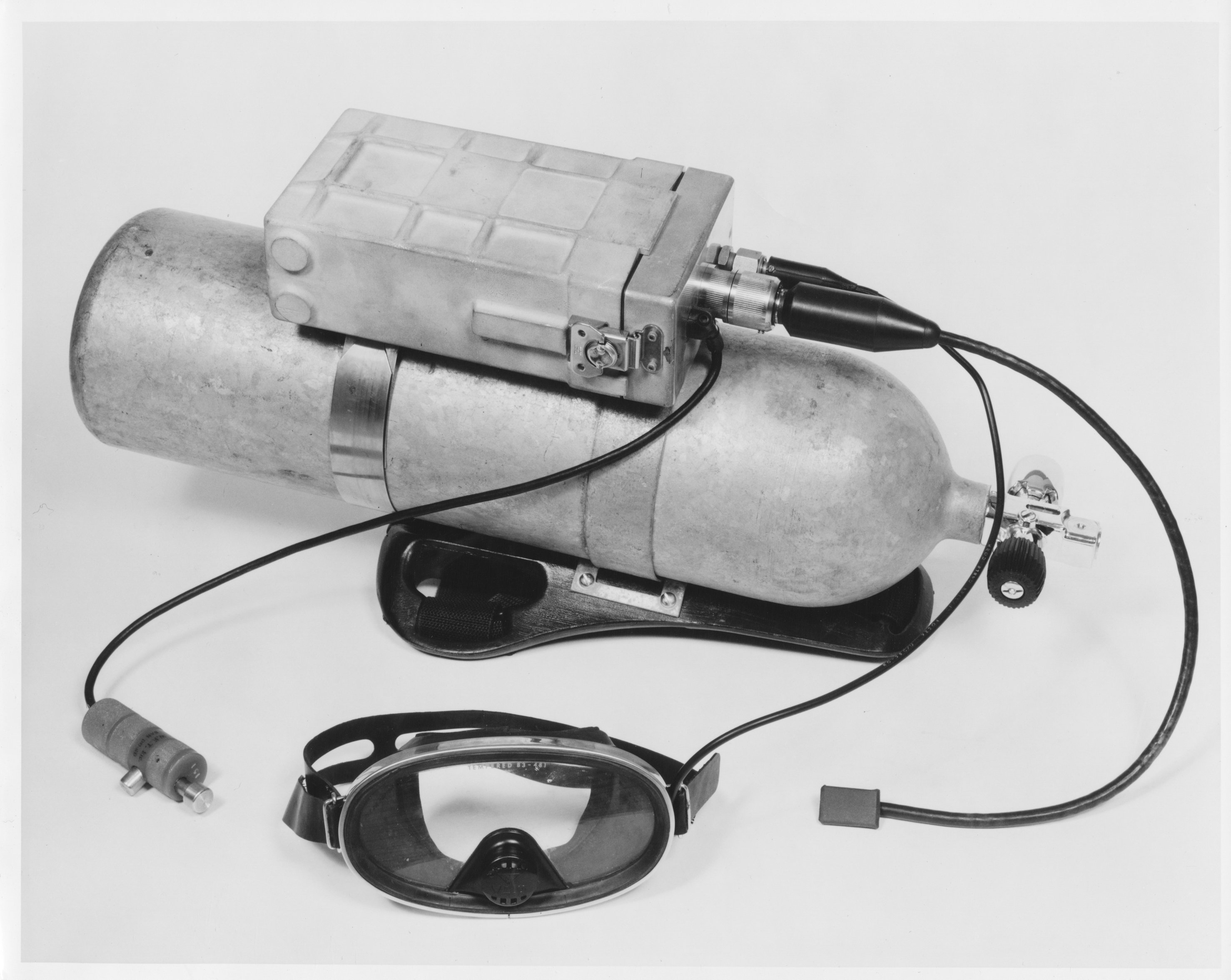

| UWT-1 |
 |
Under-water Communications System |
|
|
|
V |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| VAS-1 |
 |
Vertical Antenna System (used on
SYM-5203) |
|
|
| VHTA-300K |
|
VHF Transmitter, 300Kw available
power output. CW operation only. Special purpose Transmitter for H.
Geist |
|
|
| VHF Marine (6/8/71) |
|
155 MHz Transceiver 12 VDC or
110/230 VAC power. |
|
|
| VLBA-1 |
|
BFO Module. BFO
sub-assembly for use with 3 Kc IF strip |
|
|
| VLBB-1 |
|
BFO Module. BFO
sub-assembly for use with 30 K IF strip |
|
|
| VLFC-1 |
 |
Frequency comparison System |
|
|
| VLIA-1 |
|
IF Module, 3 Kc |
|
|
| VLIB-1 |
|
IF Module, 30 Kc |
|
|
| VLLA |
|
Linear Amplifier--driver for
GPT-10KLF |
|
|
| VLRA-1 |
 |
Very Low Frequency
Receiver. Fixed tuned receiver, p/o VLFC-1. Ten
channels--frequency 10 - 100 Kc |
TB-3008A |
|
| VLRA-1A (10/6/68) |
|
VLRA-1 with 1/12" PC
boards versus 1/8" boards of VLRA-1 |
|
|
| VLRB-1 |
 |
LF/MF Communications Receiver,
30-600 Kc continuous |
TB-3015 |
|
| VLRC-1 |
 |
LF Communications Receiver,
10-40Kc |
TB-3017A |
|
| VLRD-1FO |
|
FR Module. RF amplifier,
fixed tuned for use in range 10-540 Kc modules are factory fixed tuned,
provided with crystals if desired by customer. |
|
|
| VLRE-1 |
|
Fixed Tuned Receiver. For
410-500 Kc, equipped for use with RARB-1 remote channel selection RF gain
and BFO variable on analog basis. |
|
|
| VMC-8 (12/70) |
|
(Canada) VHF Antenna
Multicoupler (8 channel output) |
|
|

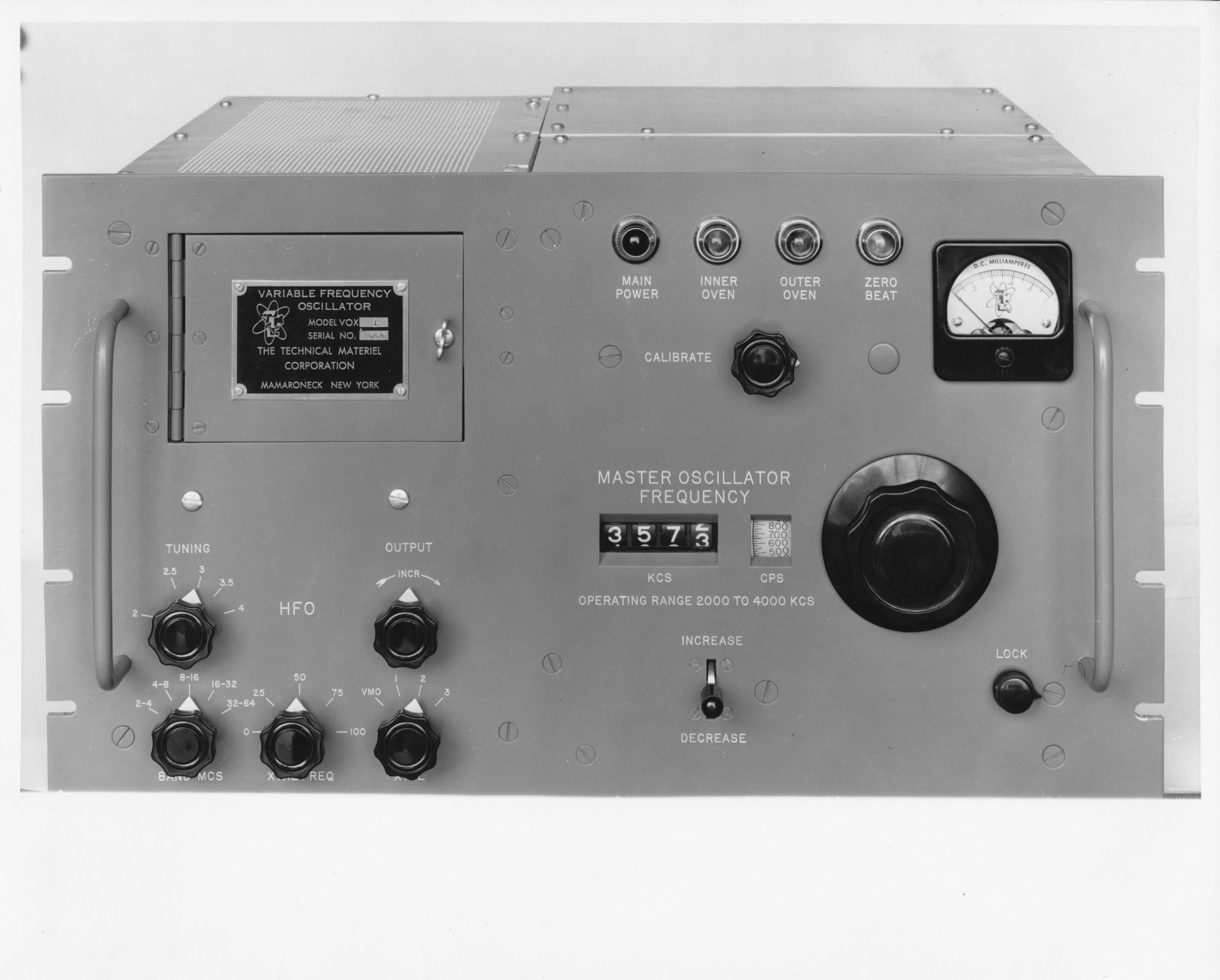

| VOX-1 |
 |
Variable Frequency Oscillator
(with motor drive assembly A-1005) |
SSB-134 |
O-330( )/FR |
| VOX-2 |
|
Variable Frequency Oscillator
(without motor drive assembly) |
SSB-134 |
O-330( )/FR |
| VOX-3 |
 |
Variable Frequency
Oscillator |
SSB-134 |
O-330( )/FR |
| VOX-4 |
|
Variable Frequency Oscillator
with motor drive assembly |
SSB-134 |
O-330( )/FR |

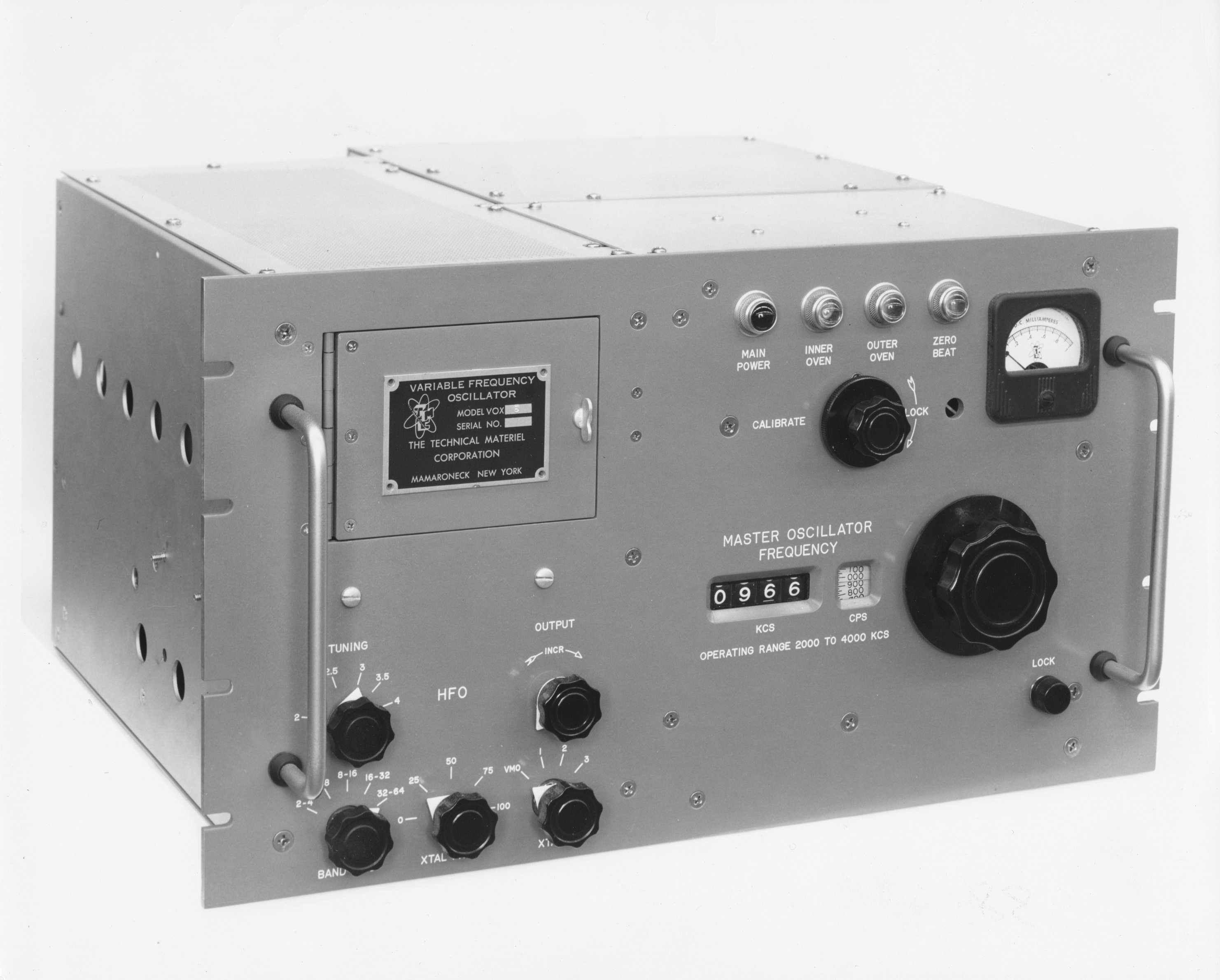

| VOX-5 |
 |
Variable Frequency
Oscillator |
TB-2018 |
|
| VOX-7 |
 |
Variable Frequency
Oscillator |
TB-2040 |
|
| VRA-1 |
 |
Vertical Receiving Antenna
200-800 Kc |
SSB-169 |
|
| VRA-2 |
Vertical Receiving Antenna 2-30
Mc |
SSB-169 |
|
| VRA-3 |
Vertical Receiving Antenna |
|
|
| VRA-4 |
Vertical Receiving Antenna |
|
|
| VRA-5 |
Vertical Receiving Antenna
200-800 Kc for use with 18' aluminum whip |
TB-8004 |
|
| VRA-5 |
Vertical Receiving Antenna 2-32
Mc |
TB-8004 |
|
| VRA-7 |
Vertical Receiving Antenna TR-160
mounted in standard VRA case, frequency range 3-15 Mc, for use with 35'
whip |
|
|
| VRA-8 |
Vertical Receiving Antenna
200-800 Kc, fiberglass 16' whip |
|
|
| VRA-9 |
Vertical Receiving Antenna 2-32
Mc, fiberglass 16' whip |
|
|
| VRA-10 |
Vertical Receiving Antenna 3-15
Mc, 32' whip |
|
|
| VRA-11 |
|
Vertical Receiving Antenna
(Canadian) 100 Kc to 30 Mc, Fiberglass AW-104 has module 222 whip |
|
|
| VRA-12 |
|
Vertical Receiving Antenna
(Canadian) 15-300 Kc Fiberglass whip. |
|
|
| VSM |
|
Frequency Shift Mopnitor.
7"H x 19"W x 15"D. 35# installed weight |
SSB-141 |
|
| VTG |
|
Variable Tone Generator.
Audio oscillator 200-2000 cps |
SSB-153 |
|
| VTR |
|
Radio Receiver, 0.54 - 54 Mc |
SSB-175 |
|
|
W |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |

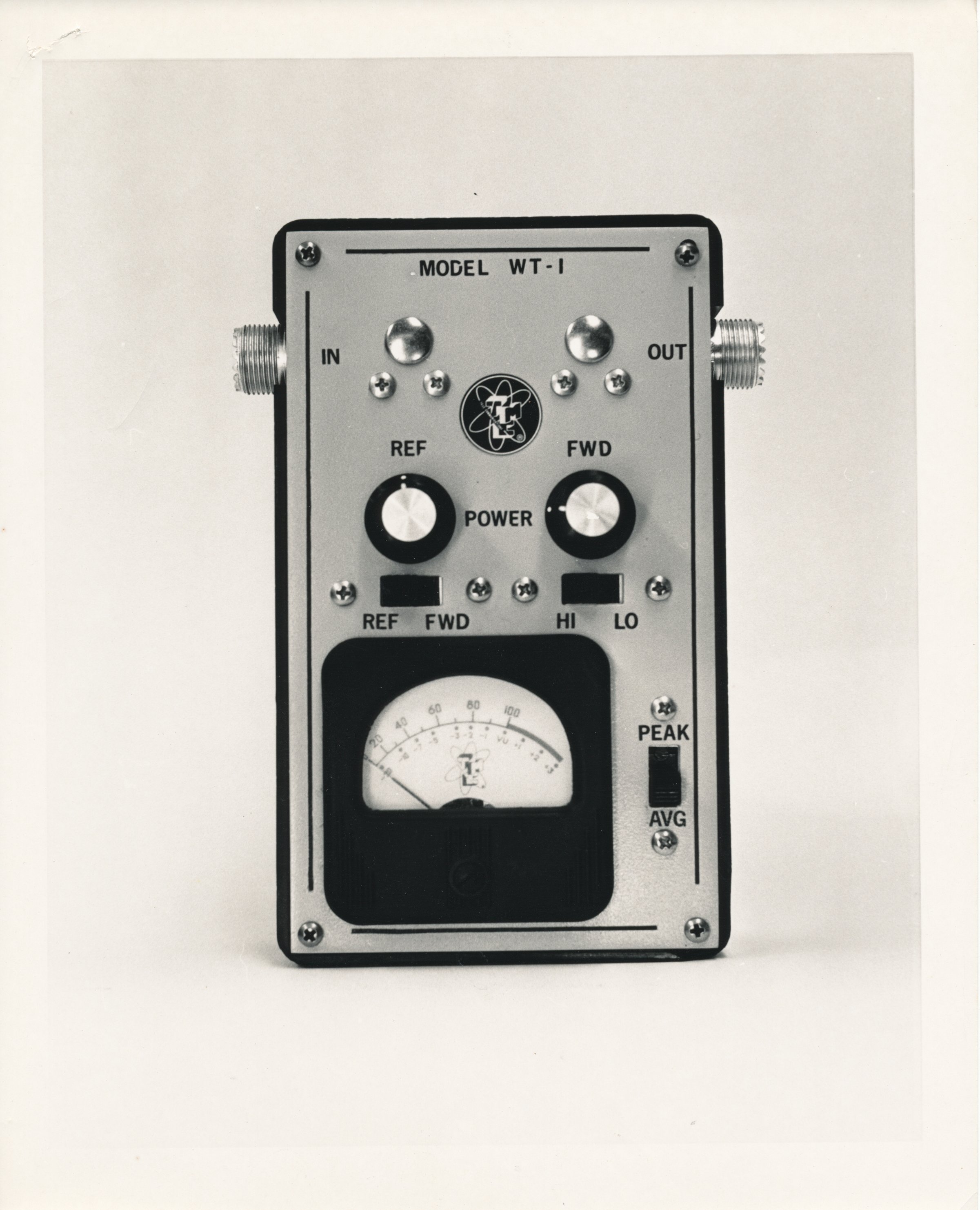

| WT-1 |
 |
Wattmeter--Indicates forward and
reflected power |
|
|
|
X |
| Model |
|
Description |
TB or SSB No. |
Mil Nomenclature |
| XFD-1 |
|
Facsimile Demodulator |
SSB-157 |
|
| XFK |
 |
Frequency Shift Converter |
SSB-118 |
|
| XFK-2 |
|
Frequency Shift Converter |
TB-2020 |
|
| XFL |
|
Low Frequency Shift Keyer |
SSB-135 |
|
| XFL-2 |
|
Low Frequency Shift Exciter
System |
TB-2021 |
|
| XFR |
|
Telegraph Receiver Carrier |
SSB-146 |
|
| XFT |
|
Six Channel Tone Keyer, Frequency
Shift Tone Keyer |
SSB-123 |
|
| XTE |
|
Transmitter Exciter |
SSB-139 |
|
| XVC |
|
Carrier Telegraph System,
provides for transmission of teletype or keyed information via microwave. |
SSB-146 |
|
